Toyota COROLLA 车顶内衬和消声垫 — Figure 6402

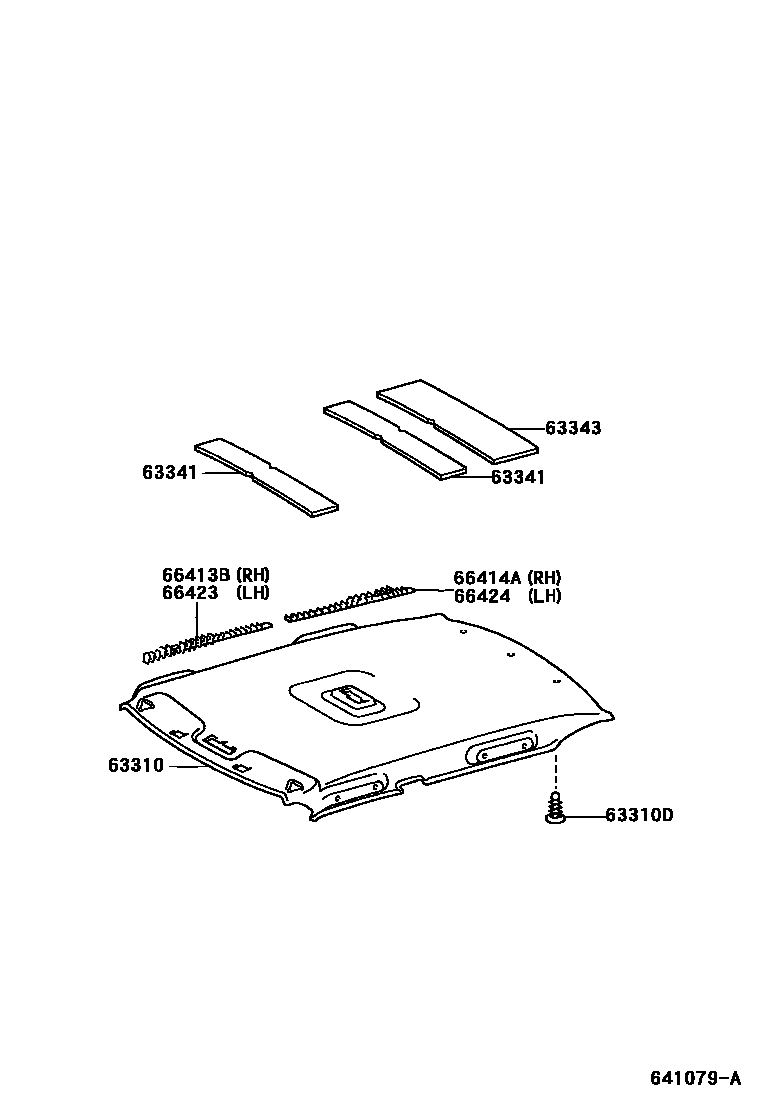

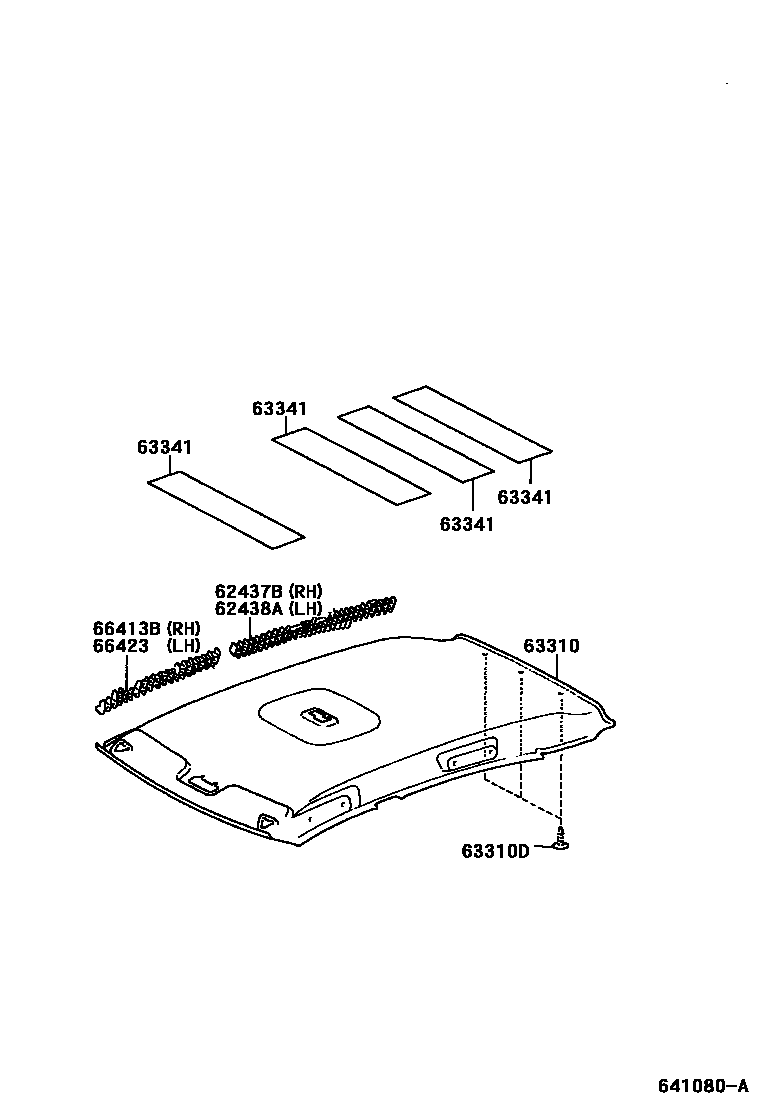

Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62437B | Right rear roof rail pad | 62437-13010 |
| 62438A | Left rear roof rail pad | 62438-13010 |
| 63341 | No. 1 roof silencer mat | 63341-02080 |
| 63343 | No. 3 roof muffler pad | 63343-02060 |
| 66413B | Right front longitudinal member spacer | 66413-12010 |
| 66414A | Right rear longitudinal member spacer | 66414-12030 |
| 66423 | Left front longitudinal member spacer | 66423-12010 |
| 66424 | Left rear longitudinal member spacer | 66424-12030 |
