Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401

Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 2 images and 7 PNC and OE references.

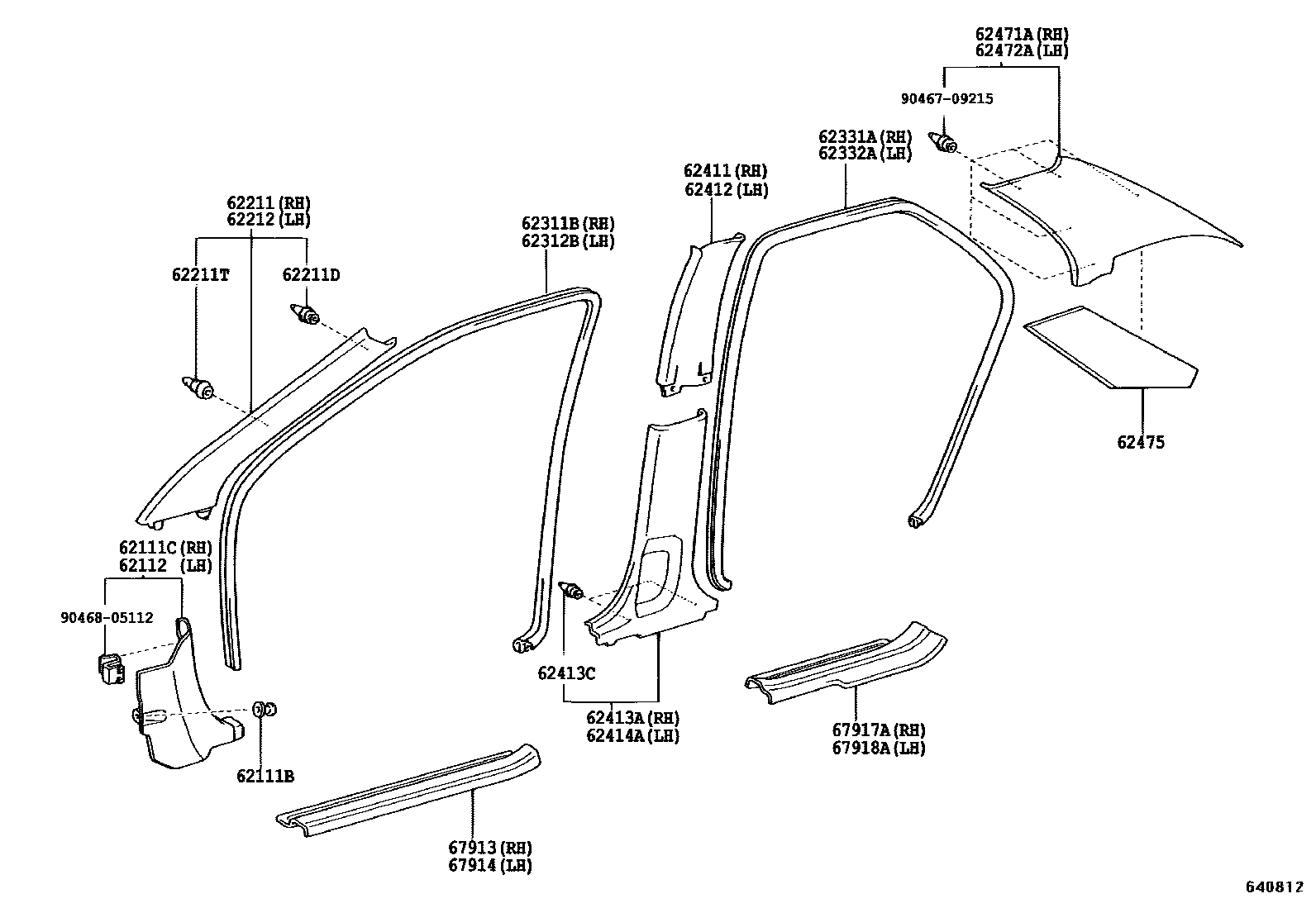

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — 640812
内饰板和车门防水胶条 — 640812 (200208 – 200707)

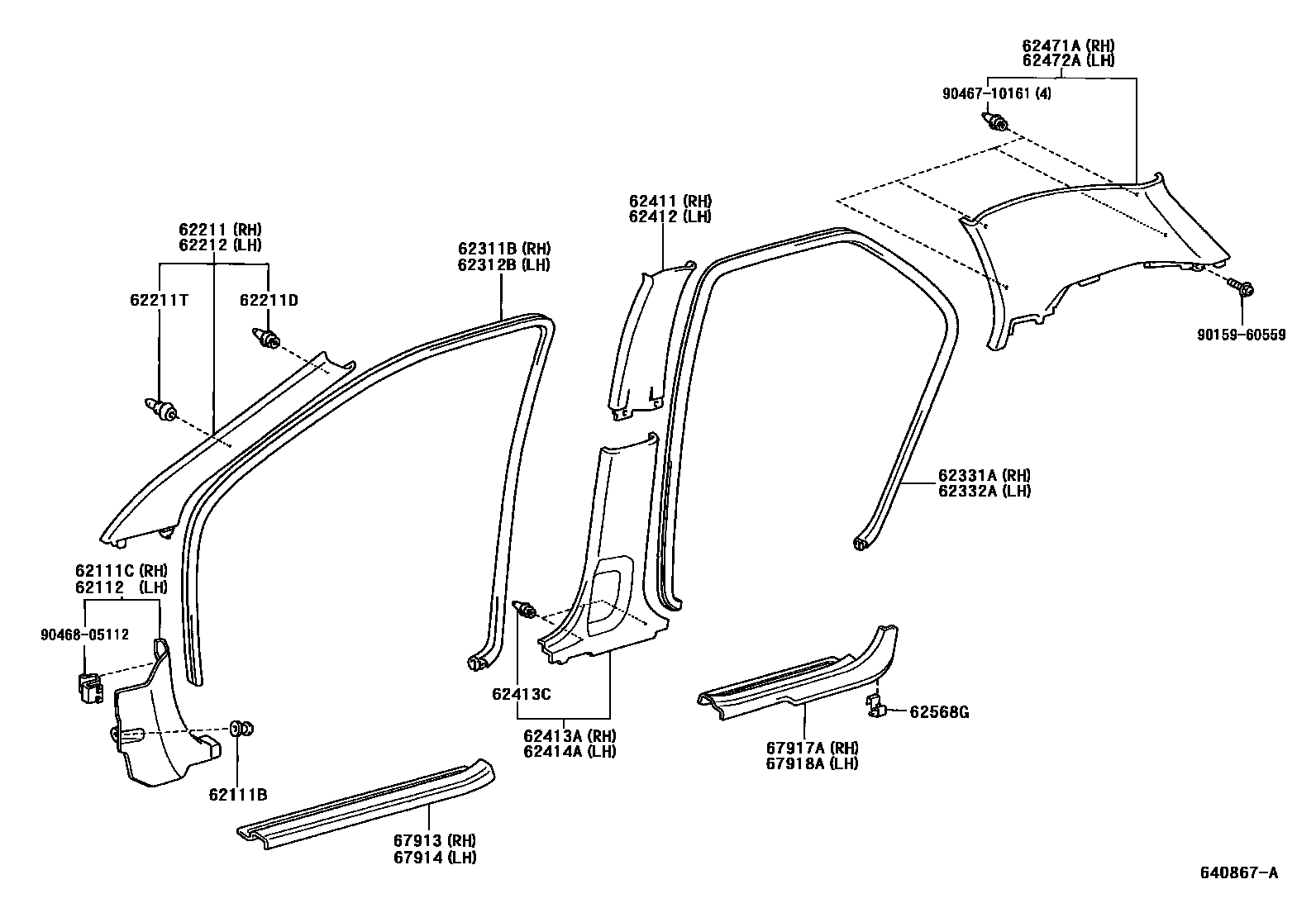

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — 640867A
内饰板和车门防水胶条 — 640867A (200210 – 200707)

PNC and OE references

PNCPart nameOE numbers
62111BClip (for cowl side trim panel)90467-06120
62211DClip (for body front pillar decorative panel)90467-10188
62211TClip (for front pillar decorative panel)90467-10192
62312BLeft front door opening waterproof tape62312-12091
62413CClip (for the decorative panel under the center pillar)90467-09215
62475Roof side interior trim panel lining62475-02080
62568GNo. 3 door inner sill protection strip clip62568-13030
