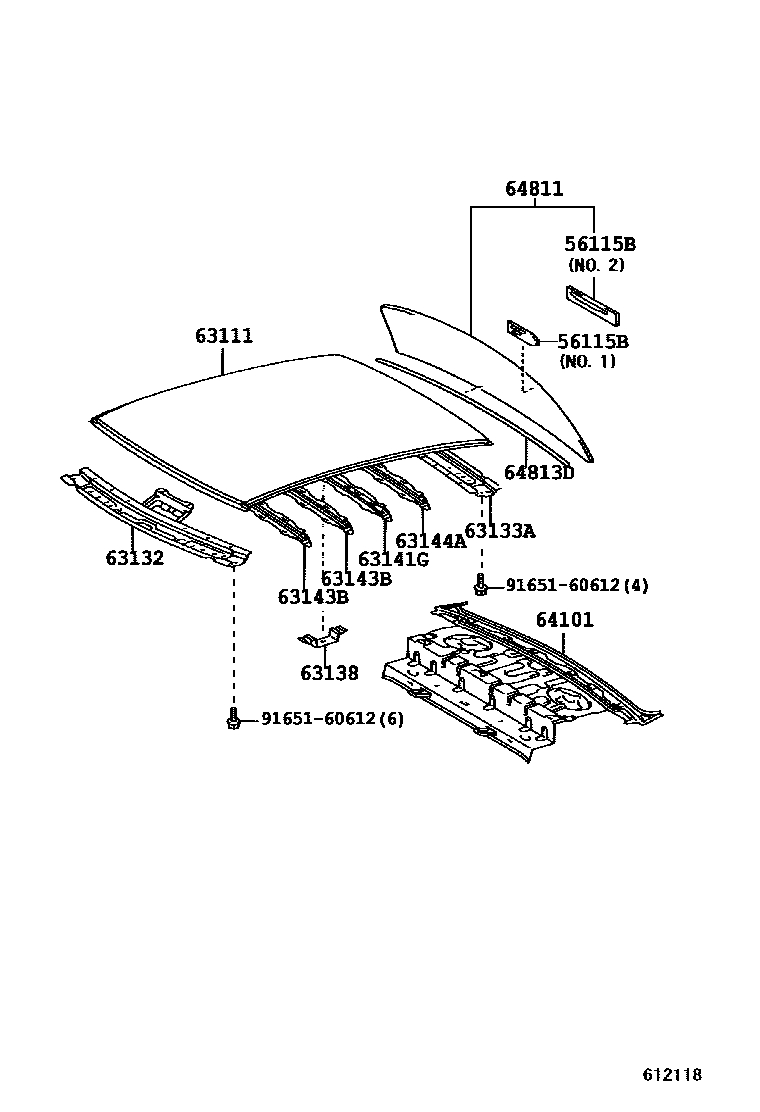

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30100 · 56116-22050 |
| 63105A | Back door opening frame sub-assembly | 63105-12260 |
| 63111 | roof panel | 63111-02110 · 63111-12760 · 63111-12810 |
| 63126B | No. 2 rear roof panel reinforcement | 63126-13010 |
| 63132 | Windshield inner roof panel | 63102-12170 |
| 63133A | upper frame of back window | 63133-12290 |
| 63138 | No. 2 ceiling light bracket | 63138-12011 |
| 63141G | No. 1 roof panel reinforcement | 63141-12260 · 63141-13080 |
| 63143B | No. 3 roof panel reinforcement | 63143-12100 |
| 63144A | No. 4 roof panel reinforcement | 63144-12080 · 63144-13030 |
| 63148A | No. 7 roof panel reinforcement | 63148-13030 |
| 64101 | Upper back panel sub-assembly | 64101-12700 · 64101-12810 |
| 64811 | back window glass | 64811-02220 · 64811-02260 |
| 64813D | Back window glass adhesive seal | 56117-47010 |
