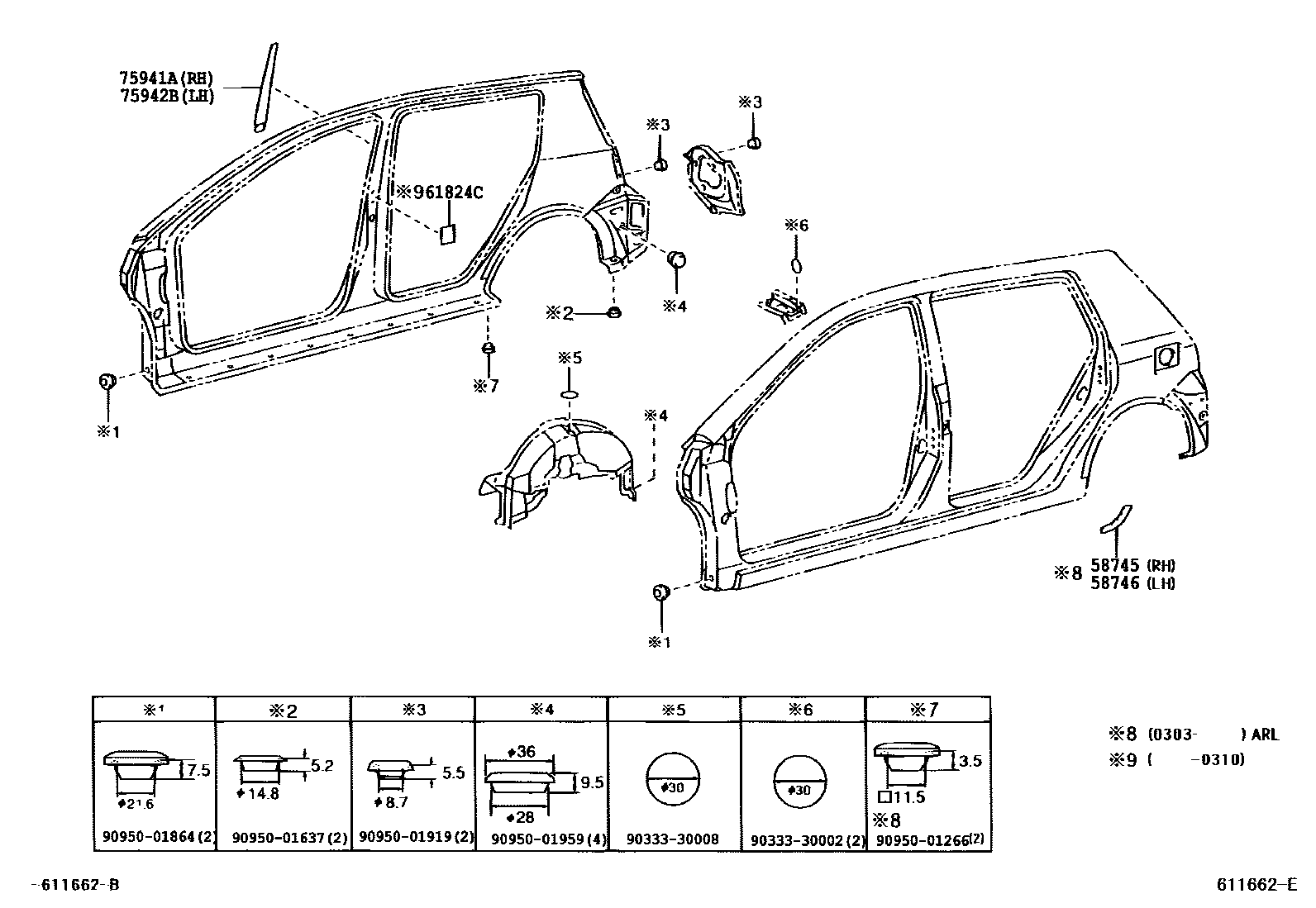

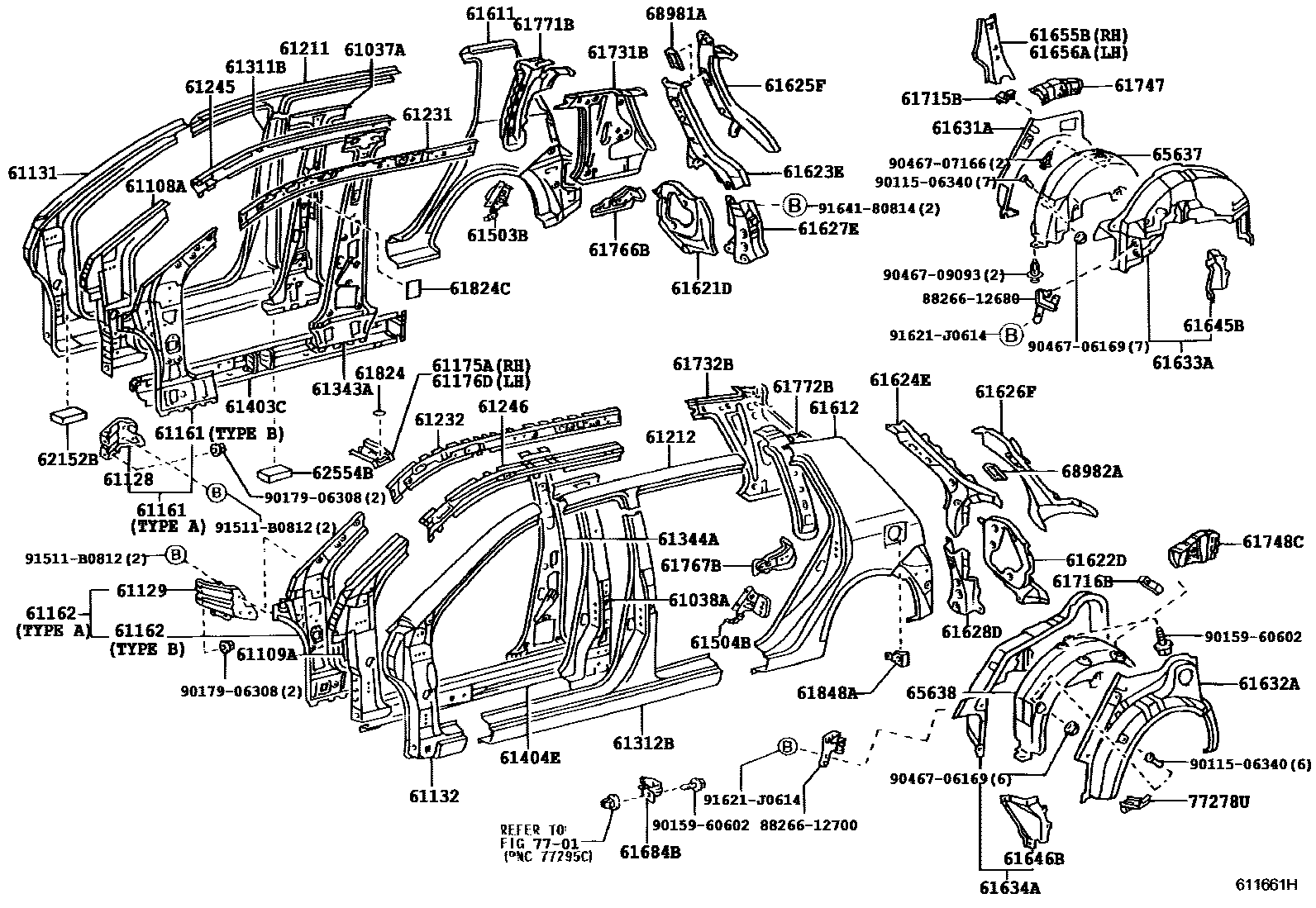

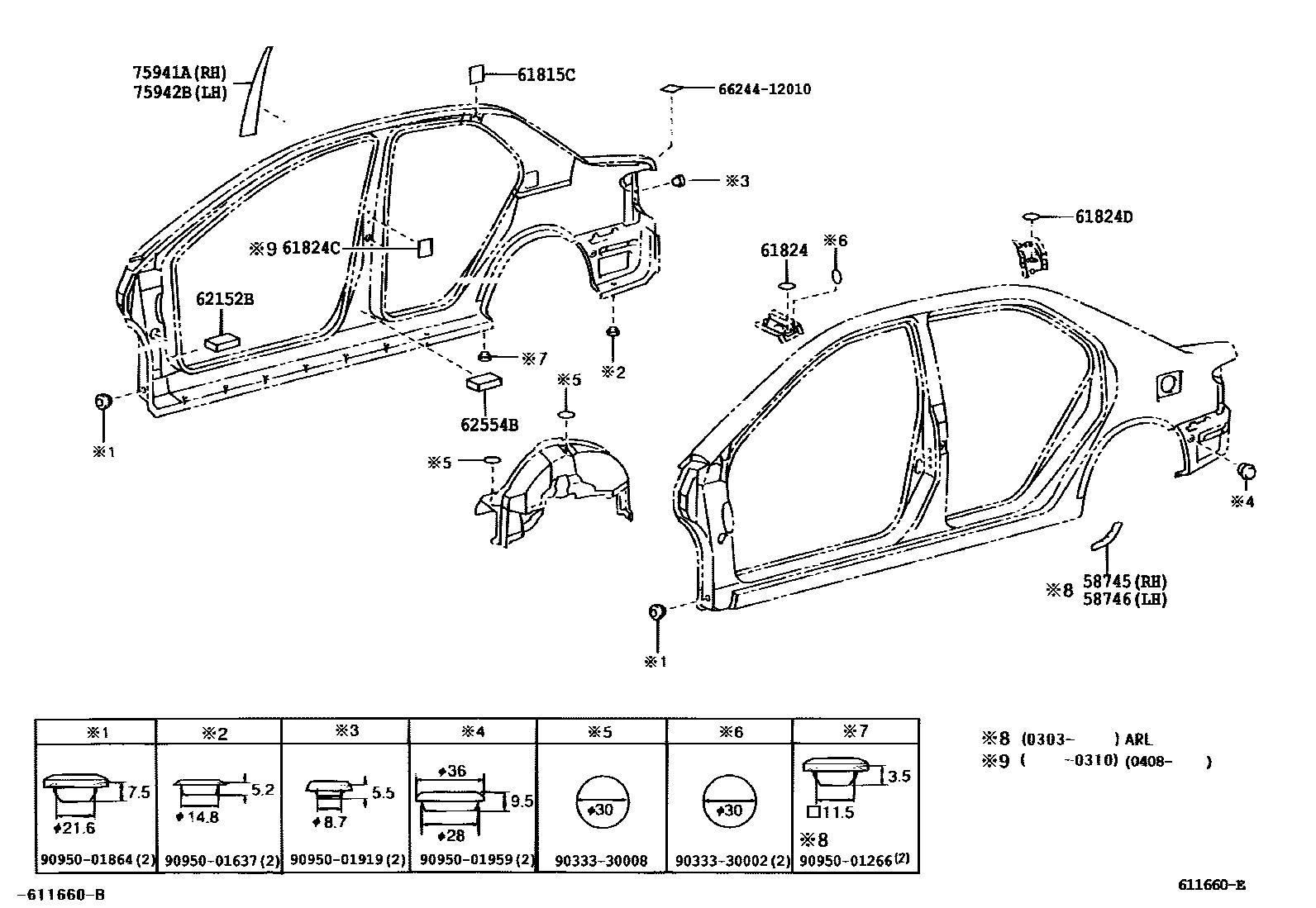

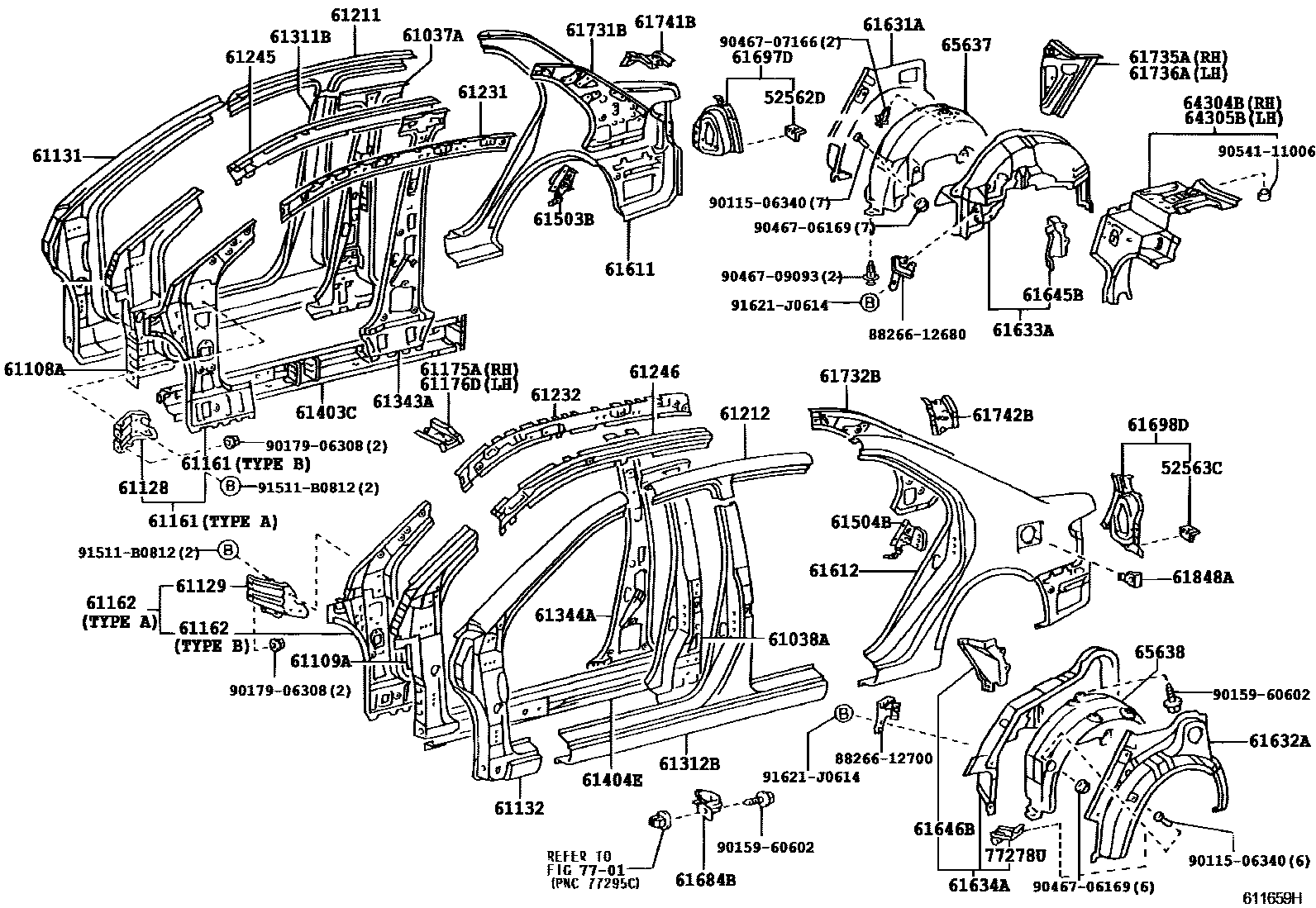

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 4 images and 81 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52562D | Rear bumper upper right side fixing bracket | 52562-12070 |
| 52563C | Rear bumper upper left side fixing bracket | 52562-12070 |
| 58745 | Right front side panel protector | 58741-12160 |
| 58746 | Left front side panel protector | 58742-12140 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-12906 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-12906 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-12230 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-12220 |
| 61128 | Right front wall side panel reinforcement | 61103-12190 · 61103-12200 |
| 61129 | Left front wall side panel reinforcement | 61104-12220 · 61104-12230 |
| 61131 | Right body outer front upper pillar | 61131-12700 · 61131-12710 · 61131-12720 |
| 61132 | Left body outer front upper pillar | 61132-12690 · 61132-12710 |
| 61161 | Right upper body inner front pillar | 61023-02901 · 61023-12300 |
| 61162 | Left side inner front upper pillar | 61024-02901 · 61024-12300 |
| 61175A | No. 2 right outer front pillar upper reinforcement | 61175-12180 |
| 61176D | No. 2 left body exterior front pillar reinforcement | 61176-12190 |
| 61211 | Roof right outer longitudinal beam | 61211-12450 · 61211-12470 |
| 61212 | Roof left outer longitudinal beam | 61212-12450 · 61212-12470 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-13221 · 61231-1A140 |
| 61232 | Roof left inner longitudinal beam | 61232-13201 · 61232-1A020 |
| 61245 | Roof right outer longitudinal beam reinforcement | 61245-12060 · 61245-13050 |
| 61246 | Roof left outer longitudinal beam reinforcement | 61246-12060 · 61246-13050 |
| 61311B | Right body outer center pillar | 61311-12380 · 61311-12390 |
| 61312B | Left body outer center pillar | 61312-12420 · 61312-12430 |
| 61343A | Right body inner center pillar | 61343-12190 |
| 61344A | Left body inner center pillar | 61344-12190 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-12010 · 61403-12050 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-12011 |
| 61503B | Right side locking column reinforcement sub-assembly | 61503-13030 |
| 61504B | Left side locking column reinforcement sub-assembly | 61504-13030 |
| 61611 | Right side hoarding | 61601-1H180 · 61611-1E240 |
| 61612 | left side panel | 61602-1H020 · 61612-1E310 |
| 61621D | Back door right opening slot | 61621-12490 · 61621-12491 |
| 61622D | Rear door left opening slot | 61622-12490 · 61622-12491 |
| 61623E | Right rear side panel inner panel extension | 61623-12100 |
| 61624E | Left rear side panel inner panel extension | 61624-12110 |
| 61625F | Extension on right side panel | 61625-12110 |
| 61626F | Extension on left side panel | 61626-12120 |
| 61627E | Right rear side panel lower extension | 61627-02050 · 61627-13010 |
| 61628D | Left rear side panel lower extension | 61628-02050 · 61628-13010 |
| 61631A | Right wheel cover outer panel | 61631-12400 |
| 61632A | Left side wheel cover outer panel | 61632-12420 |
| 61633A | Right wheel housing lining panel | 61607-12923 · 61607-12924 · 61607-12927 · 61607-12936 · 61607-12947 · 61607-1A900 · 61607-1A901 · 61607-1A902 · 61607-1A904 |
| 61634A | Left side wheel housing lining panel | 61608-12925 · 61608-1A900 · 61608-1A901 · 61608-1A902 · 61608-1A903 · 61608-1A905 · 61608-1A907 · 61608-1A908 · 61608-1A917 · 61608-1A918 |
| 61645B | Right rear side wheel housing corner panel | 61645-12150 |
| 61646B | Left rear side wheel housing corner panel | 61646-12140 |
| 61655B | Right side wheel cover inner corner panel | 61655-13030 |
| 61656A | Left side wheel housing inner corner panel | 61656-13030 · 61656-13031 |
| 61684B | No. 1 left rear fender external panel bracket | 61684-12040 |
| 61697D | Right side enclosure end cover | 61697-12901 |
| 61698D | Left side enclosure end cover | 61698-12901 |
| 61715B | Right front roof inner extension | 61715-13050 |
| 61716B | Left front roof inner extension | 61715-13050 |
| 61731B | Roof right inner panel | 61731-02050 · 61731-12680 · 61731-12740 |
| 61732B | Roof left inner panel | 61732-12640 · 61732-12700 · 61732-12710 |
| 61735A | Right rear roof inner panel | 61735-12380 |
| 61736A | Left rear roof inner panel | 61736-12370 · 61736-12380 |
| 61741B | Rear window opening right reinforcement | 61741-12140 |
| 61742B | Rear window opening left reinforcement | 61742-12110 |
| 61747 | Roof right inner panel to wheel housing bracket | 61747-13060 |
| 61748C | Roof left inner panel to wheel arch bracket | 61748-13090 |
| 61766B | Right seat belt anchor to roof inner reinforcement | 61766-13080 |
| 61767B | Left-hand seat belt anchor to roof inner reinforcement | 61767-13070 |
| 61771B | Opening frame on the upper right corner of the back door | 61771-12060 |
| 61772B | Opening frame at the upper left corner of the back door | 61772-12060 |
| 61815C | Inner roof cover | 61815-28010 · 61815-32020 |
| 61824 | Noise Control Panel No. 1 | 61824-12040 · 61824-12060 |
| 61824C | No. 1 silencer panel gasket | 61824-50020 · 61824-52040 |
| 61824D | Noise Control Panel No. 1 | 61824-12040 · 61824-12060 |
| 61848A | Left side panel fixing | 61848-52010 |
| 62152B | No. 2 silencer pad on cowl side | 62152-12050 |
| 62554B | No. 4 column pad | 62554-12180 |
| 64304B | Glove box bracket right reinforcement sub-assembly | 64304-12040 |
| 64305B | Glove box bracket left reinforcement sub-assembly | 64305-12040 |
| 65637 | Right rear wheel house lining | 65637-02030 |
| 65638 | Left rear wheel house lining | 65638-02030 |
| 68981A | Back door right side support rod fixing | 68981-13040 |
| 68982A | Back door left support rod fixing | 68981-13040 |
| 75941A | Right center pillar trim | 75941-02020 |
| 75942B | Left center pillar trim | 75942-02020 |
| 77278U | Fuel tank filler pipe protection device bracket | 77278-32050 |
