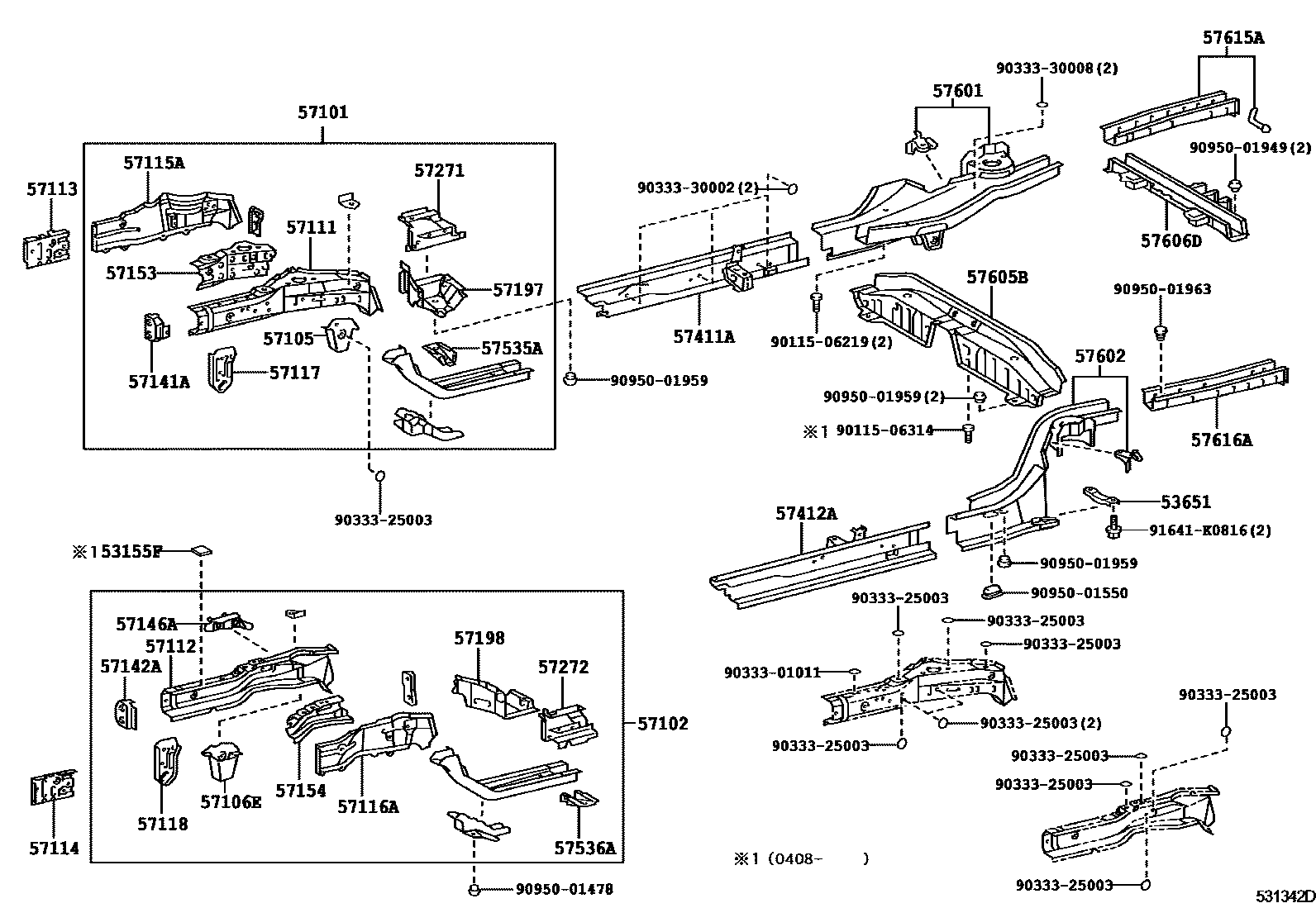

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 1 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53155F | Front longitudinal beam seal | 53155-13020 |
| 53651 | Rear floor longitudinal beam bracket | 53651-32010 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-12A40 · 57101-12A60 · 57101-1A240 · 57101-1A300 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-12A40 · 57102-12A50 · 57102-1A270 · 57102-1A280 |
| 57105 | Right front suspension cross member front mounting bracket sub-assembly | 57105-12140 |
| 57106E | Left front suspension cross member front mounting bracket sub-assembly | 57106-12130 |
| 57111 | Right front longitudinal beam | 57111-12250 |
| 57112 | Left front longitudinal beam | 57112-12170 |
| 57113 | Right front longitudinal beam extension | 57113-12190 |
| 57114 | Left front longitudinal beam extension | 57114-02060 · 57114-12160 |
| 57115A | Right front longitudinal beam outer panel | 57115-12080 |
| 57116A | Left front longitudinal beam outer panel | 57116-12080 |
| 57117 | Right front longitudinal beam front plate sub-assembly | 57117-12130 |
| 57118 | Left front longitudinal beam front plate sub-assembly | 57118-12130 |
| 57141A | Front bumper arm right bracket | 57141-12050 · 57141-12080 |
| 57142A | Front bumper arm left bracket | 57142-12060 · 57142-12090 |
| 57146A | Left front longitudinal beam rear reinforcement | 57146-12020 |
| 57153 | No. 2 right front longitudinal beam reinforcement | 57016-12080 |
| 57154 | No. 2 left front longitudinal beam reinforcement | 57017-12060 |
| 57197 | Right front torsion box section piece | 57197-12030 |
| 57198 | Left front anti-torsion box section piece | 57198-12030 |
| 57271 | Steering housing support beam right extension | 57271-12090 |
| 57272 | Steering casing support beam left extension | 57272-12090 |
| 57411A | Floor right inner longitudinal beam | 57401-12570 |
| 57412A | Floor left inner longitudinal beam | 57402-12570 |
| 57535A | Front floor right bracket | 57535-13010 |
| 57536A | Front floor left bracket | 57536-13010 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-13910 · 57601-13911 · 57601-1A909 · 57601-1A910 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-13908 · 57602-13909 · 57602-1A909 · 57602-1A910 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-12230 |
| 57606D | Rear shock absorber mounting beam sub-assembly | 57606-02060 · 57606-13180 |
| 57615A | Rear floor right rear longitudinal member | 57615-12908 · 57615-13912 |
| 57616A | Rear floor left rear longitudinal member | 57616-12911 · 57616-13909 |
