VOCR EPC

Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 3 images and 3 PNC and OE references.

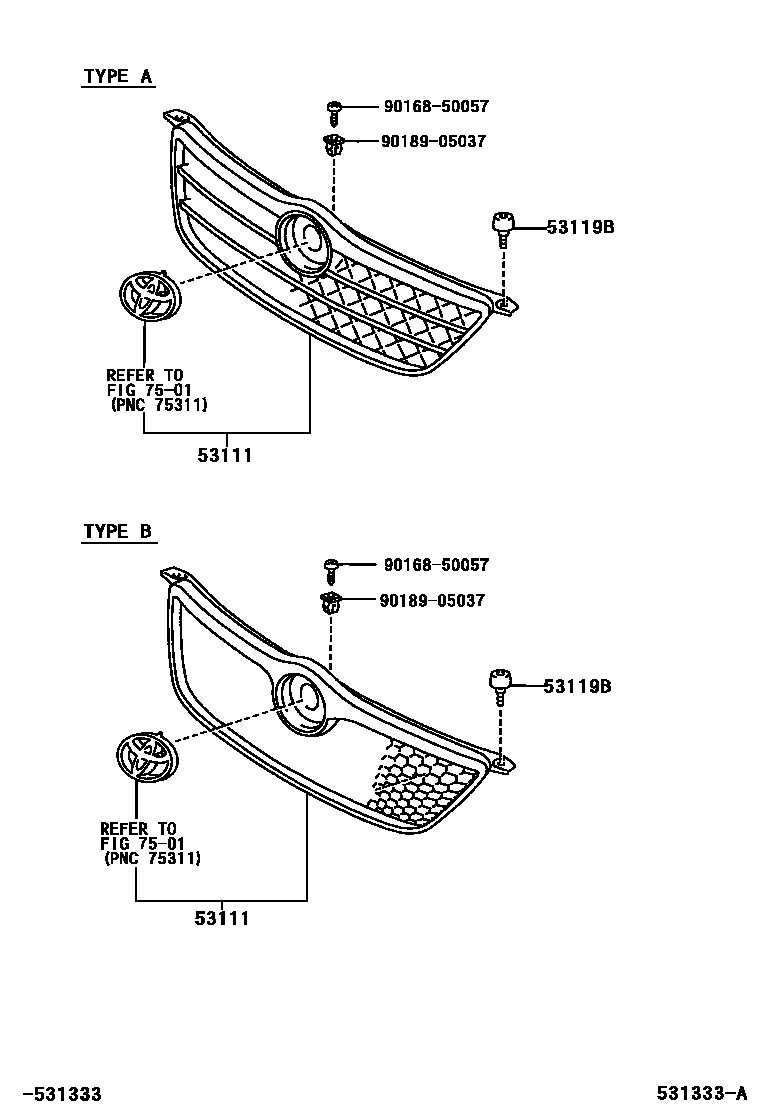

Toyota COROLLA radiator grille EPC diagram — 531333A
radiator grille — 531333A (200208 – 200408)

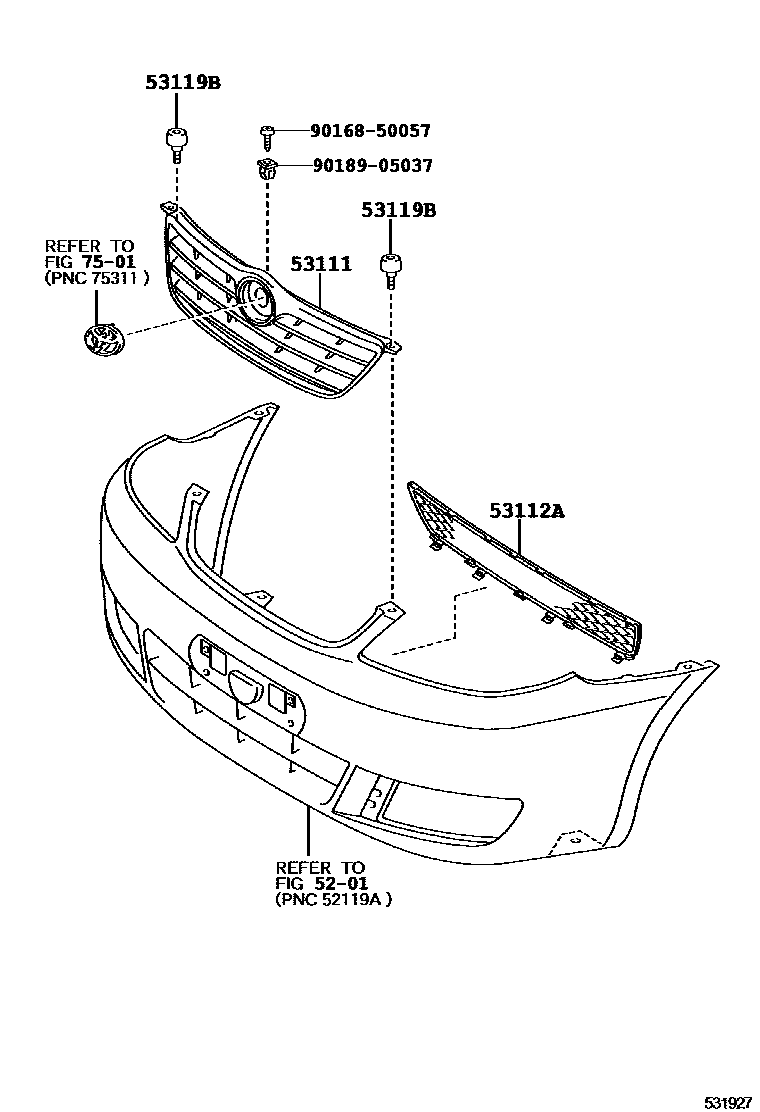

Toyota COROLLA radiator grille EPC diagram — 531927
radiator grille — 531927 (200408 – 999999)

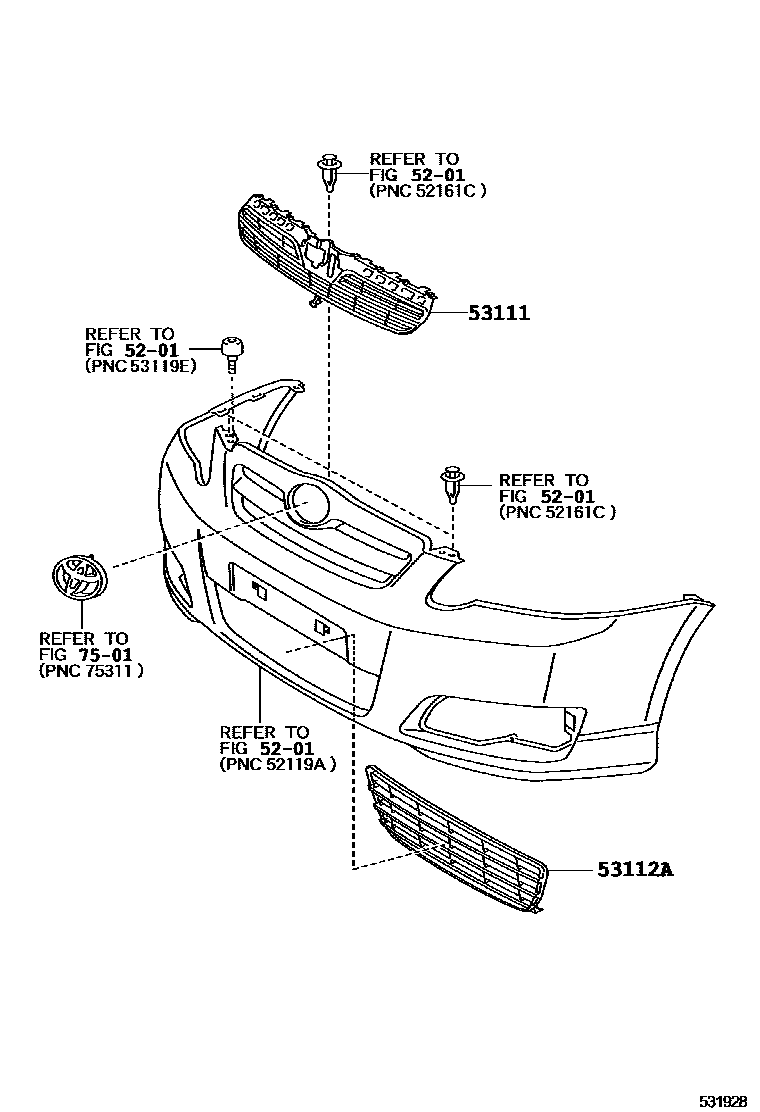

Toyota COROLLA radiator grille EPC diagram — 531928
radiator grille — 531928 (200408 – 999999)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53100-02050 · 53100-02060 · 53100-02902 · 53111-02250 · 53111-13290
53112ALower radiator grille53112-02050 · 53112-13010
53119BRadiator grille protector53119-12150
