Toyota COROLLA 前保险杠及附件 — Figure 5201

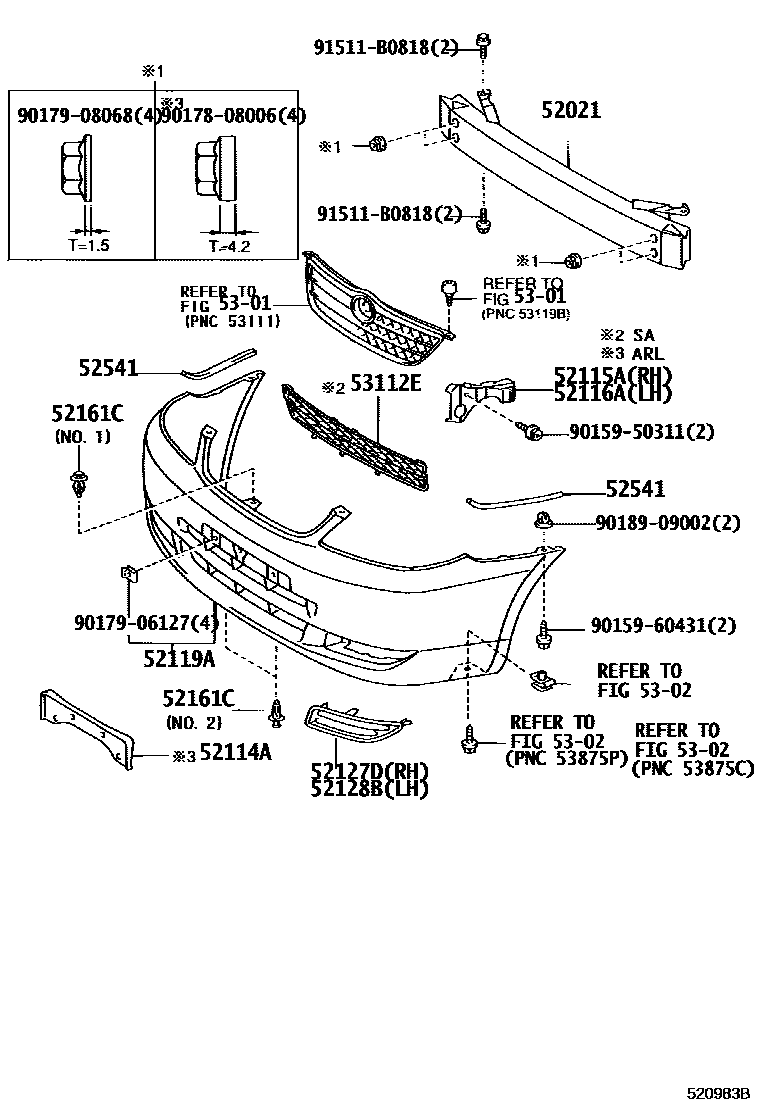

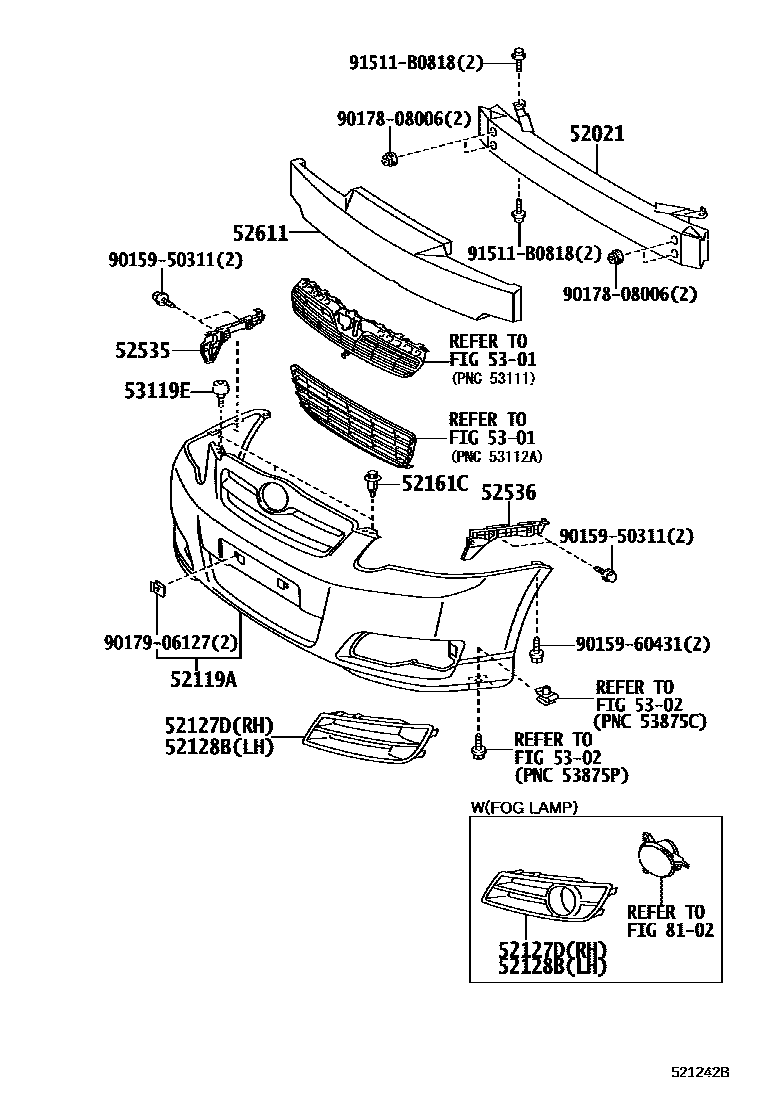

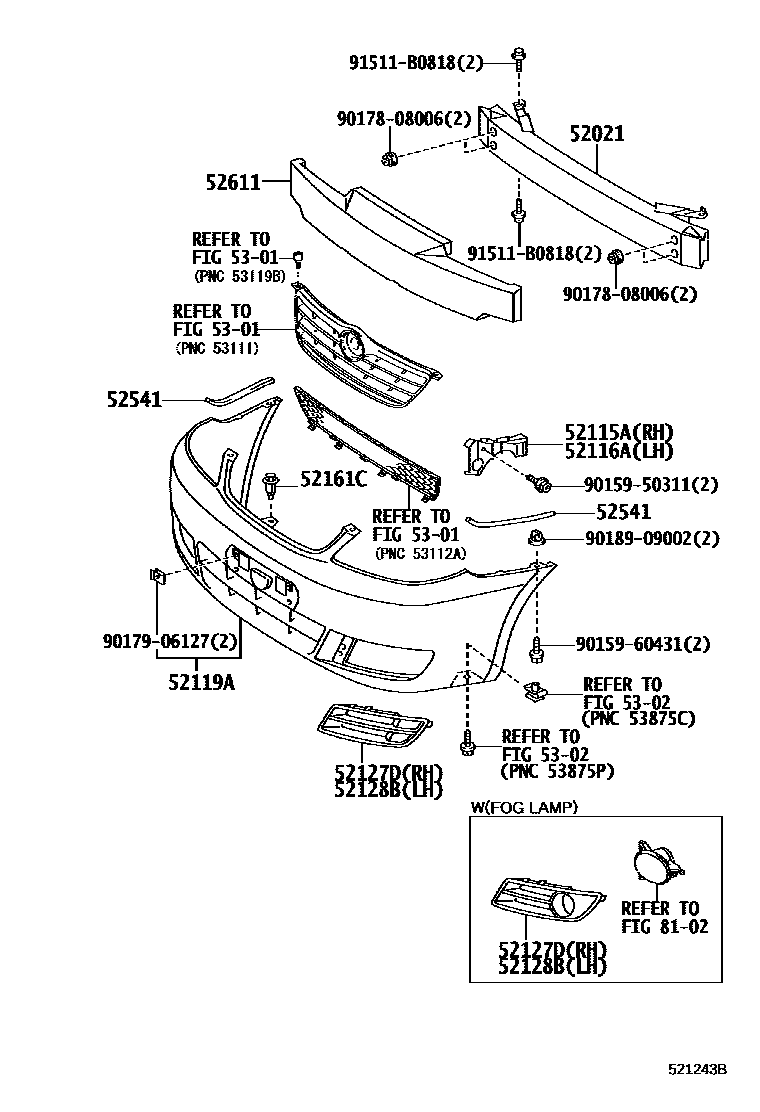

Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-12200 · 52021-12220 |
| 52114A | Front bumper extension mounting bracket | 52114-02020 |
| 52115A | Front bumper right side bracket | 52115-12380 |
| 52116A | Front bumper left bracket | 52116-12340 |
| 52119A | front bumper cover | 52119-02340 · 52119-02948 · 52119-02949 |
| 52127D | Front bumper right hole cover | 52127-02120 · 52127-02130 · 52127-12150 · 52127-12170 · 52127-12200 |
| 52128B | Front bumper left hole cover | 52128-02110 · 52128-02130 · 52128-12070 · 52128-12090 · 52128-12100 |
| 52161C | front bumper insert | 52161-16010 · 90467-09093 |
| 52535 | Front bumper right side fixing bracket | 52535-13040 |
| 52536 | Front bumper left fixed bracket | 52536-13020 |
| 52541 | front bumper protector | 52541-12020 |
| 52611 | front bumper energy absorber | 52611-12170 |
| 53112E | No. 1 radiator lower grille | 53112-12110 |
| 53119E | Radiator grille protector | 53119-12150 |
