Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102

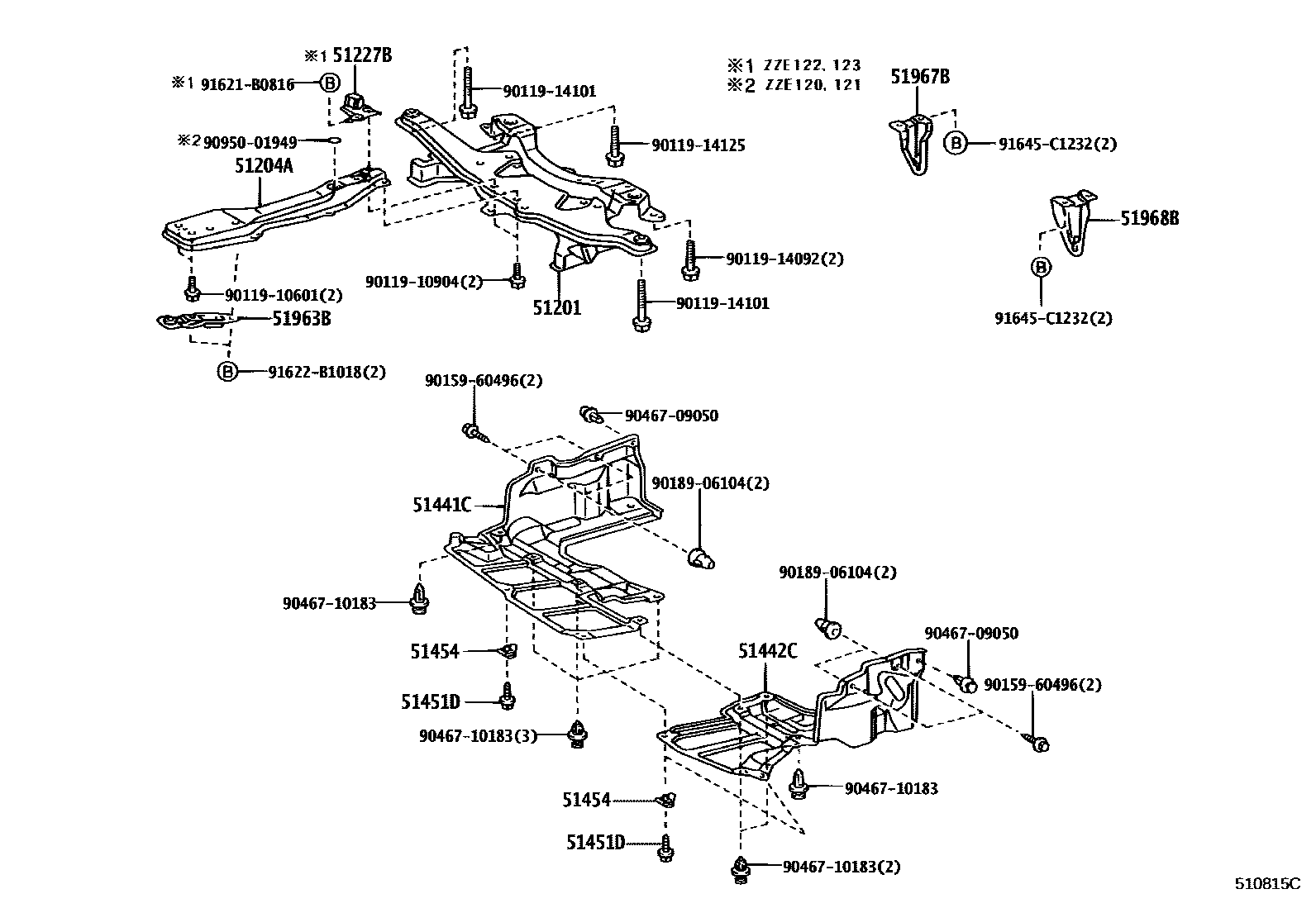

Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-12430 · 51201-12431 |
| 51204A | Engine center mount beam sub-assembly | 51204-12130 · 51204-12150 |
| 51227B | Front suspension beam dynamic damper | 51227-12080 · 51227-12081 |
| 51441C | Engine right bottom cover | 51410-02030 · 51410-02100 · 51441-02050 · 51441-02200 |
| 51442C | Engine left bottom cover | 51420-02030 · 51420-02070 · 51442-02070 · 51442-02080 · 51442-02280 · 51442-02290 |
| 51451D | Screw No. 1 | 90159-60488 |
| 51454 | clip | 90467-05138 |
| 51963B | Right front transport hook | 51960-02050 · 51963-12240 |
| 51967B | right rear transport hook | 51967-02030 |
| 51968B | Left rear transport hook | 51968-02040 · 51968-02050 |
