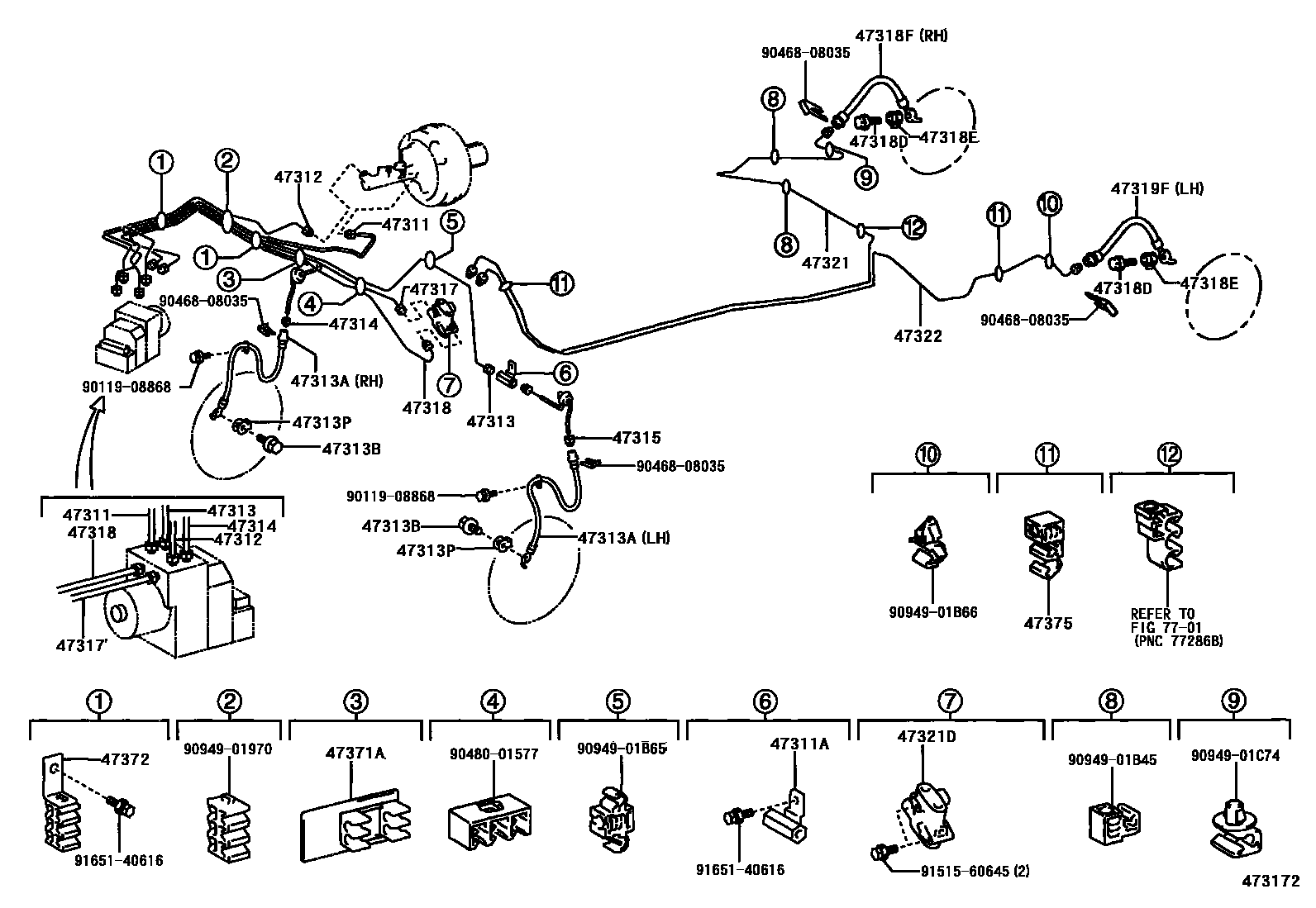

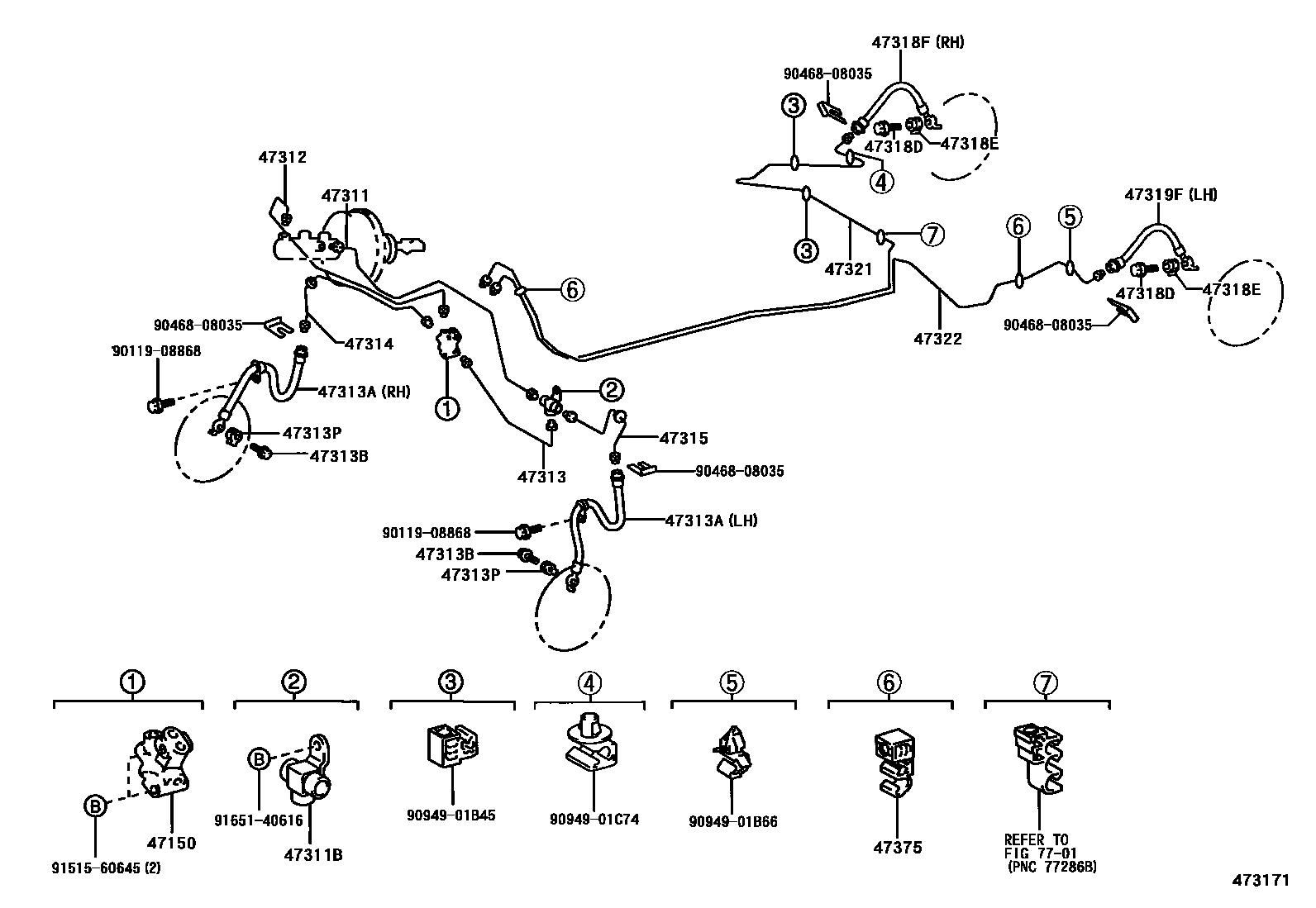

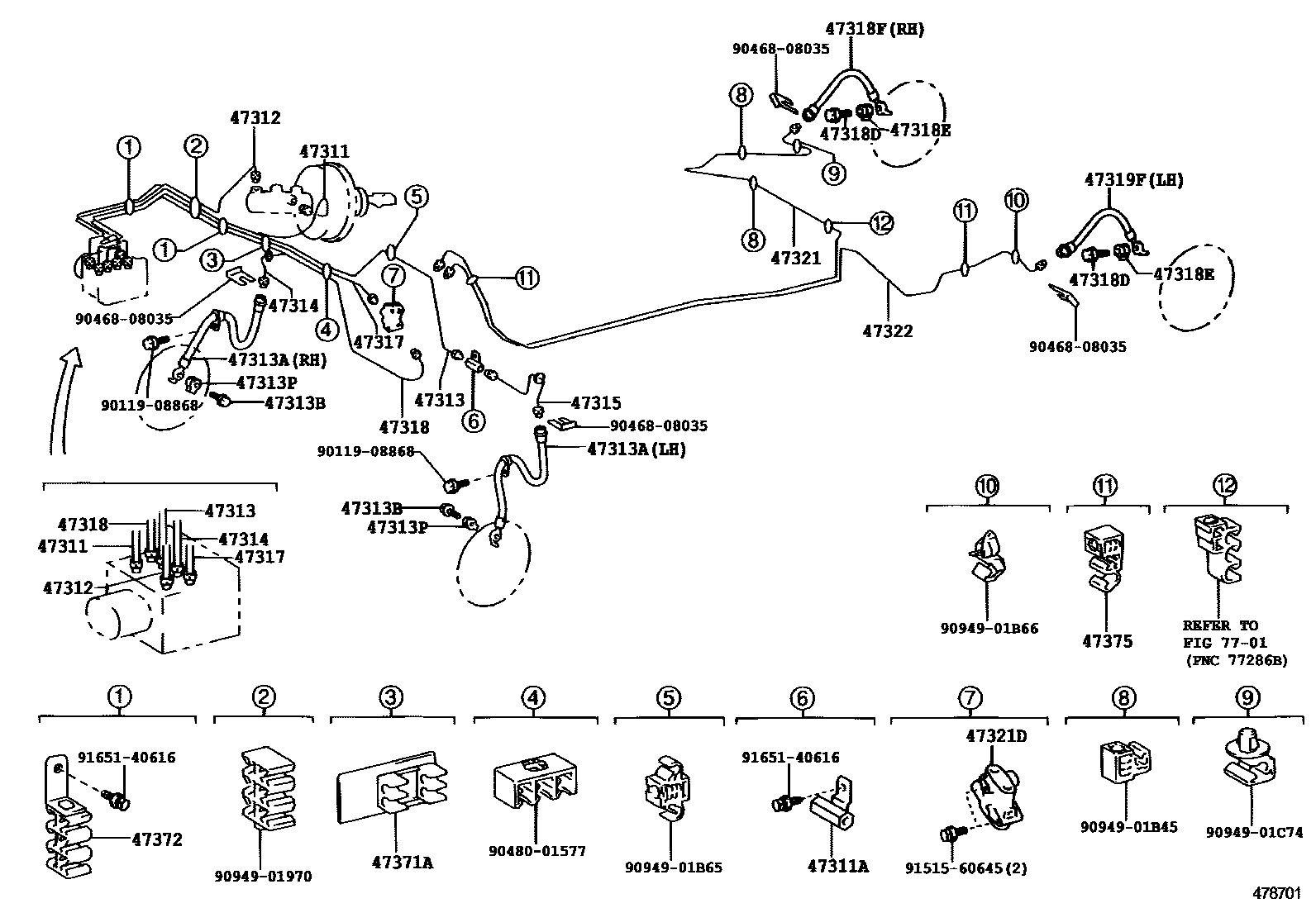

Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 5 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31478R | Bleed plug cap (for brake actuator) | 31478-30010 |

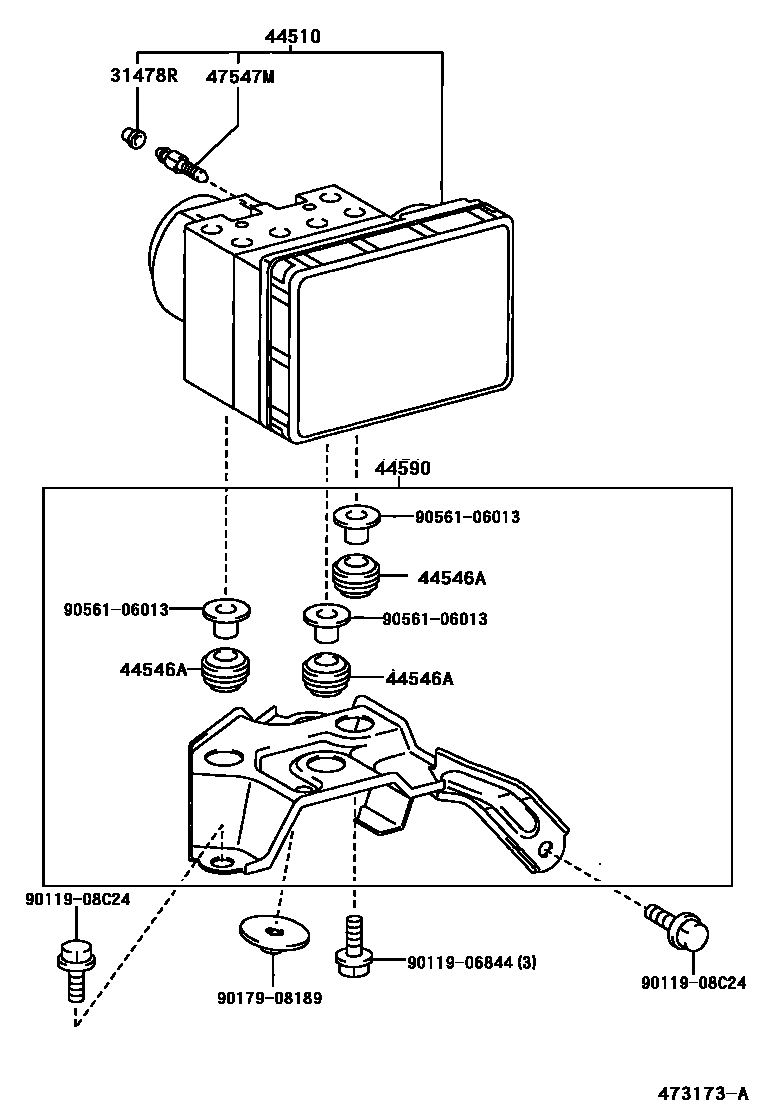

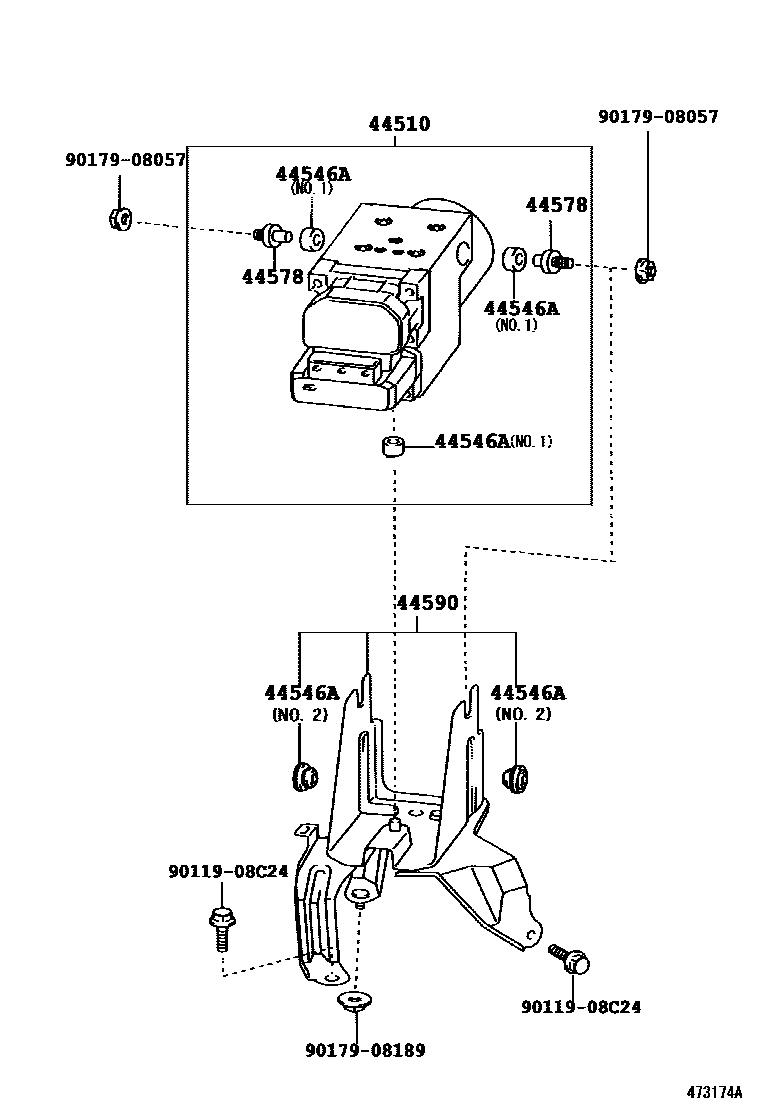

| 44510 | brake actuator assembly | 44050-02030 · 44050-12132 · 44050-12133 |
| 44546A | Brake actuator bolt cushion | 44546-05020 · 44546-12100 |
| 44578 | Brake actuator cushion bolt | 44578-05020 |
| 44590 | Brake actuator bracket assembly | 44590-02080 · 44590-12060 |
| 47150 | Proportional valve assembly | 47150-10090 |
| 47311 | No. 1 front brake pipe | 47311-02280 · 47311-02281 · 47311-02290 · 47311-02300 |
| 47311A | Pipe fitting (for front brake pipe) | 90412-10167 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90413-10286 |
| 47312 | No. 2 front brake pipe | 47312-02161 · 47312-02162 · 47312-02170 · 47312-02181 |
| 47313 | No. 3 front brake pipe | 47313-02230 · 47313-02240 · 47313-02250 |
| 47313A | No. 1 front flexible hose | 90947-02C47 · 90947-02C48 · 90947-T2002 · 90947-T2003 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-02181 · 47314-02182 · 47314-02280 · 47314-02290 |
| 47315 | No. 5 front brake pipe | 47315-02210 · 47315-02220 |
| 47317 | No. 7 front brake pipe | 47317-02180 · 47317-02190 |
| 47318 | No. 8 front brake pipe | 47318-02180 · 47318-02190 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10045 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90080-94112 |
| 47319F | Left rear flexible hose | 90080-94112 |
| 47321 | No. 1 rear brake pipe | 47321-02150 |
| 47321D | No. 1 pipe joint (for rear brake pipe) | 90904-12088 |
| 47322 | No. 2 rear brake pipe | 47322-02150 |
| 47371A | No. 1 brake pipe clamp | 47371-12230 |
| 47372 | No. 2 brake pipe clamp | 47374-12050 |
| 47375 | No. 5 brake pipe clamp | 77299-32030 |
| 47547M | Bleed plug (for brake actuator) | 47547-22020 |
