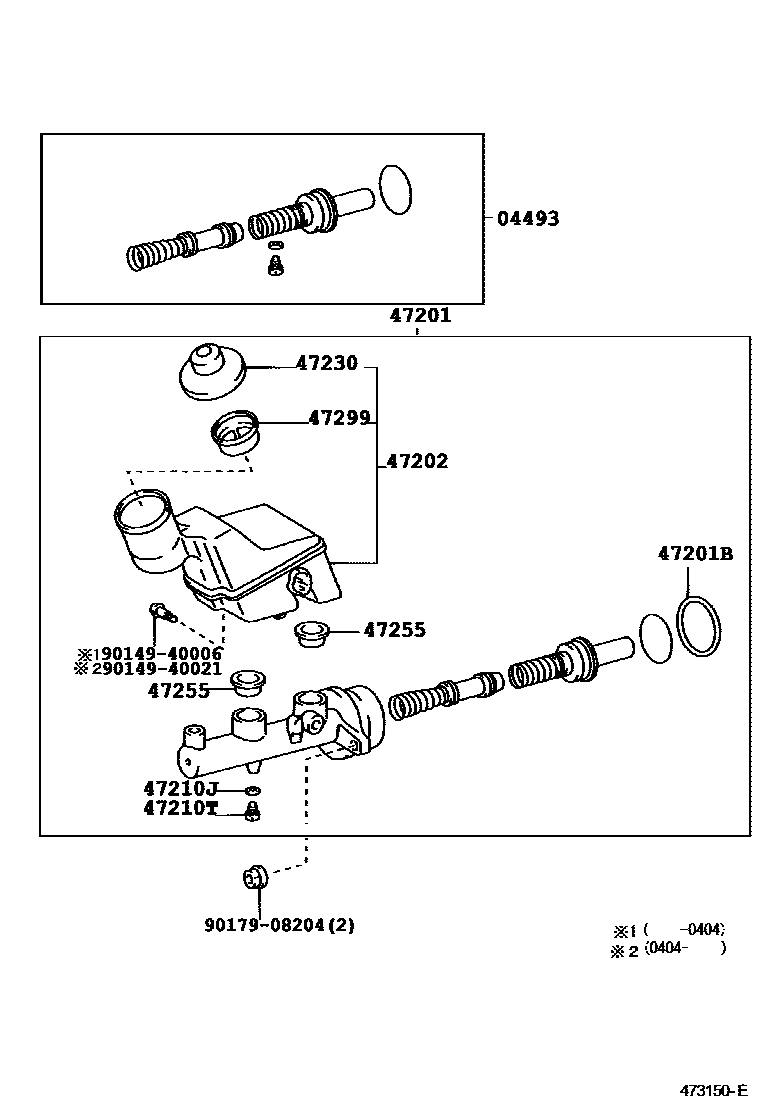

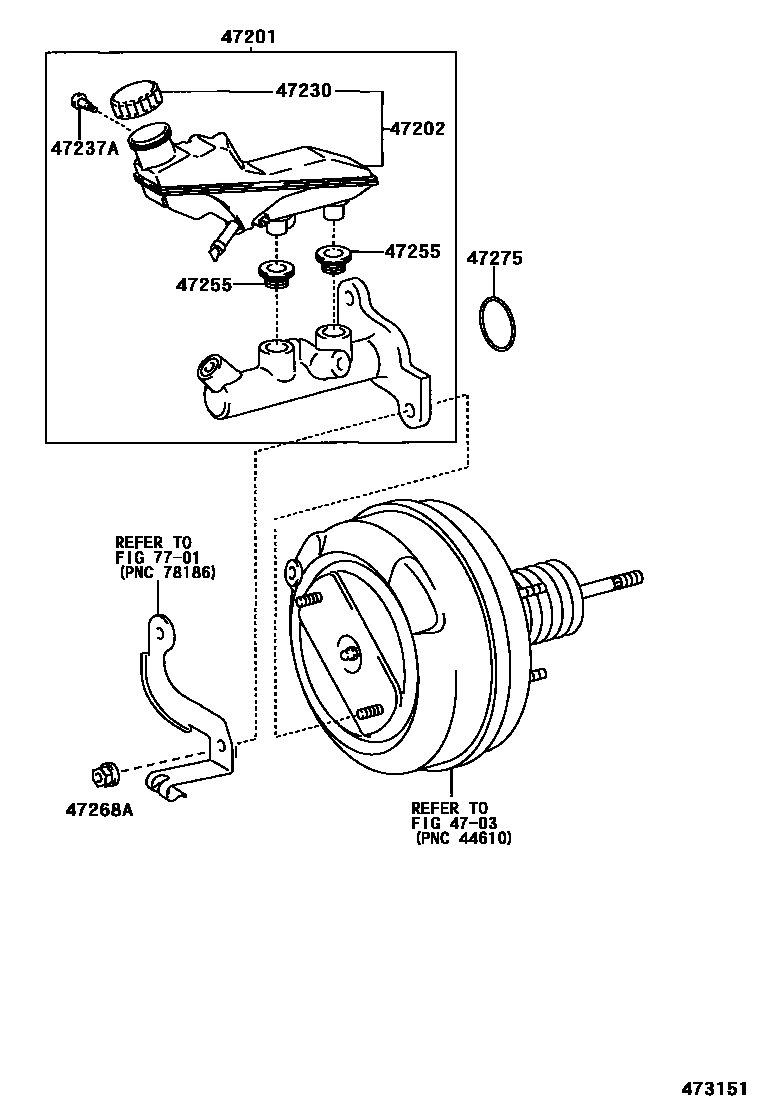

Toyota COROLLA 制动总泵 — Figure 4702
Toyota COROLLA EPC diagram 4702, 制动总泵, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04493 | Brake master cylinder assembly | 04493-1A010 · 04493-1A030 |
| 47201 | Brake master cylinder sub-assembly | 47201-02330 · 47201-1A330 · 47201-1A340 |
| 47201B | O-ring (for brake master cylinder) | 90029-20059 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-02150 · 47220-12120 · 47220-12121 · 47220-12130 · 47220-12131 |
| 47210J | Gasket (for master cylinder) | 90029-43001 |
| 47210T | Bolt (for brake master cylinder) | 90109-06077 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-02150 · 47230-12040 |
| 47237A | Brake master cylinder reservoir block | 47237-02030 |
| 47255 | Master pump reservoir seal | 47255-02030 · 47255-16010 |
| 47268A | brake master cylinder nut | 47268-02030 |
| 47275 | brake master cylinder gasket | 47275-02030 |
| 47299 | Brake master cylinder reservoir filter | 47299-25010 |
