Toyota COROLLA 前转向齿轮和连杆 — Figure 4505
Toyota COROLLA EPC diagram 4505, 前转向齿轮和连杆, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

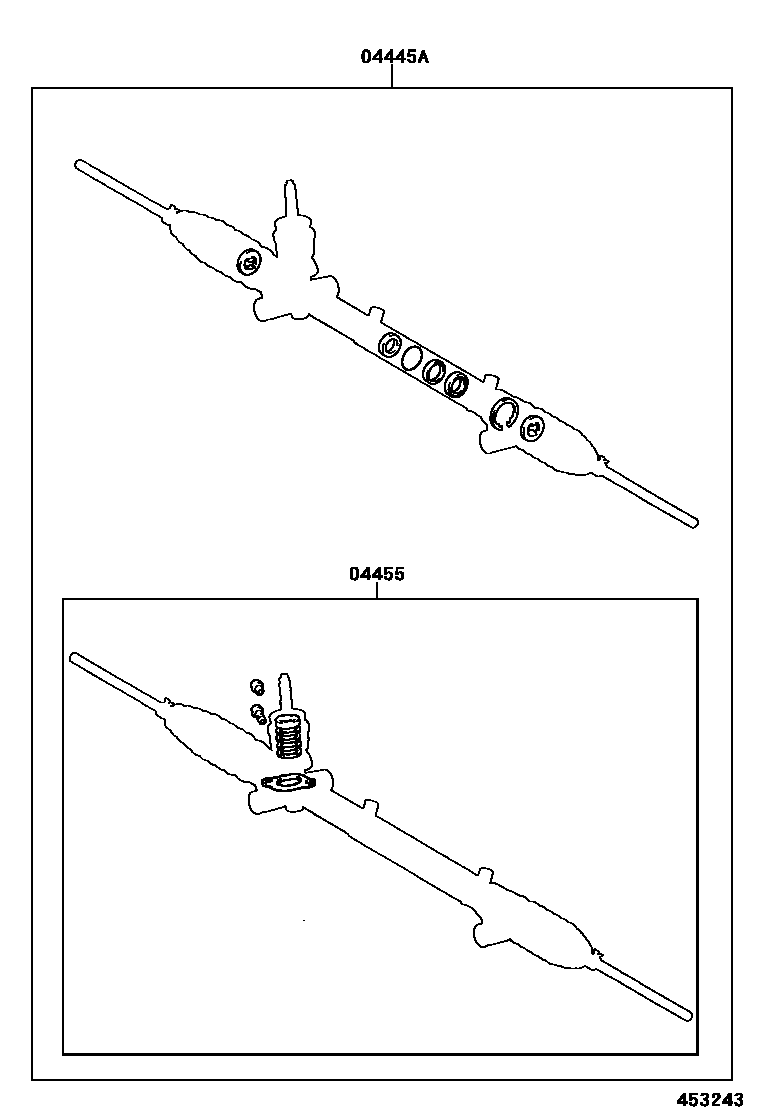

| 04445A | Power steering gear gasket assembly (for rack and pinion) | 04445-13010 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-44010 |

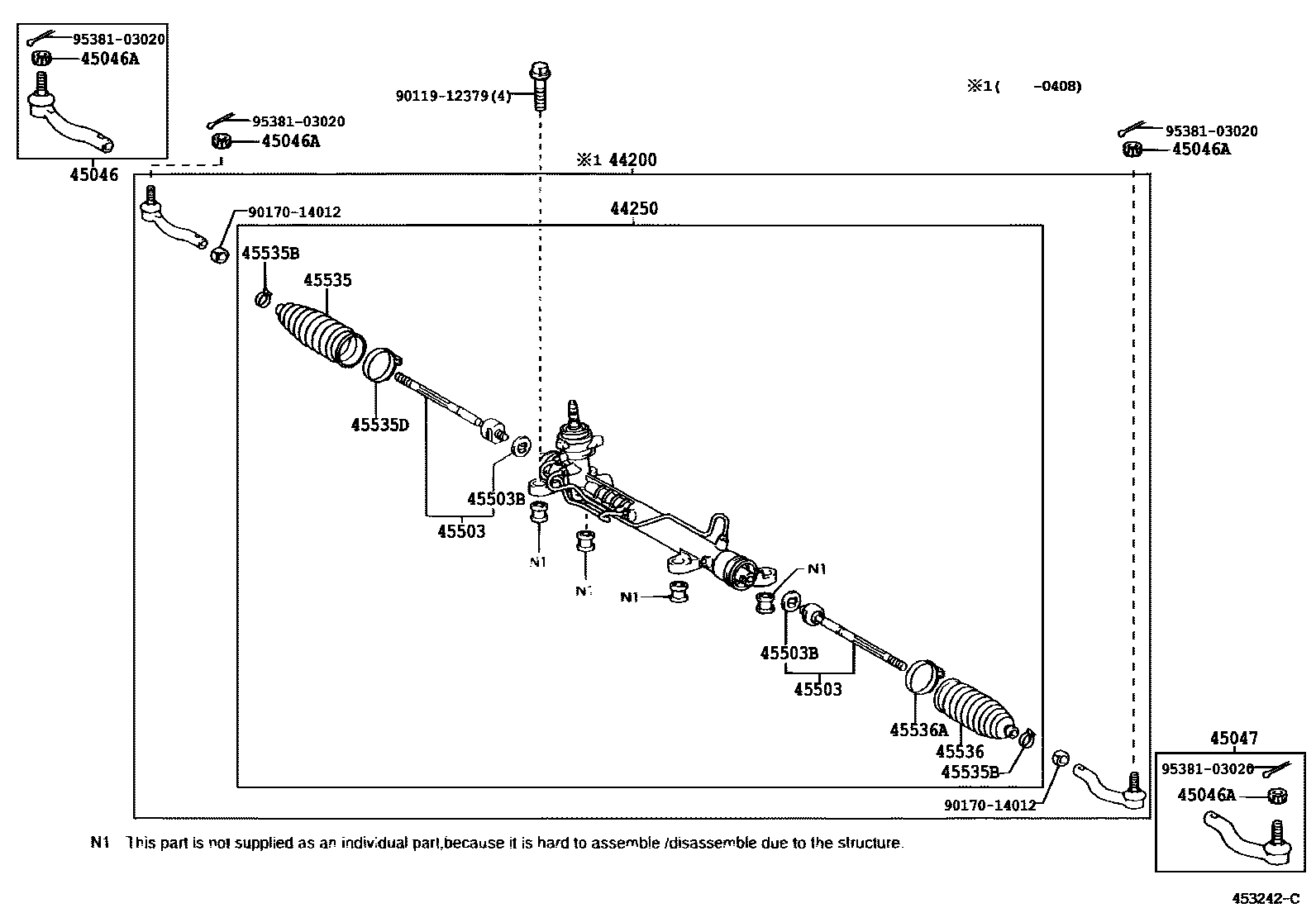

| 44200 | Power steering tie rod assembly | 44200-13021 |
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-02080 · 44250-02170 |
| 45046 | Right tie rod end sub-assembly | 45046-09160 · 45046-49115 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45047-09050 · 45047-49045 |
| 45503 | Steering rack end sub-assembly | 45503-09220 · 45503-19255 |
| 45503B | Jaw washer (for steering rack end) | 90080-21019 · 90214-14009 |
| 45535 | No. 1 steering rack dust cover | 45535-02030 · 45535-13010 |
| 45535B | Clamp (for steering rack dust boot) | 90467-19019 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 90080-58059 · 90460-55016 |
| 45536 | No. 2 steering rack dust cover | 45535-02030 · 45535-13010 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 90080-58059 · 90460-55016 |
