Toyota COROLLA 叶片泵和储油罐(动力转向) — Figure 4502

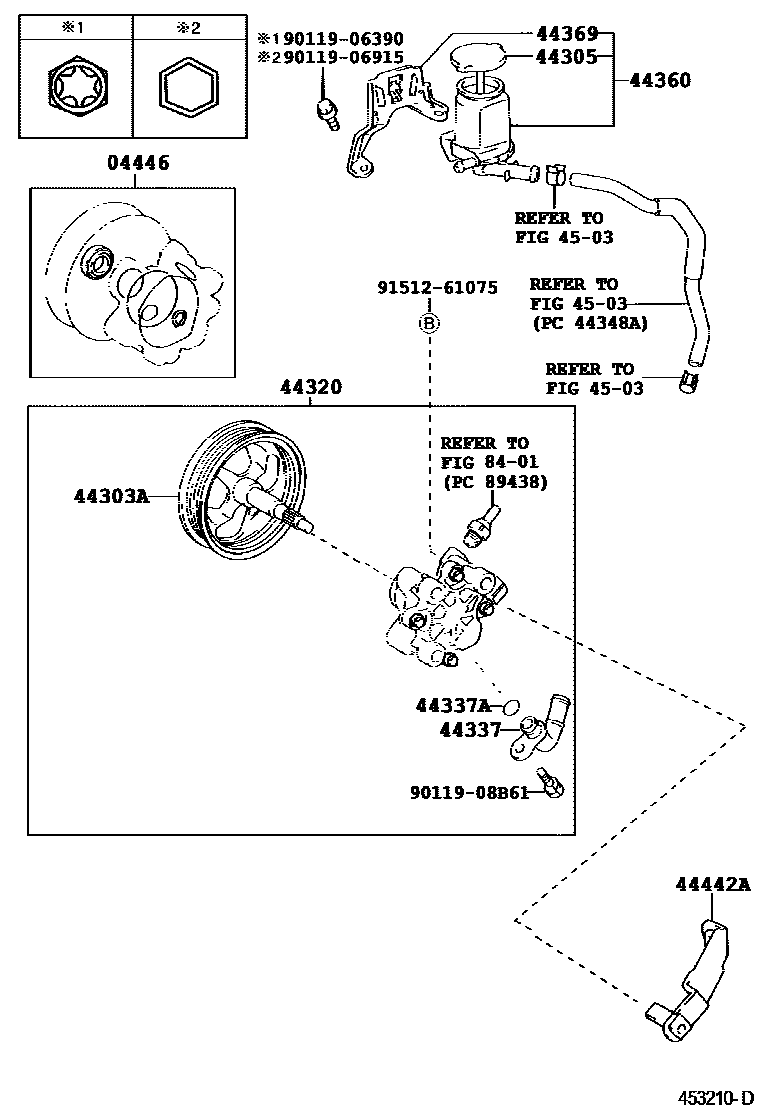

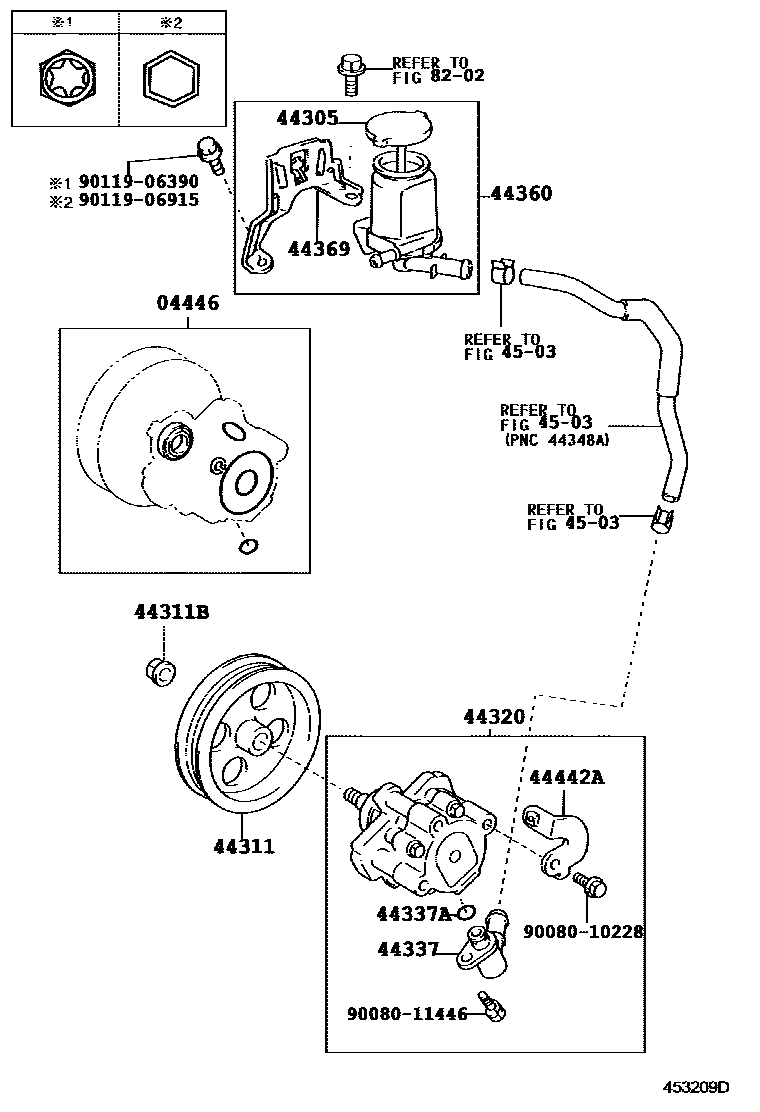

Toyota COROLLA EPC diagram 4502, 叶片泵和储油罐(动力转向), with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-02060 · 04446-02100 · 04446-20170 · 04446-32050 |
| 44303A | Shaft sub-assembly with pulley | 44303-20010 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-28030 |
| 44311 | vane pump pulley | 44311-02090 |
| 44311B | Nut (for vane pump pulley) | 90178-12003 |
| 44320 | Vane pump assembly | 44310-12570 · 44320-02060 |
| 44337 | Power steering suction port connector | 44337-02070 · 44337-48010 |
| 44337A | O-ring (for power steering oil suction port) | 90080-30049 · 90301-11020 |
| 44360 | Vane pump oil storage tank assembly | 44360-12100 |
| 44369 | No. 1 oil storage tank bracket | 44369-12060 |
| 44442A | Vane pump rear bracket | 44442-02050 · 44442-12040 |
