Toyota COROLLA Steering Column & Shaft — Figure 4501

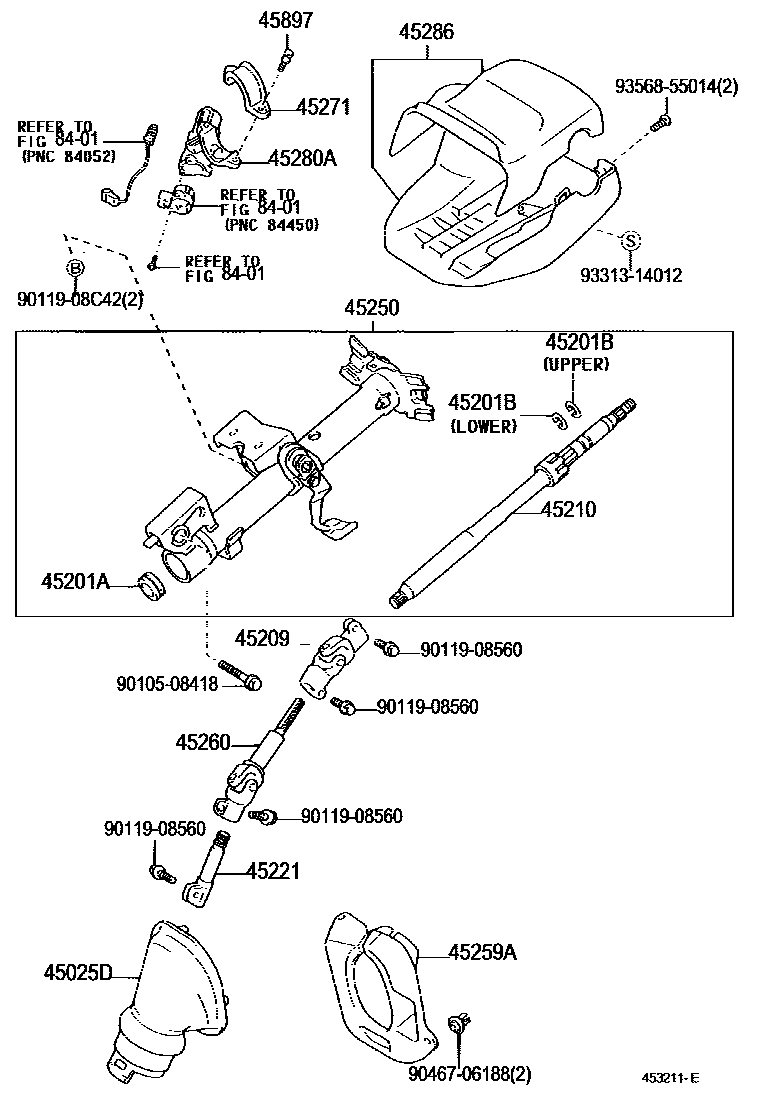

Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-13020 |
| 45201A | Bearings (for steering spindle) | 45274-02020 · 45274-42010 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 · 90520-17269 |
| 45209 | Steering slip fork sub-assembly | 45209-02030 · 45209-12150 |
| 45210 | Steering spindle assembly | 45210-02090 · 45210-42020 |
| 45221 | steering intermediate shaft | 45221-02040 · 45221-12291 |
| 45250 | Steering column assembly | 45250-02400 |
| 45259A | Steering column hole cover silencer plate | 45259-02060 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-02050 · 45260-12460 |
| 45271 | Clamp on steering column | 45271-16020 |
| 45280A | Steering column upper bracket assembly | 45280-02040 · 45280-52020 |
| 45286 | steering column cover | 45286-02923 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
