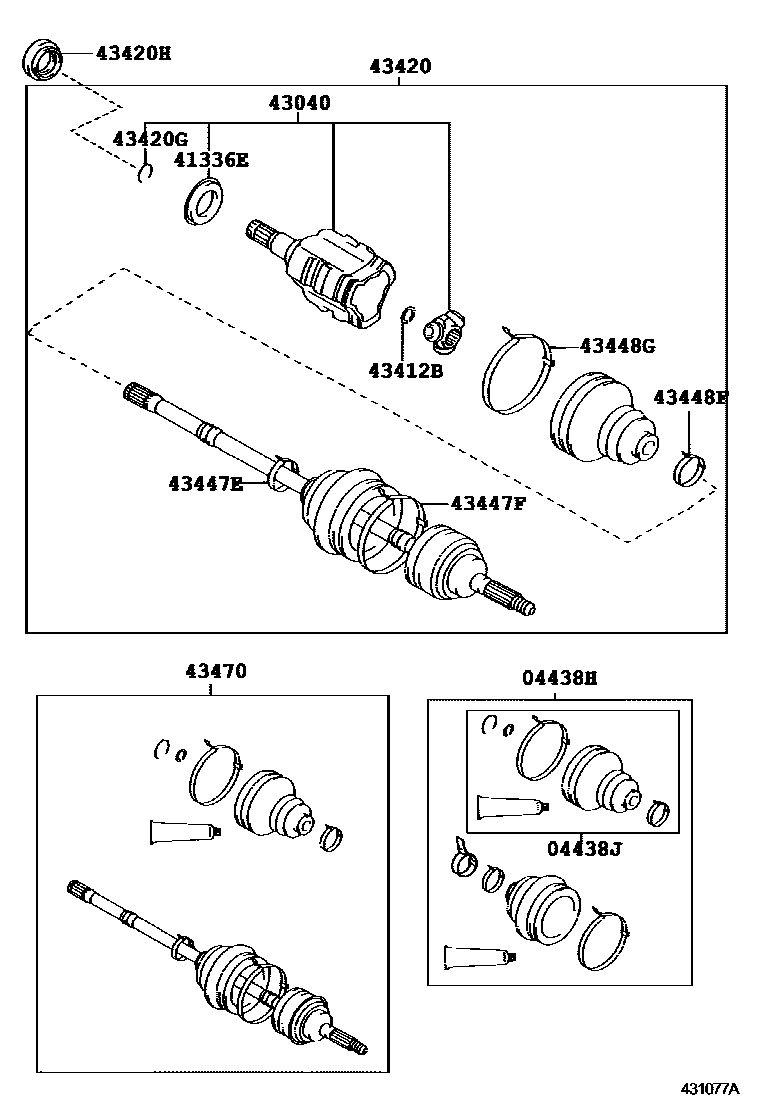

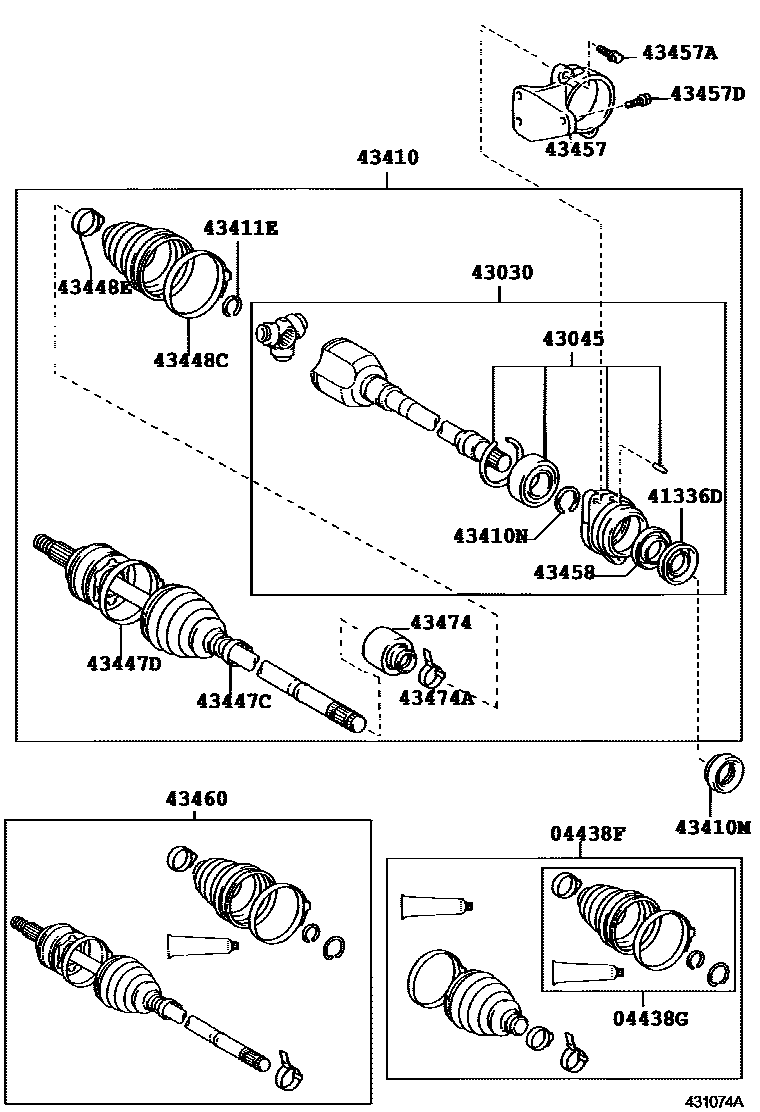

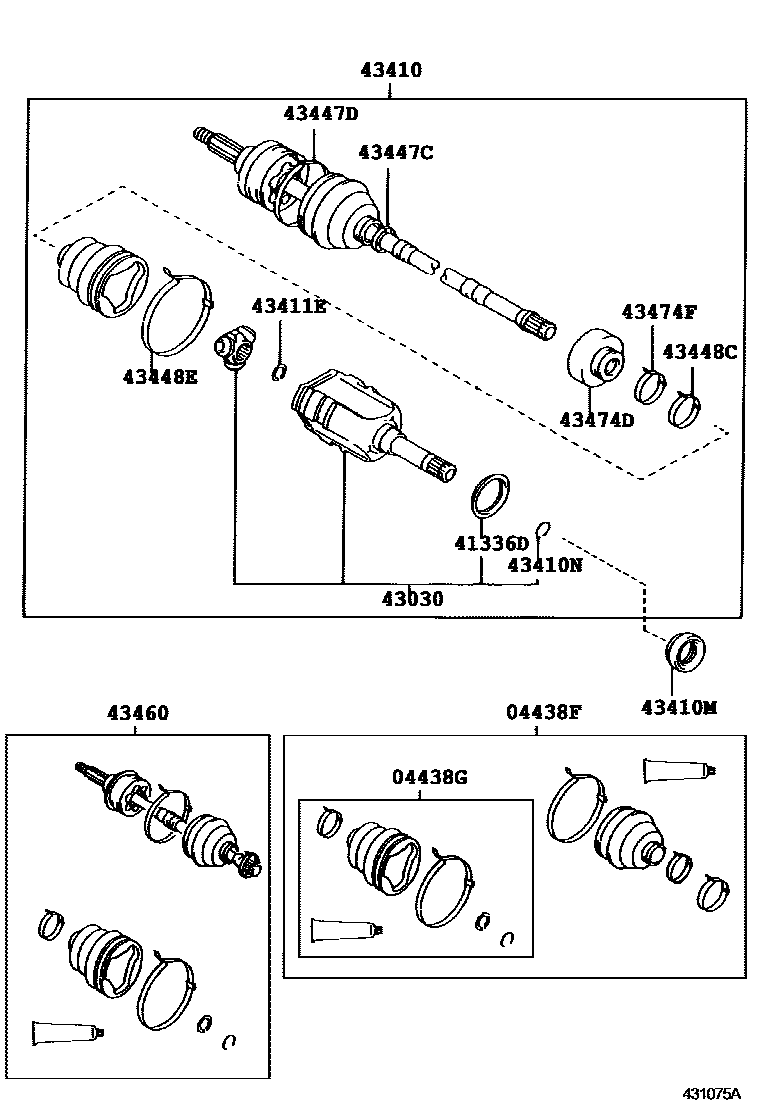

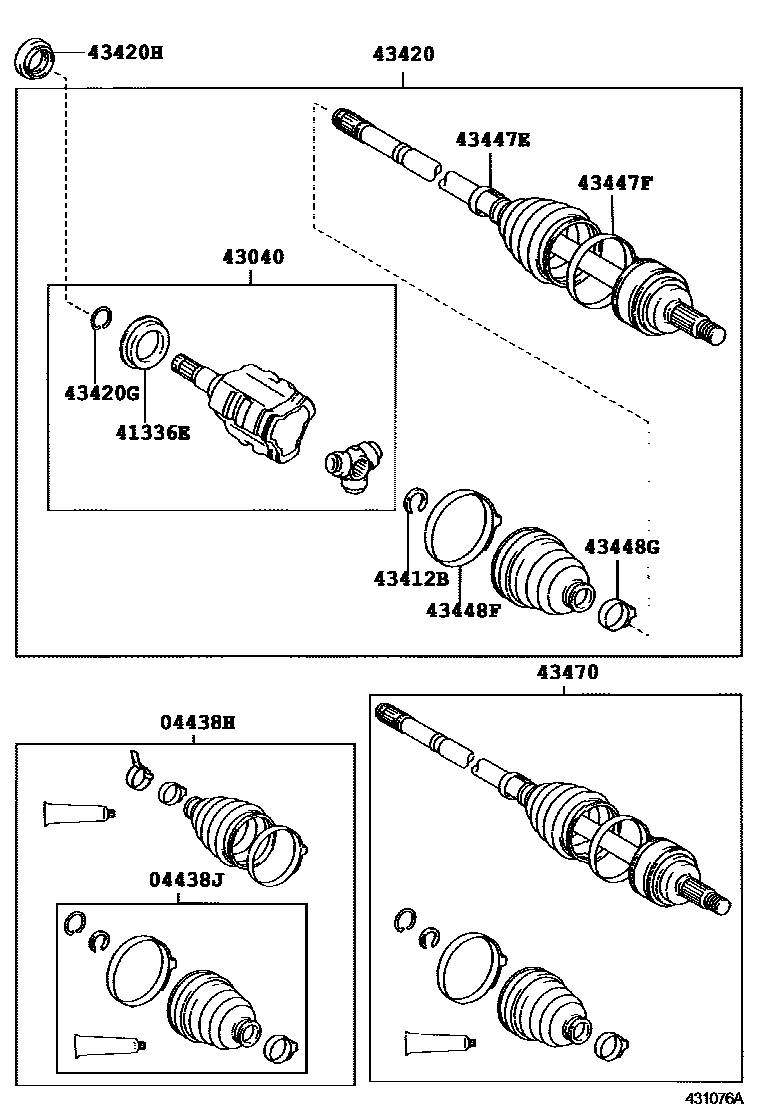

Toyota COROLLA Front Drive Shaft — Figure 4302
Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 4 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04438-02081 · 04438-02091 · 04438-05080 · 04438-05110 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04438-02111 · 04438-02121 · 04438-05070 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04438-02081 · 04438-02091 · 04438-02170 · 04438-02220 · 04438-05080 · 04438-05110 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-02111 · 04438-02121 · 04438-05070 |
| 41336D | Right front driveshaft dust cover | 41336-02040 · 41336-05010 · 41336-05030 |
| 41336E | Left front driveshaft dust cover | 41336-05010 · 41336-05030 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-02050 · 43040-02030 · 43040-8DA00 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-02030 · 43040-02040 · 43040-8DA00 |
| 43045 | Drive shaft bearing shell sub-assembly | 43045-20040 |
| 43410 | Right front driveshaft assembly | 43410-02440 · 43410-02450 · 43410-02460 · 43410-02470 · 43410-02480 |
| 43410M | Front drive shaft right oil seal | 90311-34023 · 90311-34033 · 90311-35051 · 90311-35057 |
| 43410N | Hole snap ring (for right front driveshaft) | 90080-52054 · 90080-52055 · 90080-52056 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-02010 · 90080-52093 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-02010 · 90080-52093 |
| 43420 | Left front drive shaft assembly | 43420-02470 · 43420-02480 · 43420-02490 · 43420-02500 · 43420-02510 |
| 43420G | Hole snap ring (for left front driveshaft) | 90080-52055 · 90080-52056 |
| 43420H | Front drive shaft left oil seal | 90311-34026 · 90311-34028 · 90311-34034 · 90311-35044 · 90311-35058 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-02110 · 42345-05070 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-02100 · 42345-05080 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-02110 · 42345-05070 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-02100 · 42345-05080 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-02040 · 42345-05040 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-05030 · 42345-05100 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-02040 · 42345-05040 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-05030 · 42345-05100 |
| 43457 | drive shaft bearing bracket | 43457-20080 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-10361 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-10381 |
| 43458 | Front drive shaft dust cover | 43458-05010 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09611 · 43460-09A07 · 43460-09A09 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-09A29 · 43470-09A31 |
| 43474 | drive shaft damper | 43474-02110 |
| 43474A | Clamp (for securing driveshaft damper) | 90080-46154 |
| 43474D | Right front driveshaft shock absorber | 43474-02080 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-05110 |
