Toyota COROLLA 前桥壳和差速器 — Figure 4301

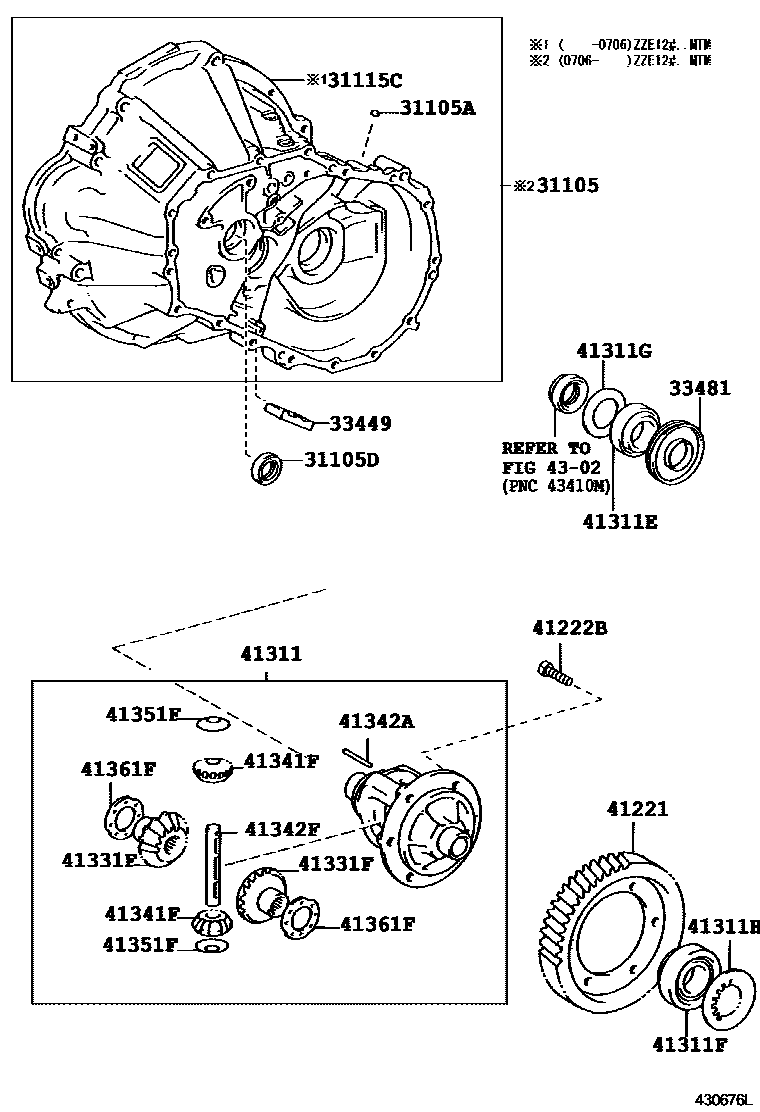

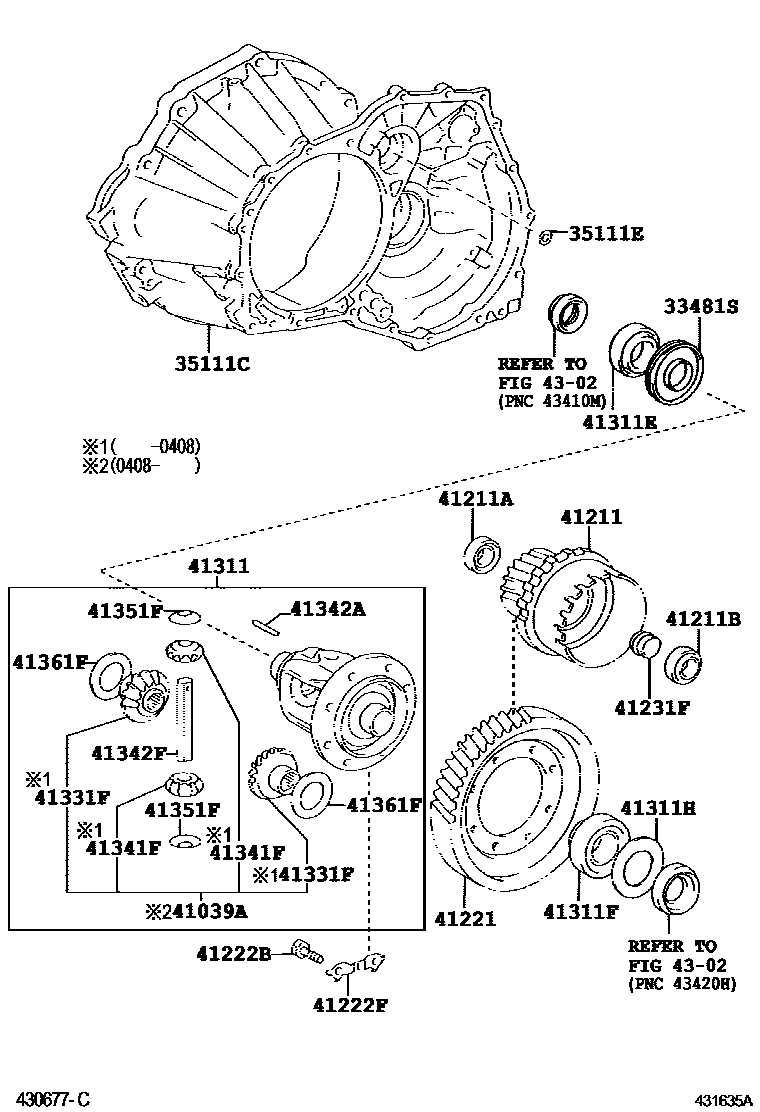

Toyota COROLLA EPC diagram 4301, 前桥壳和差速器, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105 | Transmission axle housing sub-assembly (MTM) | 31105-12240 |
| 31105A | Sealing plug (for front transaxle housing) | 90331-08002 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-25011 · 90311-25028 |
| 31115C | Front transmission axle housing (MTM) | 31115-12110 · 31115-12111 |
| 33449 | derailleur magnet | 33449-12020 |
| 33481 | Speedometer driving gear (MTM) | 33481-12040 · 33481-20160 |
| 33481S | Speedometer driving gear (ATM) | 33481-12040 |
| 35111C | Transmission axle housing | 35105-12060 |
| 35111E | Gasket (for front transaxle housing) | 90210-13002 |
| 41039A | Differential gear assembly | 41039-12010 |
| 41211 | Differential drive pinion | 41206-12030 · 41206-20070 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90366-30020 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-30019 |
| 41221 | Front differential ring gear | 41221-10231 · 41221-12190 · 41221-12340 · 41221-12480 · 41221-12490 · 41221-20230 · 41221-20350 · 41221-20380 · 41221-52270 |
| 41222B | Bolt (for front differential ring gear assembly) | 90101-11353 · 90105-11040 · 90105-12100 |
| 41222F | Front differential ring gear fixing bolt locking plate | 41222-12050 |
| 41231F | Front differential drive pinion bearing spacer | 41231-12030 |
| 41311 | front differential case | 41301-10061 · 41301-12041 · 41301-20150 · 41301-32061 |
| 41311E | Roller cone bearing (for front differential housing) | 90080-36101 · 90366-38004 · 90366-38028 · 90366-40097 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-40094 · 90366-42001 · 90368-38010 |
| 41311G | Front flat washer (for front differential case) | 90560-41002 · 90560-41003 |
| 41311H | Rear flat washer (for front differential case) | 90201-41024 · 90201-41025 · 90201-41026 · 90201-41027 · 90201-41028 · 90201-41029 · 90201-41030 · 90201-41031 · 90201-41032 · 90201-41033 · 90201-41034 · 90201-41035 · 90201-41036 · 90201-41039 · 90201-41040 · 90201-41041 · 90201-41042 · 90201-41043 · 90201-41044 · 90564-41014 · 90564-41015 · 90564-41016 · 90564-41017 · 90564-41018 · 90564-41019 · 90564-41020 · 90564-41021 · 90564-41022 · 90564-41023 · 90564-41024 · 90564-41025 · 90564-41026 · 90564-41027 · 90564-41028 · 90564-41029 · 90564-41030 · 90564-41031 · 90564-41032 |
| 41331F | Front differential side gear | 41331-10042 · 41331-12011 · 41331-32010 |
| 41341F | Front differential planetary gear | 41341-10030 · 41341-12030 · 41341-30011 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-04053 · 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-10041 · 41342-12140 · 41342-20060 · 41342-32020 |
| 41351F | Front differential planetary gear thrust washer | 41351-10030 · 41351-12020 · 41351-32010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-10070 · 41361-10080 · 41361-10090 · 41361-10100 · 41361-10110 · 41361-10120 · 41361-17010 · 41361-17020 · 41361-17030 · 41361-17040 · 41361-17050 · 41361-17060 · 41361-22020 · 41361-22030 · 41361-22040 · 41361-22140 · 41361-22150 · 41361-22160 |
