Toyota COROLLA 车轮和车轮盖 — Figure 4103

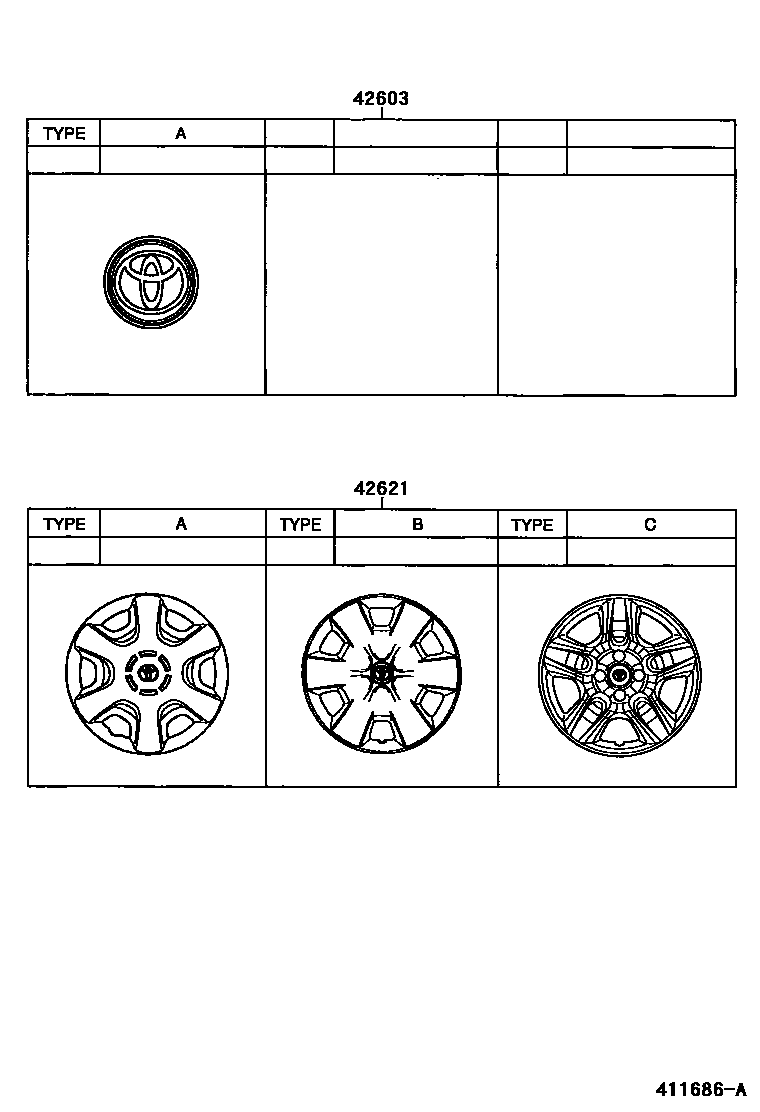

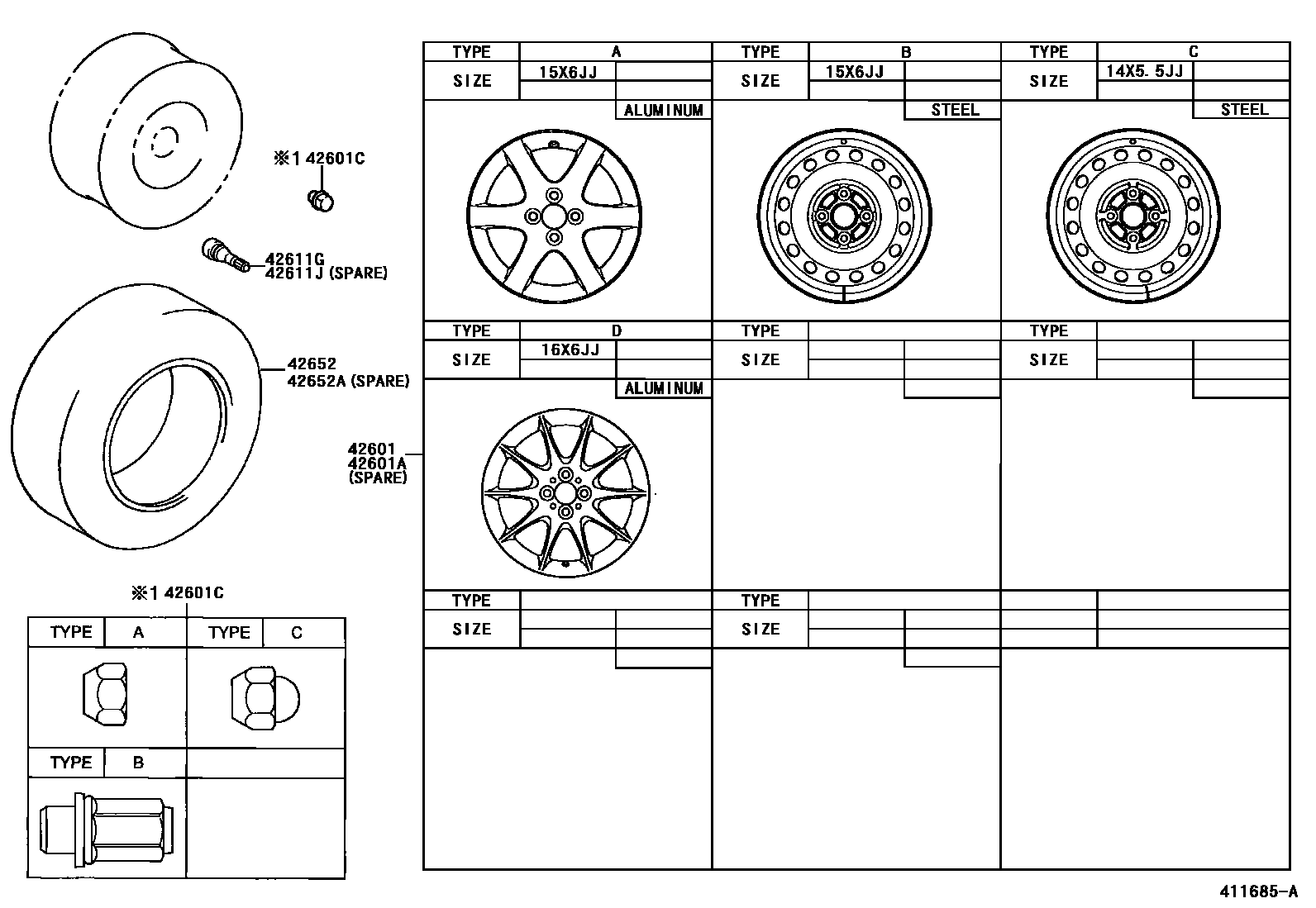

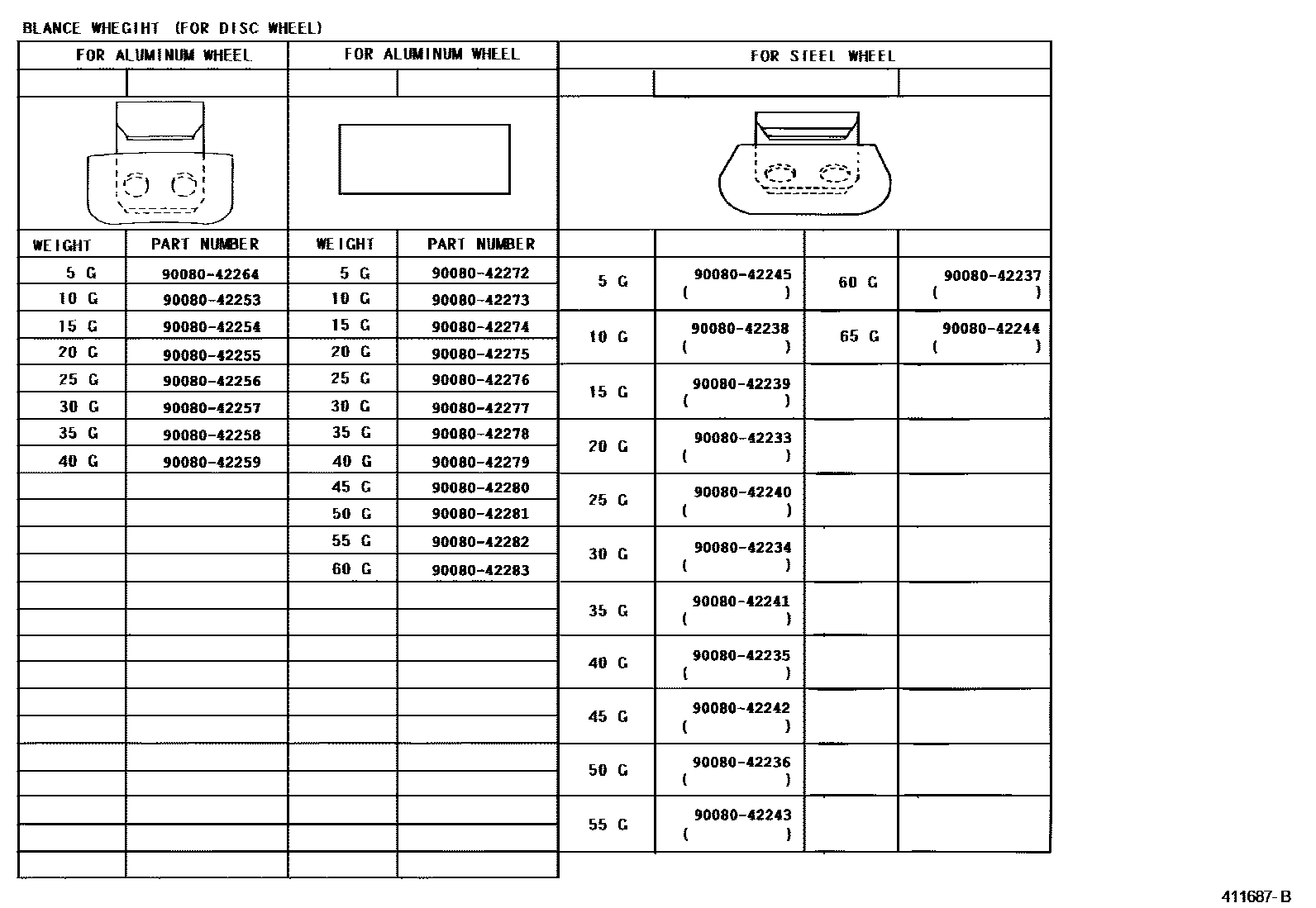

Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-02270 · 42611-02271 · 42611-02530 · 42611-02540 · 42611-02550 |
| 42601A | Spoke wheel (for spare tire) | 42611-02270 · 42611-02271 · 42611-02530 · 42611-02540 · 42611-02550 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01058 · 90942-01082 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-02170 · 42603-12710 |
| 42611G | Valve (for tubeless tires) | 90080-94180 |
| 42611J | Valve (for tubeless spare tire) | 90080-94180 |
| 42621 | wheel cover | 42602-02110 · 42602-02120 · 42602-02130 |
| 42652 | tires | 42652-02630 · 42652-02631 · 42652-02760 · 42652-02780 · 42652-02820 · 42652-02830 · 42652-20A10 · 42652-2B810 |
| 42652A | Tire (for Spare Wheel) | 42652-02630 · 42652-02631 · 42652-02760 · 42652-02780 · 42652-02820 · 42652-02830 · 42652-20A10 · 42652-2B810 |
