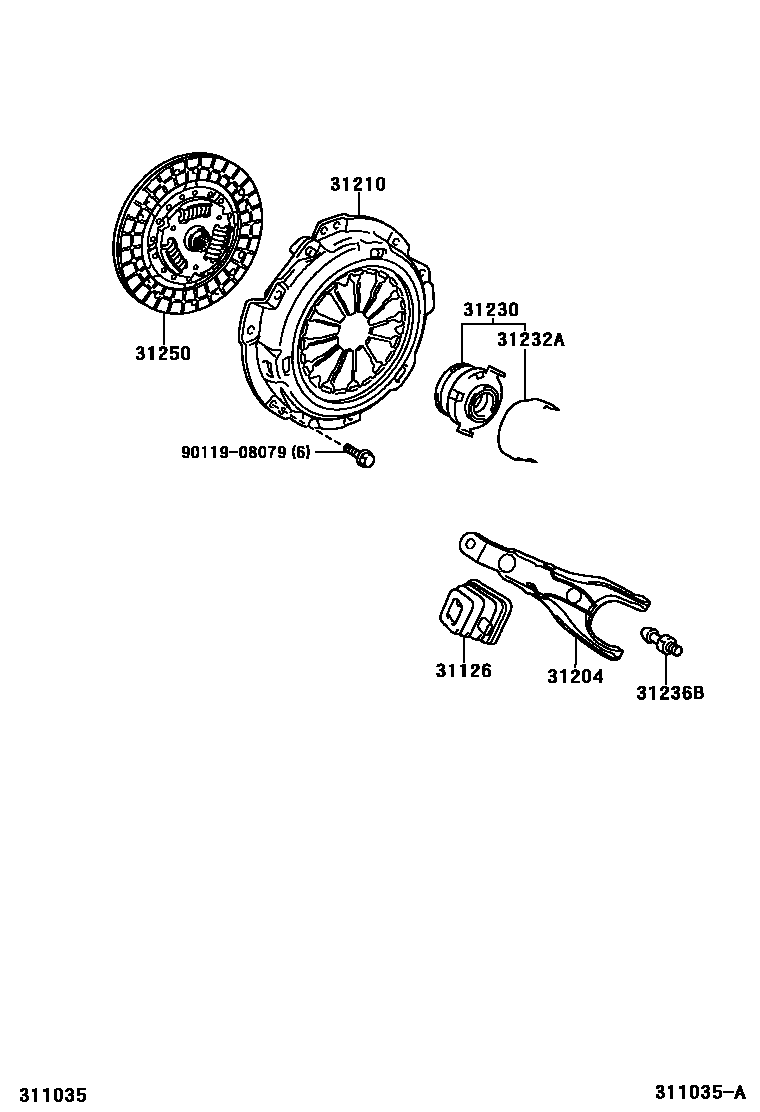

Toyota COROLLA 离合器和分离叉 — Figure 3101
Toyota COROLLA EPC diagram 3101, 离合器和分离叉, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31126 | Clutch release fork dust boot | 31126-12051 |
| 31204 | Clutch release fork assembly | 31204-12050 · 31204-17010 |
| 31210 | Clutch cover assembly | 31210-02110 · 31210-02120 · 31210-02130 · 31210-02140 |
| 31230 | Clutch release bearing assembly | 31230-12191 · 31230-52010 · 31230-52011 |
| 31232A | Release bearing hub clip | 31232-12070 · 31232-52010 |
| 31236B | Split fork bracket | 31236-12011 · 31236-12020 |
| 31250 | Clutch disc assembly | 31250-02080 · 31250-02081 · 31250-02090 · 31250-02091 |
