Toyota COROLLA 起动机 — Figure 1904

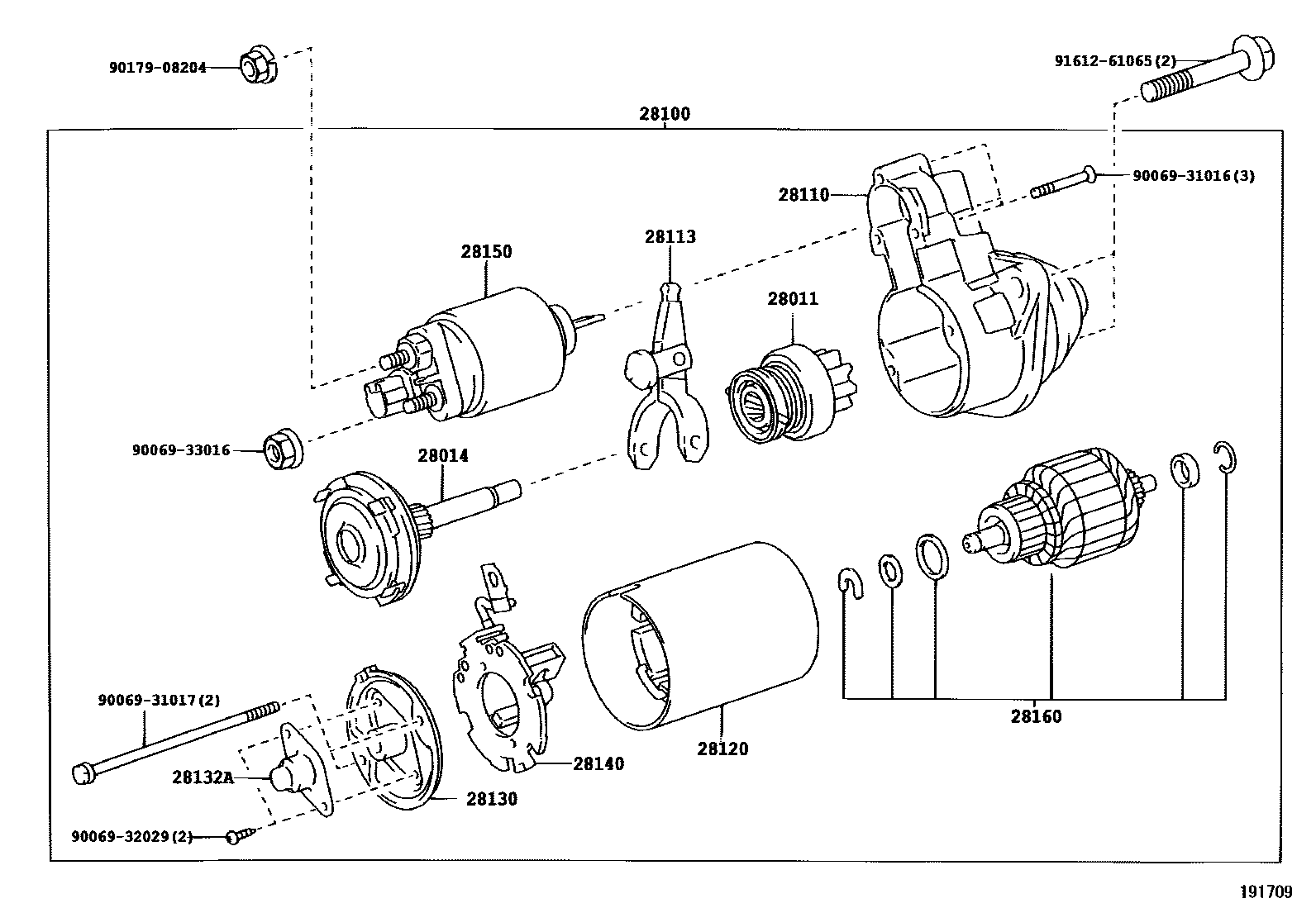

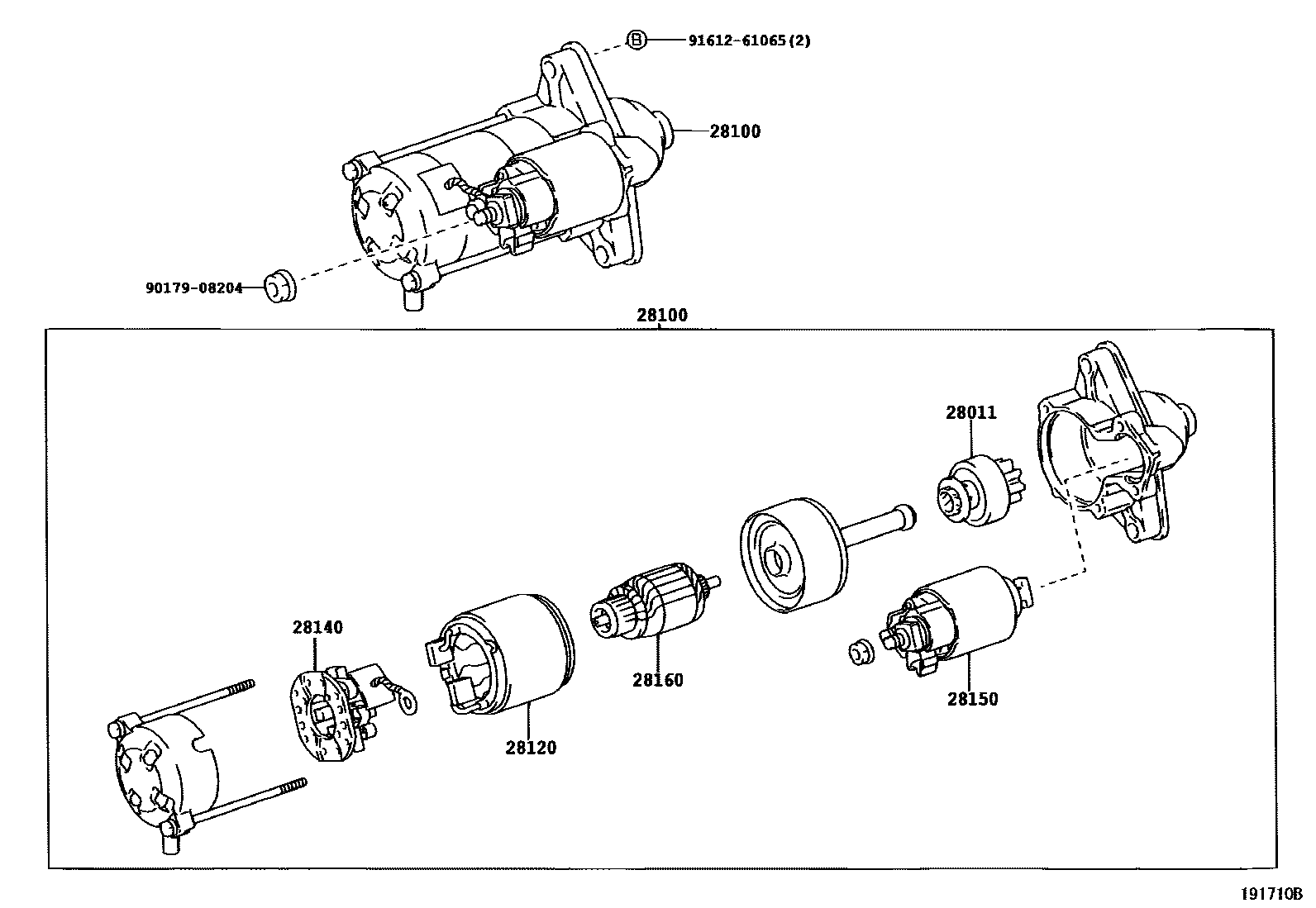

Toyota COROLLA EPC diagram 1904, 起动机, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-0D110 · 28011-0D160 · 28011-70020 |
| 28014 | Planetary gear carrier shaft sub-assembly | 28014-0D110 · 28014-0D160 |
| 28100 | Starter assembly | 28100-0D110 · 28100-0D160 · 28100-22030 |
| 28110 | Starter drive end housing assembly | 28110-0D110 · 28110-0D160 |
| 28113 | starter pinion drive rod | 28113-0D110 · 28113-0D160 |
| 28120 | Starter yoke assembly | 28120-0D110 · 28120-70020 |
| 28130 | Starter commutator end frame assembly | 28130-0D110 · 28130-0D160 |
| 28132A | Starter commutator end frame cover | 28132-0D110 · 28132-0D160 |
| 28140 | Starter brush holder assembly | 28140-0D110 · 28140-0D160 · 28140-70020 |
| 28150 | Starter electromagnetic switch assembly | 28150-0D110 · 28150-0D160 · 28150-22100 · 28150-70030 |
| 28160 | Starter armature assembly | 28160-0D110 · 28160-0D160 · 28160-70021 |
