Toyota COROLLA Alternator — Figure 1903

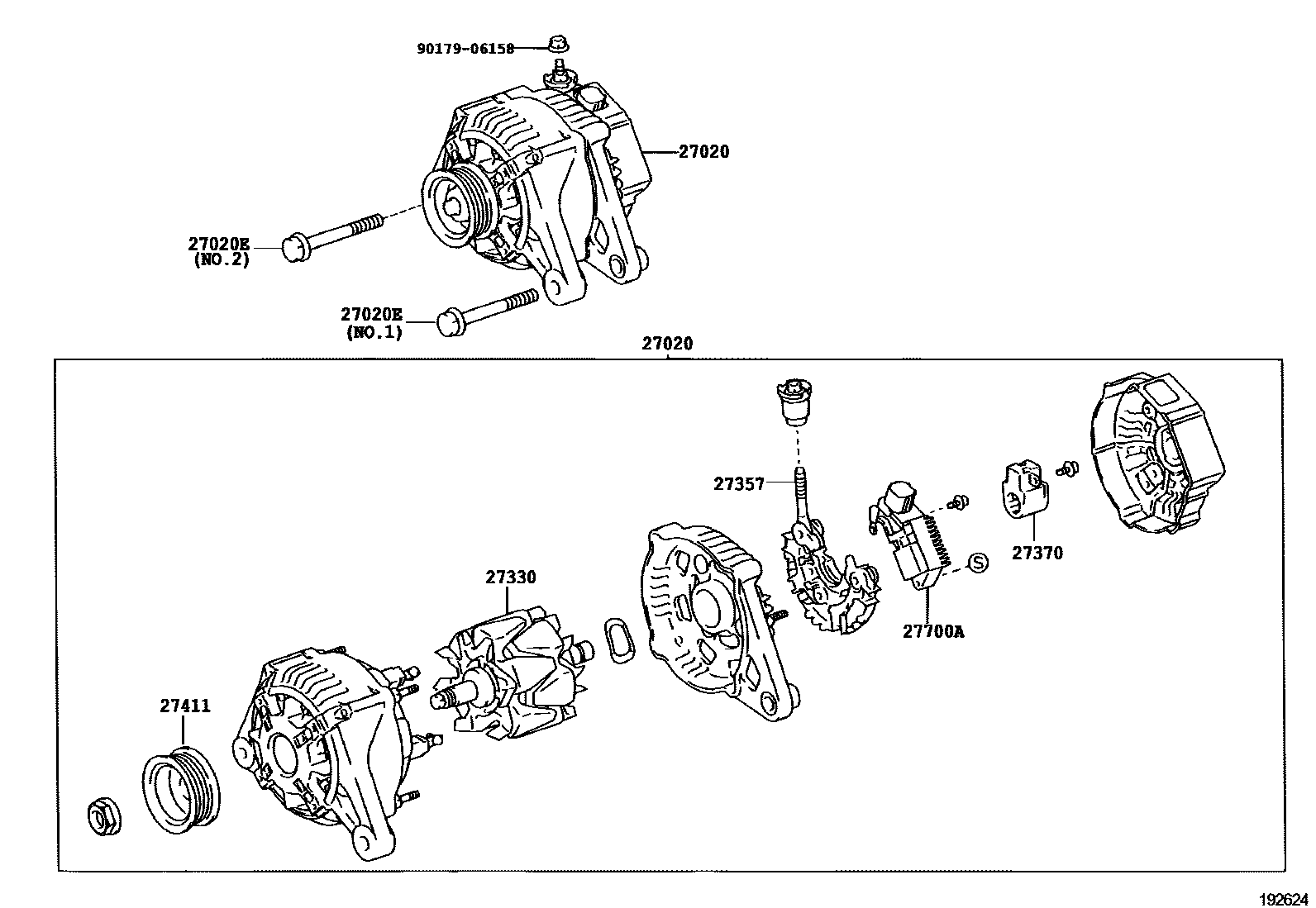

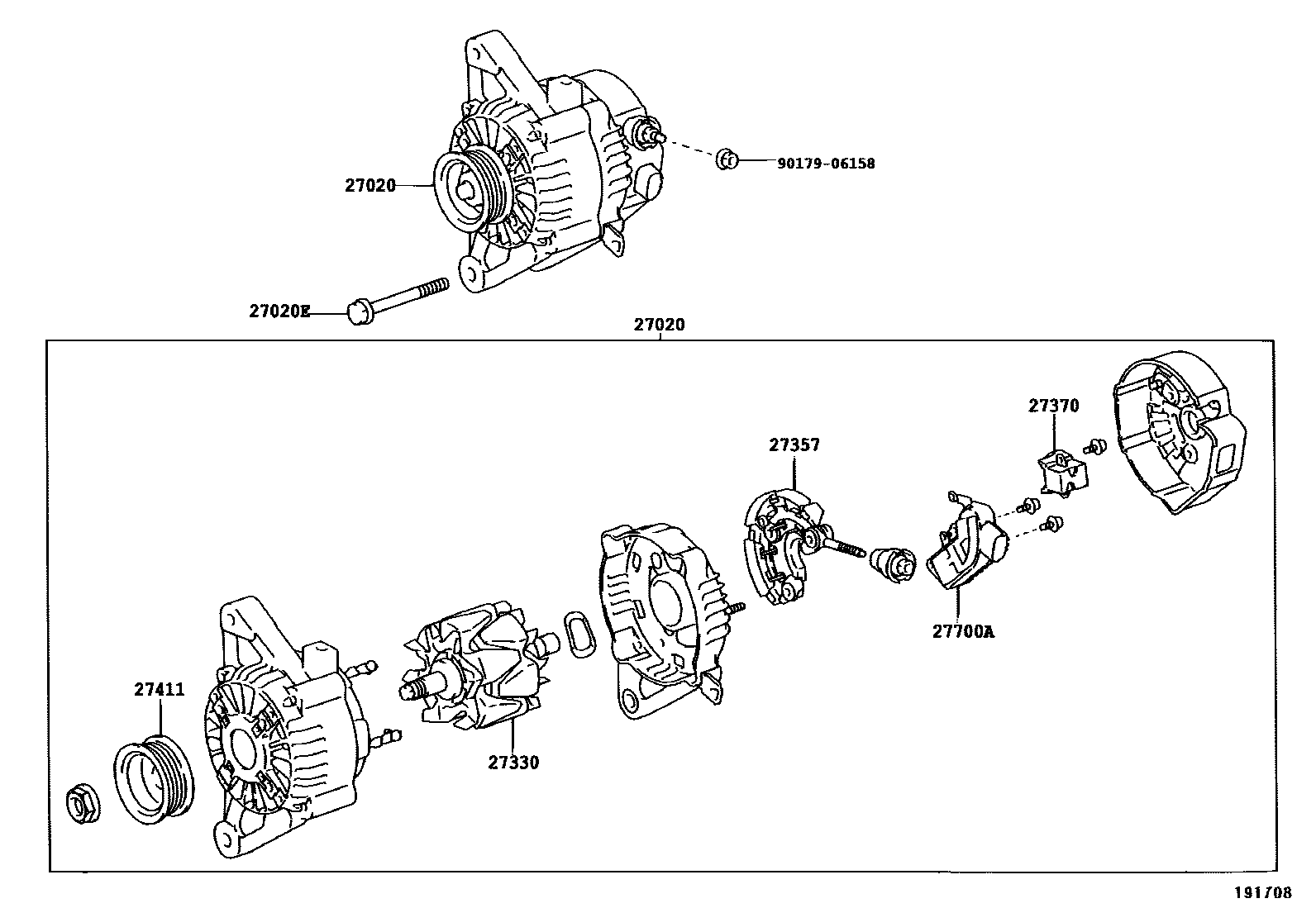

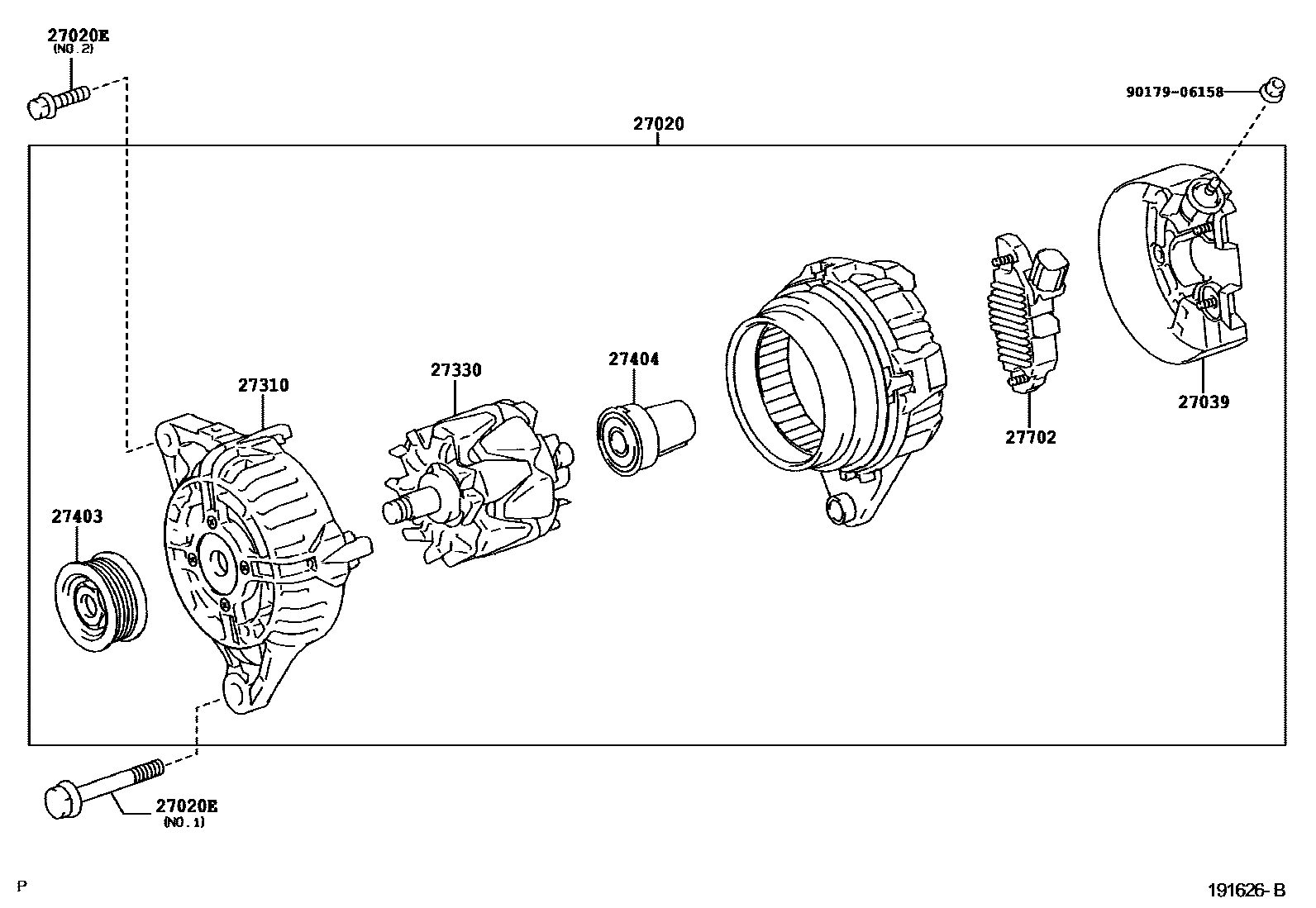

Toyota COROLLA EPC diagram 1903, Alternator, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0D130 · 27060-0D280 · 27060-22190 |
| 27020E | Bolts (for generator) | 90105-10075 · 90105-10223 · 91511-80830 |
| 27039 | Alternator Rear End Cover | 27039-0D130 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0D130 |
| 27330 | Alternator Rotor Assembly | 27330-0D130 · 27330-0J020 · 27330-67100 |
| 27357 | Generator rectifier frame | 27357-22050 · 27357-22190 |
| 27370 | Alternator Brush Holder Assembly | 27370-35060 · 27370-75060 |
| 27403 | Generator pulley assembly | 27403-0D030 |
| 27404 | Generator bearing components | 27404-0D030 |
| 27411 | Alternator Pulley | 27411-0J010 · 27411-22080 |
| 27700A | Generator voltage regulator assembly | 27700-20050 · 27700-27070 |
| 27702 | Generator (with brush) voltage regulator sub-assembly | 27702-0D030 |
