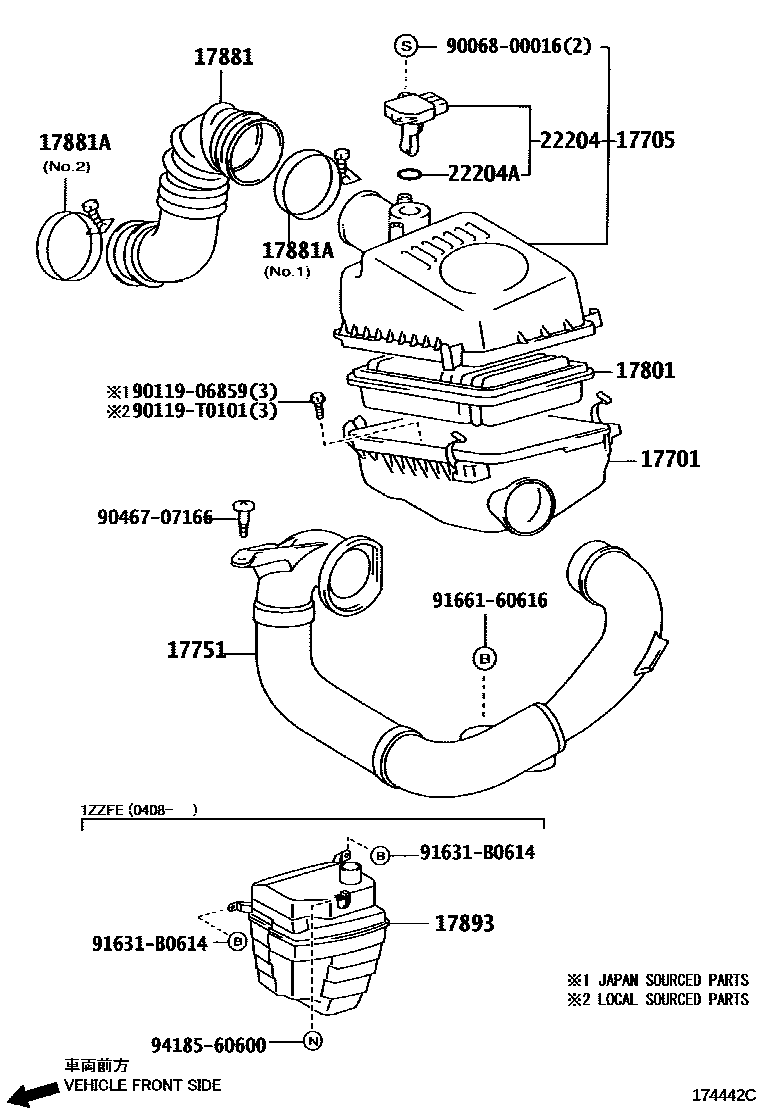

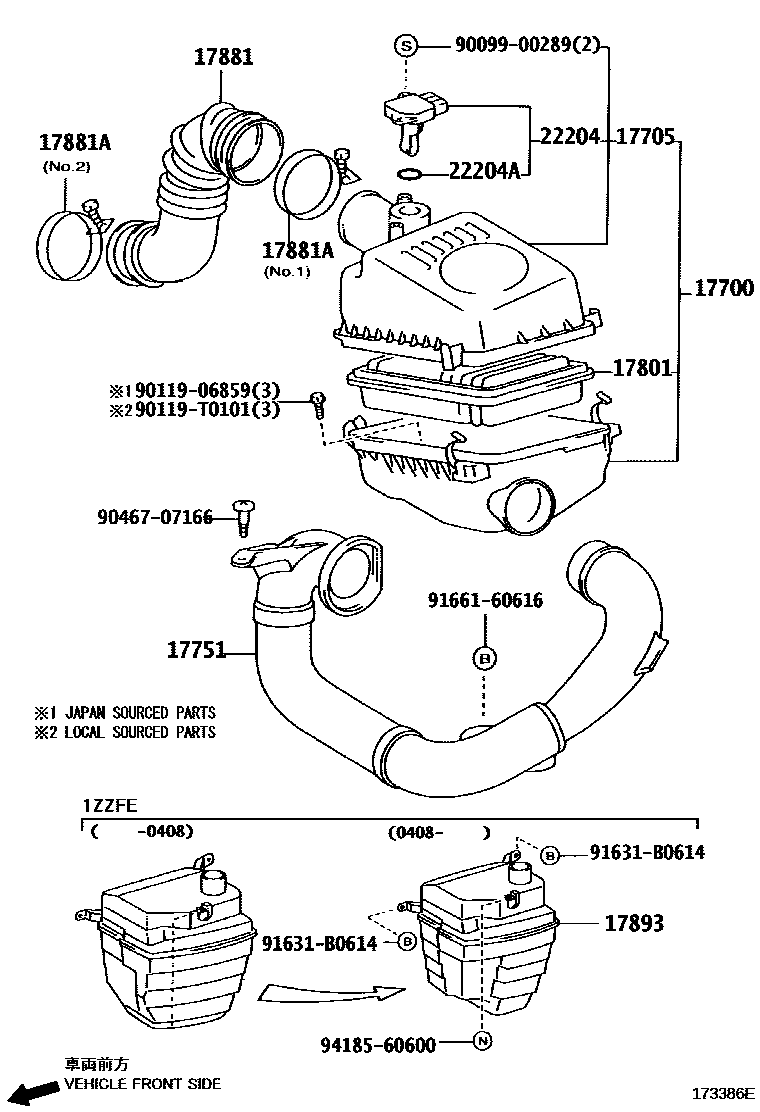

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17700 | air filter assembly | 17700-22130 · 17700-22131 |
| 17701 | Air filter housing sub-assembly | 17701-0D090 |
| 17705 | Air filter cover sub-assembly | 17705-0D090 · 17705-22130 · 17705-22131 |
| 17751 | No. 1 air filter air inlet | 17751-0D080 · 17751-0D090 · 17751-21150 · 17751-22140 |
| 17801 | Air filter element sub-assembly | 17801-22020 |
| 17881 | No. 1 air cleaner hose | 17881-0D040 · 17881-0D050 · 17881-22070 · 17881-22080 · 17881-22090 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10730 · 96111-10800 · 96111-10850 |
| 17893 | Intake resonator | 17893-22020 · 17893-64080 |
| 22204 | Intake air flow meter assembly | 22204-22010 |
| 22204A | O-ring (for intake air flow meter) | 90099-14141 |
