Toyota COROLLA Exhaust Pipe — Figure 1702

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 2 images and 6 PNC and OE references.

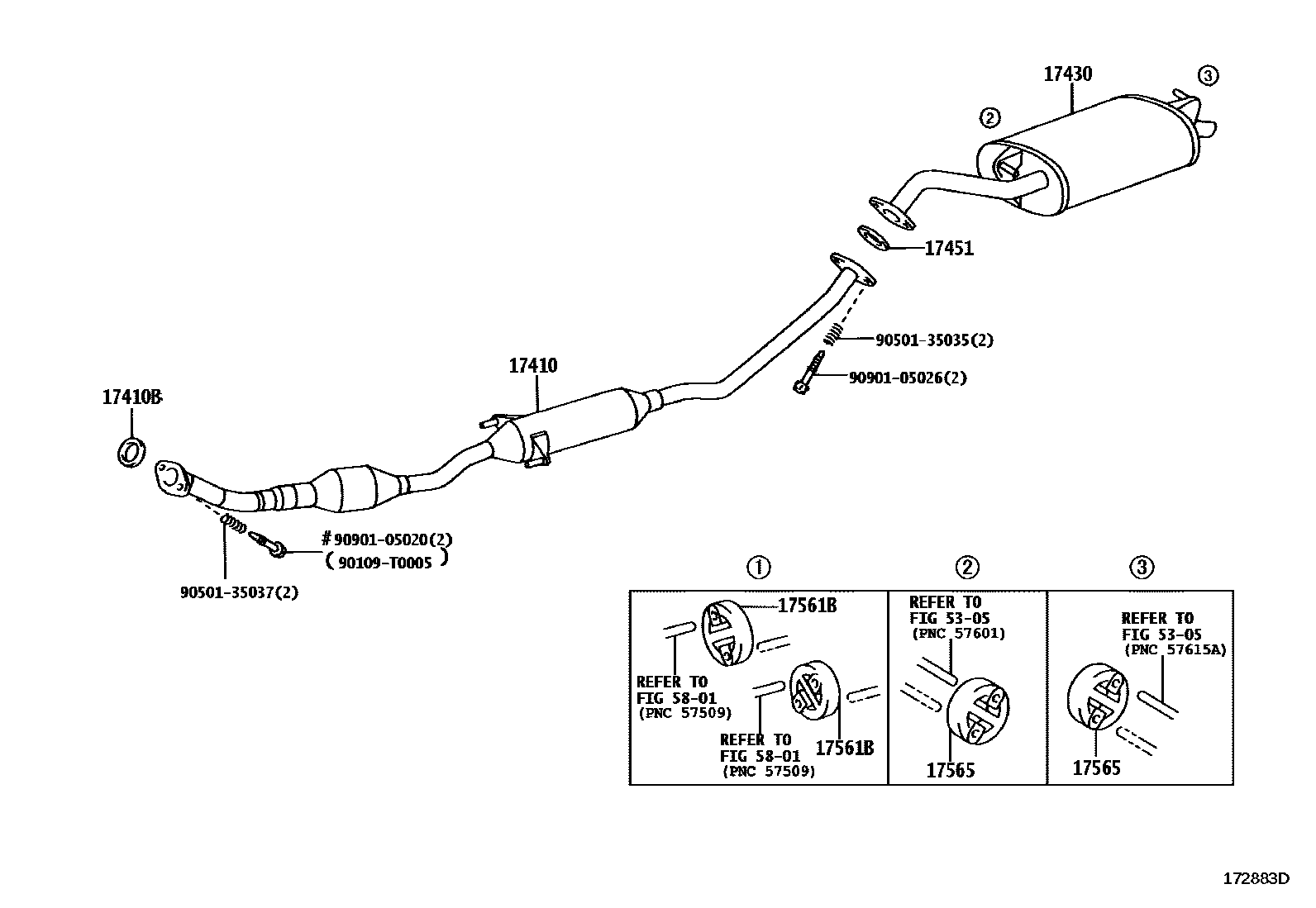

Toyota COROLLA Exhaust Pipe EPC diagram — 172883D
Exhaust Pipe — 172883D (200208 – 200707)

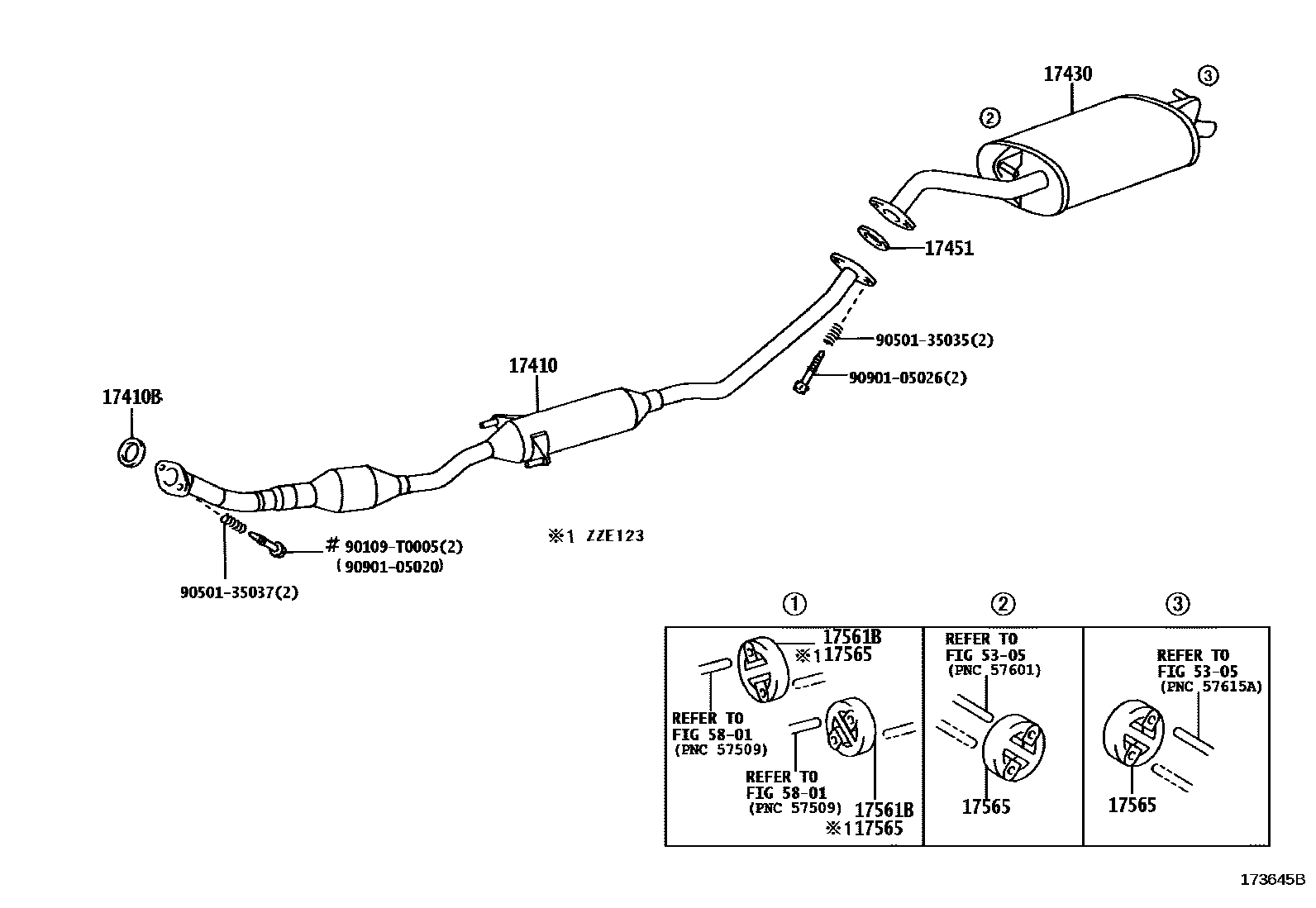

Toyota COROLLA Exhaust Pipe EPC diagram — 173645B
Exhaust Pipe — 173645B (200303 – 200707)

PNC and OE references

PNCPart nameOE numbers
17410Front exhaust pipe assembly17410-0D230 · 17410-0D240 · 17410-0D250 · 17410-0D260 · 17410-0D270 · 17410-0D271
17410BExhaust pipe gasket17451-22050 · 17451-22070
17430Exhaust tailpipe assembly17430-0D150 · 17430-0D260 · 17430-0D270 · 17430-0D280 · 17430-0D290 · 17430-0D380
17451Exhaust pipe gasket17451-16030 · 17451-20010 · 17451-23010
17561BNo. 1 exhaust pipe lifting lug17565-21030
17565No. 5 exhaust pipe lifting lug17565-21040
