Toyota COROLLA Manifold — Figure 1701

Toyota COROLLA EPC diagram 1701, Manifold, with 2 images and 15 PNC and OE references.

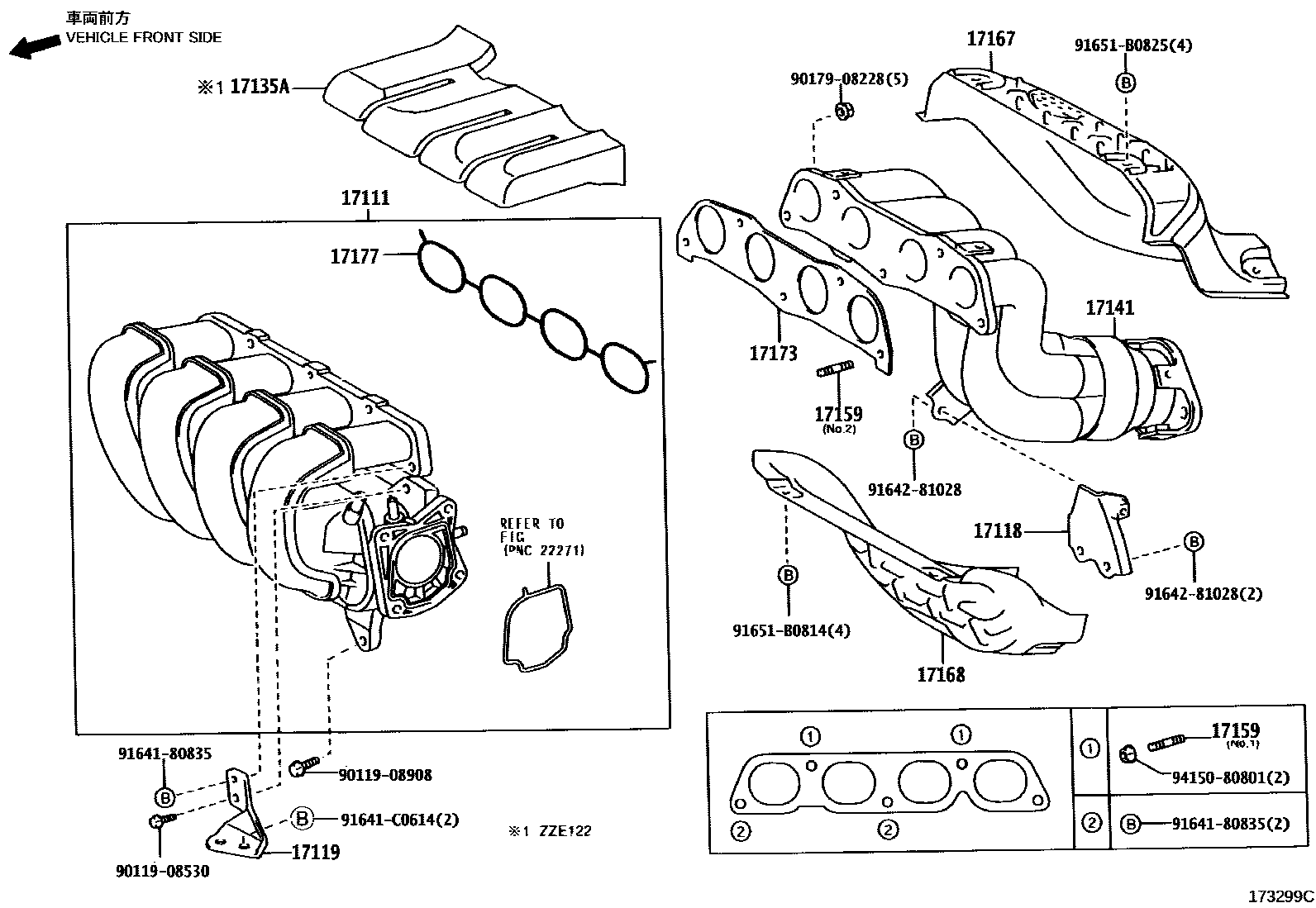

Toyota COROLLA Manifold EPC diagram — 173299C
Manifold — 173299C (200208 – 999999)

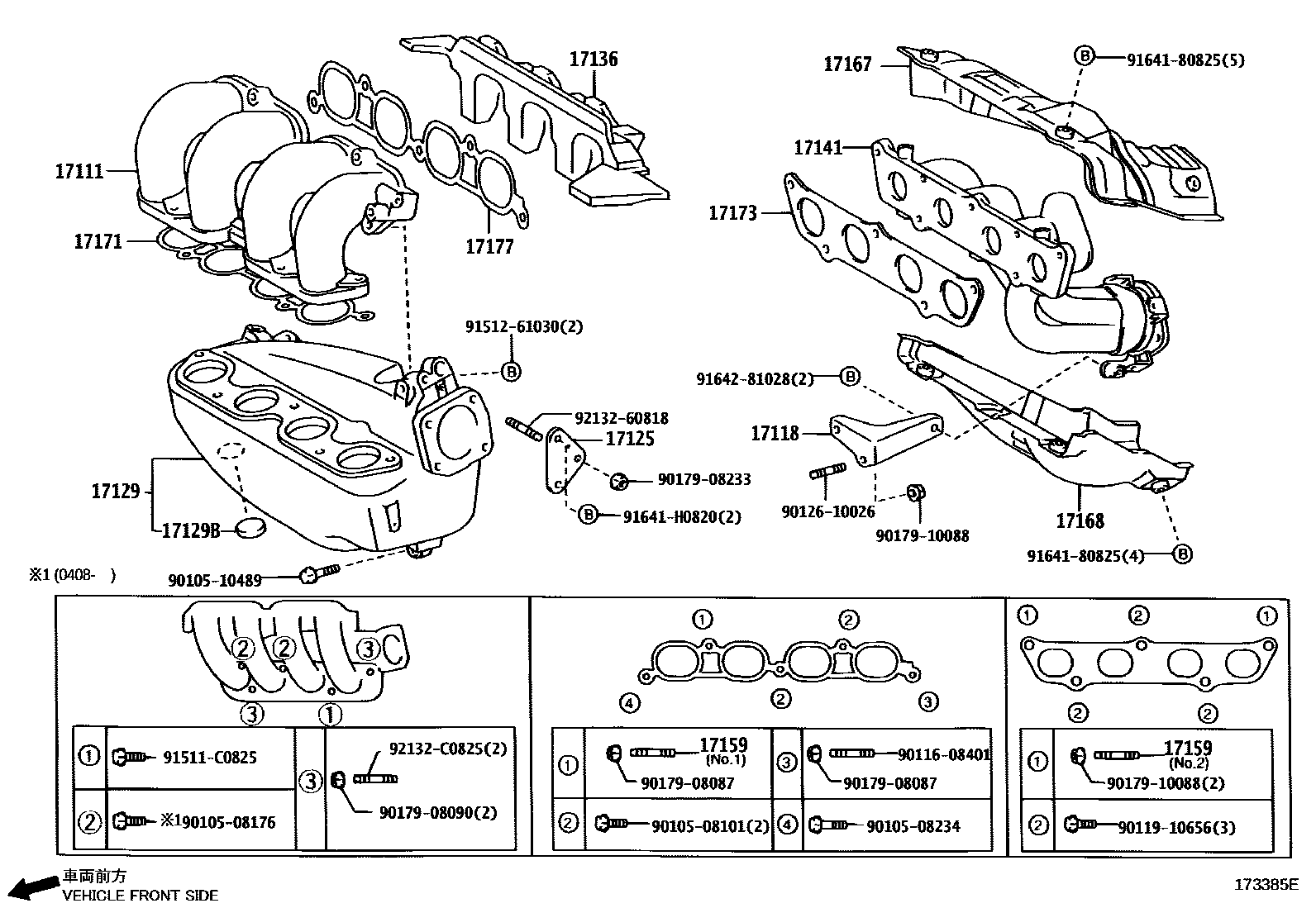

Toyota COROLLA Manifold EPC diagram — 173385E
Manifold — 173385E (200210 – 999999)

PNC and OE references

PNCPart nameOE numbers
17111Intake Manifold17111-88601 · 17120-0D030 · 17120-0D031 · 17120-0D050 · 17120-22030
17118Manifold stays17118-22010 · 17118-22020
17119No. 2 manifold stay17139-22030 · 17139-22040 · 17139-22050
17125No. 1 pressure tank stay17125-88600
17129Intake pressure tank17109-88601
17129BScrew plug96411-43000
17135AIntake manifold No. 1 heat shield17135-22010
17136Intake manifold No. 2 heat shield17136-88601
17141exhaust manifold17104-0D050 · 17141-88600 · 17141-88601
17159Studs (for manifold to cylinder head)90116-10169 · 90126-08026 · 90126-08043 · 92122-80822
17167Exhaust manifold No. 1 heat shield17167-22100 · 17167-22110 · 17167-88602
17168Exhaust manifold No.2 insulation pad17168-22100 · 17168-88600
17171Gasket (intake manifold to exhaust manifold)17171-22040 · 17171-88600
17173Gasket (exhaust manifold to cylinder head)17173-0D010 · 17173-22010 · 17173-88600 · 17173-88601
17177No. 1 gasket (intake manifold to cylinder head)17171-0D030 · 17171-22030 · 17177-22010 · 17177-88600
