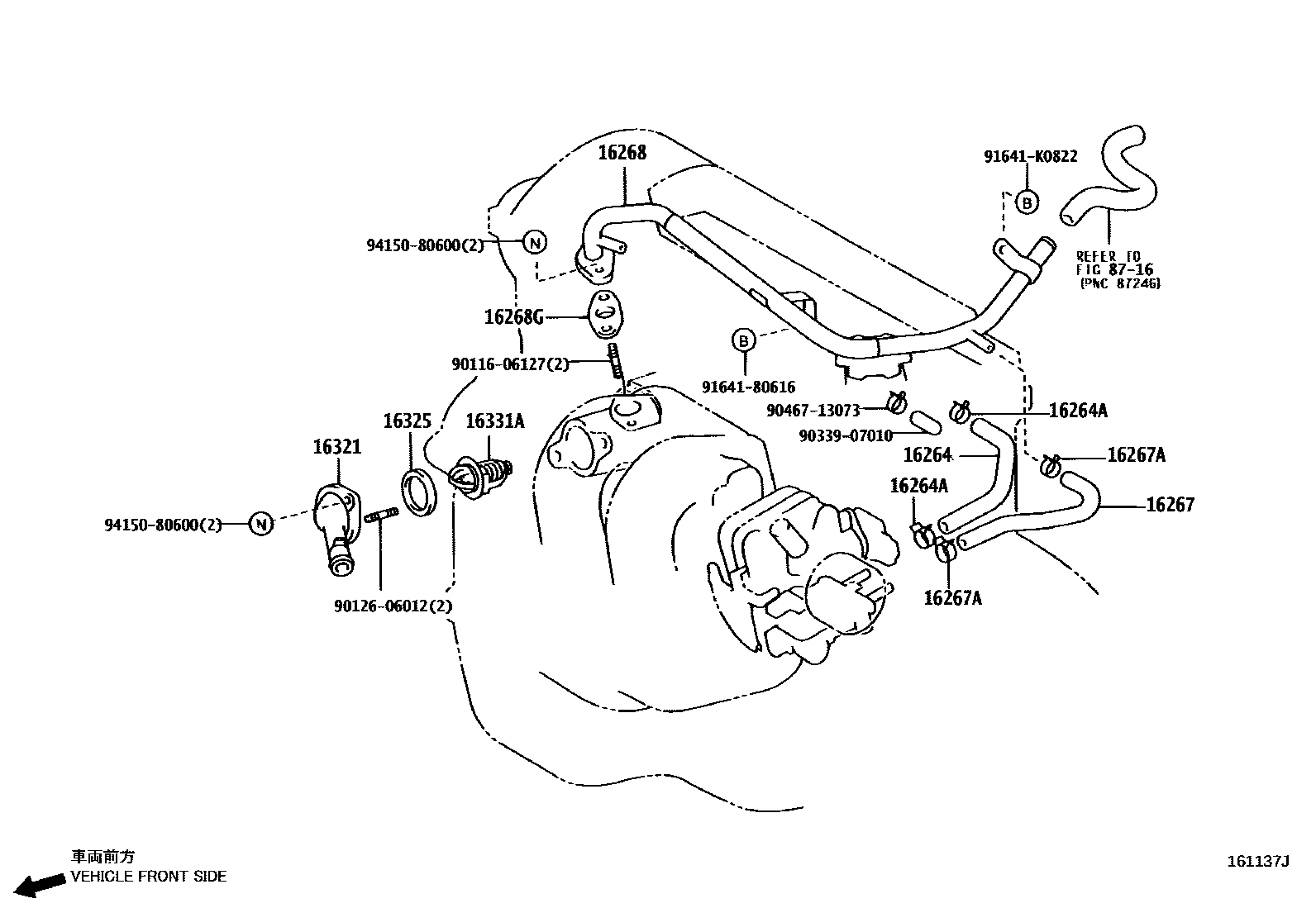

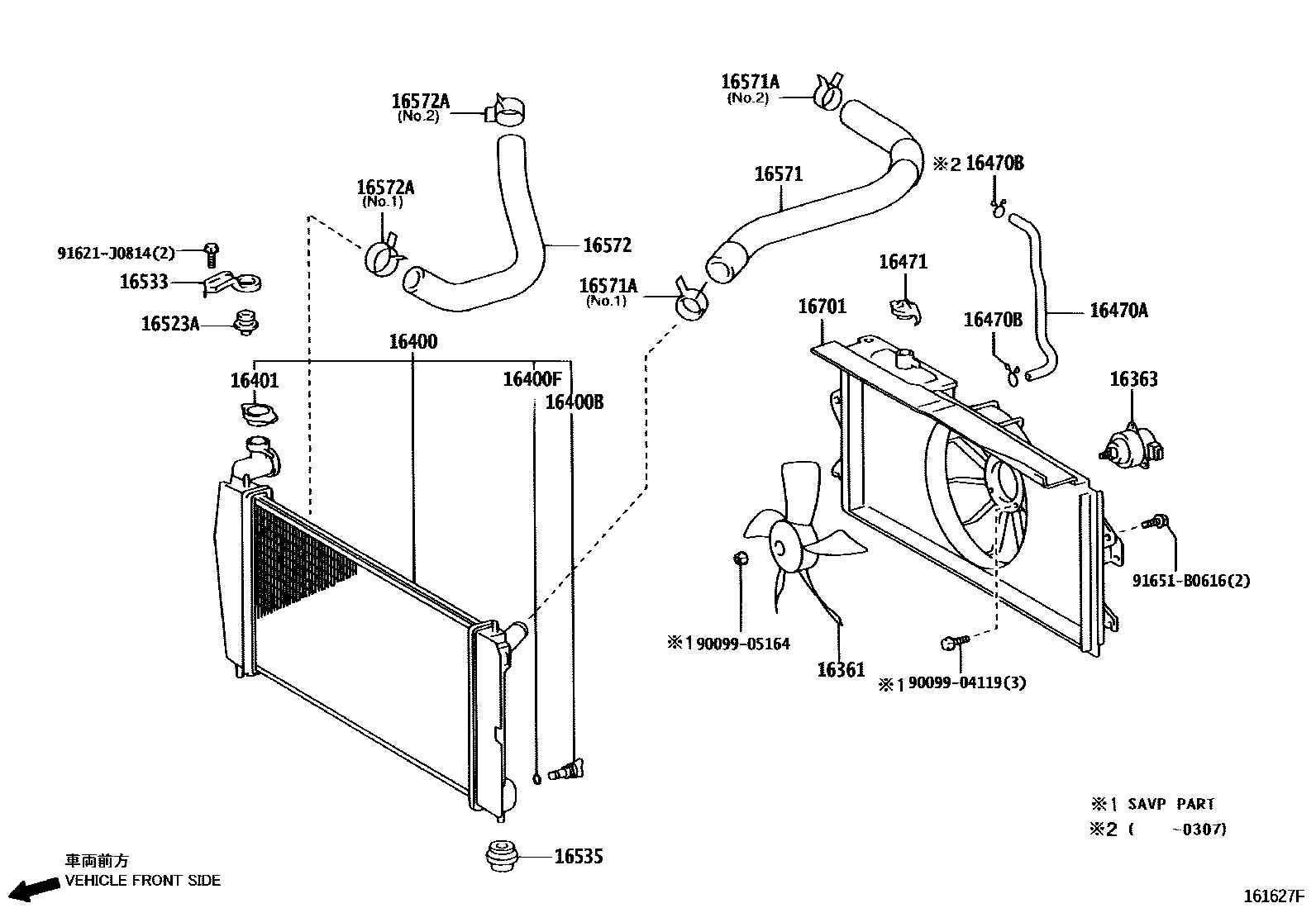

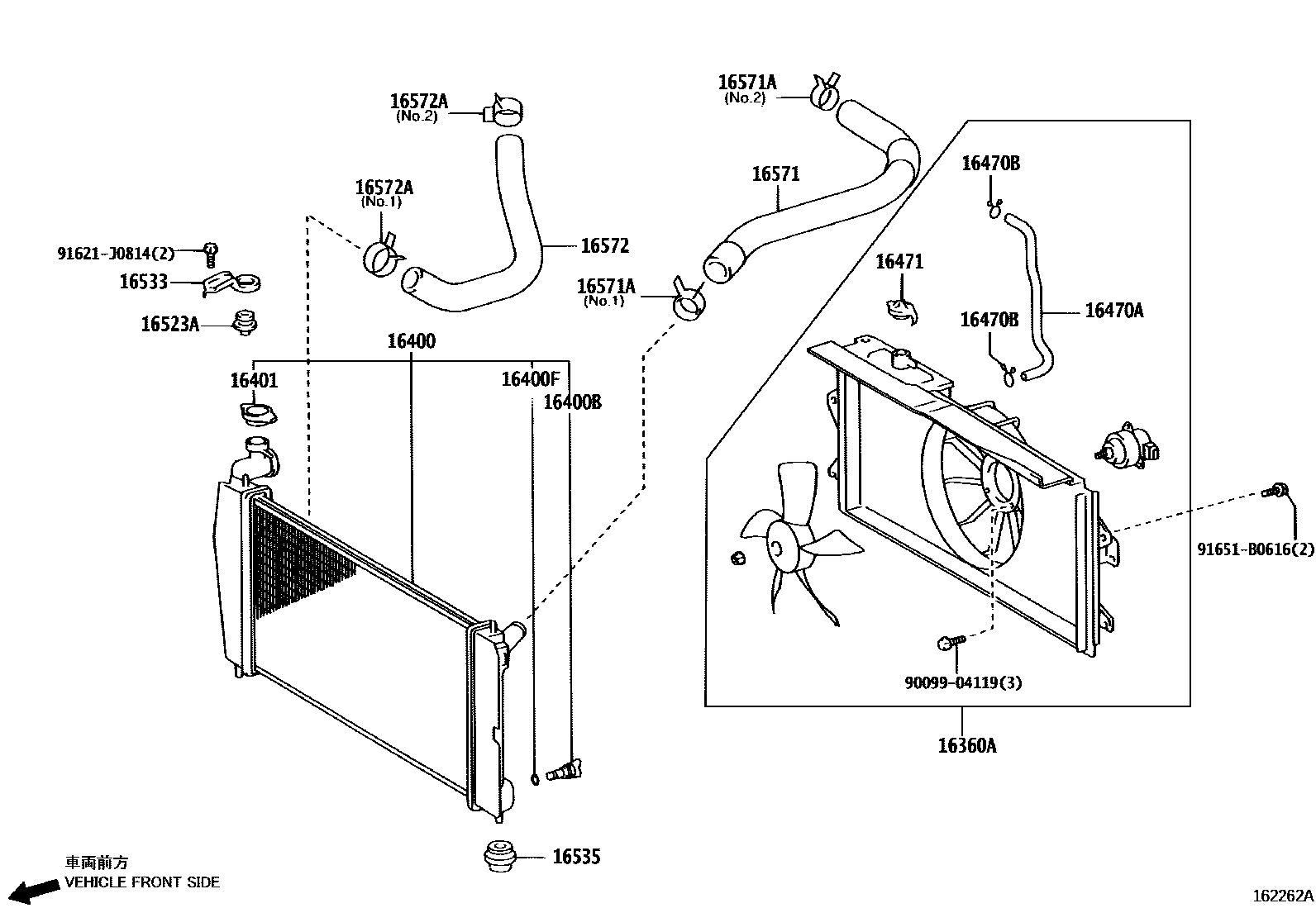

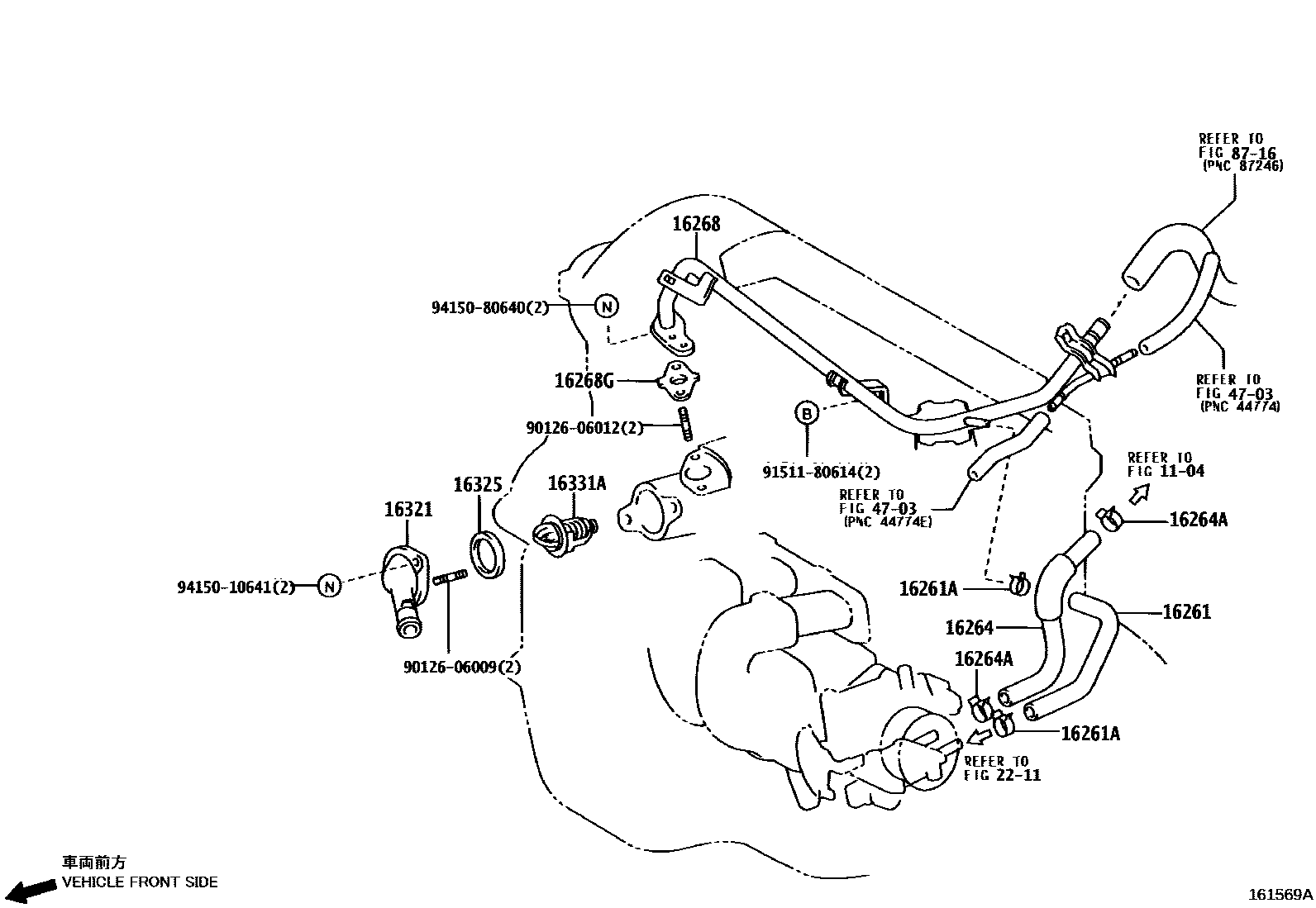

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 4 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16261 | HOSE, WATER BY-PASS | 16261-0D050 · 16261-0D060 · 16261-22080 · 16261-22100 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 96135-51300 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0D060 · 16264-0D070 · 16264-22090 · 16264-22110 · 16264-88601 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-13073 · 96135-51300 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-88602 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-13073 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0D030 · 16268-22100 · 16268-22140 · 16268-88602 |
| 16268G | Gasket (for water bypass pipe) | 16258-0D020 · 16258-22010 · 16258-88600 |
| 16321 | water inlet | 16321-22070 · 16321-88600 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-62010 |
| 16331A | thermostat | 90916-03084 · 90916-03125 · 90916-03129 |
| 16360A | Fan assembly with motor | 16360-0D161 · 16360-0D171 |
| 16361 | Fan | 16361-0D130 · 16361-0D140 |
| 16363 | cooling fan motor | 16363-21050 · 16363-23020 · 16363-23030 · 16363-28150 |
| 16400 | Radiator assembly | 16400-0D310 · 16400-0D320 · 16400-0D330 · 16400-0D340 · 16400-0D350 |
| 16400B | Radiator drain switch screw plug | 16417-0D310 |
| 16400F | Seal (for radiator drain switch) | 16418-0D310 |
| 16401 | Radiator cover sub-assembly | 16401-72090 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16377-0D160 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90069-49003 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-0D020 · 16471-0D030 |
| 16523A | Radiator bracket cushion | 16523-21020 |
| 16533 | Radiator upper bracket | 16533-21020 |
| 16535 | Radiator lower support | 16535-21050 · 16535-21060 · 90480-40016 |
| 16571 | Radiator water inlet hose | 16571-0D090 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-34004 · 90467-37005 |
| 16572 | Radiator outlet hose | 16572-0D080 · 16572-22080 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-35001 · 90466-37002 |
| 16701 | Fan cover sub-assembly | 16711-0D110 · 16711-0D111 · 16711-0D120 · 16711-0D121 |
