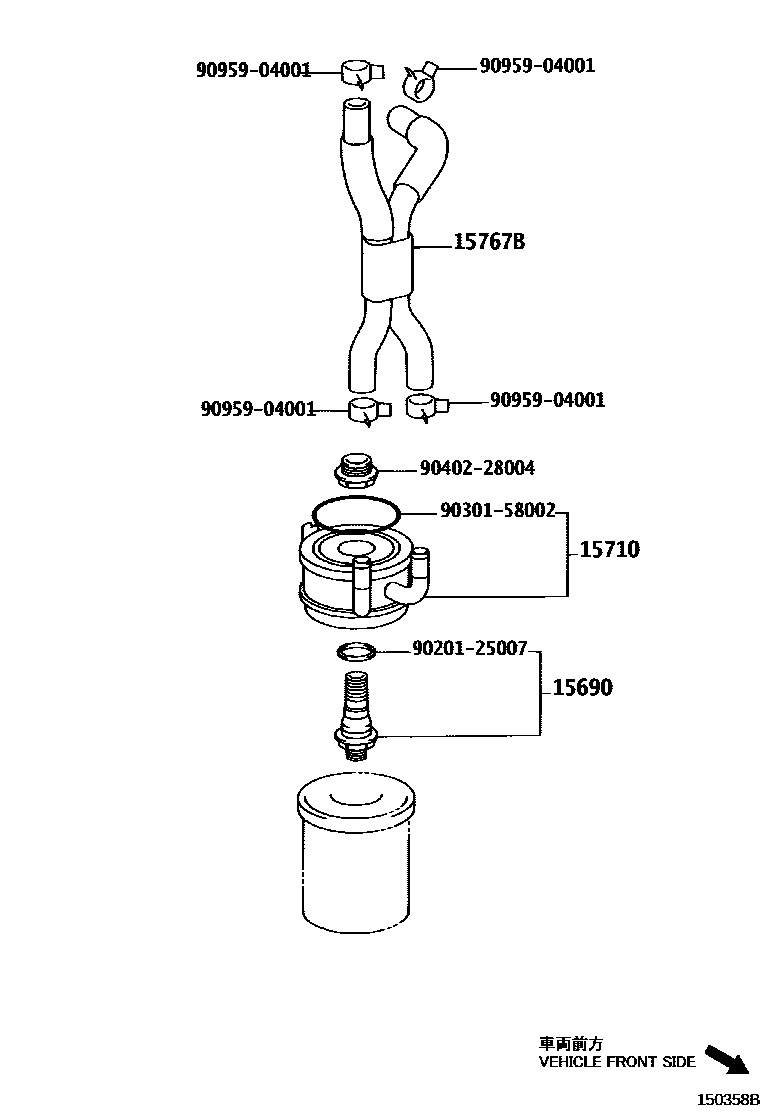

Toyota COROLLA Engine Oil Cooler — Figure 1503
Toyota COROLLA EPC diagram 1503, Engine Oil Cooler, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15690 | Oil cooler pressure reducing valve assembly | 15695-88411 |
| 15710 | Oil cooler assembly | 15710-88610 |
| 15767B | HOSE, WATER BY-PASS, NO.4 | 16281-88600 |
