Toyota COROLLA Engine Mounting — Figure 1107

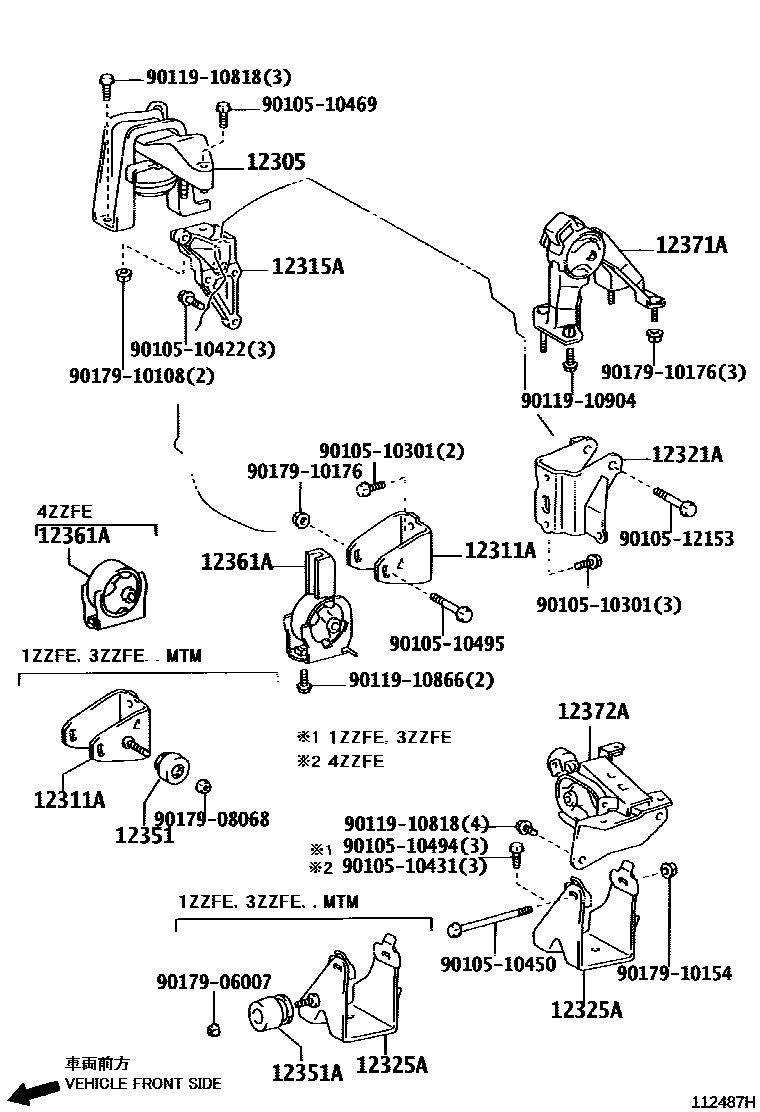

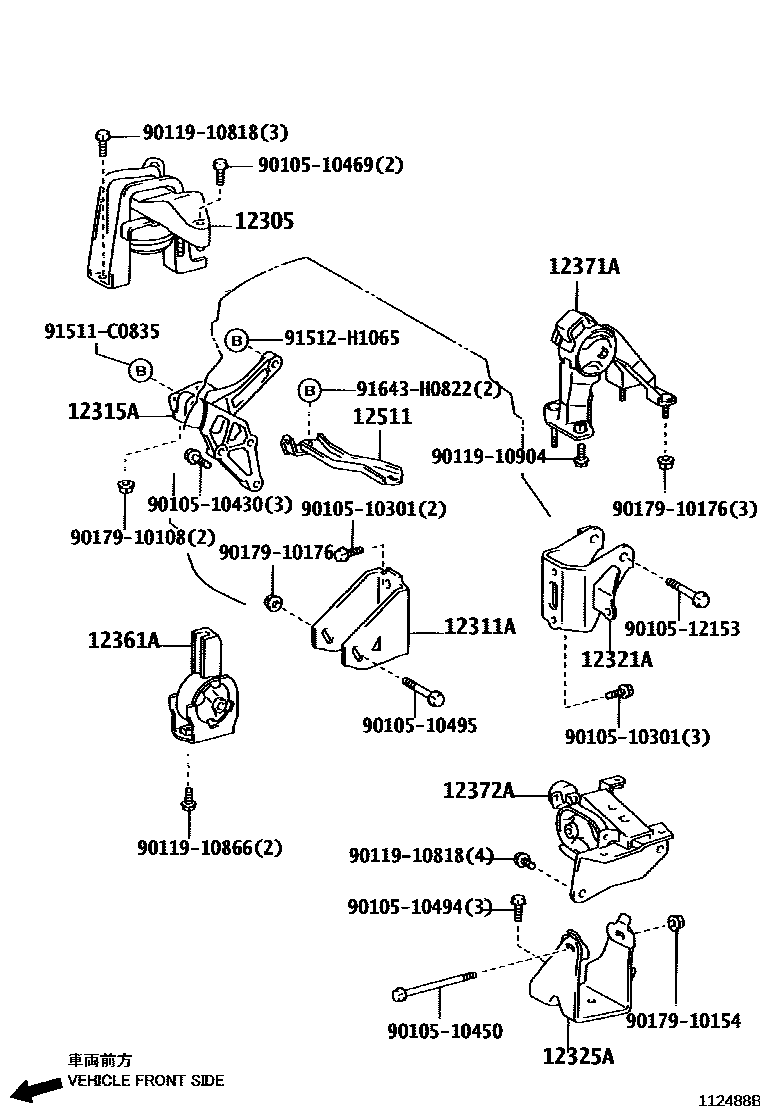

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-22180 · 12305-22200 · 12305-22250 · 12305-22270 · 12305-22390 · 12305-22400 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-0D040 · 12311-22120 · 12311-22170 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-0D050 · 12315-22030 · 12315-22050 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-0D070 · 12321-22110 · 12321-22121 · 12321-22140 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-22100 · 12325-22120 · 12325-22200 · 12325-22260 · 12325-22270 |
| 12351 | engine mount shock absorber | 12351-22080 |
| 12351A | Engine mount shock absorber (for vibration isolation pad) | 12351-22070 · 12351-74110 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-0D050 · 12361-0D070 · 12361-0D110 · 12361-0D150 · 12361-22080 |
| 12371A | Engine rear mount vibration isolation pad | 12371-0D070 · 12371-22170 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0D051 · 12372-0D090 |
| 12511 | No. 1 generator bracket | 12511-88601 |
