Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

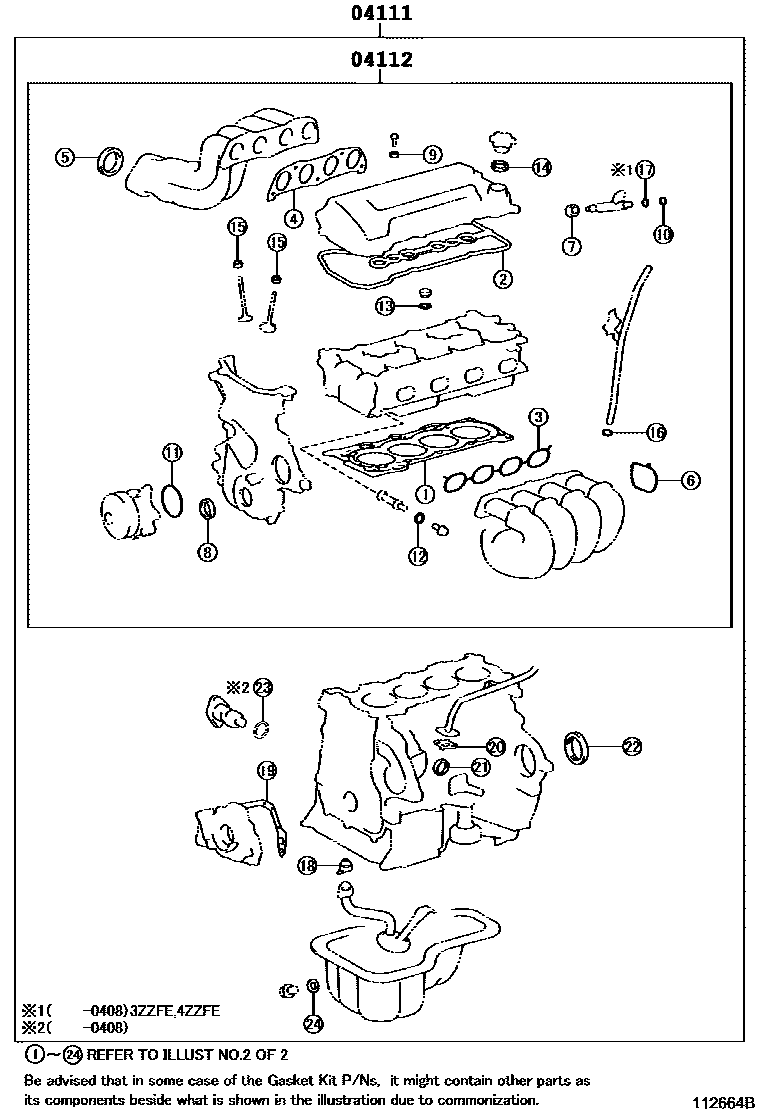

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 112664B
Engine Overhaul Gasket Kit — 112664B (200208 – 999999)

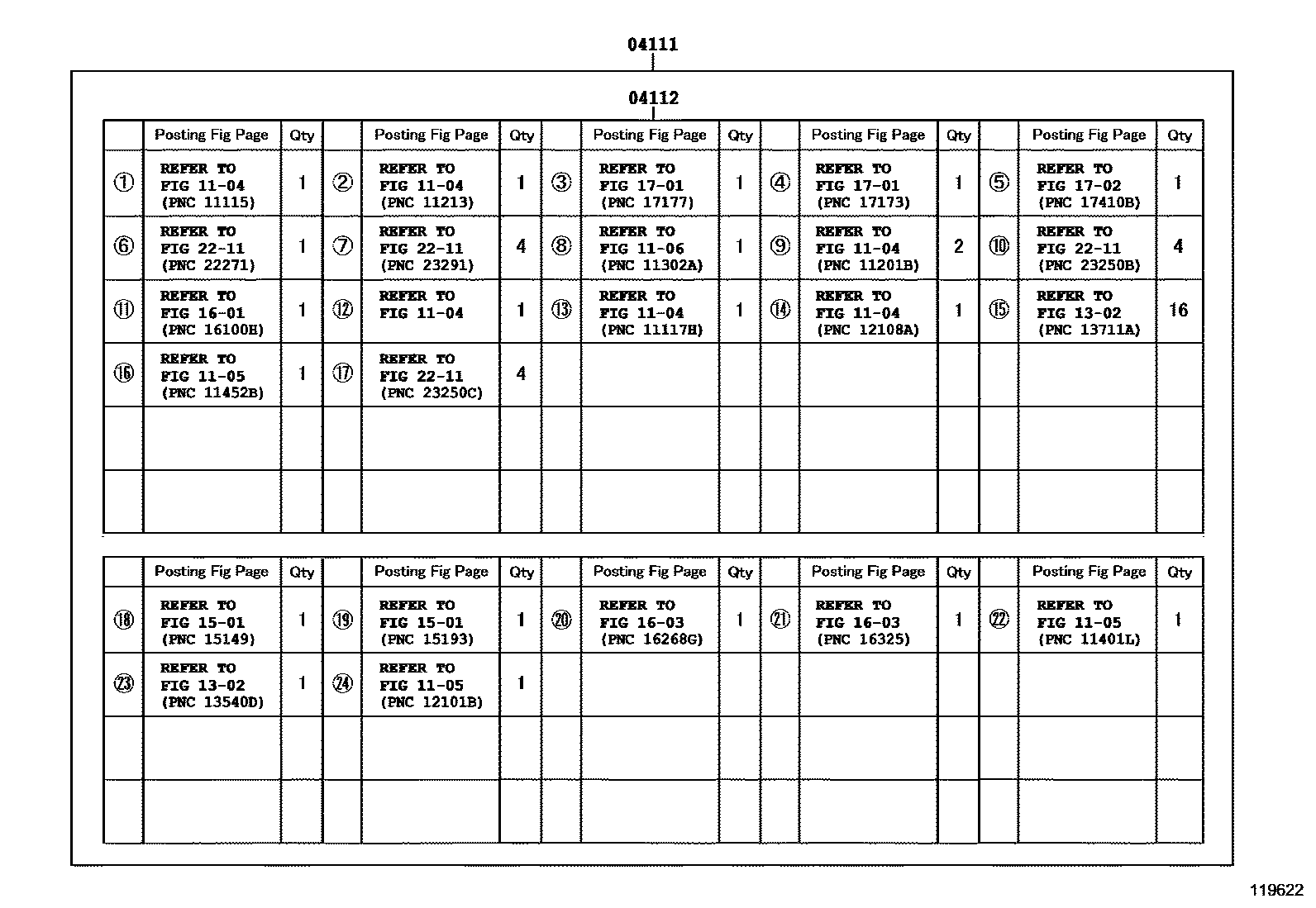

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119622
Engine Overhaul Gasket Kit — 119622 (200208 – 999999)

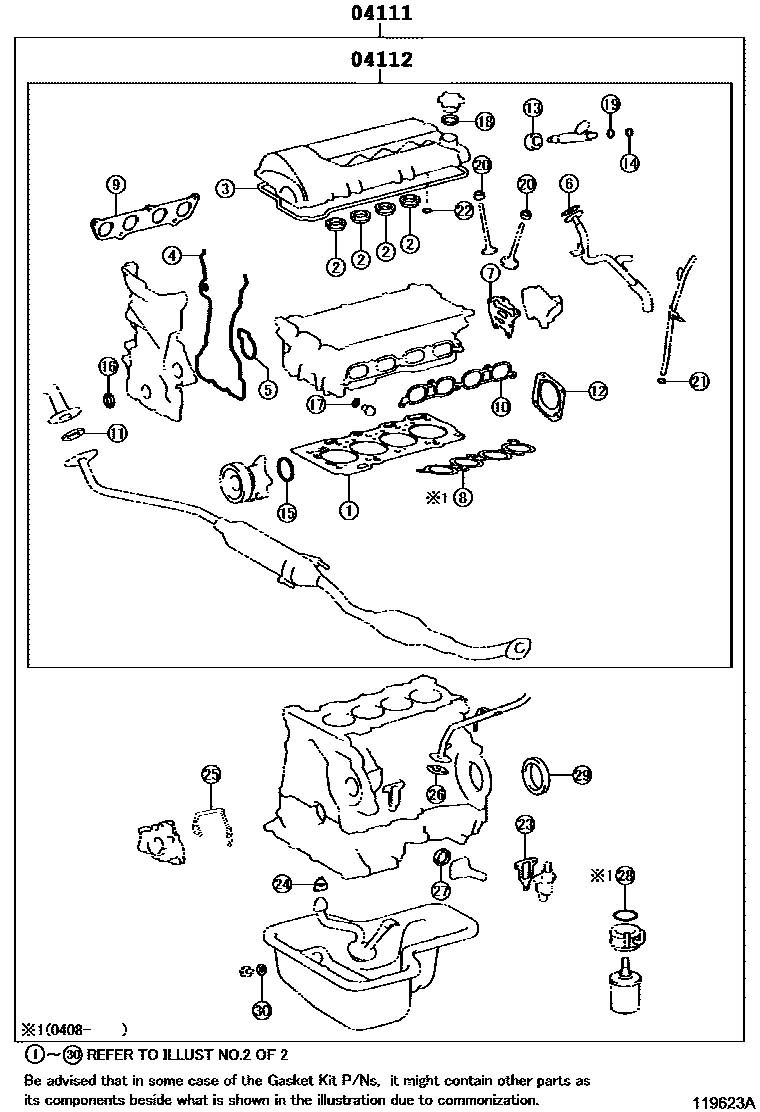

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119623A
Engine Overhaul Gasket Kit — 119623A (200210 – 999999)

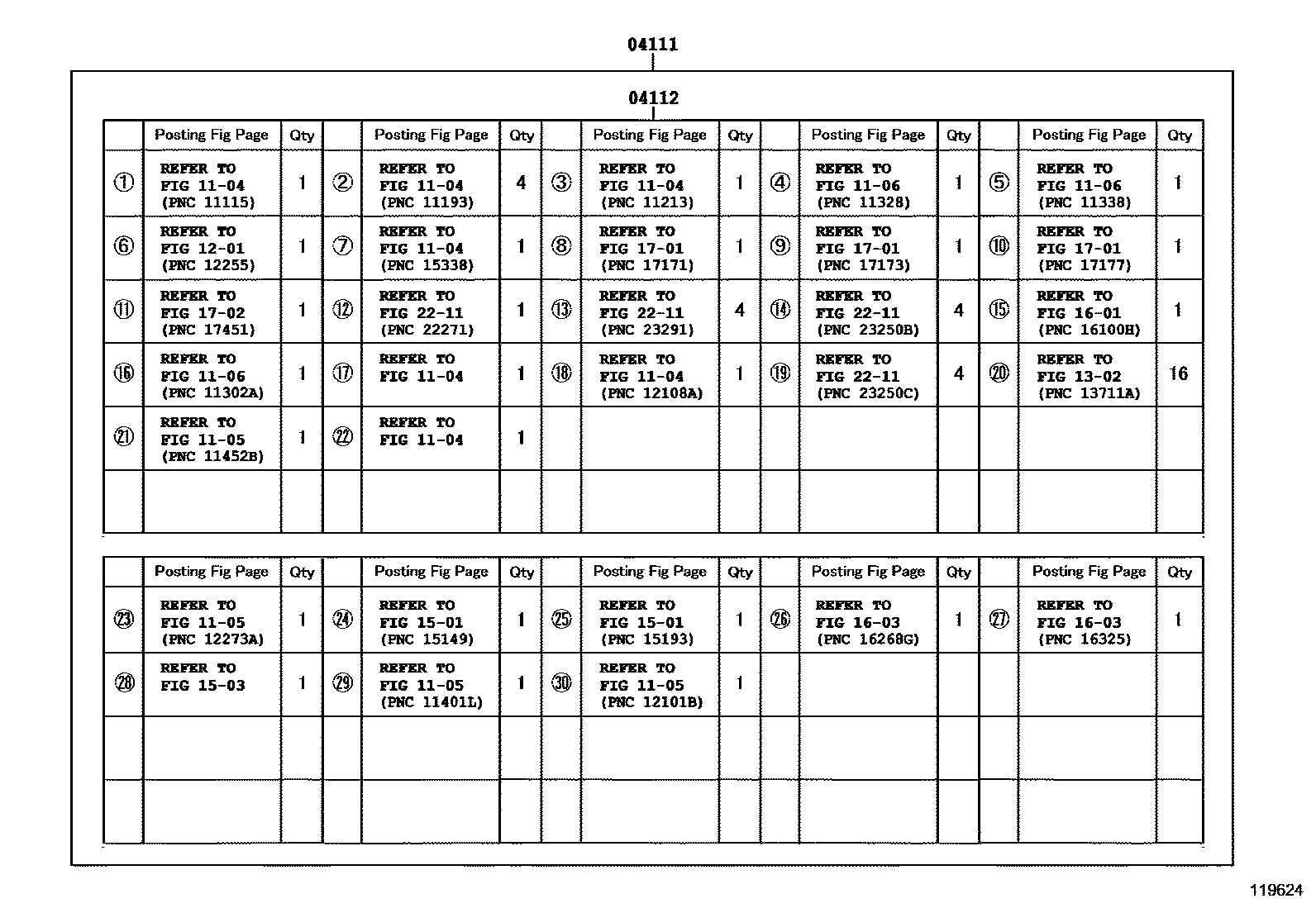

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119624
Engine Overhaul Gasket Kit — 119624 (200210 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0D190 · 04111-0D191 · 04111-0D200 · 04111-0D201 · 04111-22140 · 04111-22141 · 04111-22530 · 04111-22560 · 04111-88010
04112Engine valve grinding pad assembly04112-0D190 · 04112-0D191 · 04112-0D200 · 04112-0D201 · 04112-22140 · 04112-22141 · 04112-22500 · 04112-22530 · 04112-88010
