Toyota COROLLA Short Block Assembly — Figure 1102

Toyota COROLLA EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

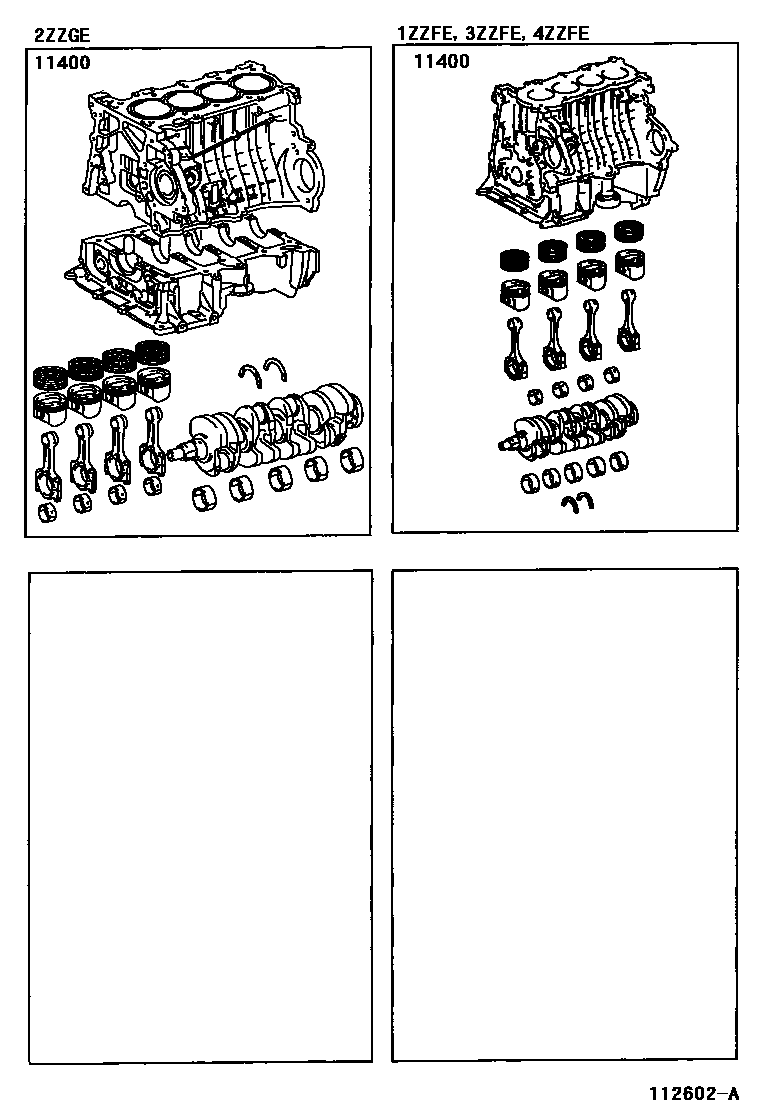

Toyota COROLLA Short Block Assembly EPC diagram — 112602A
Short Block Assembly — 112602A (200208 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-0D170 · 11400-0D171 · 11400-0D180 · 11400-0D181 · 11400-0D190 · 11400-0D191 · 11400-88515
