Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

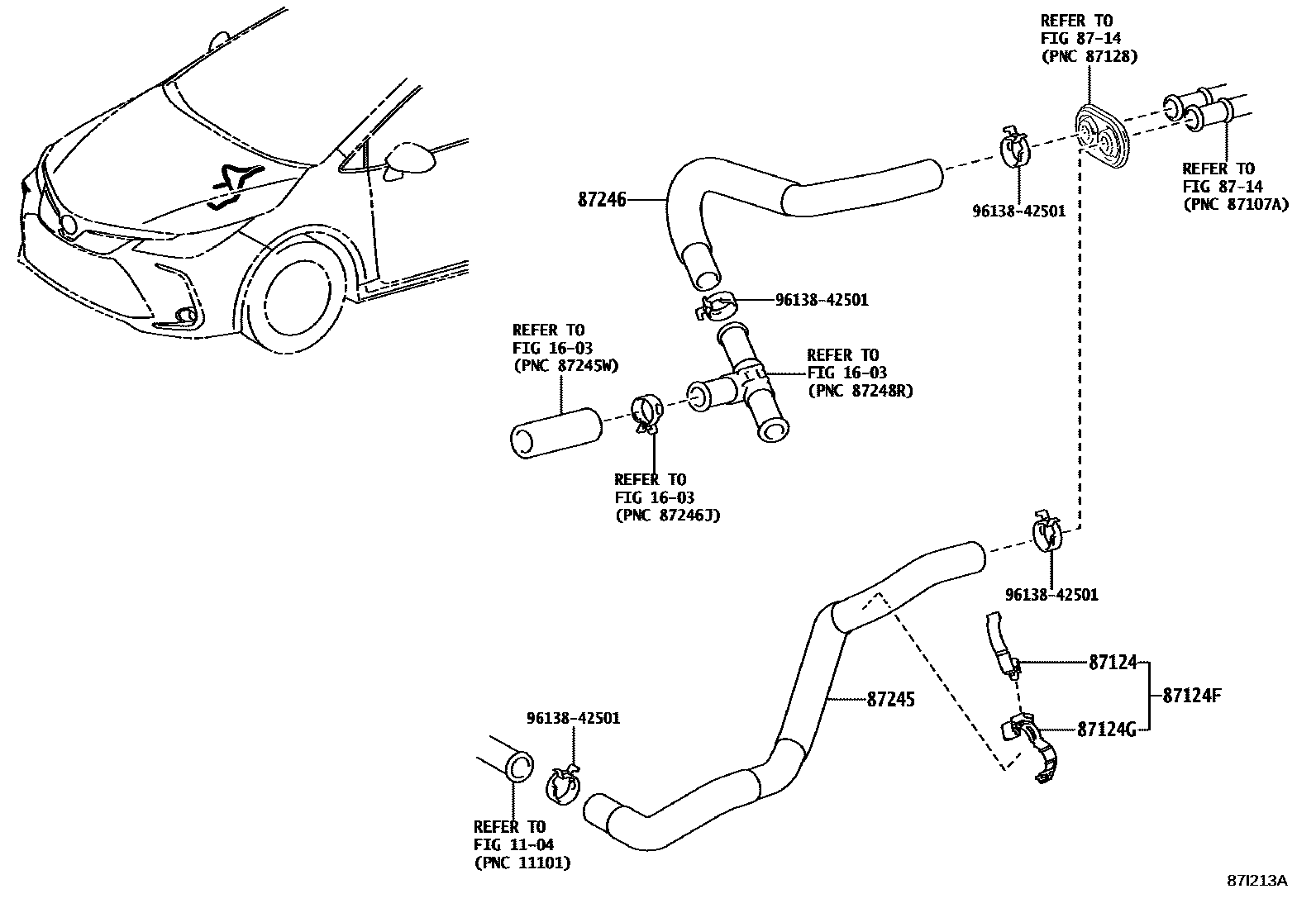

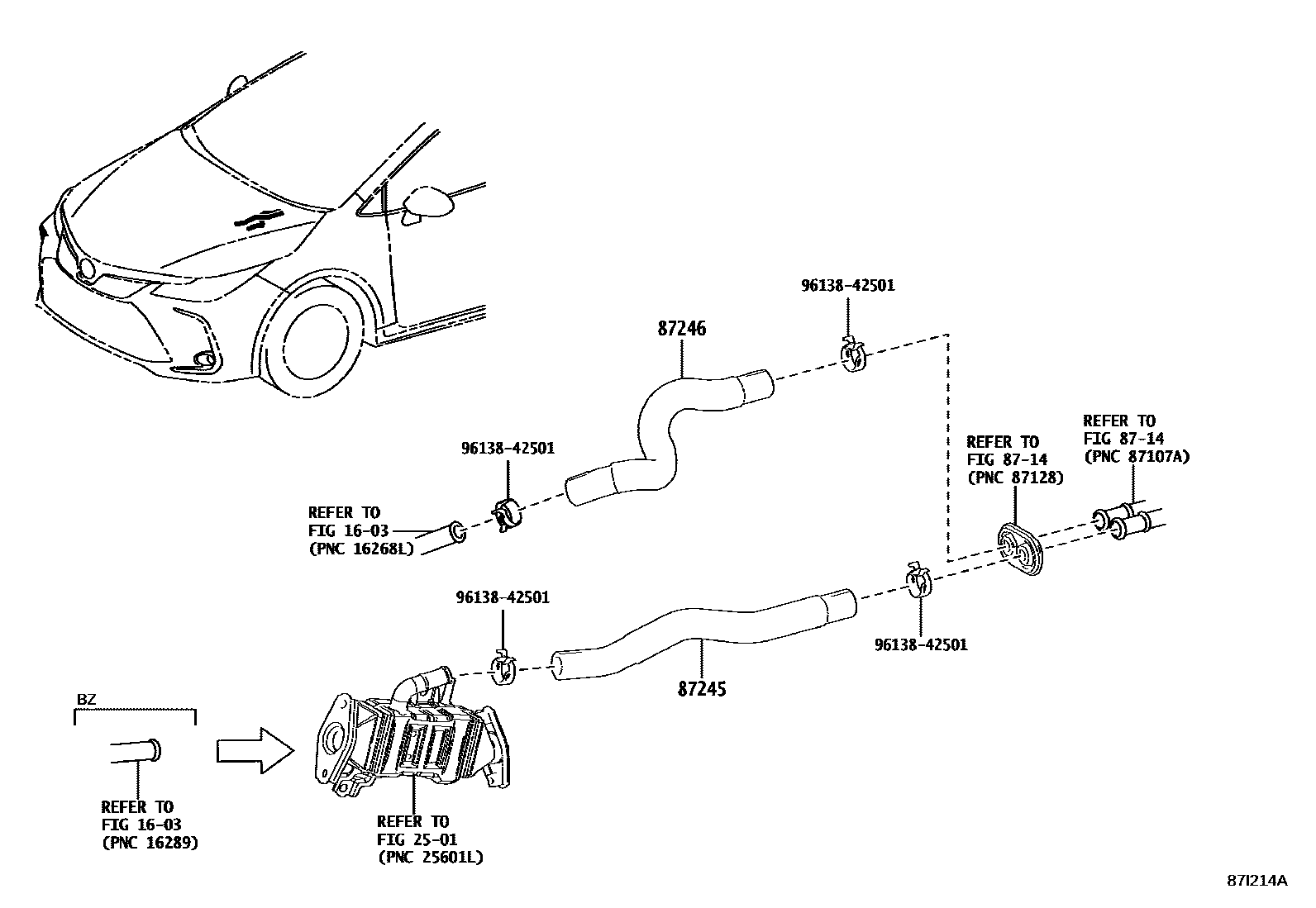

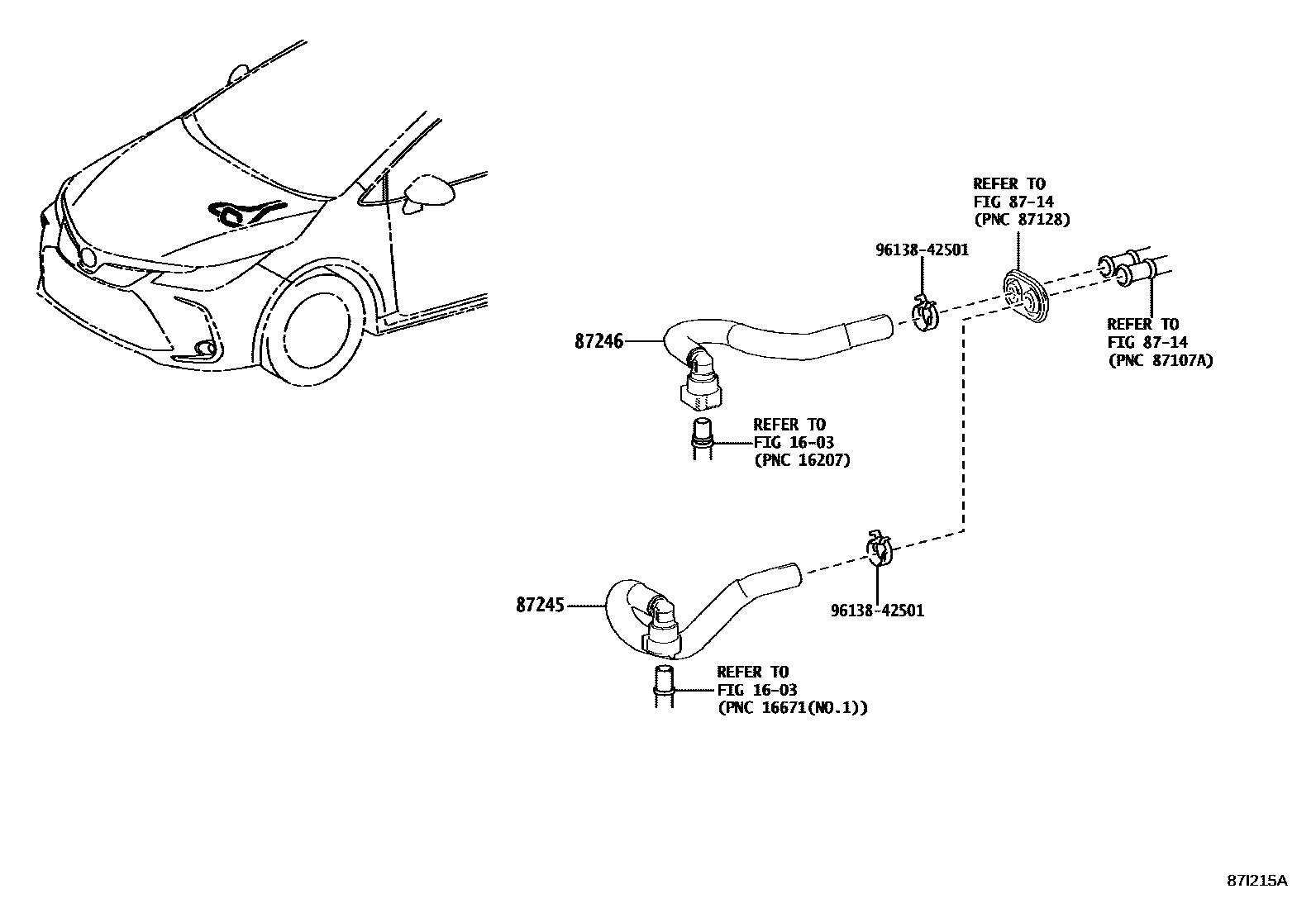

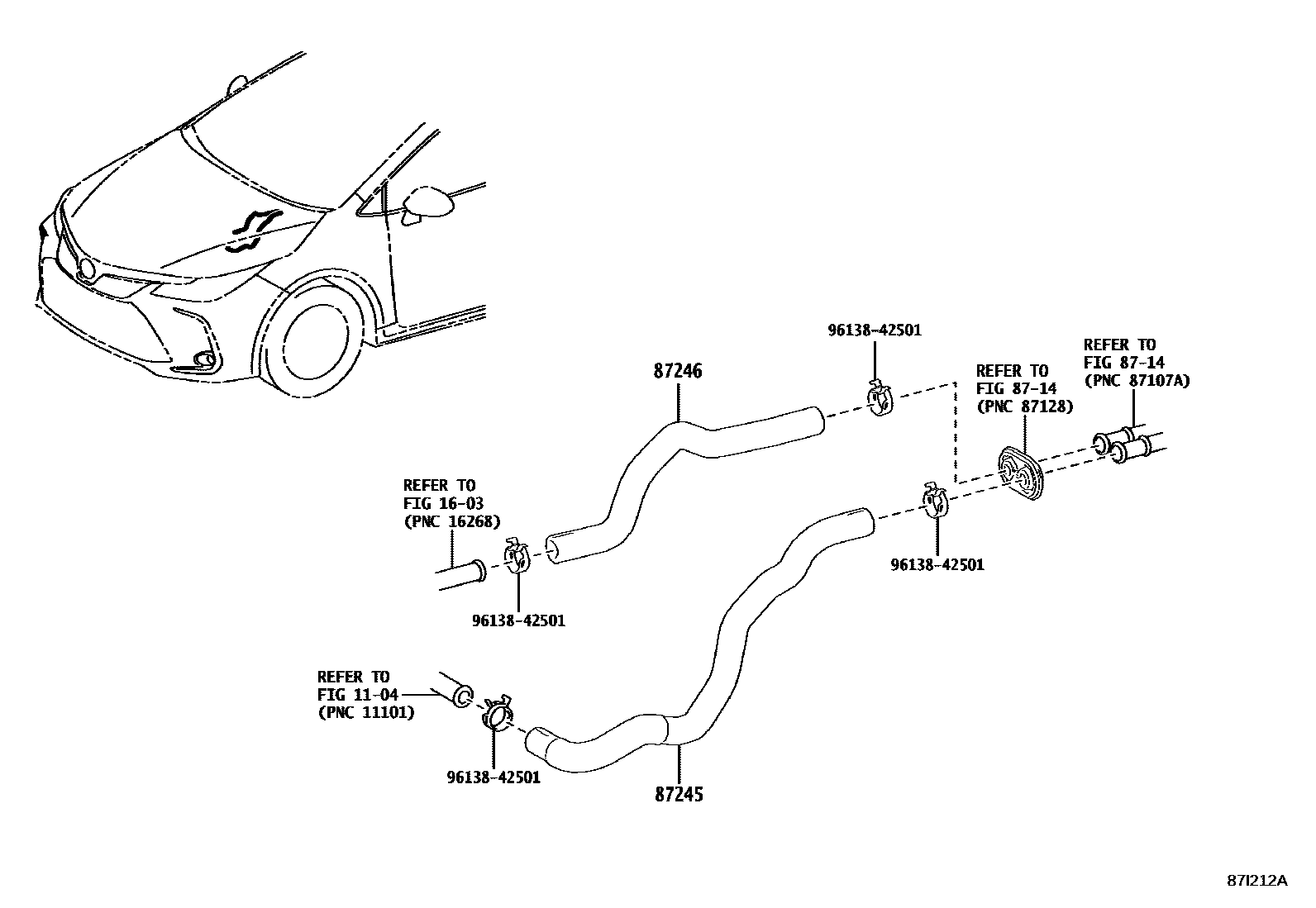

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 4 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87124 | heater clip | 87124-11030 |
| 87124F | No. 1 heater hose clamp | 16581-70060 |
| 87124G | No. 2 heater hose clamp | 87124-50060 |
| 87245 | Heater water inlet hose | 87209-12640 · 87245-02T40 · 87245-02T90 · 87245-02W00 |
| 87246 | Heater outlet hose | 87209-12710 · 87245-02T50 · 87245-02U00 · 87245-12G40 |
