Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

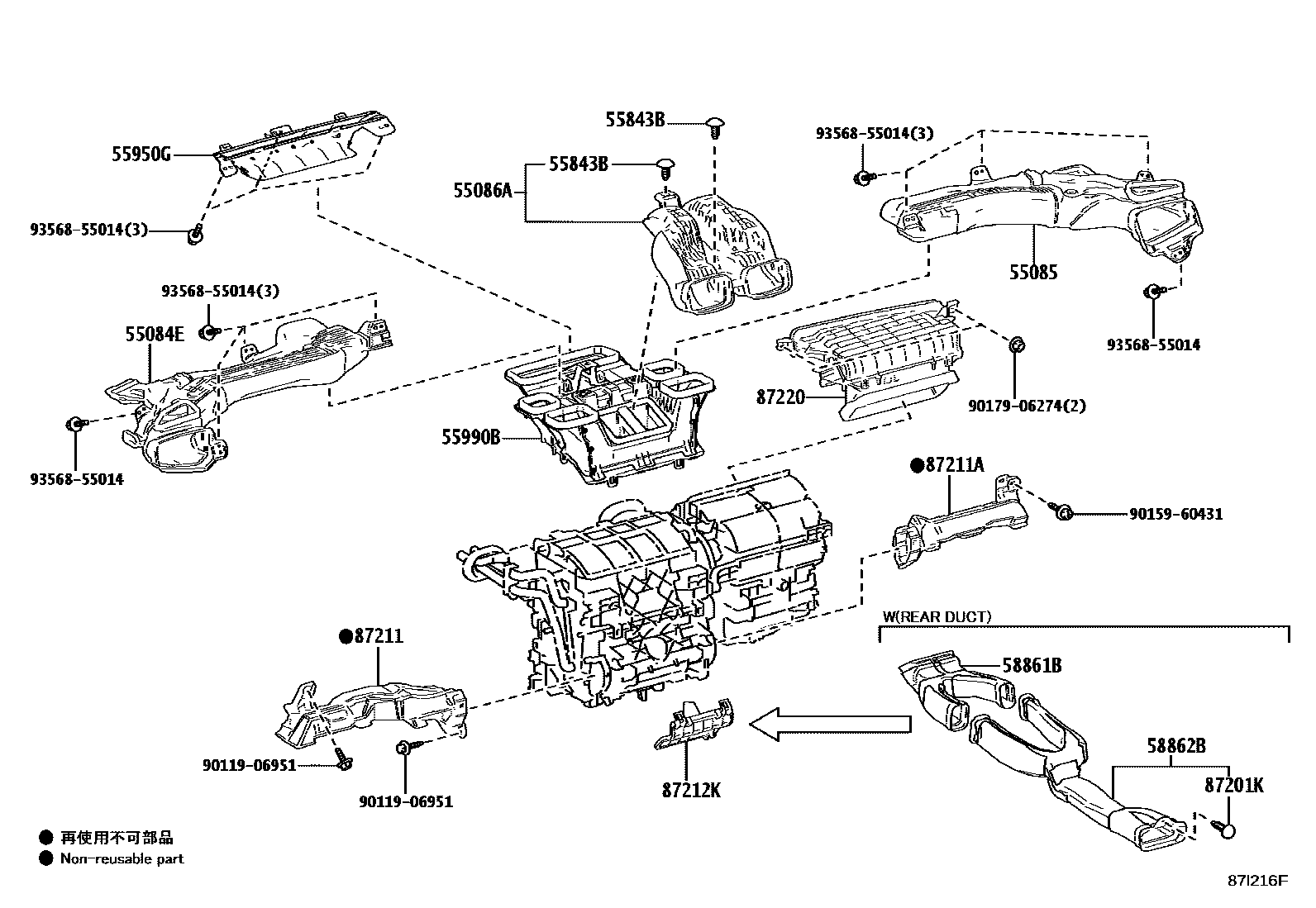

| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-02690 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55085-02260 |
| 55086A | Heater to central air register air duct sub-assembly | 55086-02660 |

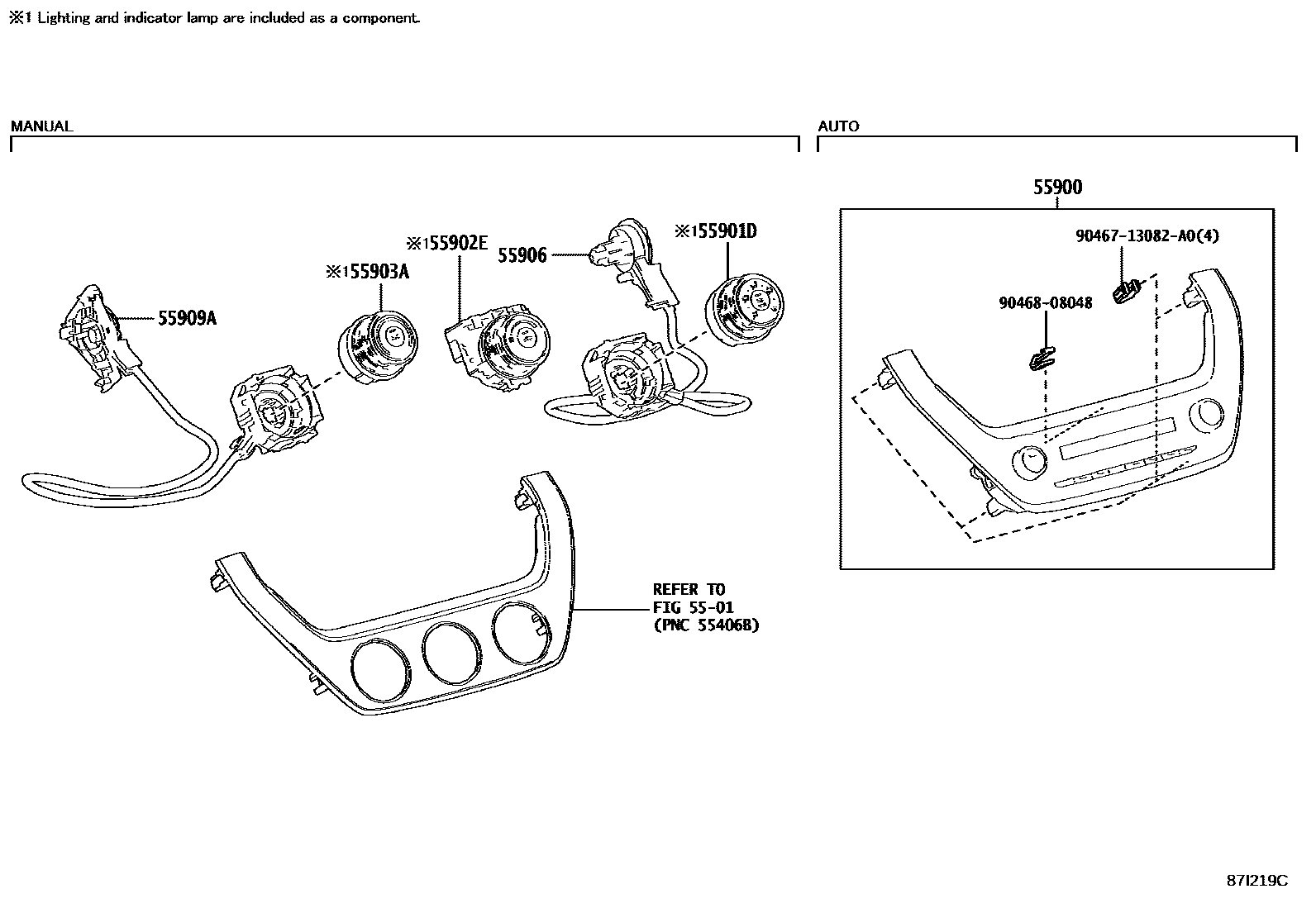

| 55901D | No. 1 heater control sub-assembly | 55901-12280 · 55901-26230 |
| 55902E | No. 2 heater control sub-assembly | 55902-12410 · 55902-26150 |
| 55903A | No. 3 heater control sub-assembly | 55903-12380 · 55903-12390 |
| 55906 | Heater control cable sub-assembly | 55906-26090 · 55906-26091 |
| 55909A | Air mix damper control cable sub-assembly | 55909-26140 · 55909-26141 |
| 55950G | Defroster nozzle assembly | 55950-02460 |
| 55990B | Lower defroster nozzle assembly | 55990-02370 |
| 58861B | Air duct No. 1 for armrest box | 58861-02090 |
| 58862B | Air duct No. 2 for armrest box | 58862-02200 |
| 87211 | No. 1 air duct | 87211-02730 |
| 87211A | Duct No. 2 | 87211-02740 |
| 87212K | No. 6 rear air duct | 87114-02160 |
| 87220 | Air duct assembly | 87220-02430 · 87220-02431 |

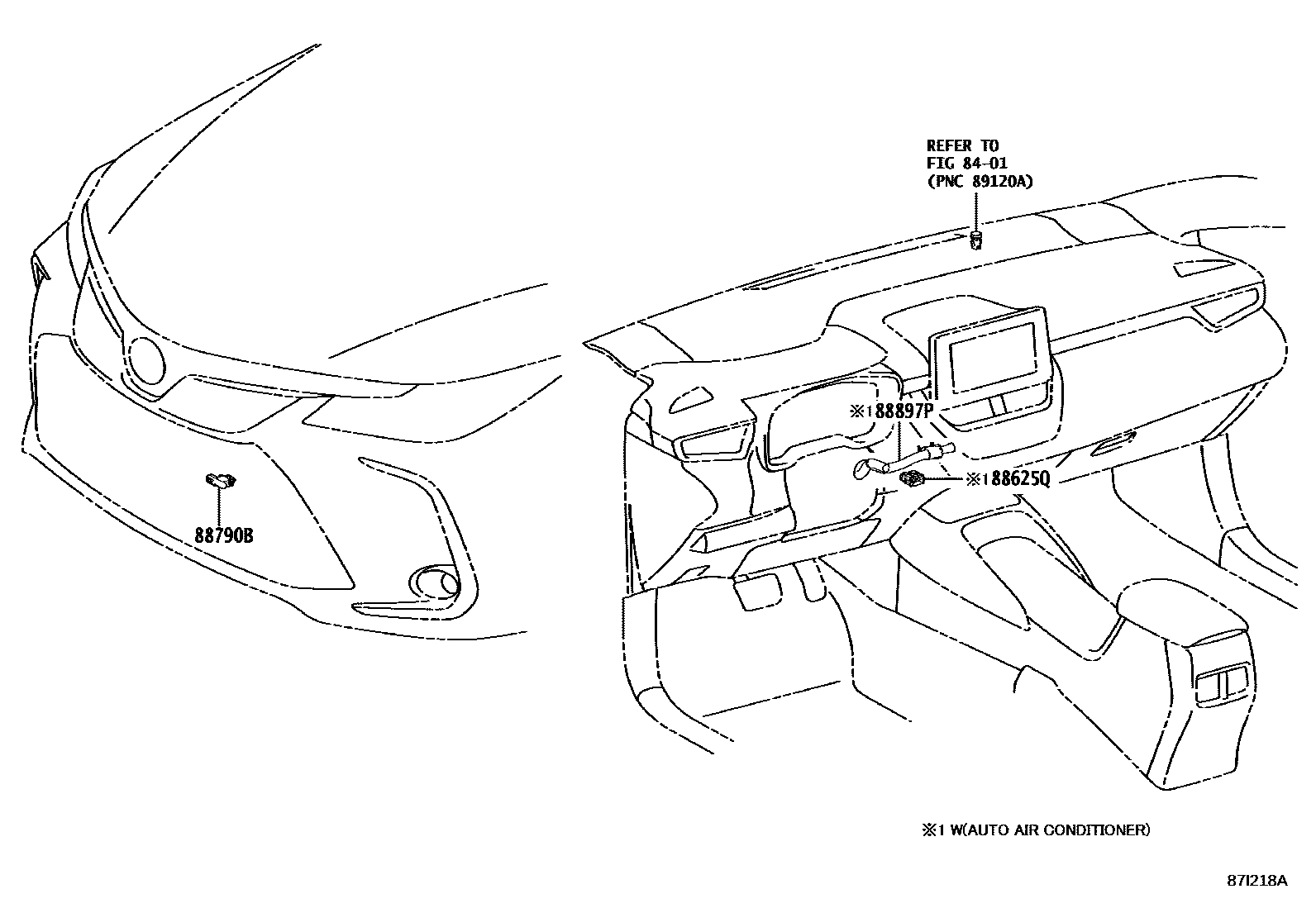

| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88790B | Thermistor assembly | 88790-28100 |
| 88897P | aspirator | 88505-02280 |
