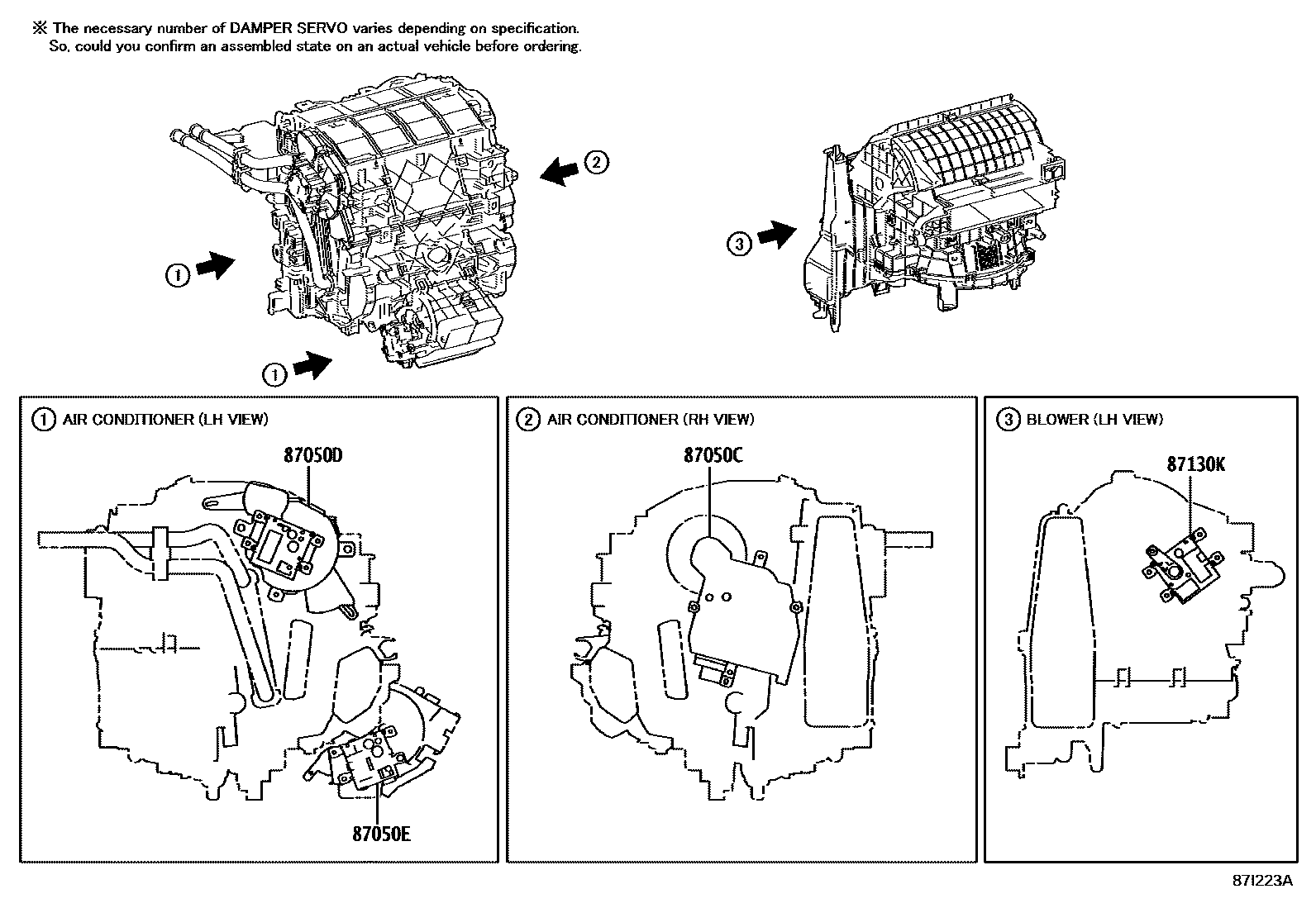

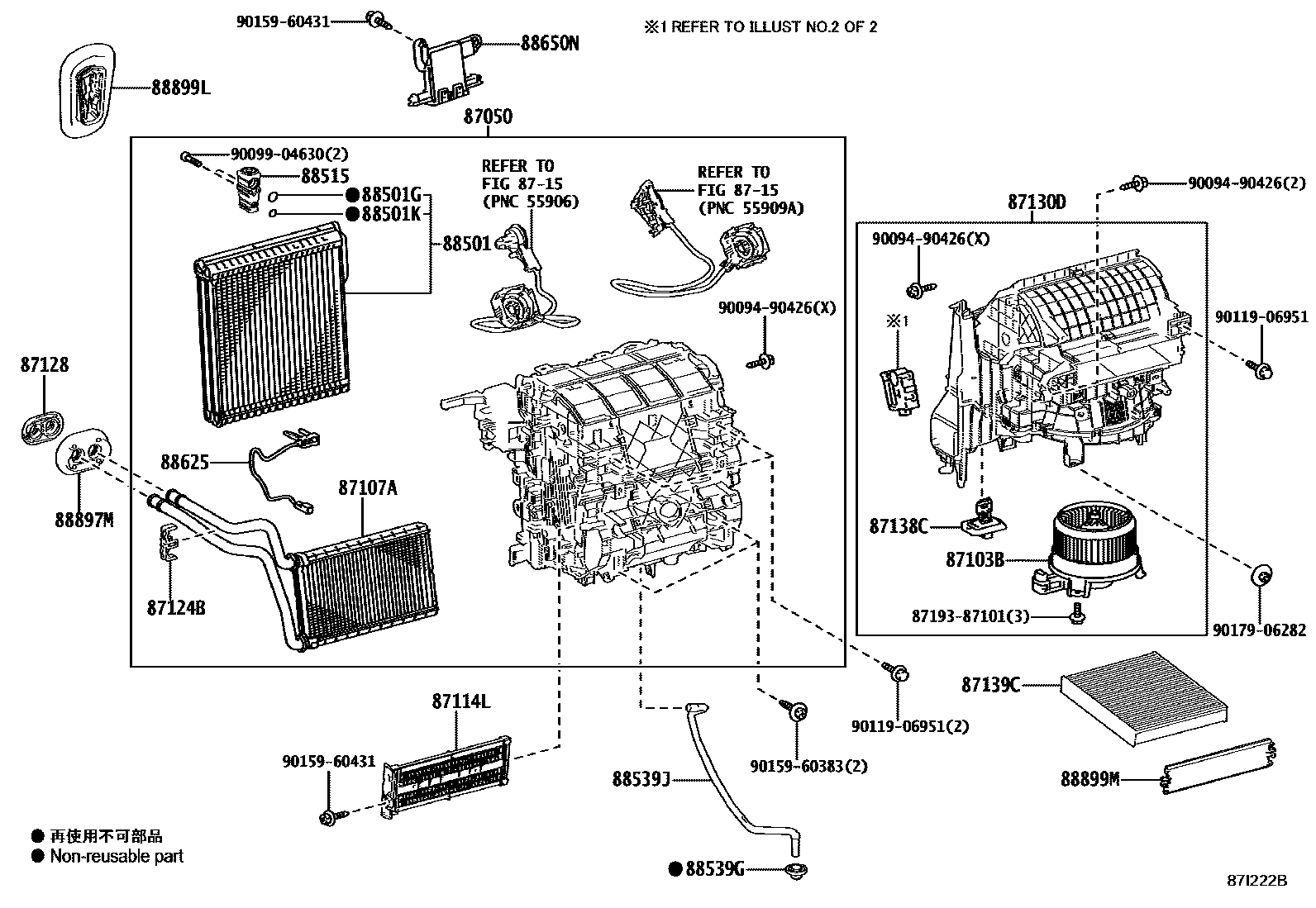

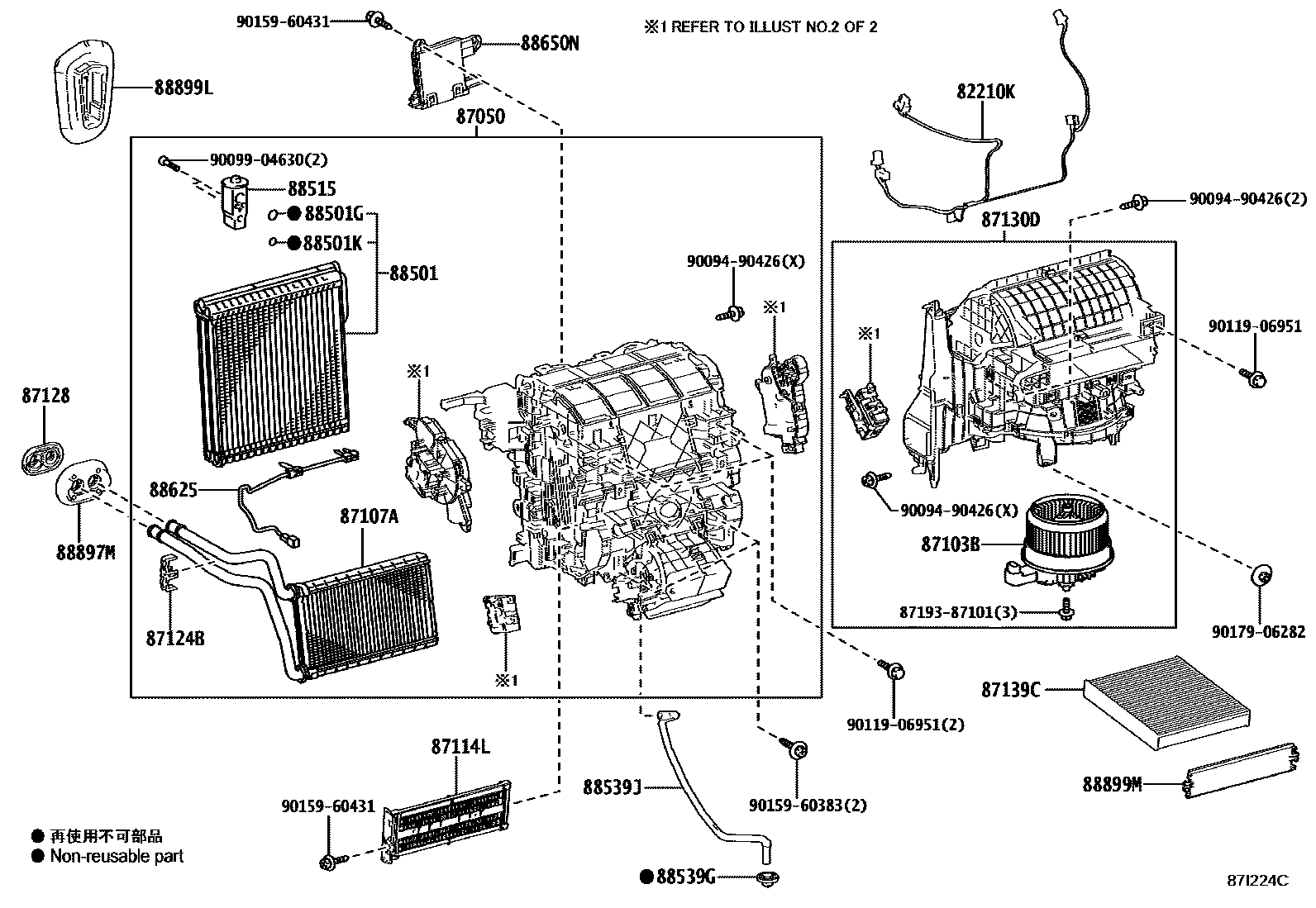

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-02600 · 82212-02650 · 82212-0A030 |
| 87050 | Air conditioning radiator assembly | 87050-0A110 · 87050-0A120 · 87050-0A230 · 87050-0A240 · 87050-0ZD80 · 87050-0ZD90 · 87050-0ZE00 · 87050-0ZE10 · 87050-0ZG30 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-02A10 · 87106-02A20 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-02A30 |
| 87050E | No. 3 air conditioner radiator damper servo mechanism sub-assembly | 87106-0A010 |
| 87103B | Blower motor sub-assembly with fan | 87103-02610 · 87103-02640 · 87103-0A090 |
| 87107A | Heater radiator device sub-assembly | 87107-02400 |
| 87114L | Heater cover No. 2 | 87114-02170 |
| 87124B | heater clip | 87124-02220 |
| 87128 | heater seal | 87128-28010 |
| 87130D | Blower assembly | 87130-02C00 · 87130-02C01 · 87130-02C60 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-02A40 · 87106-02B10 |
| 87138C | Blower resistor | 87138-02230 |
| 87139C | air purification filter | 87139-02240 · 87139-02241 · 87139-02250 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-02660 · 88501-02670 · 88501-0A060 |
| 88501G | No. 1 cooler evaporator O-ring (suction) | 90099-14121 |
| 88501K | No. 1 cooler evaporator O-ring (liquid) | 90099-14120 |
| 88515 | Cooler expansion valve | 88515-02750 · 88515-30800 |
| 88539G | Seal (for cooler unit drain hose) | 88888-47010 |
| 88539J | Cooler drain hose | 88539-02500 |
| 88625 | Cooler No. 1 Thermistor | 88620-02220 · 88620-02230 |
| 88650N | Air conditioning amplifier assembly | 88650-02M10 · 88650-02N90 · 88650-02P70 · 88650-12D60 · 88650-12N10 |
| 88897M | Seals (for heater tubes) | 87128-02210 |
| 88899L | Cooling unit parts | 88899-02440 · 88899-02450 |
| 88899M | cover (for air cleaner) | 88899-02340 |
