Toyota COROLLA 后视镜 — Figure 8701

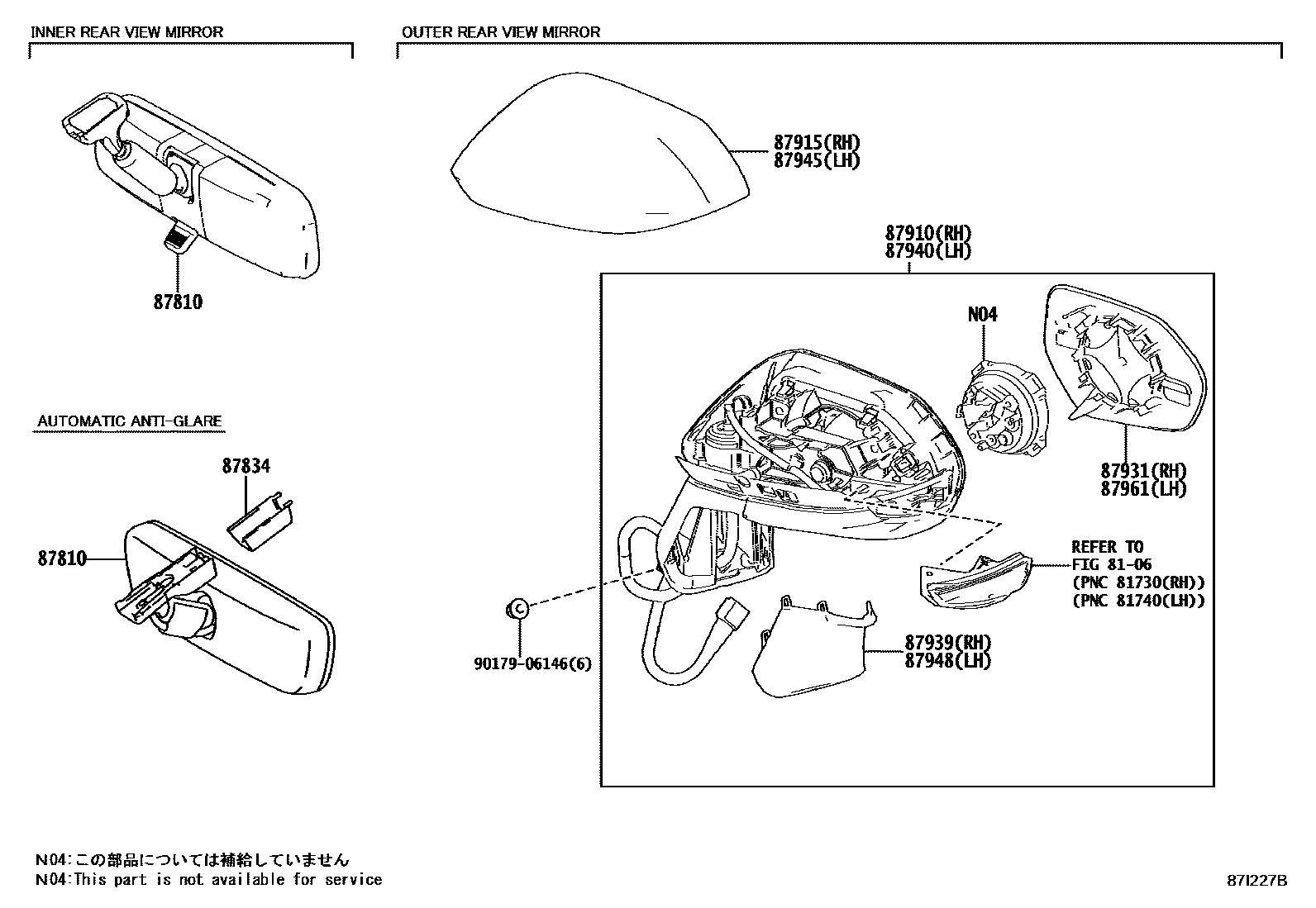

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-02111 · 87810-02112 · 87810-0WK10 · 87810-0WS30 · 87810-28140 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-24010 |
| 87910 | Right exterior rearview mirror assembly | 87910-02N60 · 87910-02N80 · 87910-02Q90 · 87910-02R00 |
| 87915 | Right exterior rearview mirror cover | 87915-02938 |
| 87931 | Right exterior rearview mirror | 87902-02220 · 87907-02220 · 87931-02N60 · 87931-02N80 |
| 87939 | Right exterior rearview mirror hole cover | 87939-02N60 · 87939-02N80 · 87939-02Q90 |
| 87940 | Left exterior rearview mirror assembly | 87940-02N50 · 87940-02N70 · 87940-02R00 · 87940-02R10 |
| 87945 | Left exterior rearview mirror cap | 87945-02938 |
| 87948 | Left exterior rearview mirror hole cover | 87948-02N50 · 87948-02N70 · 87948-02R00 |
| 87961 | Left exterior rearview mirror | 87902-02230 · 87907-02210 · 87961-02N50 · 87961-02N70 |
