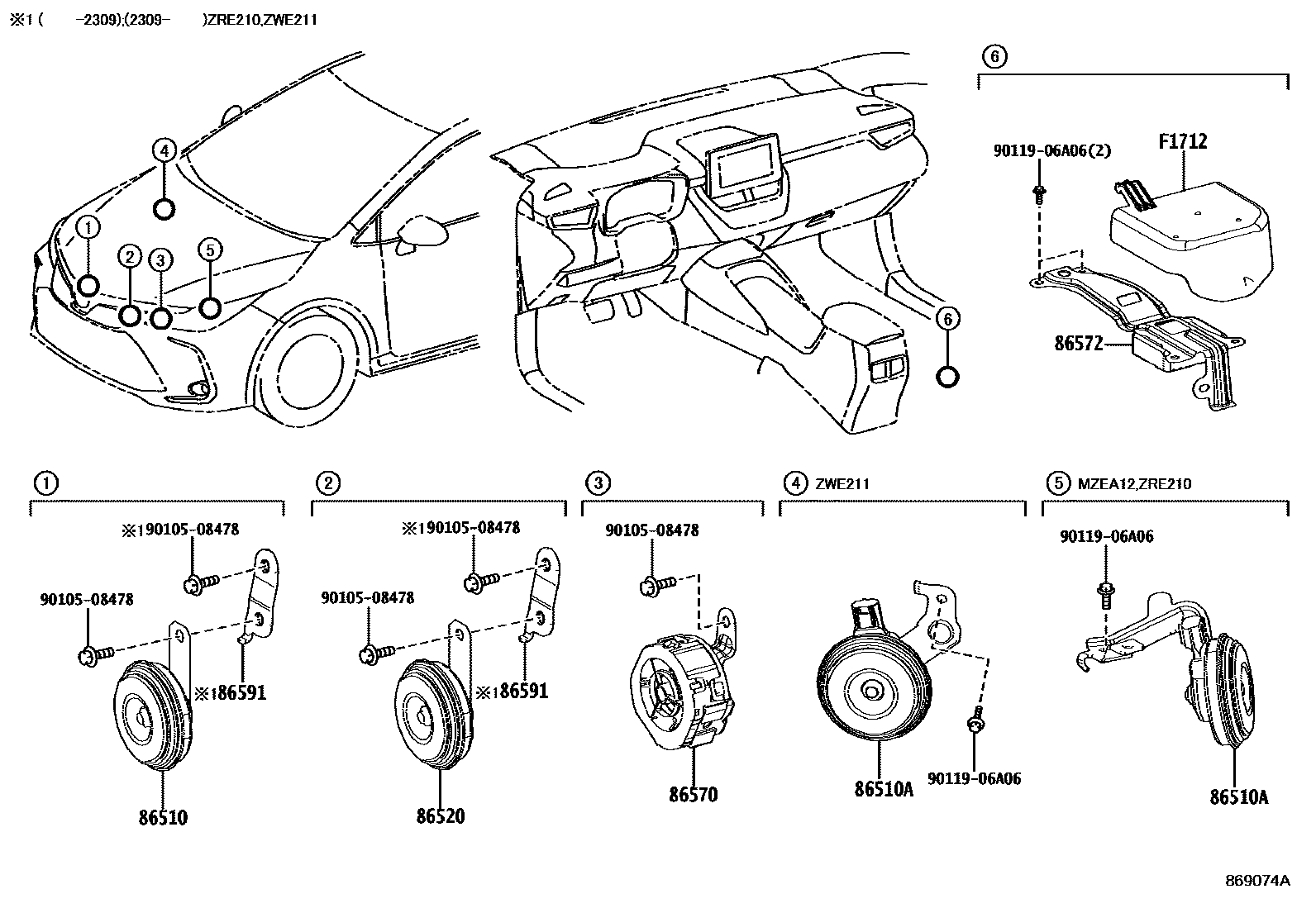

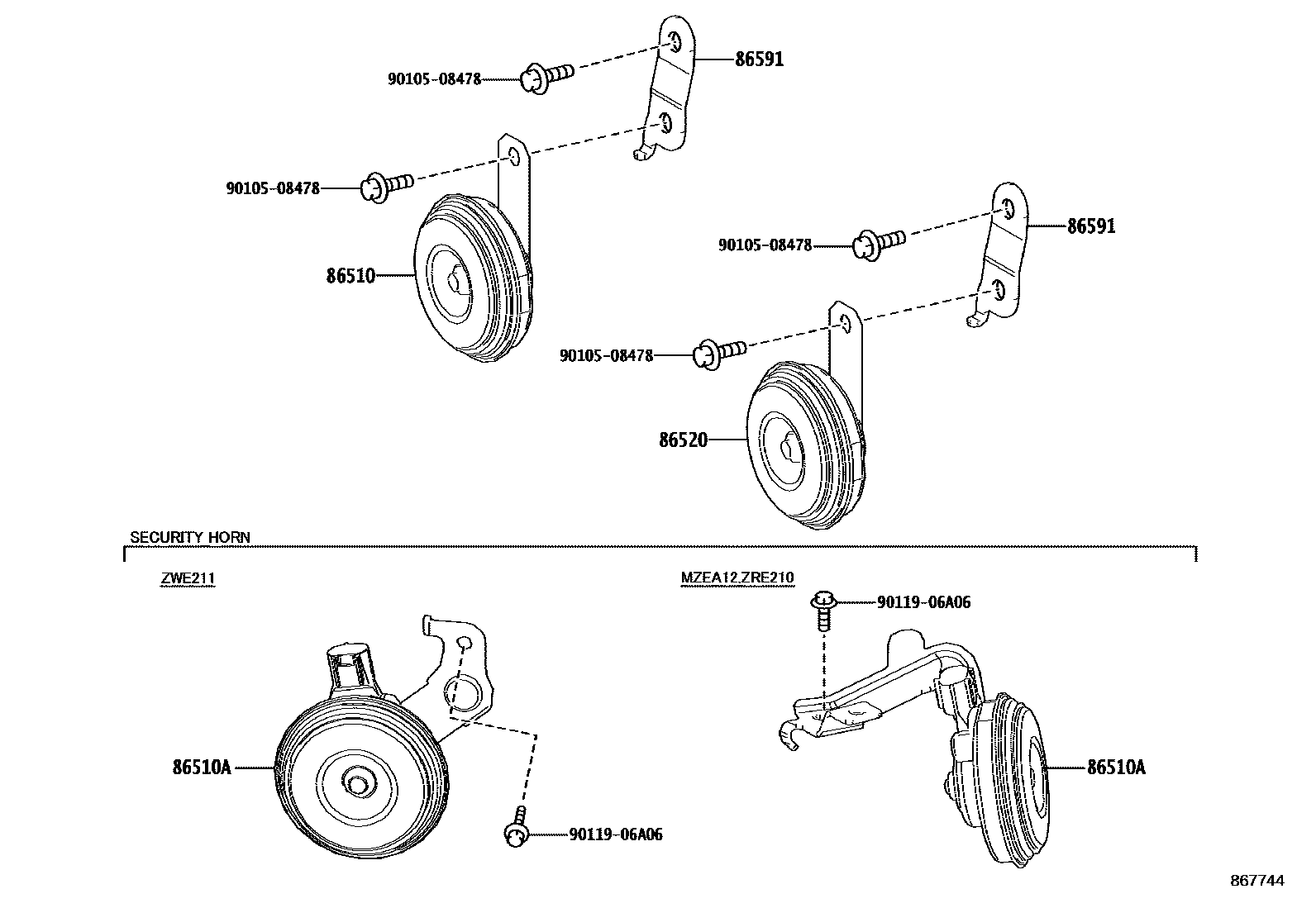

Toyota COROLLA 喇叭 — Figure 8611
Toyota COROLLA EPC diagram 8611, 喇叭, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86510 | tweeter assembly | 86500-02010 · 86500-02030 · 86500-0K030 · 86510-0K010 · 86510-F7010 |
| 86510A | Alarm horn assembly | 86560-02160 · 86560-02230 |
| 86520 | Subwoofer assembly | 86500-02020 · 86500-02040 · 86500-0K040 · 86520-06100 · 86520-0K010 |
| 86570 | Vehicle intrusion speaker assembly | 86570-12030 |
| 86572 | vehicle hacking speaker controller | 86572-12180 |
| 86591 | speaker bracket | 86591-02070 |
| F1712 | Vehicle Intrusion Speaker Controller Cover | F1712-12090 |
