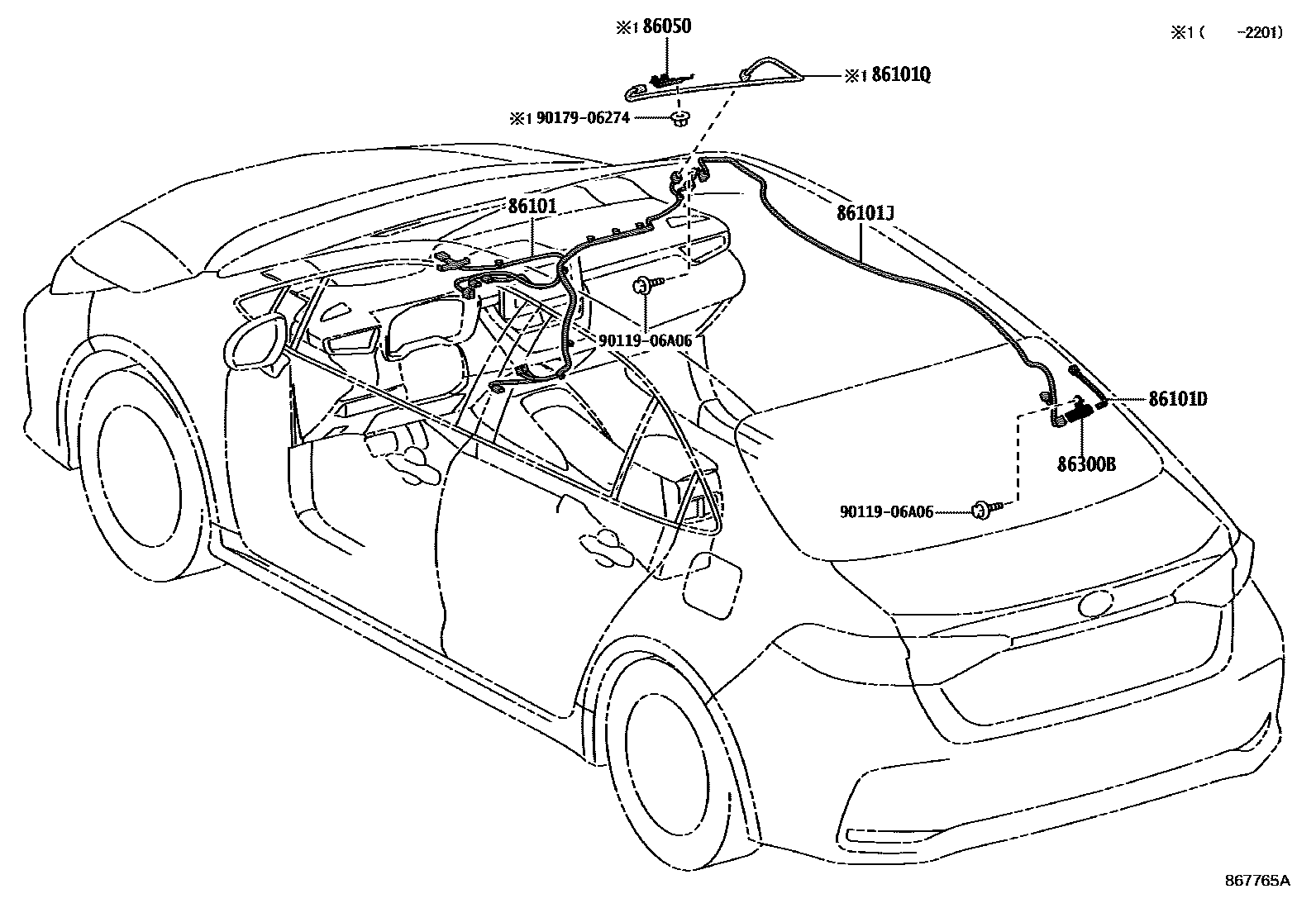

Toyota COROLLA antenna — Figure 8604
Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86050 | Monitor antenna assembly | 86050-53180 |
| 86101 | Antenna wire sub-assembly | 86101-12B40 · 86101-12K20 · 86101-12K30 · 86101-12K80 |
| 86101D | No. 3 antenna wire sub-assembly | 86101-12A80 |
| 86101J | Antenna No. 2 wire sub-assembly | 86101-12B10 · 86101-12G50 · 86101-12K40 · 86101-12K50 |
| 86101Q | No. 4 antenna wire sub-assembly | 86101-12G40 |
| 86300B | No. 1 amplifier antenna assembly | 86300-12B50 |
