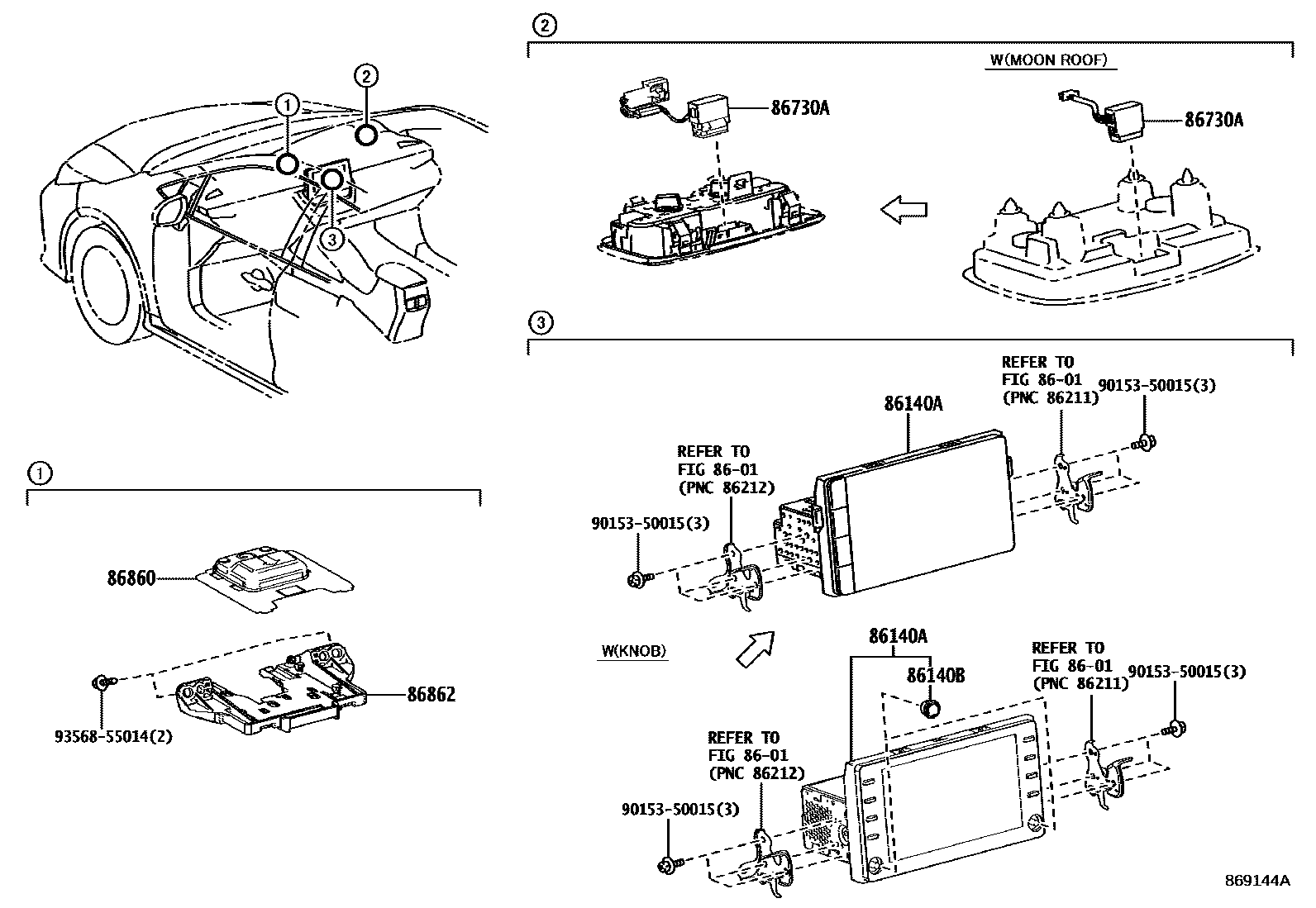

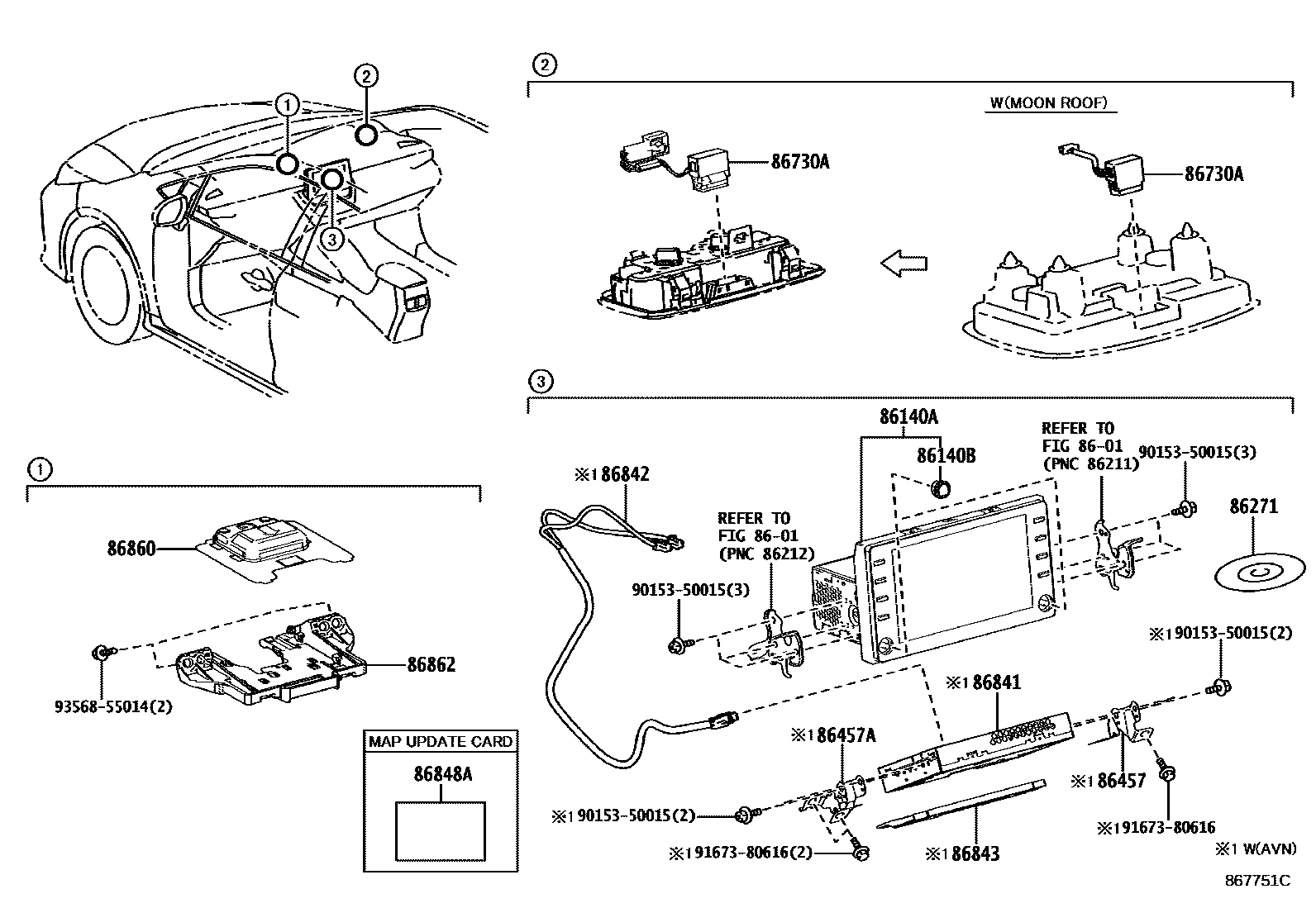

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86140A | Radio and display receiver assembly | 86140-02A10 · 86140-02A11 · 86140-02A20 · 86140-02A21 · 86140-02C10 · 86140-02C11 · 86140-02C20 · 86140-02C21 · 86140-YY070 · 86140-YY650 · 86140-YY790 · 86140-YY840 |
| 86140B | Radio and display receiver switch button | 90010-22129 |
| 86271 | CD | 86807-11073 · 86807-11074 · 86807-33012 · 86807-33013 |
| 86457 | Multimedia module bracket No. 1 | 86457-02070 |
| 86457A | Multimedia module bracket No. 2 | 86457-02080 |
| 86730A | Telephone amplifier assembly | 86730-12090 · 86730-12100 · 86730-47040 · 86730-52020 |
| 86841 | Navigation ECU | 86840-02020 · 86840-02021 · 86840-02022 · 86840-02030 · 86840-02031 · 86840-02032 |
| 86842 | Navigation harness No. 1 | 86842-12030 |
| 86843 | Navigation ECU cover | 86843-12010 |
| 86848A | Map serial number update card | 86848-33010 · 86848-33020 |
| 86860 | Navigation antenna assembly | 86860-78010 · 86860-YY070 |
| 86862 | Navigation antenna bracket | 86862-42010 · 86862-YY010 |
