Toyota COROLLA ABS 和 VSC — Figure 8414

Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 1 images and 5 PNC and OE references.

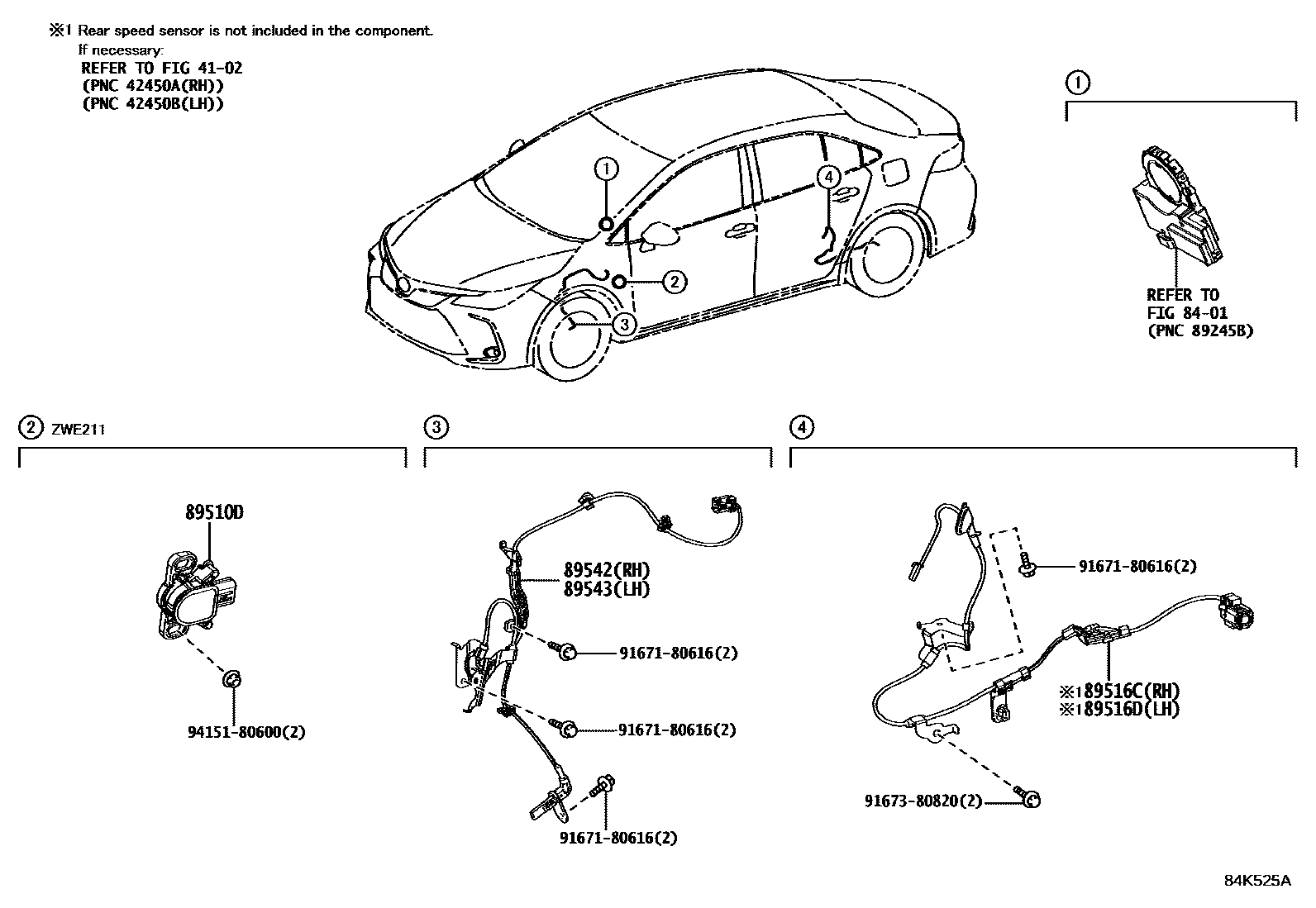

Toyota COROLLA ABS 和 VSC EPC diagram — 84K525A
ABS 和 VSC — 84K525A (201909 – 999999)

PNC and OE references

PNCPart nameOE numbers
89510DBrake pedal stroke sensor assembly89510-47040
89516CRight anti-skid control sensor harness89516-02310
89516DLeft anti-skid control sensor wiring harness89516-02320
89542Right front wheel speed sensor89542-12110
89543Left front wheel speed sensor89543-12110
