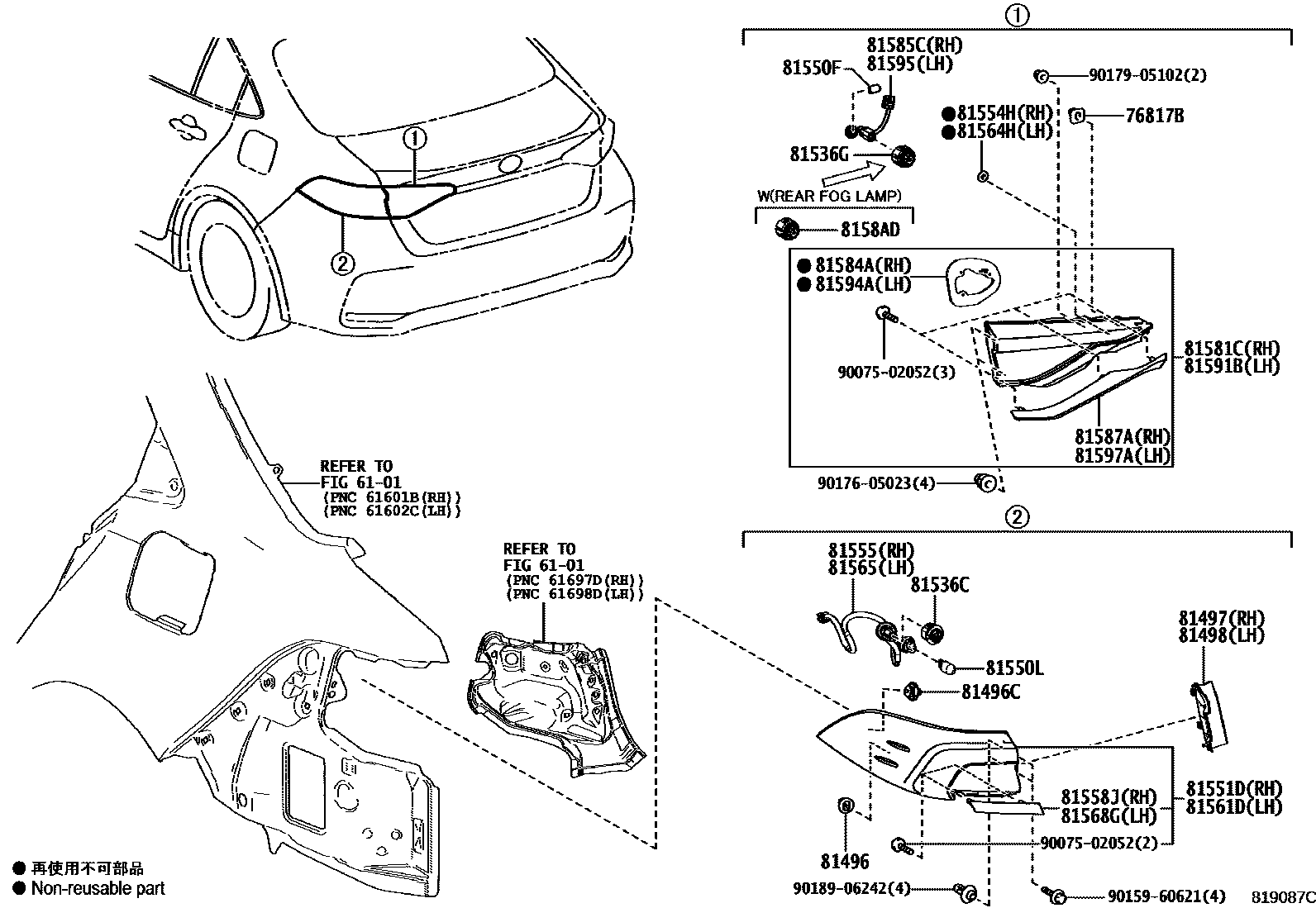

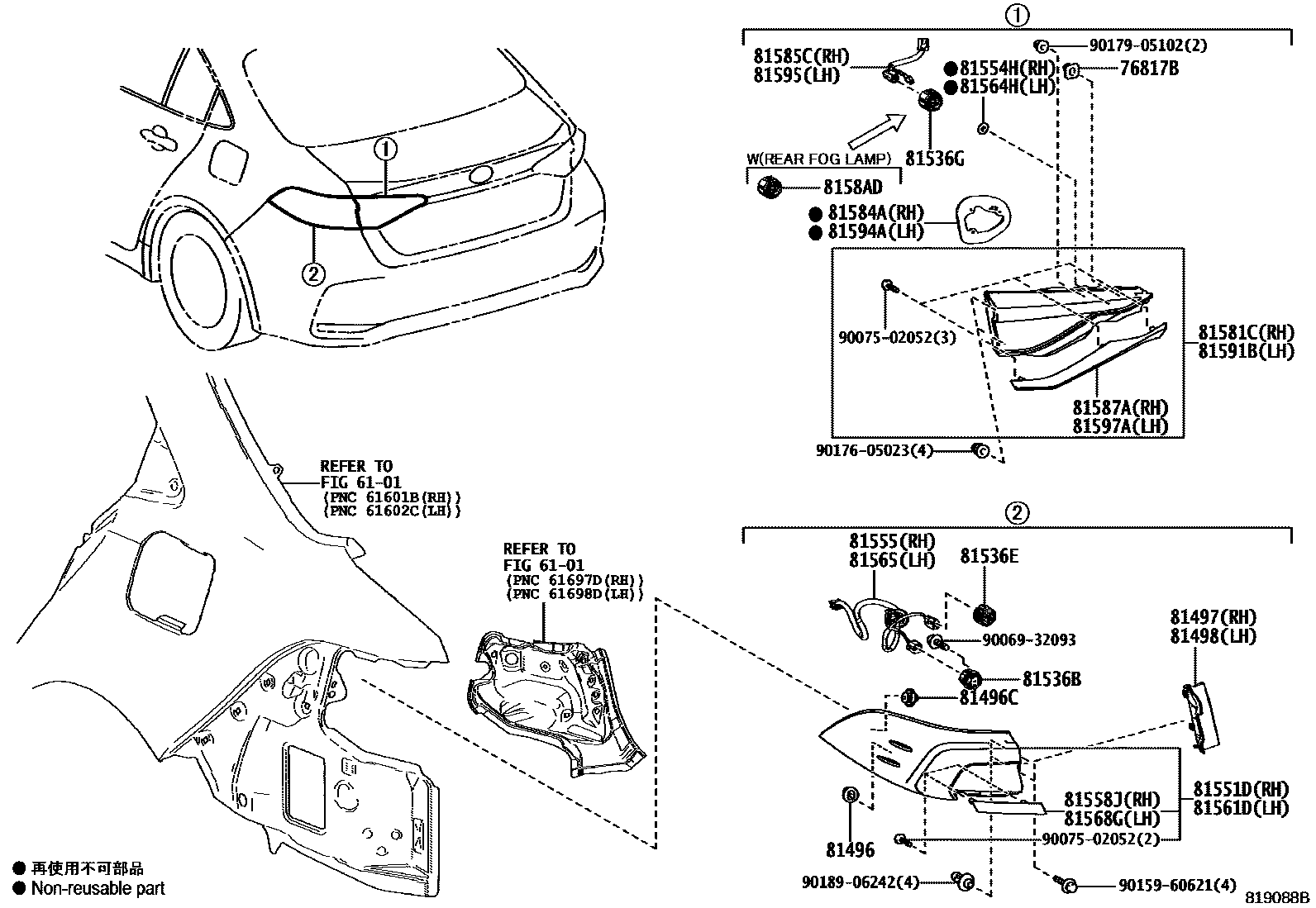

Toyota COROLLA 后组合灯 — Figure 8111
Toyota COROLLA EPC diagram 8111, 后组合灯, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76817B | Rear light clip | 76817-26040 |
| 81496 | Rear combination light guide block | 81496-52020 |
| 81496C | No. 2 rear combination light guide block | 81496-60010 |
| 81497 | Right rear combination lamp cover | 81497-02080 |
| 81498 | Left rear combination lamp cover | 81498-02080 |
| 81536B | LED rear turn signal light | 81536-12D20 |
| 81536C | LED tail lights and brake lights | 81536-02D70 · 81965-70010 |
| 81536E | LED brake light | 8158A-0D610 |
| 81536G | LED reversing light | 8158A-12260 |
| 81550F | tail light bulb | 90981-11069 |
| 81550L | Rear turn signal light bulb | 90981-15021 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-02D70 · 81551-02D80 · 81551-02G00 |
| 81554H | Right rear combination lamp seal | 81554-12A00 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-02D70 · 81555-02D80 |
| 81558J | Right rear combination light circuit board | 81558-02D70 · 81558-02G00 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-02D70 · 81561-02D80 · 81561-02G00 |
| 81564H | Left rear combination lamp seal | 81554-12A00 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-02D70 · 81555-02D80 |
| 81568G | Left rear combination light circuit board | 81568-02D70 · 81568-02G00 |
| 81581C | Right rear light lampshade and lamp body | 81581-02D10 · 81581-02D30 · 81581-02F80 |
| 81584A | Right rear light gasket | 81584-02D10 · 81584-02F80 |
| 81585C | Right rear light lamp holder and wiring harness | 81585-02D10 · 81585-02D30 · 81585-02F80 |
| 81587A | Right rear light circuit board | 81587-02D10 · 81587-02D30 · 81587-02F80 |
| 8158AD | Rear LED fog lights | 8158A-0D610 |
| 81591B | Left rear light shade and body | 81591-02D20 · 81591-02D40 · 81591-02F80 |
| 81594A | Left rear light gasket | 81594-02D20 · 81594-02F80 |
| 81595 | Left rear light lamp holder and wiring harness | 81595-02D20 · 81595-02D40 · 81595-02F80 |
| 81597A | Left rear light circuit board | 81597-02D20 · 81597-02D40 · 81597-02F80 |
