Toyota COROLLA Headlamp — Figure 8101

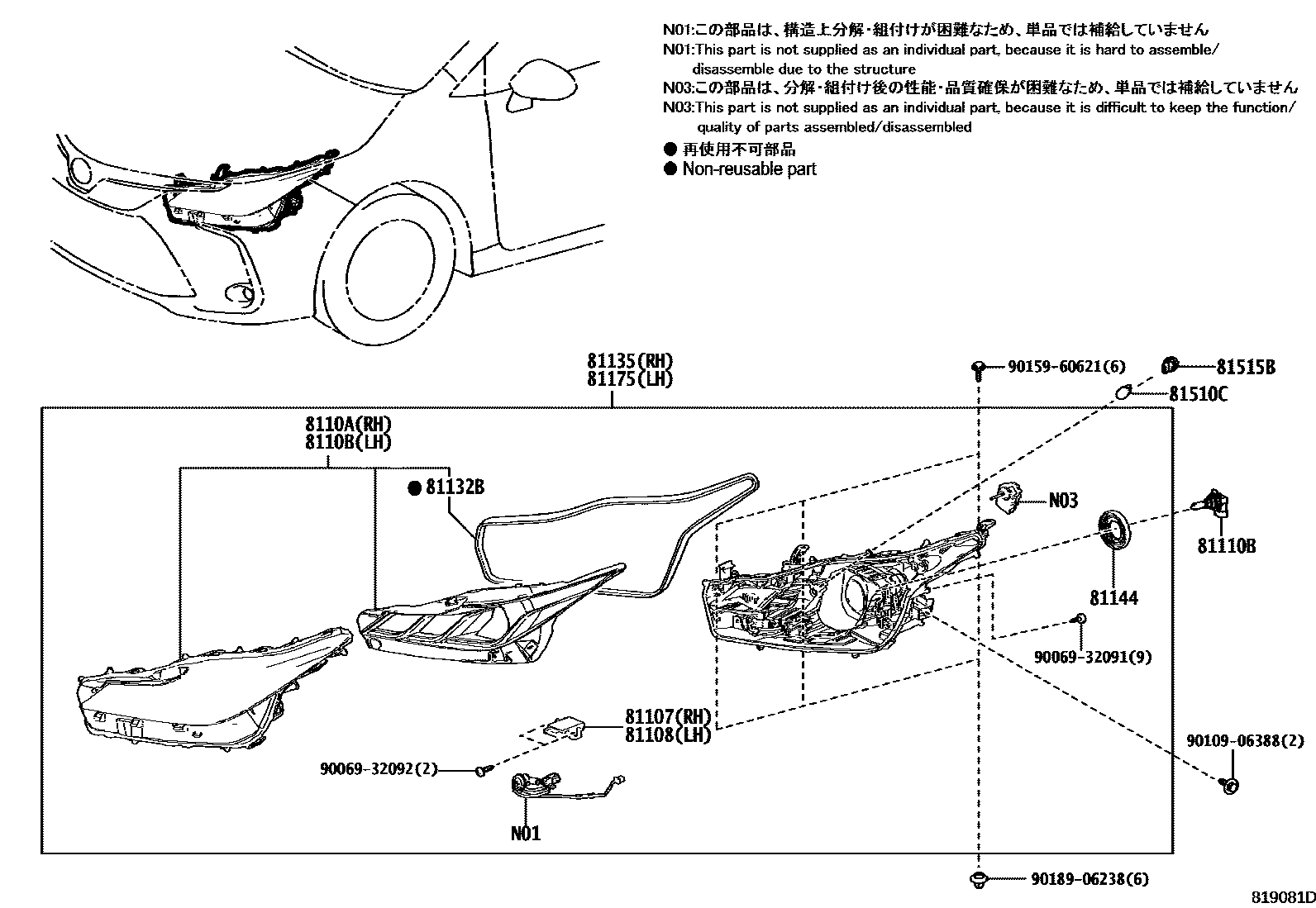

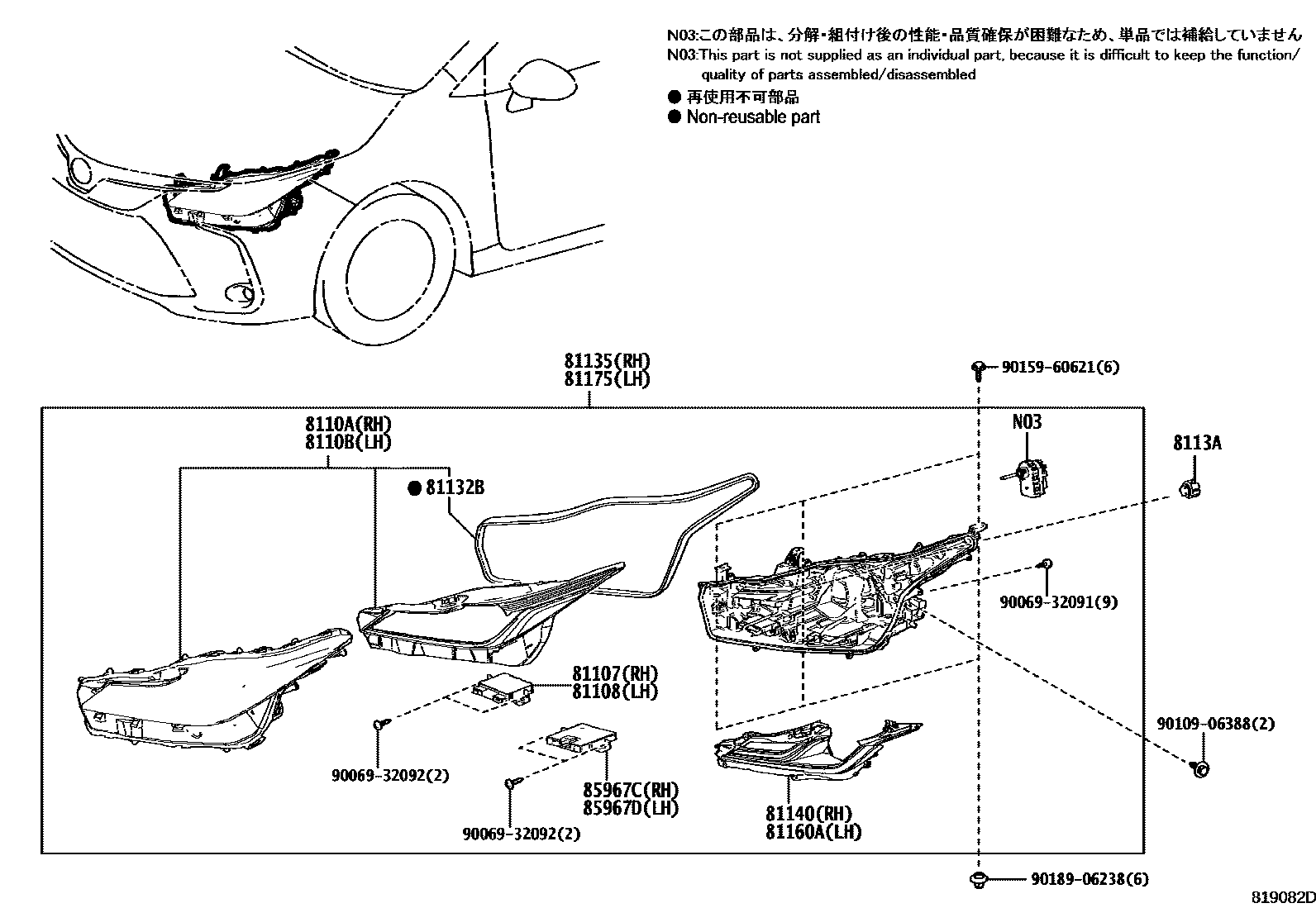

Toyota COROLLA EPC diagram 8101, Headlamp, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81107 | Right headlight control ECU sub-assembly | 81107-02U90 · 81107-02V10 |
| 81108 | Left headlight control ECU sub-assembly | 81107-02U90 · 81107-02V10 |
| 8110A | Right headlight cover sub-assembly | 8110A-02U90 · 8110A-02V10 |
| 8110B | Left headlight cover sub-assembly | 8110B-02U90 · 8110B-02V10 |
| 81110B | Bulb (for headlight No. 1) | 90981-13102 |
| 81132B | Headlight cover gasket | 81132-02U90 · 81132-02V10 |
| 81135 | Right headlight assembly assembly | 81130-02U90 · 81130-02W60 · 81145-02V10 · 81145-02W70 |
| 8113A | Headlight turn signal LED | 8113A-02V10 |
| 81140 | Right headlight LED assembly assembly | 81140-02V10 |
| 81144 | No. 1 headlight cover | 90075-65023 |
| 81160A | Left headlight LED assembly assembly | 81160-02V10 |
| 81175 | Left headlight assembly assembly | 81170-02U90 · 81170-02W60 · 81185-02V10 · 81185-02W70 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15011 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
| 85967C | Right LED light control ECU | 85967-12070 |
| 85967D | Left LED light control ECU | 85967-12070 |
