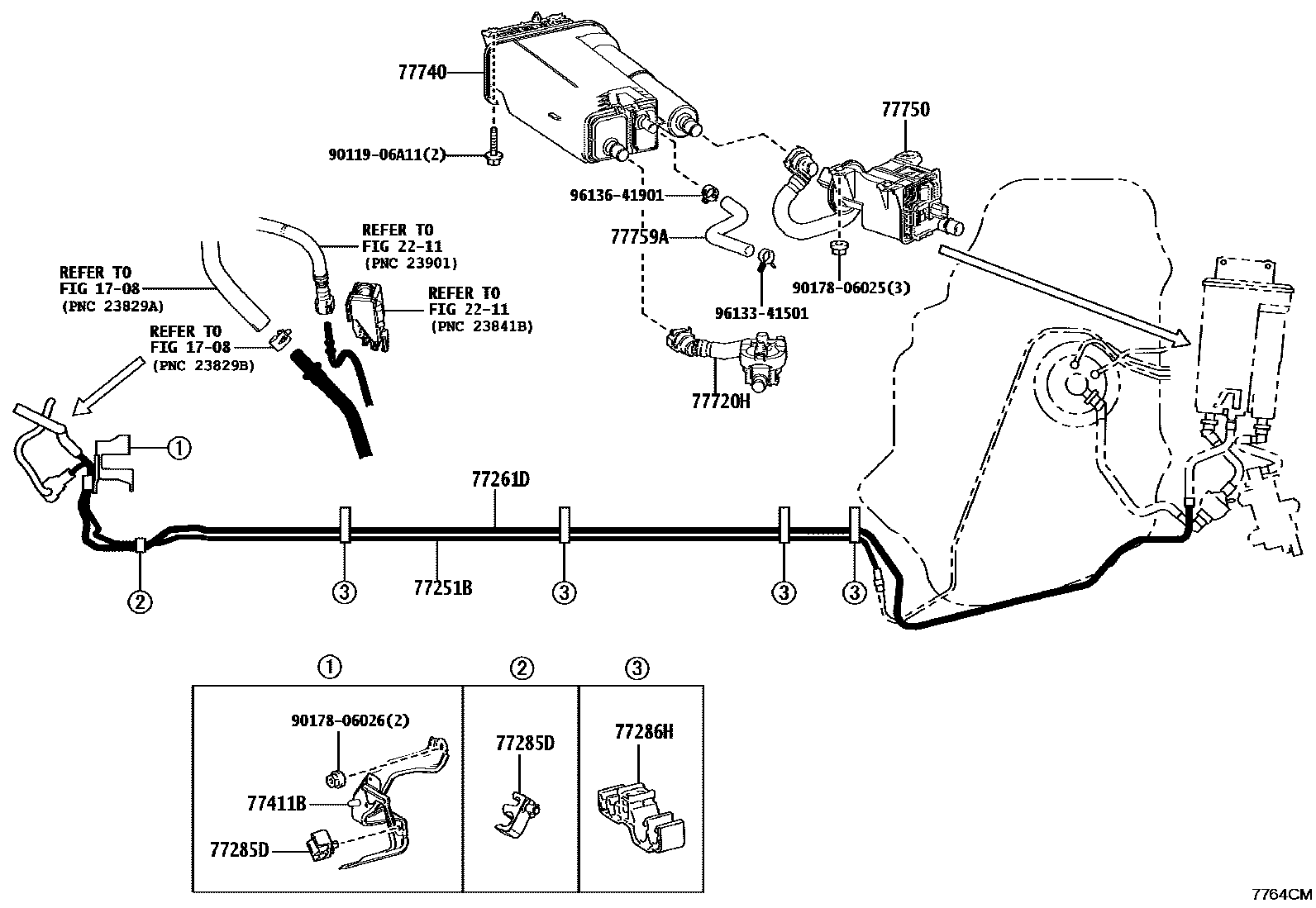

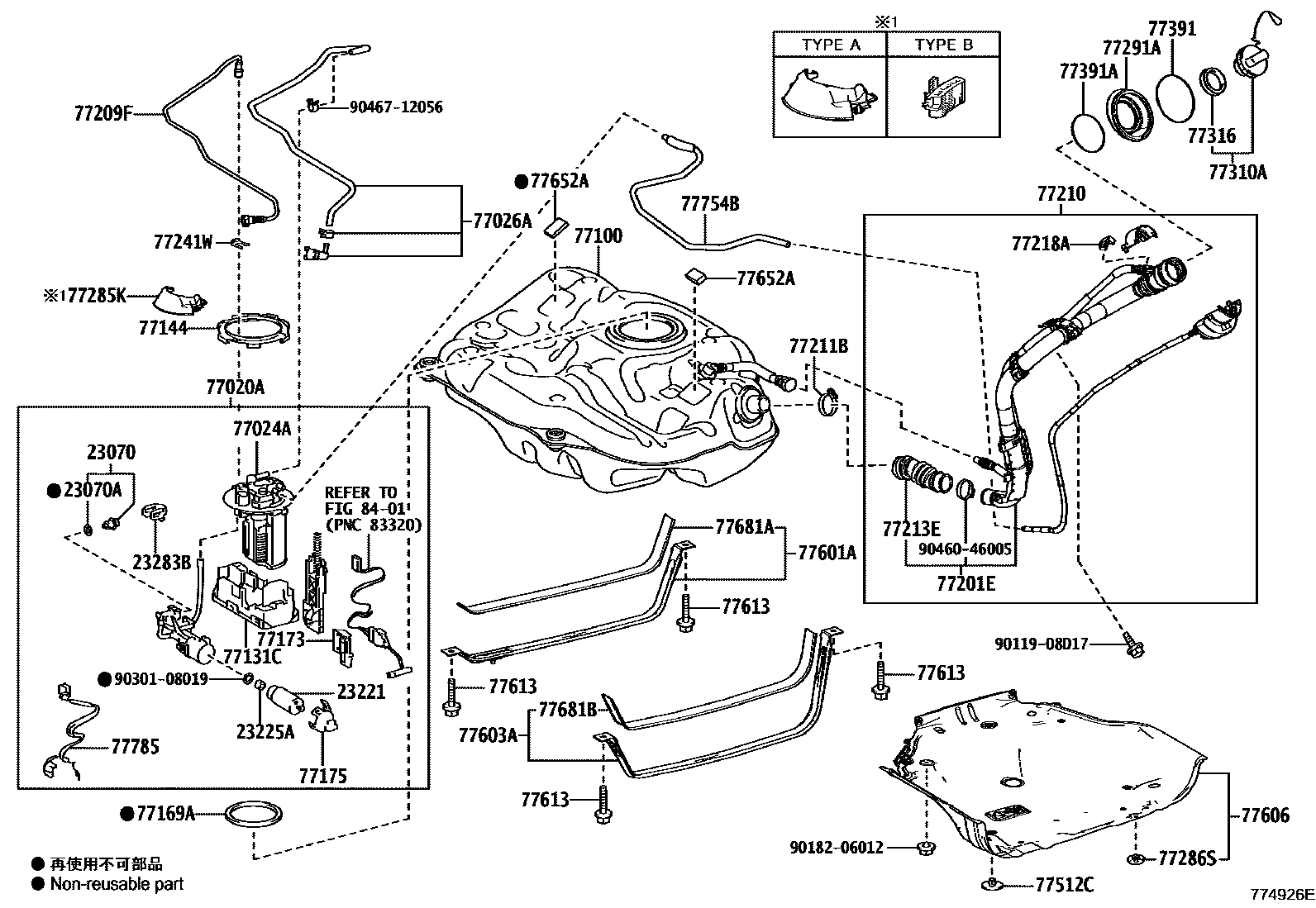

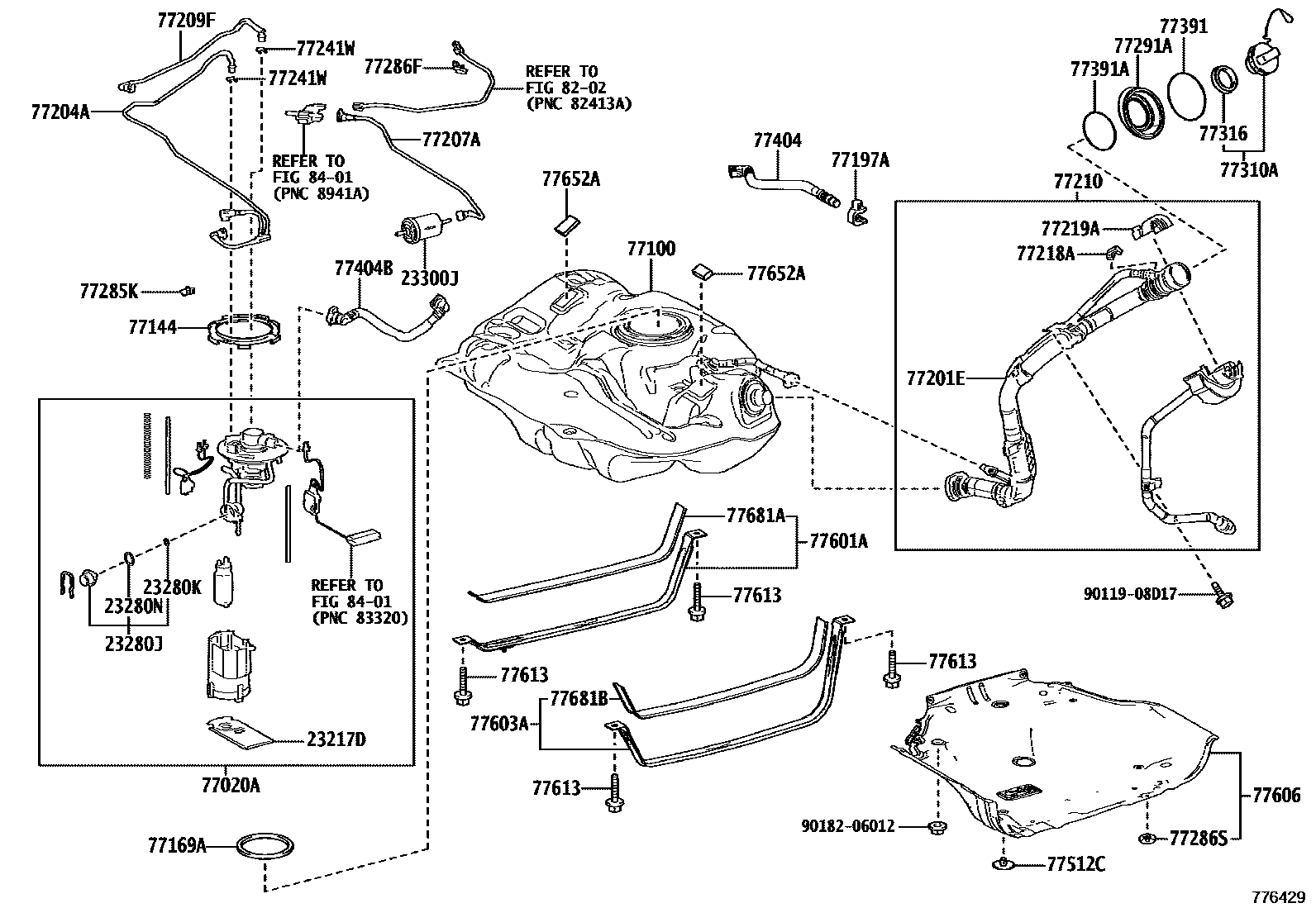

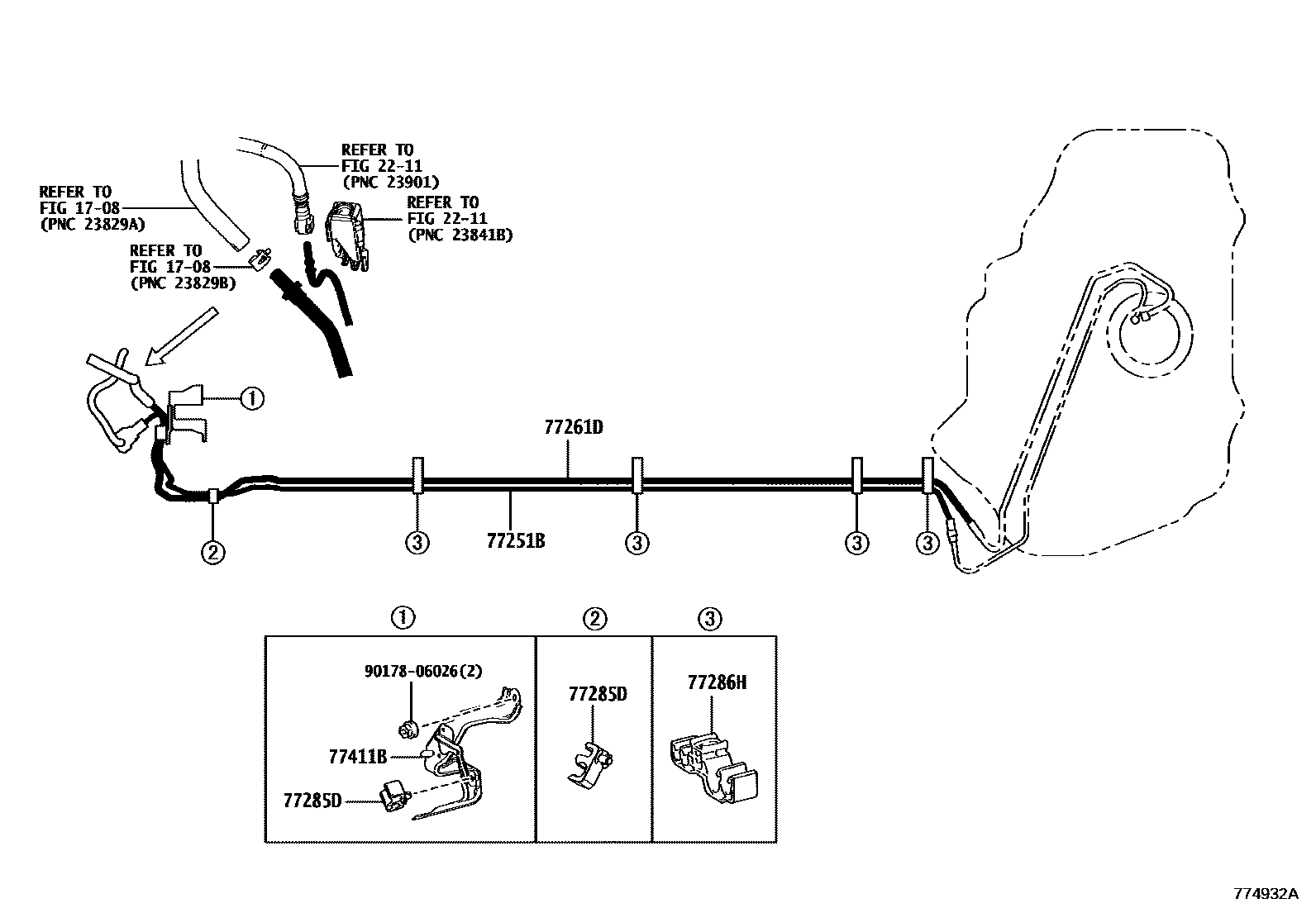

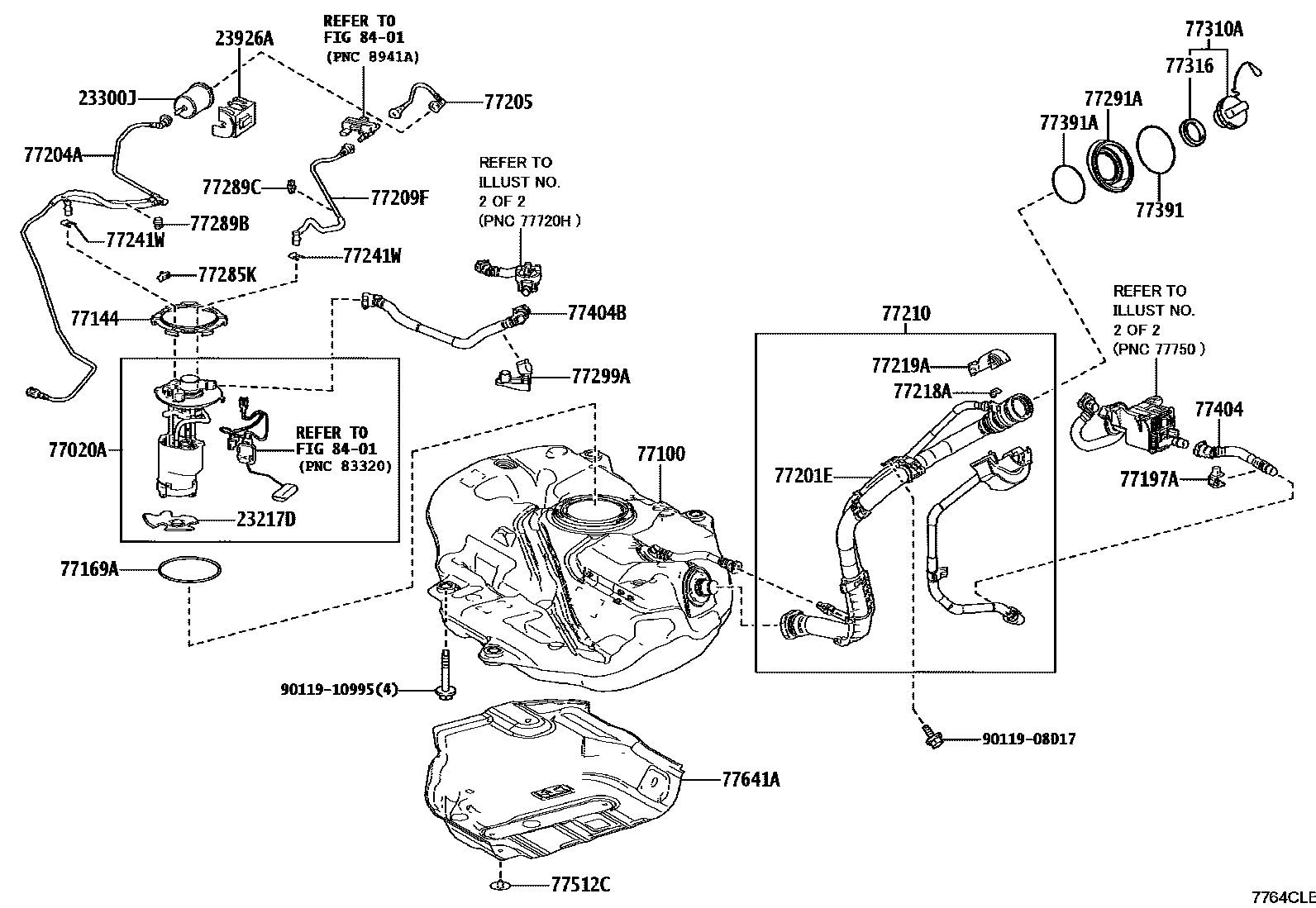

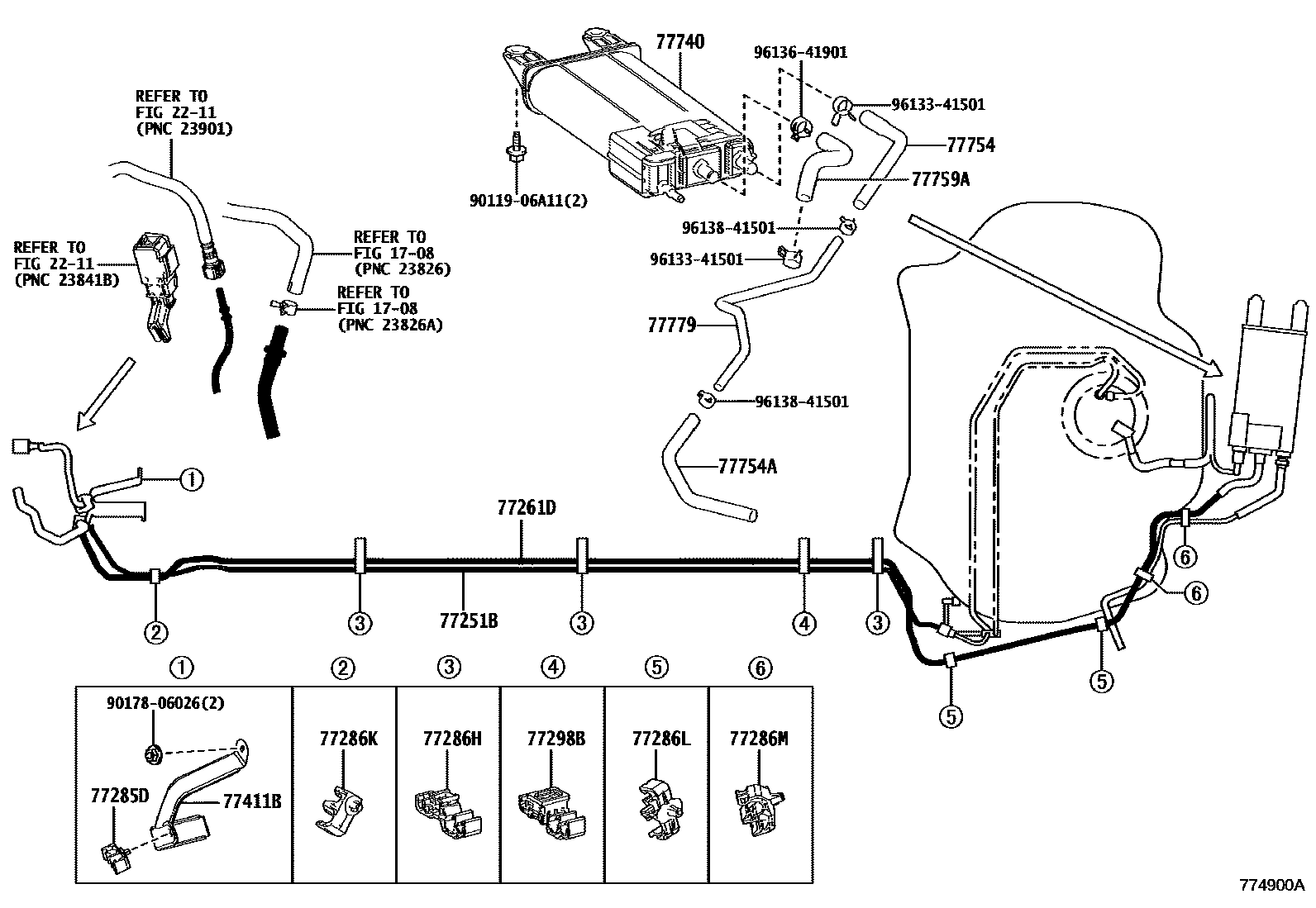

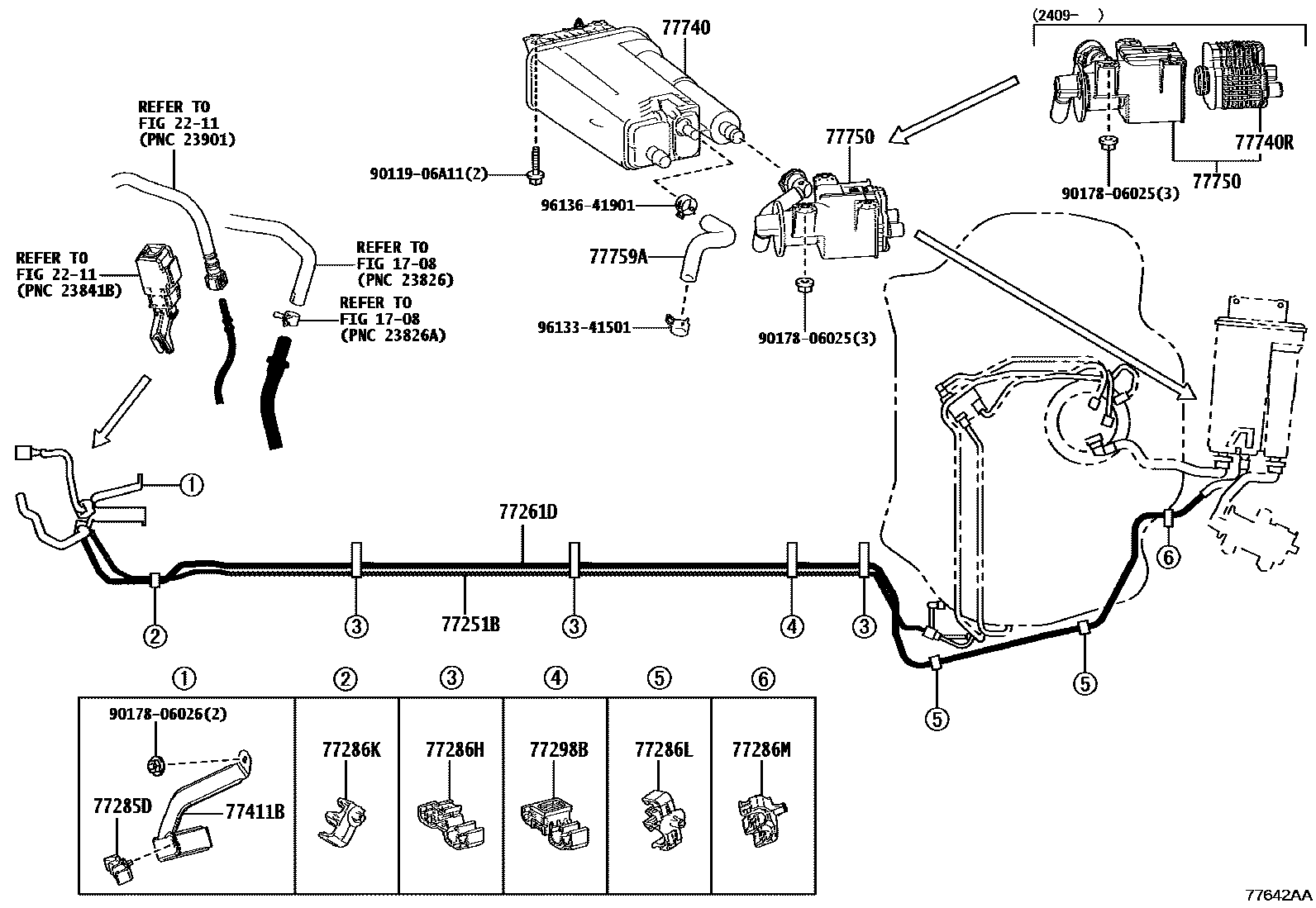

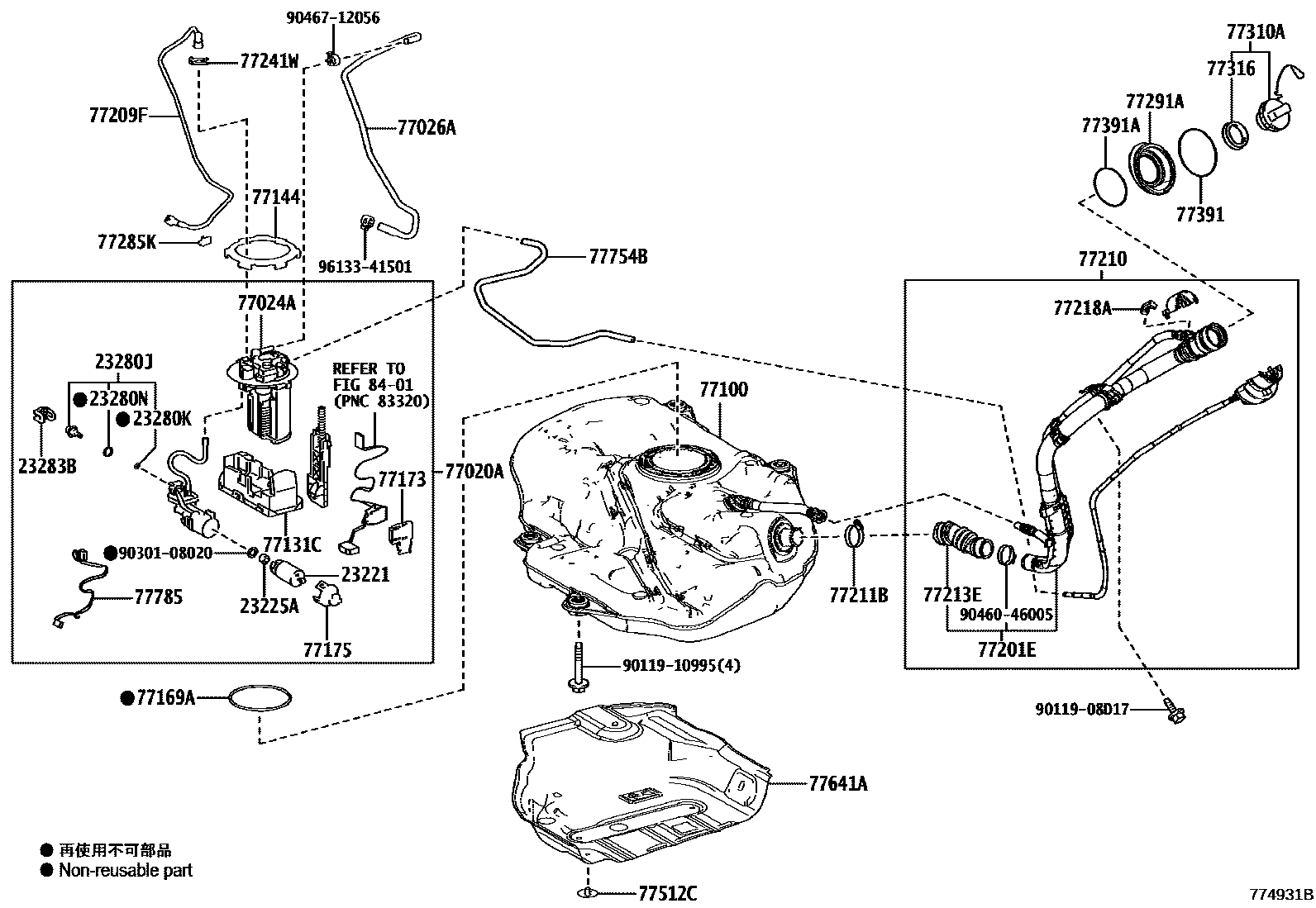

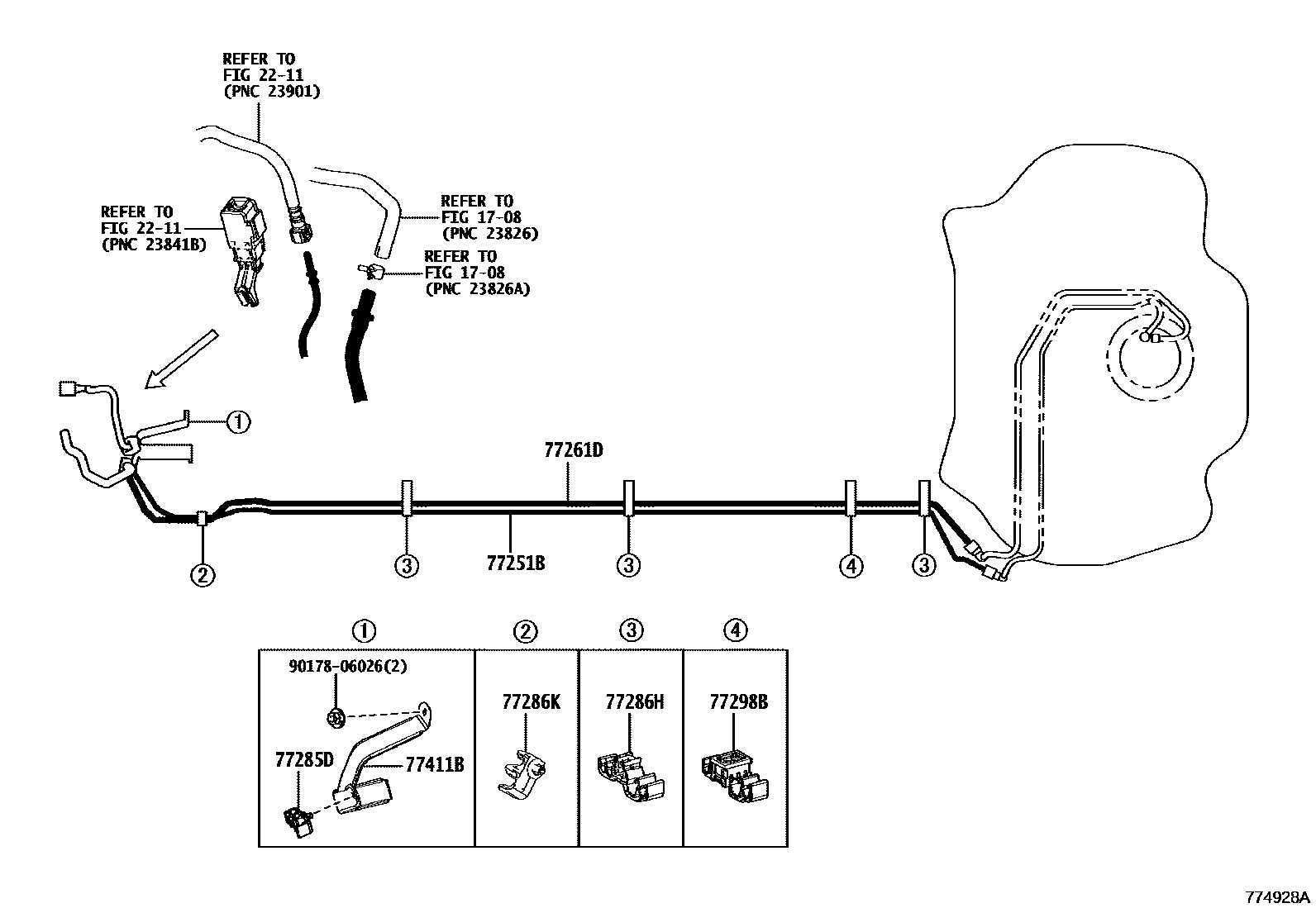

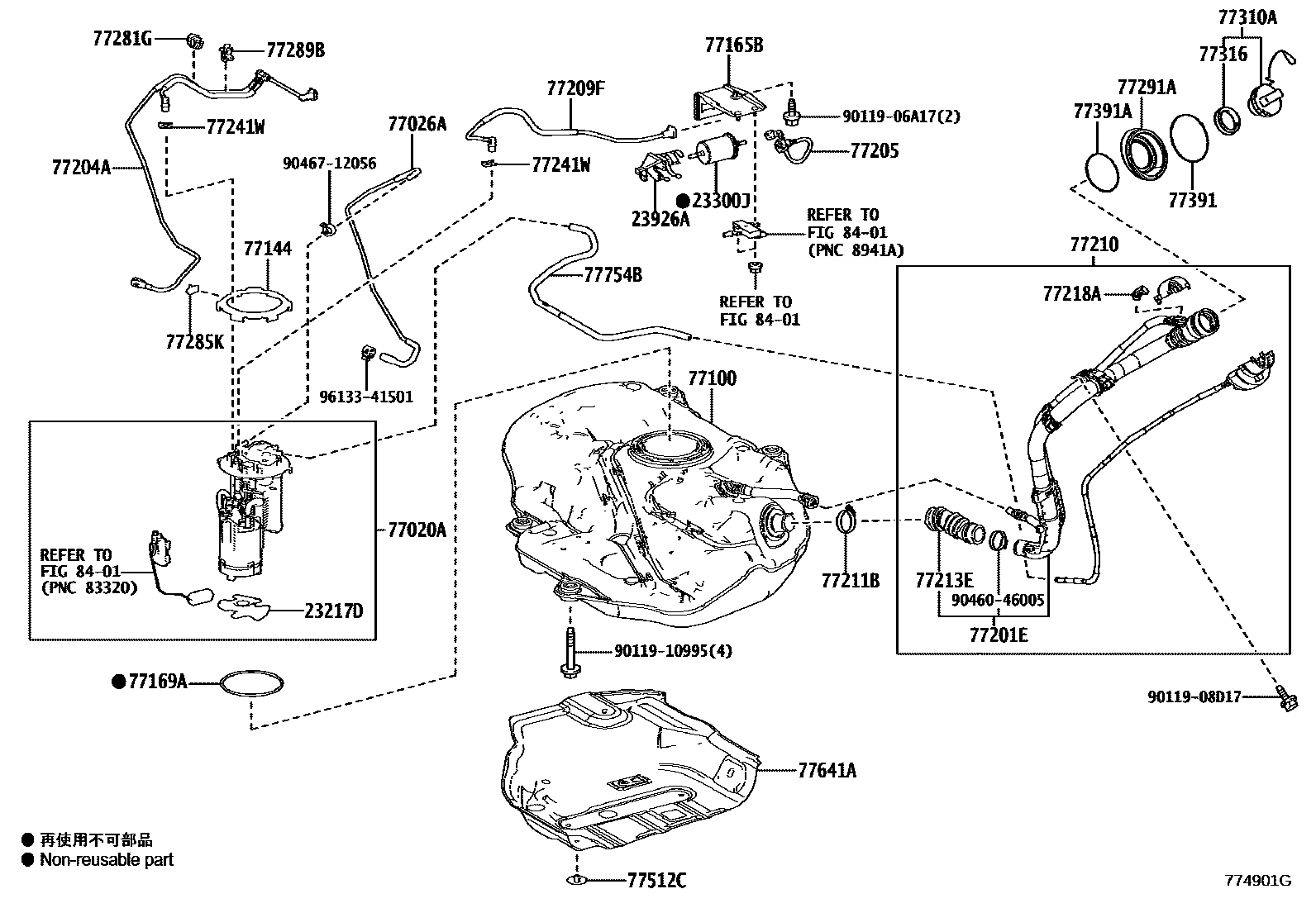

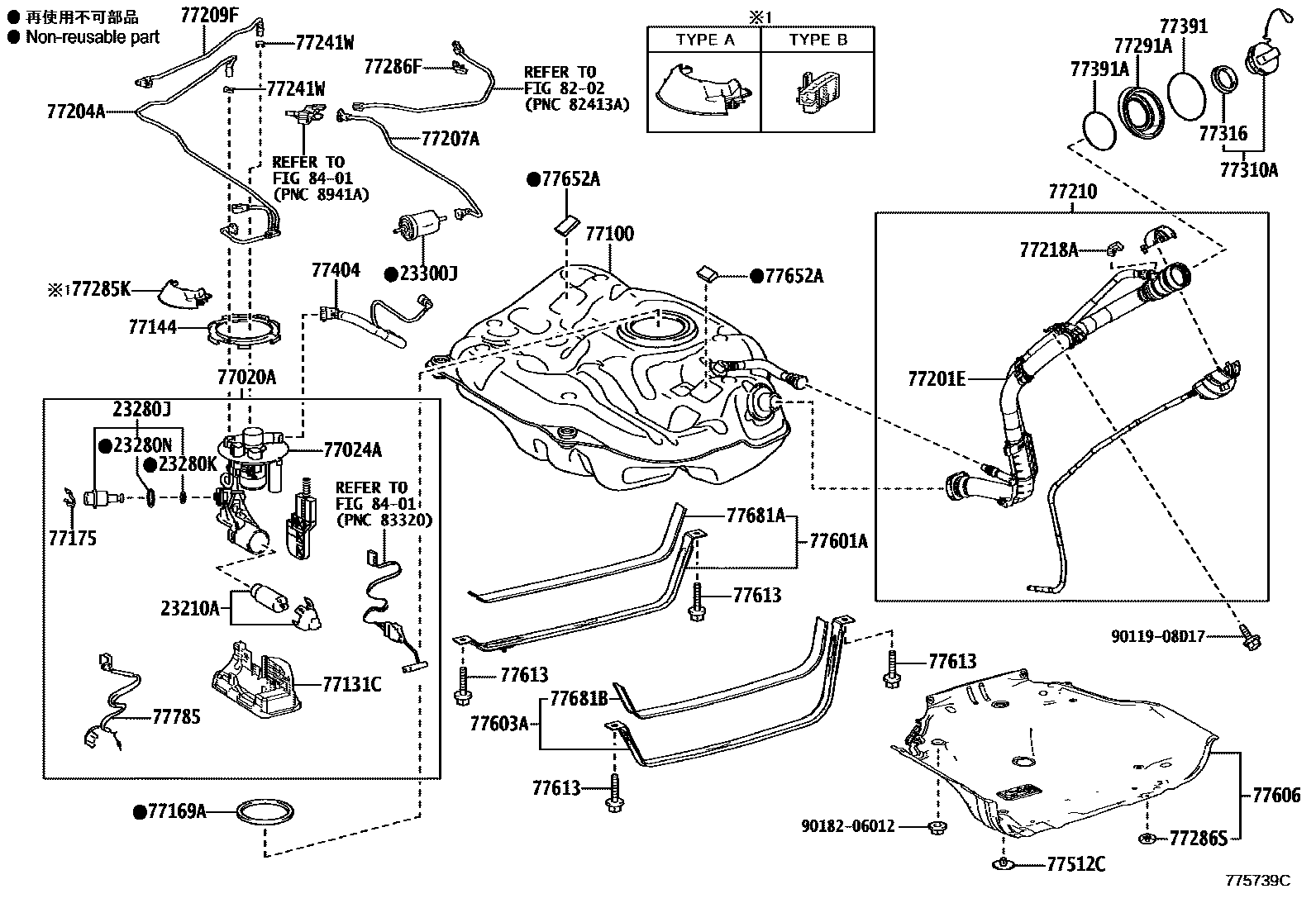

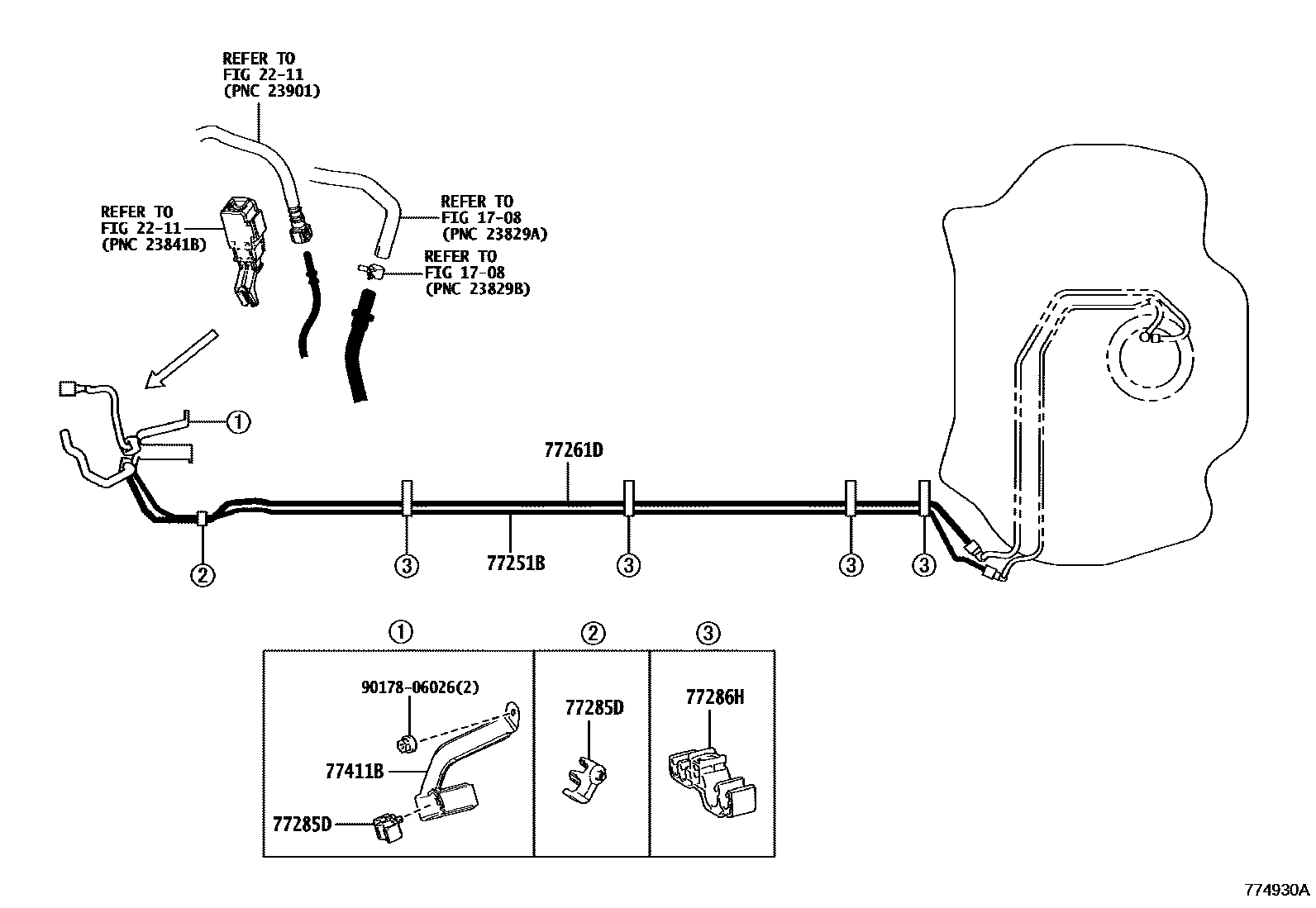

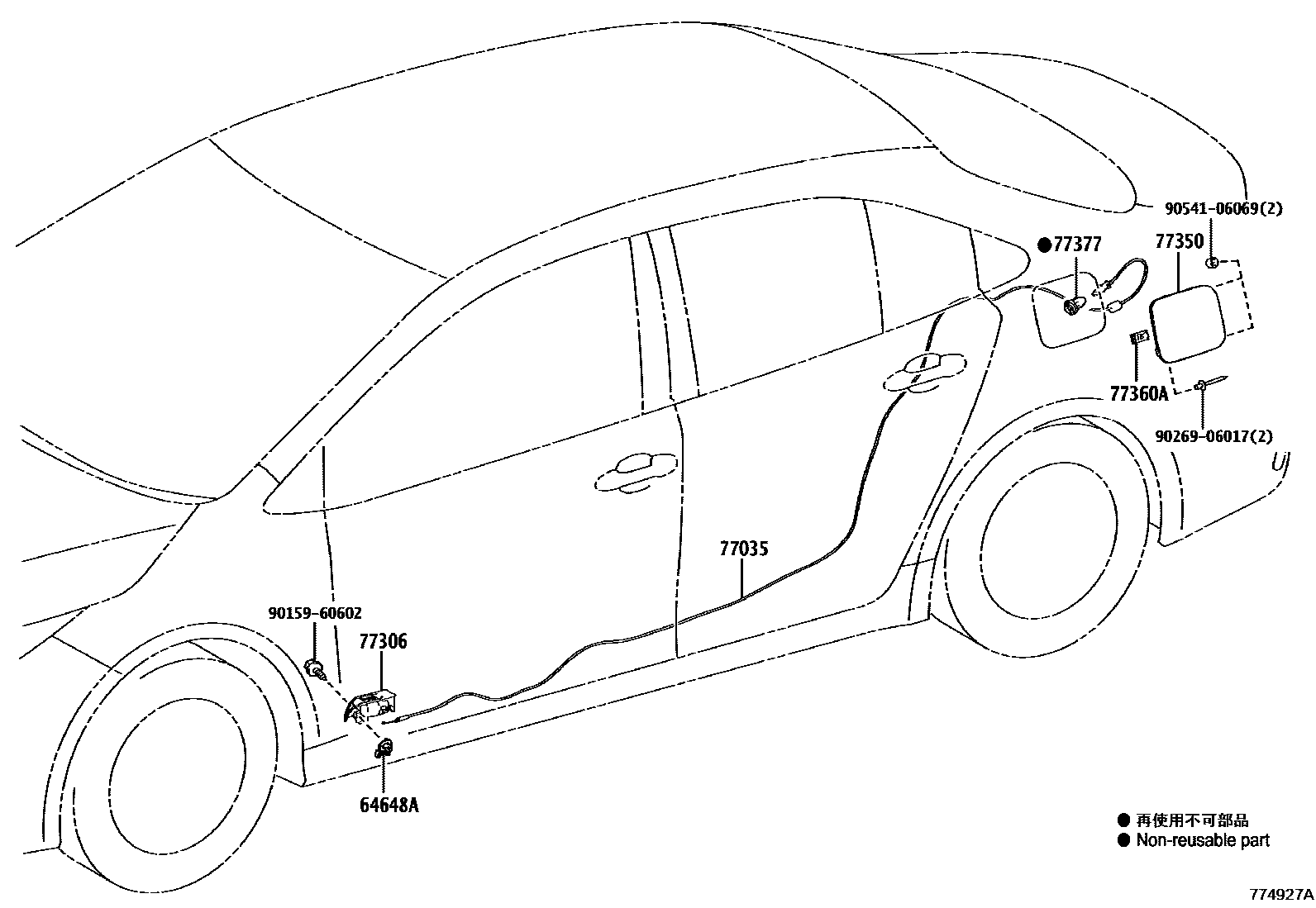

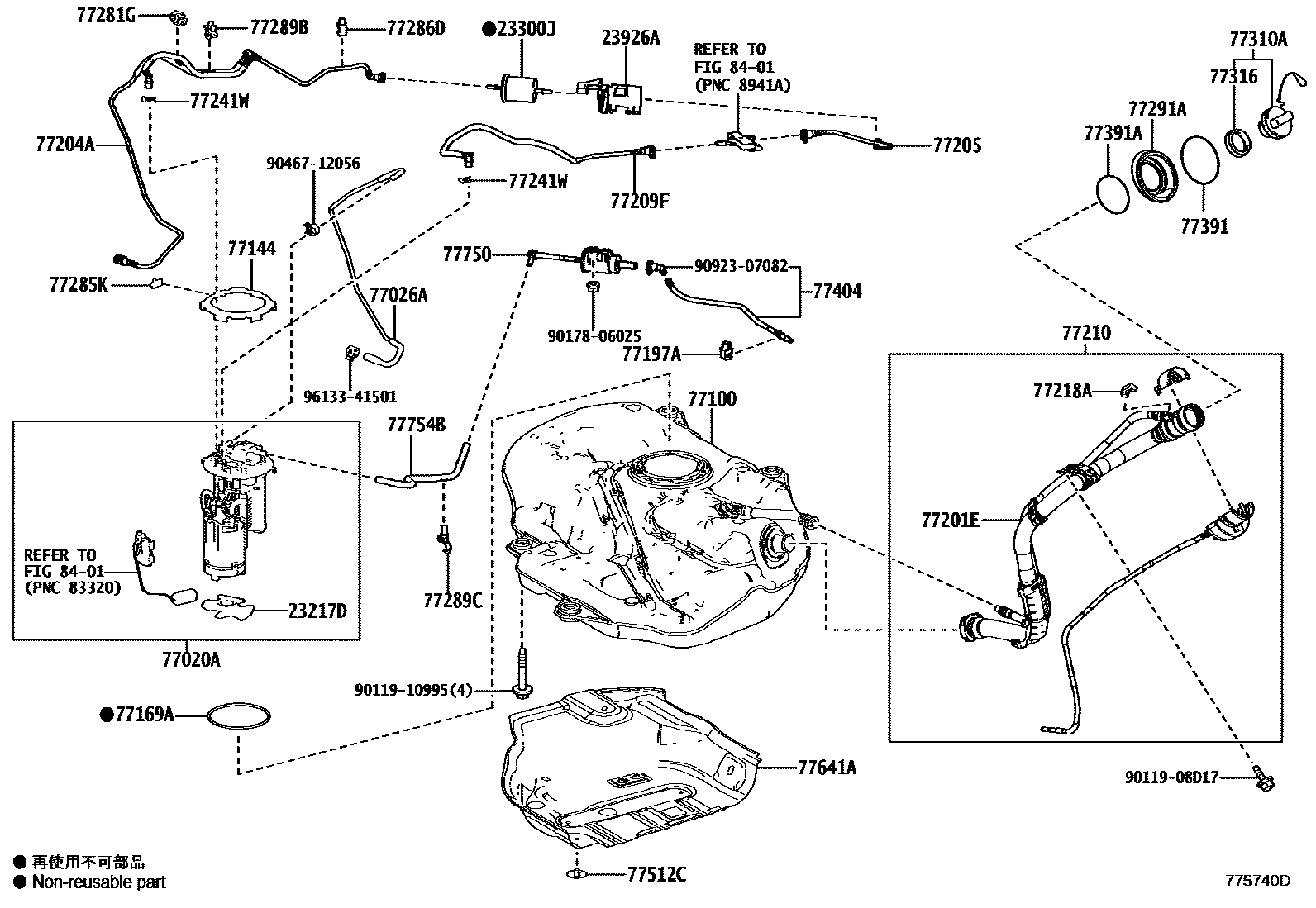

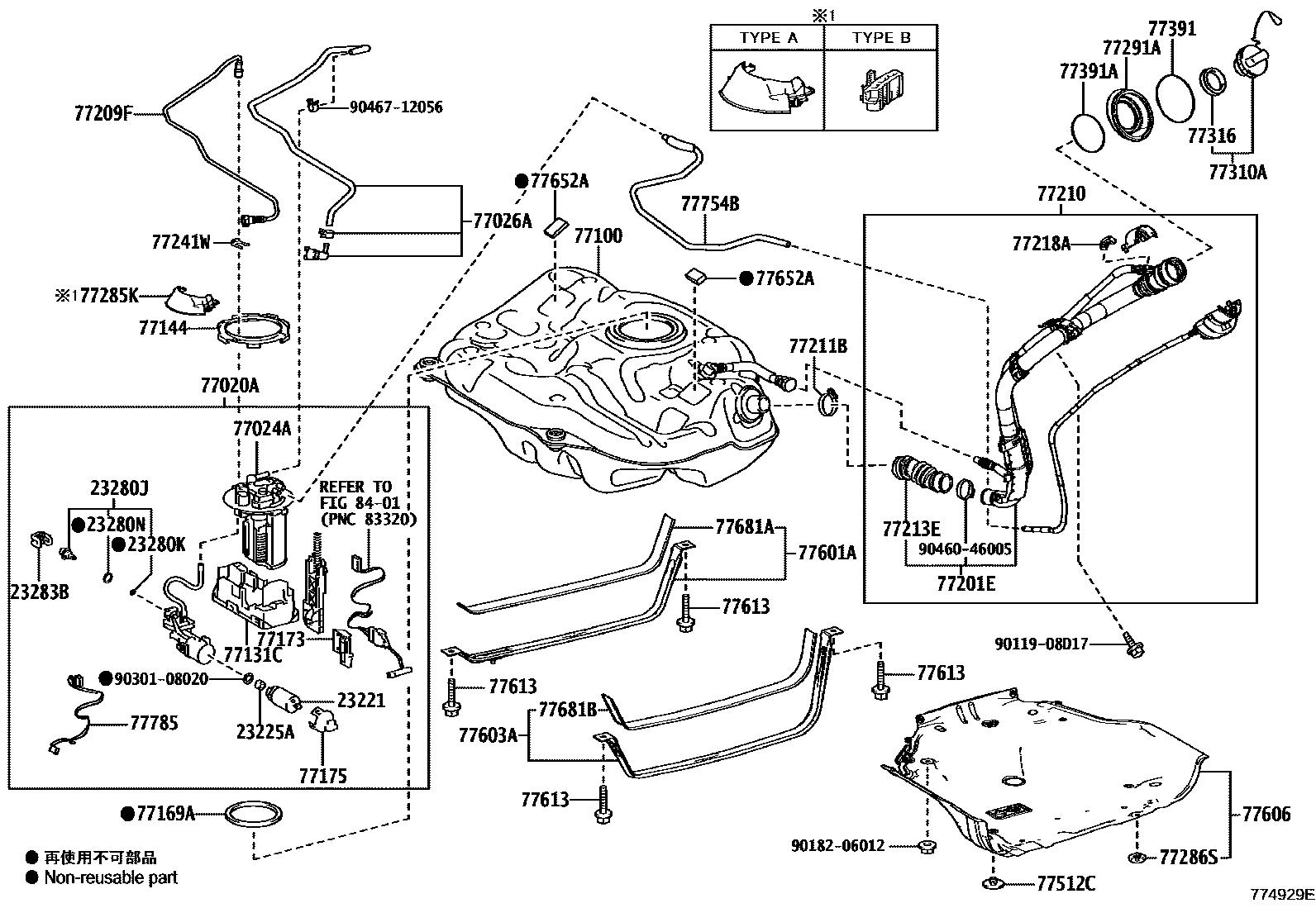

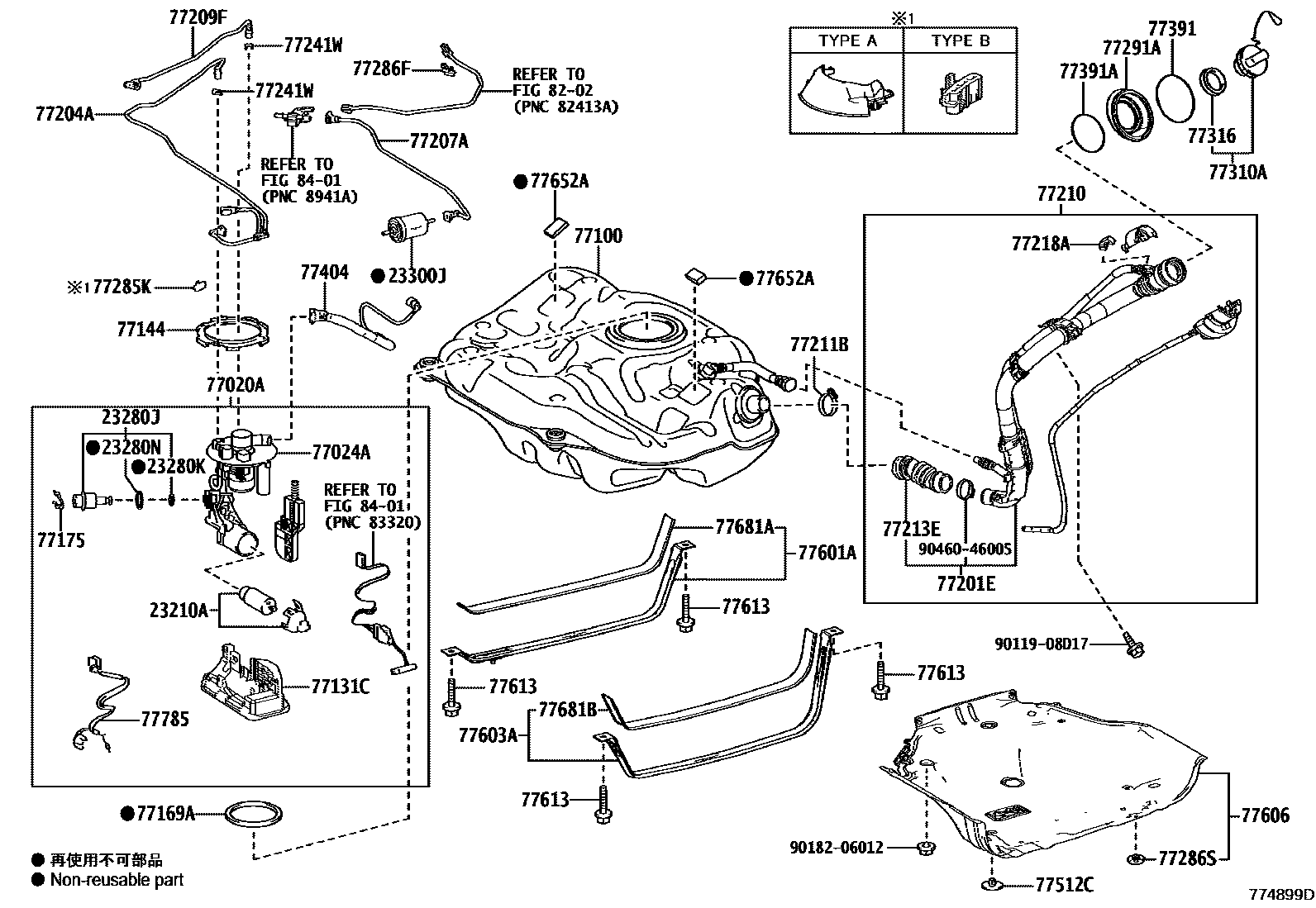

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 16 images and 83 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-25020 |
| 23070A | No. 1 O-ring (for main fuel valve) | 90301-15024 |
| 23210A | Water pump assembly with motor and bracket | 23210-24020 |
| 23217D | fuel pump filter | 23217-0D140 · 23217-0Y050 |
| 23221 | fuel pump | 23221-25030 · 23221-37040 · 23221-47031 |
| 23225A | fuel pump septum | 23225-21020 · 23225-31020 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 · 23280-24010 · 23280-F2010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-04017 |
| 23280N | No. 2 O-ring (for fuel pressure regulator) | 90301-15024 · 90301-15026 |
| 23283B | Fuel pressure regulator mount | 23283-24010 · 23283-37010 |
| 23300J | fuel filter assembly | 23300-0D100 · 23300-F2030 |
| 23926A | fuel filter support stay | 23926-37020 · 23926-75010 |
| 64648A | Trunk door lock opener seal | 64648-12020 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-02B60 · 77020-02C80 · 77020-02C90 · 77020-02D10 · 77020-12A90 · 77020-12B00 · 77020-12B10 · 77020-12B20 |
| 77024A | Fuel absorber sub-assembly | 77024-12200 · 77024-12390 · 77024-12400 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-10040 · 77026-12050 · 77026-47040 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-02610 |
| 77100 | fuel tank assembly | 77001-02830 · 77001-02870 · 77001-02871 · 77001-02B20 · 77001-02B21 · 77001-02B30 · 77001-02B31 · 77001-02B40 · 77001-02C00 · 77001-02C80 |
| 77131C | No. 1 auxiliary fuel tank | 77103-12150 · 77103-12160 · 77103-12180 · 77103-12190 |
| 77144 | Fuel pump instrument fixture | 77144-30030 |
| 77165B | fuel line connector bracket | 77165-12020 |
| 77169A | Fuel suction pipe fixed gasket | 77169-0R030 · 77169-47030 · 77169-F4050 |
| 77173 | Fuel gauge bracket | 77173-12010 · 77173-12020 |
| 77175 | No. 2 oil suction pipe bracket | 77175-12030 · 77175-12040 · 77175-78010 |
| 77197A | No. 2 evaporation vent pipe clamp | 77197-12090 · 77197-47010 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-02660 · 77201-02750 · 77201-02830 · 77201-02860 |
| 77204A | fuel tank return pipe | 77204-02140 · 77204-02150 · 77204-02160 · 77204-02161 · 77204-02170 · 77204-02180 |
| 77205 | Main fuel pipe sub-assembly | 77205-02110 · 77205-02130 · 77205-02140 |
| 77207A | Fuel return pipe sub-assembly | 77207-02190 · 77207-02200 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-02310 · 77209-02320 · 77209-02330 · 77209-02340 · 77209-02350 · 77209-02420 · 77209-02440 · 77209-02441 · 77209-02460 |
| 77210 | Fuel tank filler pipe assembly | 77210-02460 · 77210-02742 · 77210-02800 · 77210-02A30 · 77210-02A70 |
| 77211B | Clamp (for fuel filler tube) | 90460-50008 |
| 77213E | Fuel tank to filler pipe hose | 77213-02160 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-02140 |
| 77219A | Fuel tank filler pipe cap | 77219-76020 |
| 77241W | Pipe joint clip | 77241-33011 |
| 77251B | main fuel pipe | 77251-02C30 · 77251-02C40 · 77251-02C50 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-02A20 · 77261-02A30 · 77261-02A40 · 77261-02A50 · 77261-02C80 |
| 77281G | fuel hose clamp | 77281-50040 |
| 77285D | No. 1 fuel pipe clamp | 77285-78010 · 77286-48100 · 77286-78040 |
| 77285K | No. 1 fuel pipe clamp | 77285-10060 · 77285-30350 |
| 77286D | No. 2 fuel pipe clamp | 77286-12140 |
| 77286F | No. 2 fuel pipe clamp | 77285-06590 |
| 77286H | No. 3 fuel pipe clamp | 77298-10050 · 77298-10070 · 77298-10090 |
| 77286K | No. 2 fuel pipe clamp | 77286-75010 |
| 77286L | No. 5 fuel pipe clamp | 77286-47050 |
| 77286M | No. 6 fuel pipe clamp | 77285-12190 |
| 77286S | Fuel tank protective shell cushion | 77286-12110 |
| 77289B | No. 3 fuel pipe clamp | 77289-33080 |
| 77289C | No. 4 fuel pipe clamp | 77289-12090 · 77289-12100 |
| 77291A | Fuel tank filler pipe cover | 77291-02320 |
| 77298B | No. 4 fuel pipe clamp | 77298-10080 |
| 77299A | No. 5 fuel pipe clamp | 77299-12100 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-02240 |
| 77310A | Fuel tank cap assembly | 77300-12020 · 77300-12040 · 77300-48020 |
| 77316 | fuel tank cap gasket | 77316-52040 · 77316-75020 |
| 77350 | Fuel filler cap assembly | 77350-02250 |
| 77360A | Fuel filler cap spring assembly | 77360-30080 |
| 77377 | Fuel filler cap lock retainer | 77377-12100 |
| 77391 | fuel inlet ring | 77391-20040 |
| 77391A | fuel inlet ring | 77391-02020 |
| 77404 | Fuel tank vent hose sub-assembly | 77404-02230 · 77404-02340 · 77404-02350 · 77404-02490 |
| 77404B | No. 2 fuel tank vent hose sub-assembly | 77404-02370 · 77404-02480 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-02120 · 77411-02130 |
| 77512C | fuel tank bracket | 77512-35140 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-02230 |
| 77603A | No. 2 fuel tank strap sub-assembly | 77602-02220 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-02180 |
| 77613 | Fuel tank strap fixing bolts | 90119-10995 |
| 77641A | No. 1 fuel tank protective shell | 77641-47070 |
| 77652A | No. 2 fuel tank liner | 77652-02120 |
| 77681A | Fuel tank strap seat | 77681-47020 |
| 77681B | Fuel tank strap seat | 77682-47020 |
| 77720H | Fuel delivery valve assembly | 77720-12020 |
| 77740 | Carbon canister assembly | 77740-33220 · 77740-42120 |
| 77740R | Leak detection pump sub-assembly | 90910-14008 · 90910-AF006 |
| 77750 | Carbon canister assembly | 77730-12010 · 77730-12030 · 77730-12050 · 77730-12060 |
| 77754 | No. 1 carbon canister outlet hose | 77754-12250 |
| 77754A | No. 2 carbon canister outlet hose | 77754-12260 |
| 77754B | Carbon canister outlet hose | 77754-12270 · 77754-12280 · 77754-47090 |
| 77759A | Carbon canister hose | 77759-12110 · 77759-12150 |
| 77779 | Carbon canister outlet pipe | 77779-02080 |
| 77785 | fuel pump wiring harness | 77785-12040 · 77785-12050 · 77785-12060 · 77785-76010 |
