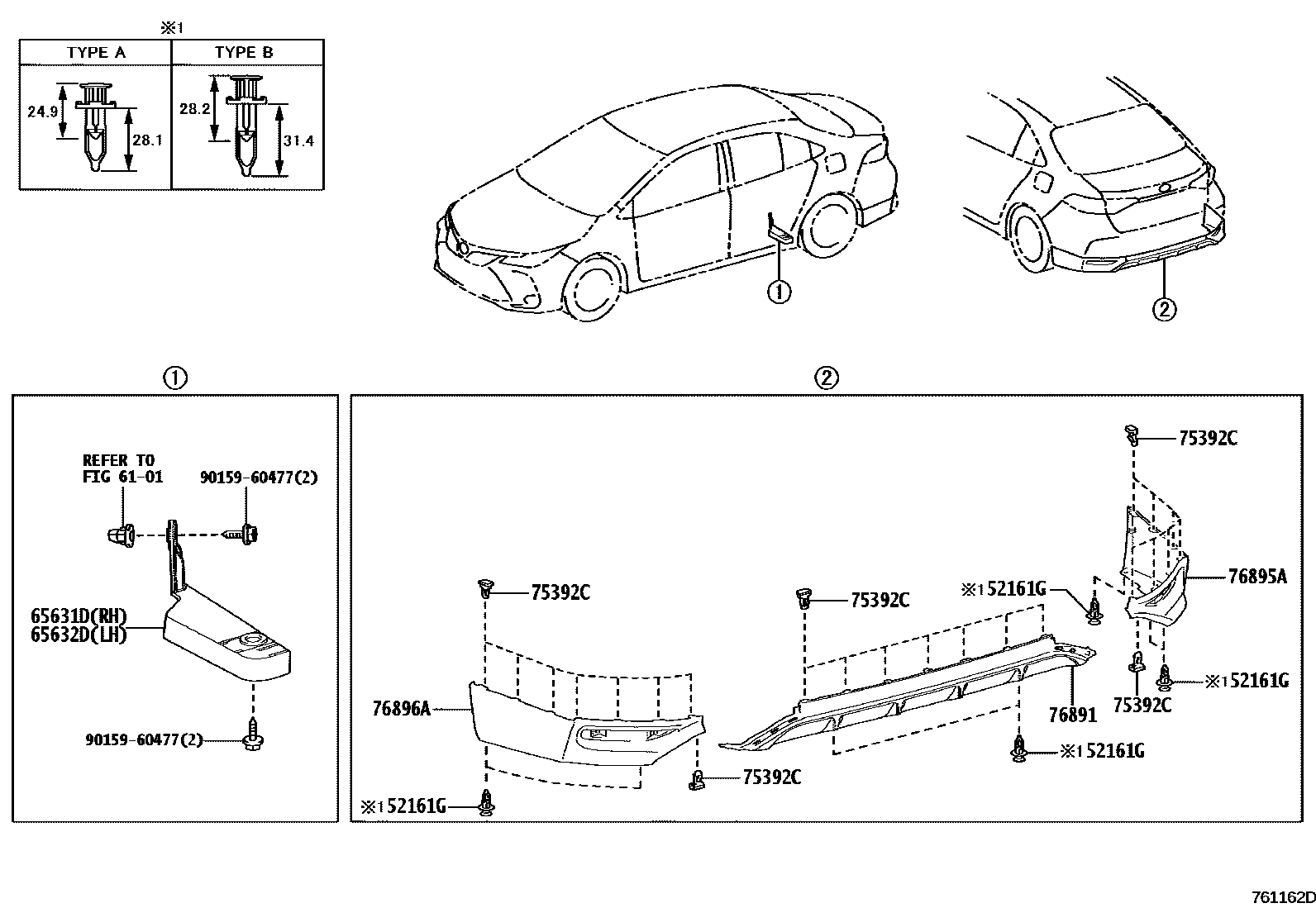

Toyota COROLLA 挡泥板和扰流板 — Figure 7601
Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161G | Rear bumper insert | 52161-0K040 · 52161-16010 · 52161-20010 |
| 65631D | Right rear wheel house front panel | 65631-02360 |
| 65632D | Left rear wheel house front panel | 65632-02360 |
| 75392C | External protective strip fixings | 75392-35220 |
| 76084A | spoiler assembly | 76084-YY020 |
| 76085 | Rear spoiler sub-assembly | 76085-02310 |
| 76872 | No. 1 rear spoiler protective strip | 76872-YY050 |
| 76873A | Right rear spoiler protective strip | 76873-YY040 |
| 76874 | No. 3 rear spoiler protective strip | 76874-YY040 |
| 76874C | No. 3 rear spoiler protective strip | 76874-47020 |
| 76875 | No. 4 rear spoiler protective strip | 76874-YY050 |
| 76879 | No. 1 rear spoiler clip | 90467-09206 |
| 76891 | No. 1 rear spoiler | 76891-02901 · 76891-02904 |
| 76895A | Right rear bumper spoiler | 76895-02922 |
| 76896A | Left rear bumper spoiler | 76896-02919 |
