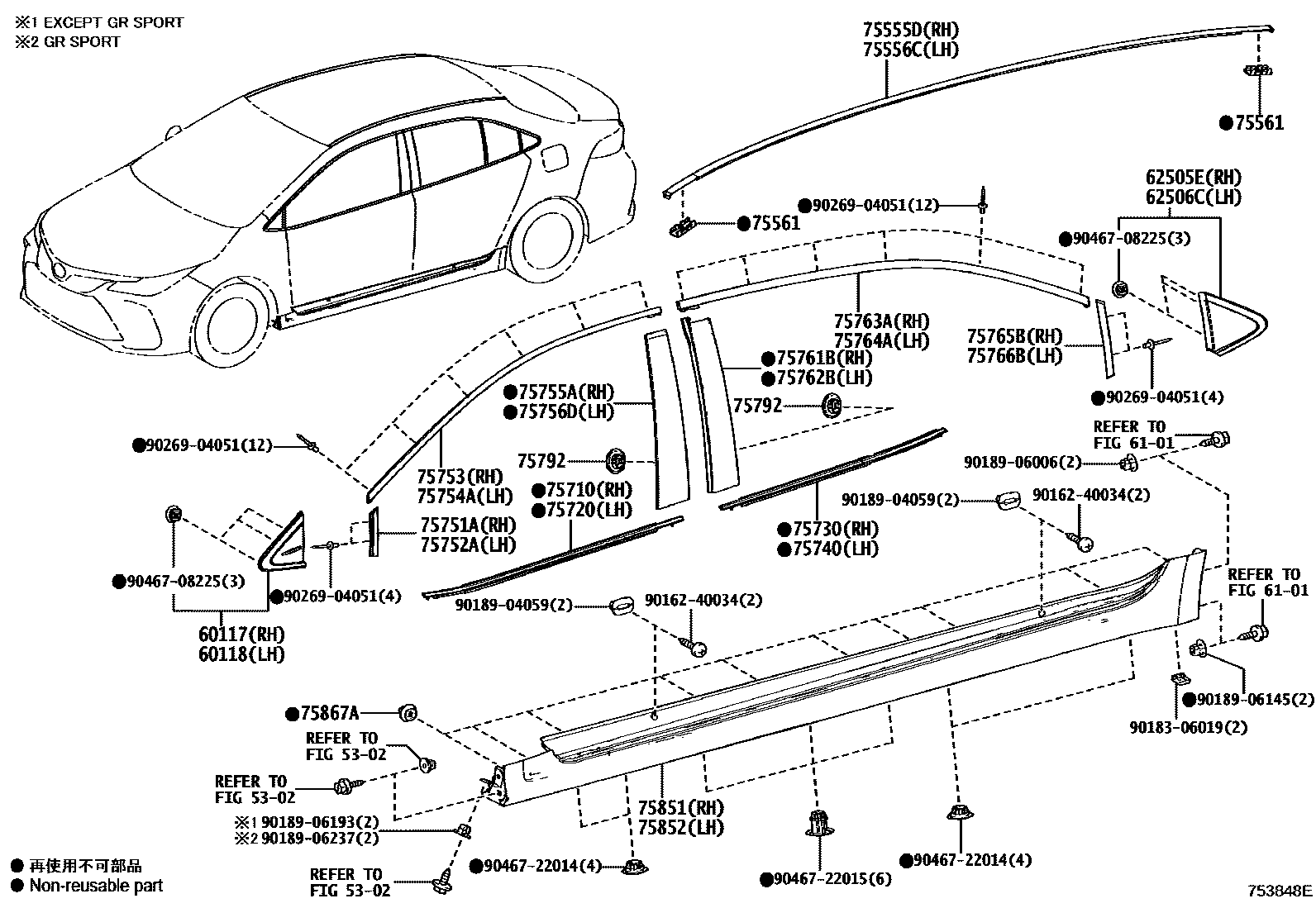

Toyota COROLLA 侧防护条 — Figure 7503
Toyota COROLLA EPC diagram 7503, 侧防护条, with 1 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 60117 | Right front pillar upper cover sub-assembly | 60117-02330 · 60117-02420 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-02330 · 60118-02420 |
| 62505E | Right corner window pillar cover sub-assembly | 62505-02110 · 62505-02200 |
| 62506C | Left corner window pillar cover sub-assembly | 62506-02110 · 62506-02200 |
| 75555D | Drainage channel side decorative strip in the middle section on the right side of the roof | 75555-02360 |
| 75556C | Drainage channel side decorative strip in the middle section on the left side of the roof | 75556-02340 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-33030 |
| 75710 | Right front door waistline protection strip assembly | 75710-02590 |
| 75720 | Left front door waistline protection strip assembly | 75720-02590 |
| 75730 | Right rear door waistline protection strip assembly | 75730-02590 |
| 75740 | Left rear door waistline protection strip assembly | 75740-02590 |
| 75751A | Front door window frame protection strip (right front pillar) | 75751-02010 · 75751-02120 |
| 75752A | Front door window frame protection strip (left front pillar) | 75752-02010 · 75752-02120 |
| 75753 | Protective strip on right front door window frame | 75753-02010 · 75753-02020 · 75753-02180 |
| 75754A | Protective strip on left front door window frame | 75754-02010 · 75754-02020 · 75754-02180 |
| 75755A | Front door window frame protection strip (right center pillar) | 75755-02180 |
| 75756D | Front door window frame protection strip (left center pillar) | 75756-02180 |
| 75761B | Rear door window frame protection strip (right center pillar) | 75761-02190 |
| 75762B | Rear door window frame protection strip (left center pillar) | 75762-02190 |
| 75763A | Protective strip on right rear door window frame | 75763-02010 · 75763-02020 · 75763-02210 |
| 75764A | Protective strip on left rear door window frame | 75764-02010 · 75764-02020 · 75764-02210 |
| 75765B | Rear door window frame protection strip (right rear pillar) | 75765-02010 · 75765-02130 |
| 75766B | Rear door window frame protection strip (left rear pillar) | 75766-02010 · 75766-02130 |
| 75792 | Car door window frame protective strip clip | 75792-47010 |
| 75851 | Right side door sill panel protective strip | 75851-02911 · 75851-02914 |
| 75852 | Left side door sill panel protective strip | 75852-02911 · 75852-02914 |
| 75867A | Door sill panel protective strip clip | 75867-52020 |
