Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 8 PNC and OE references.

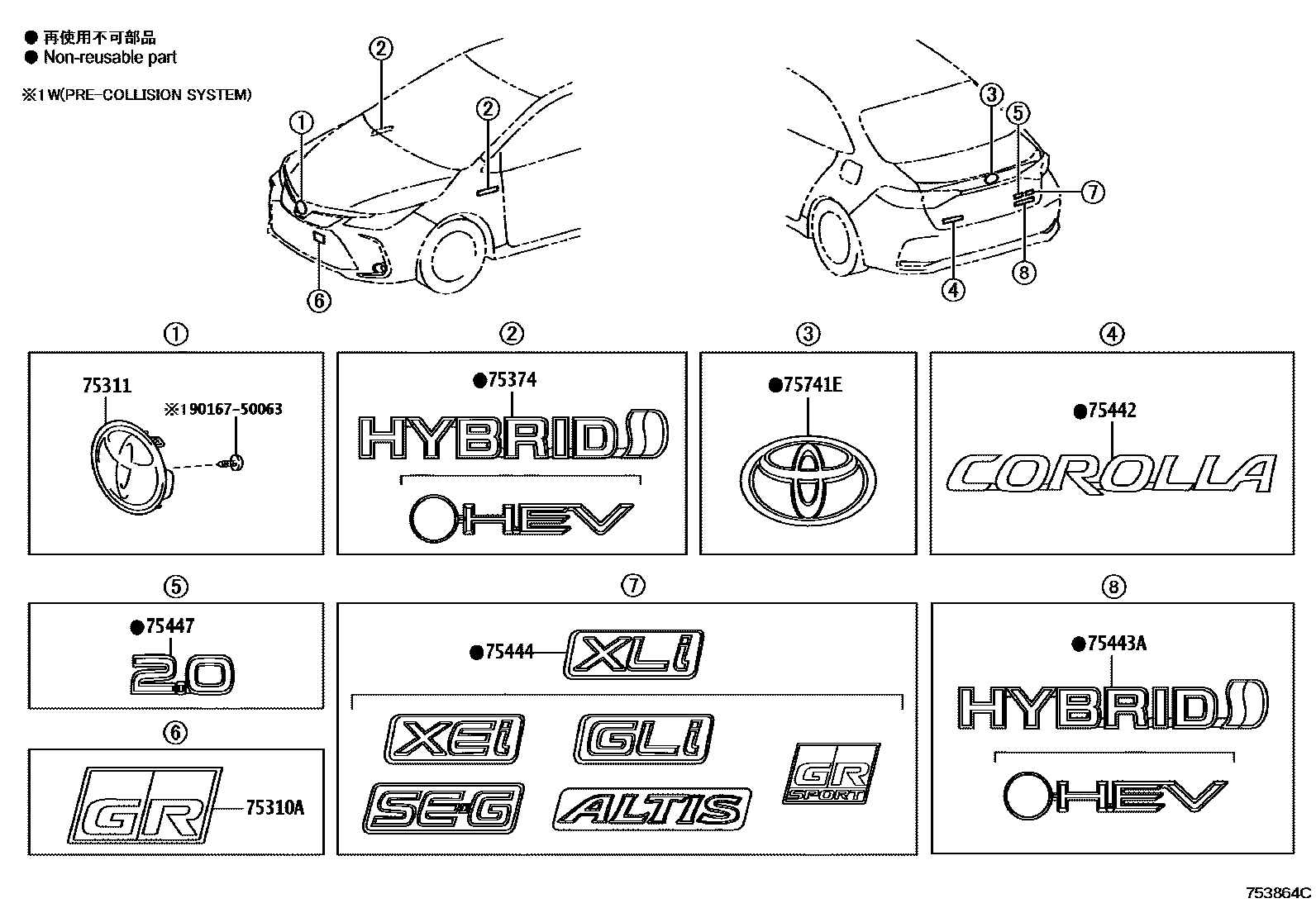

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 753864C
丰田徽标和铭牌(车外和车内) — 753864C (201909 – 999999)

PNC and OE references

PNCPart nameOE numbers
75310ARadiator grille plate assembly75310-52090
75311Radiator grille (or front panel) plate75301-02250 · 75301-02260 · 90975-02124 · 90975-02136
75374side panel sign75361-52070 · 75362-52070 · 75374-02250 · 75374-02260 · 75440-02060
75442Trunk door number plate No. 275442-02570 · 75442-02680
75443ATrunk door No. 3 nameplate75440-02070 · 75443-02370
75444Trunk door No. 4 nameplate75441-52160 · 75444-02F30 · 75444-02F40 · 75444-02F50 · 75444-02F60 · 75444-02F70
75447Trunk door No. 7 nameplate75447-02520
75741Elogo75403-30020 · 90975-02062 · 90975-02138
