Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

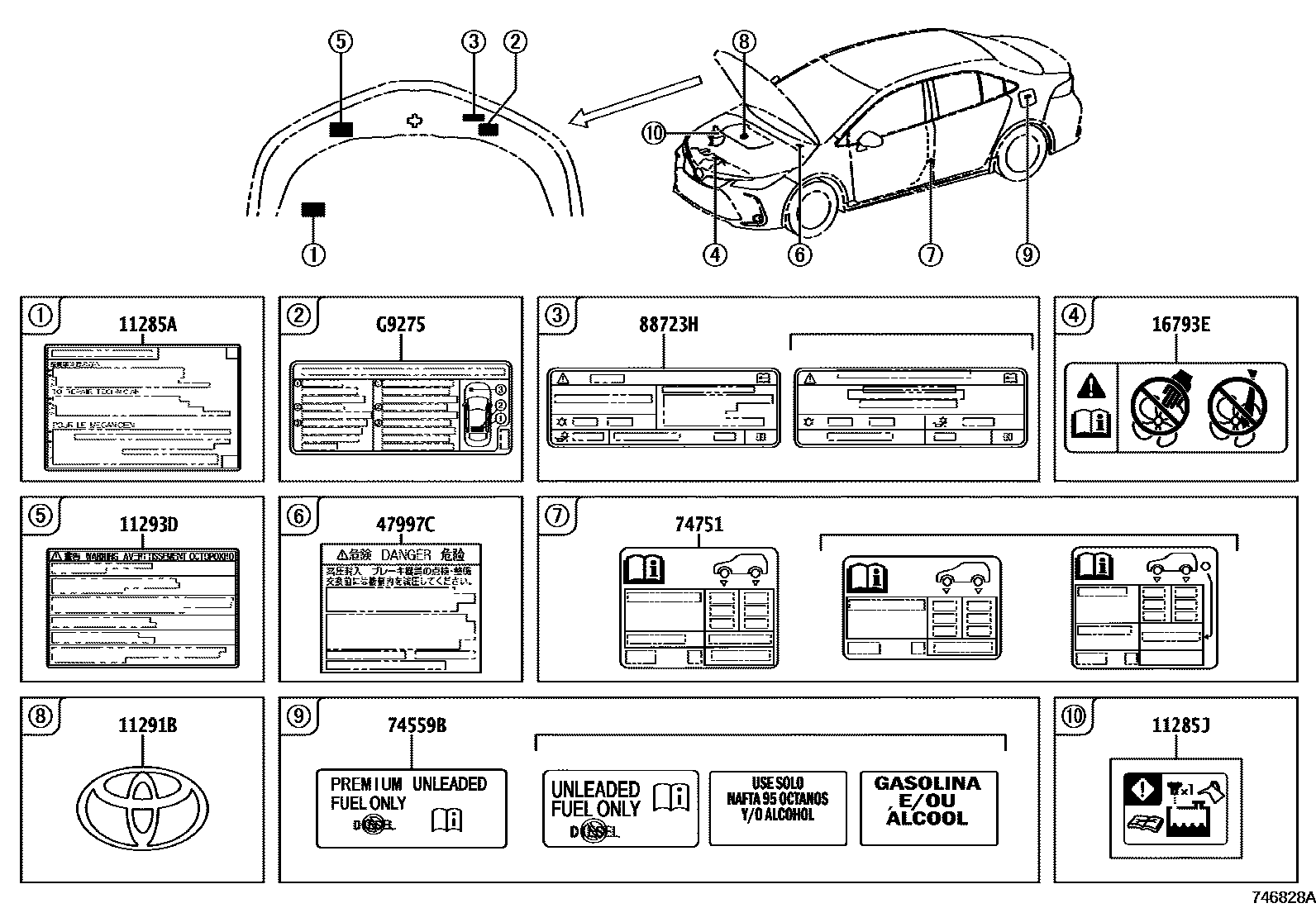

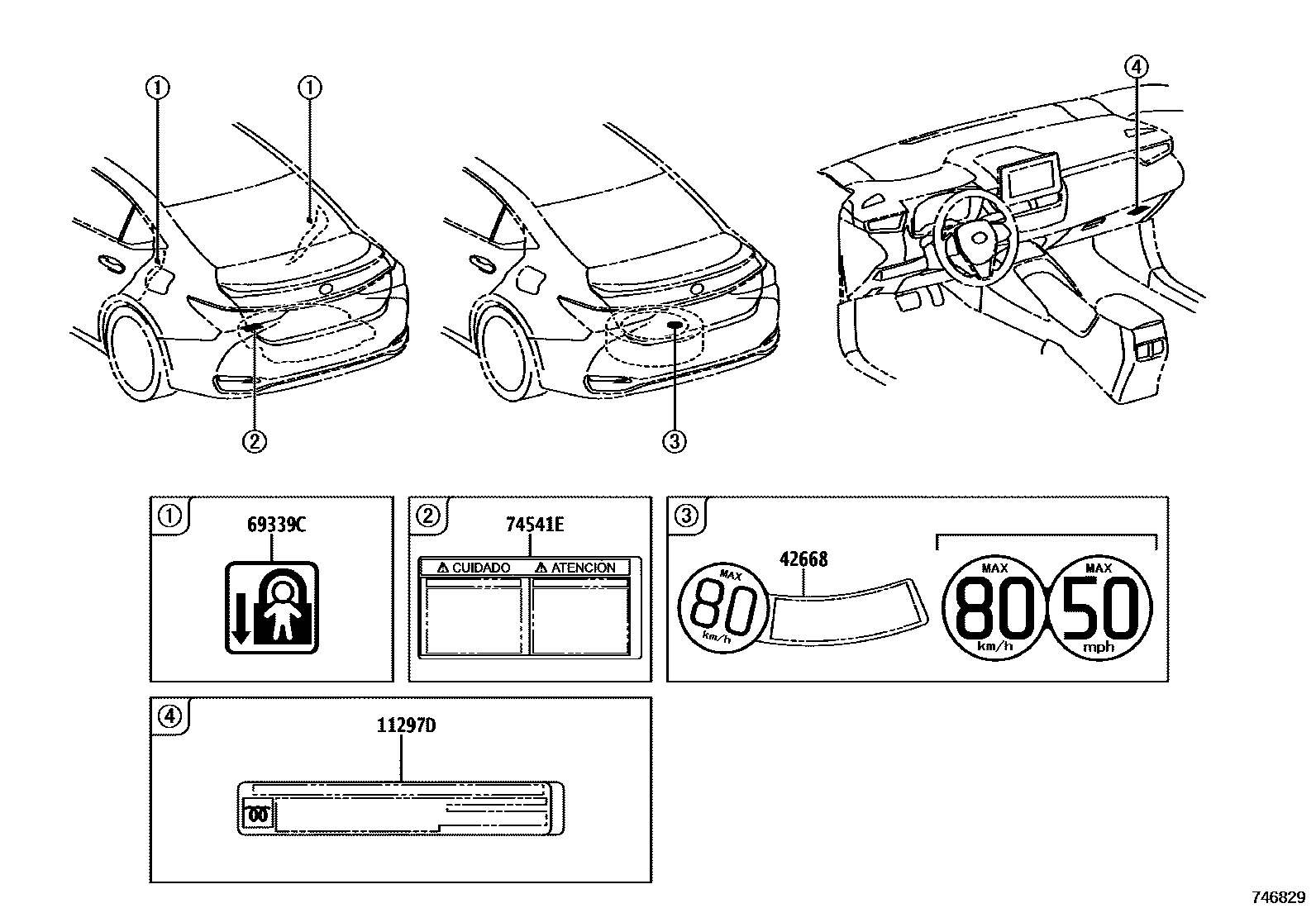

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-33030 · 11285-33040 |
| 11285J | No. 2 Coolant System Warning Label | 11285-11020 · 11285-11030 |
| 11291B | Engine name plate | 11290-37010 · 11291-37100 |
| 11293D | engine warning label | 11293-36070 |
| 11297D | Engine starting information label | 11297-0T010 · 11297-0T020 |
| 16793E | Cooling fan warning label | 16793-36030 |
| 42668 | Small spare tire warning label | 42668-0D050 · 42668-42010 |
| 47997C | Accumulator No. 1 Warning Label | 47997-76010 |
| 69339C | Child Restraint Information Label | 69339-06060 |
| 74541E | Small spare tire warning plate | 42668-0D120 |
| 74559B | fuel information label | 11287-0Y010 · 74559-02040 · 74559-20140 · 74559-60030 |
| 74751 | tire pressure information label | 42661-02N10 · 42661-02N20 · 42661-02T80 · 42661-02T90 · 42661-02X20 |
| 88723H | Cooler maintenance warning label | 88723-02500 · 88723-02510 · 88723-02560 · 88723-02570 |
| G9275 | No. 1 battery warning label | G9275-47110 |
