Toyota COROLLA battery holder — Figure 7402

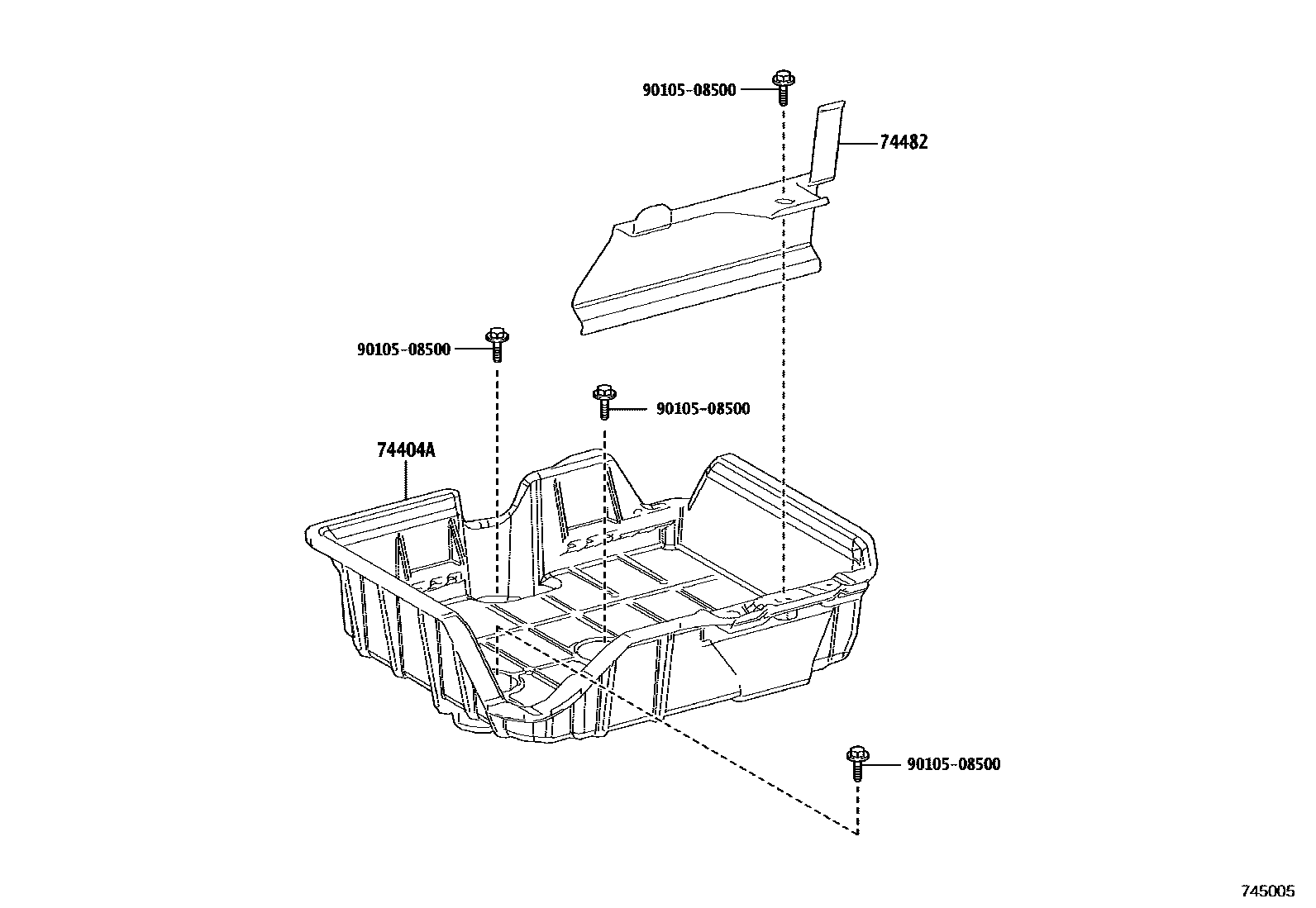

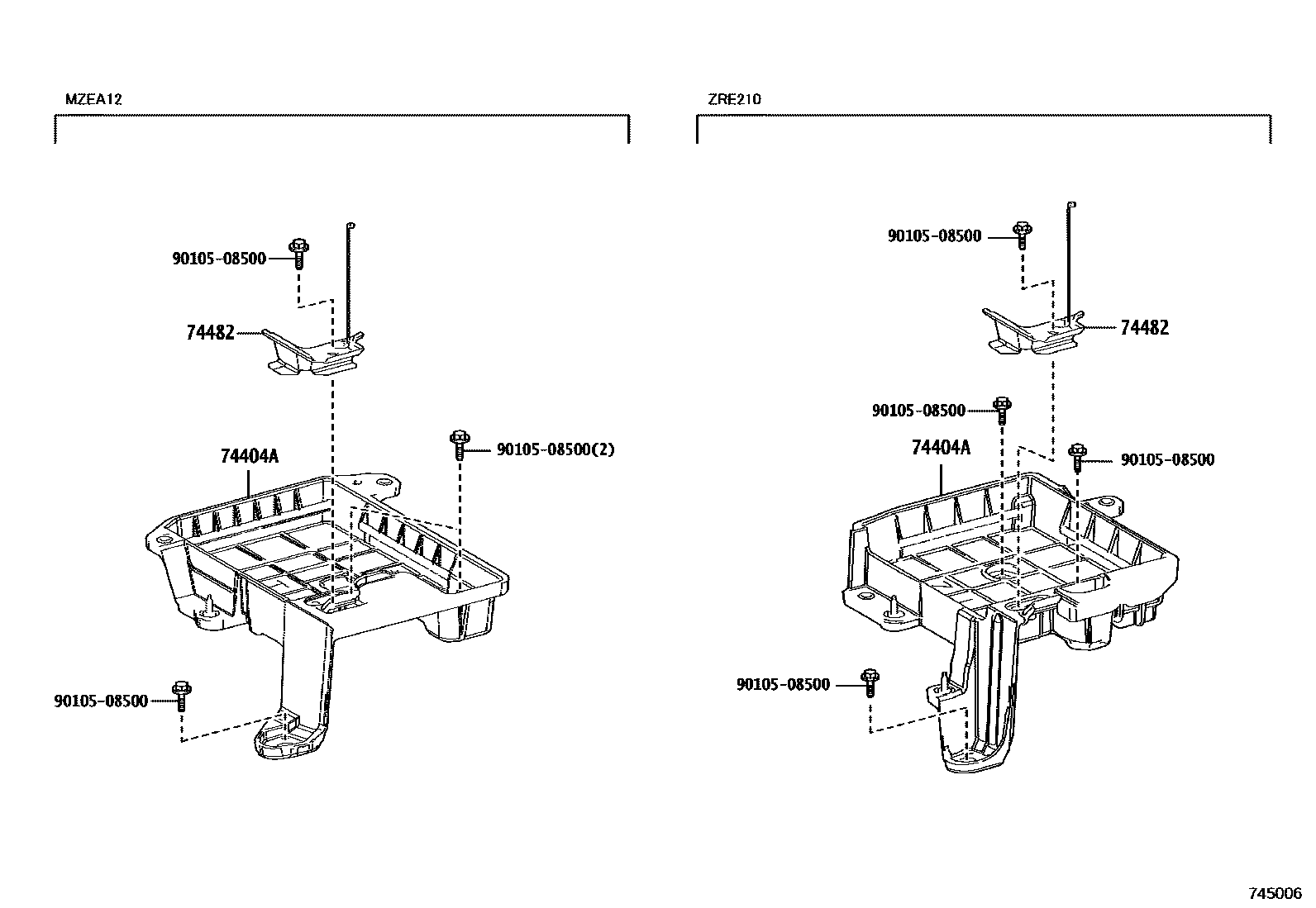

Toyota COROLLA EPC diagram 7402, battery holder, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74404A | Battery clip sub-assembly | 74404-0A050 · 74404-12540 · 74404-12570 · 74404-47030 |
| 74482 | No. 2 battery clip | 74405-02070 · 74482-47010 |
