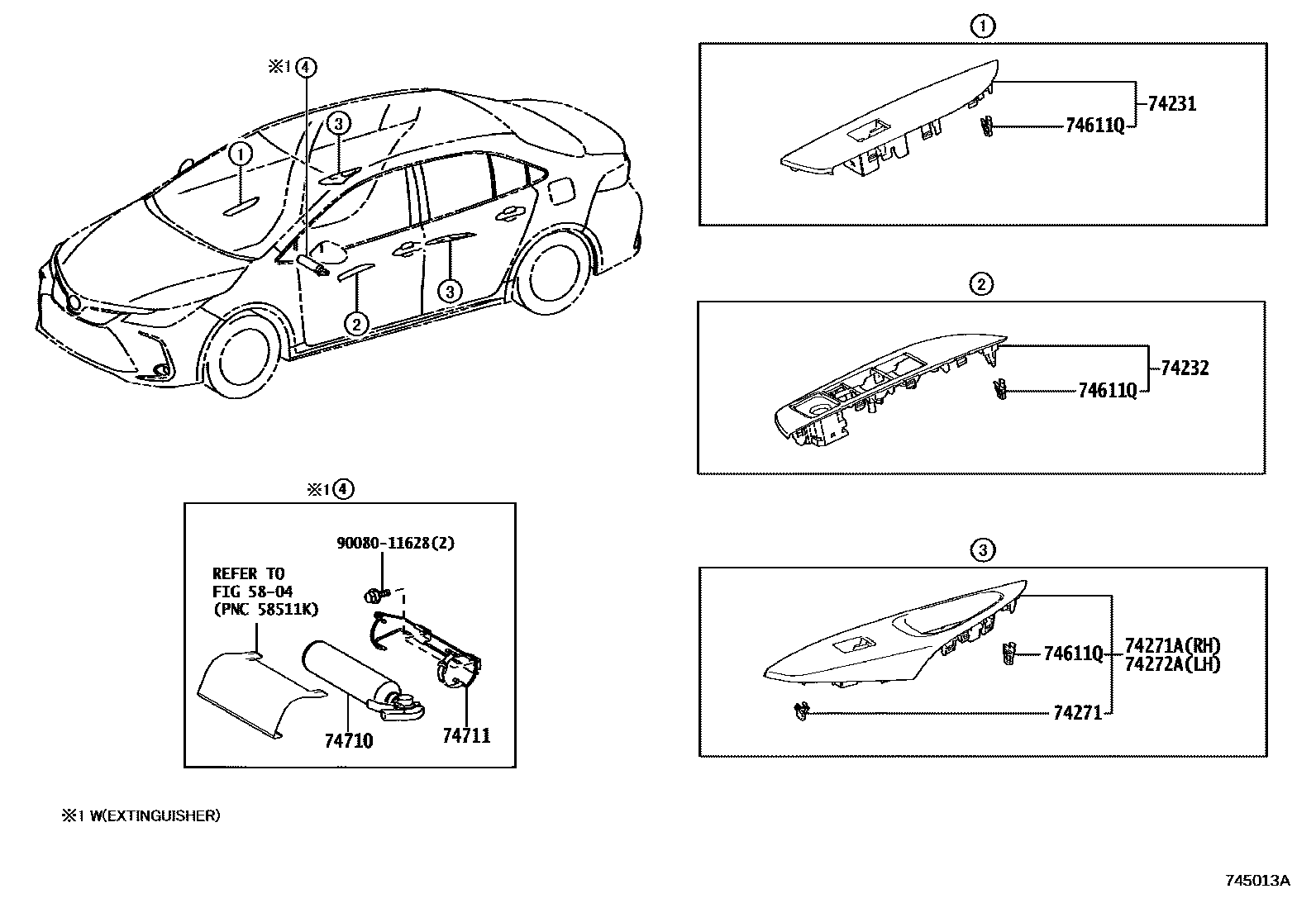

Toyota COROLLA 扶手和遮阳板 — Figure 7401
Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-02J20 · 74231-02J30 |
| 74232 | Left front armrest upper panel | 74232-02J80 · 74232-02J90 |
| 74271 | door armrest fixings | 55416-60030 |
| 74271A | Right rear door armrest upper panel | 74271-02A00 · 74271-02A10 |
| 74272A | Left rear door armrest upper panel | 74272-02890 · 74272-02A00 |
| 74611Q | clip | 90467-10203 |
| 74645A | Right door auxiliary handle cover | 74645-02560 |
| 74646 | Left door auxiliary handle cover | 74646-02560 |
| 74710 | Fire extinguisher assembly | 74710-02010 |
| 74711 | Fire extinguisher bracket sub-assembly | 74702-02020 |
