Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

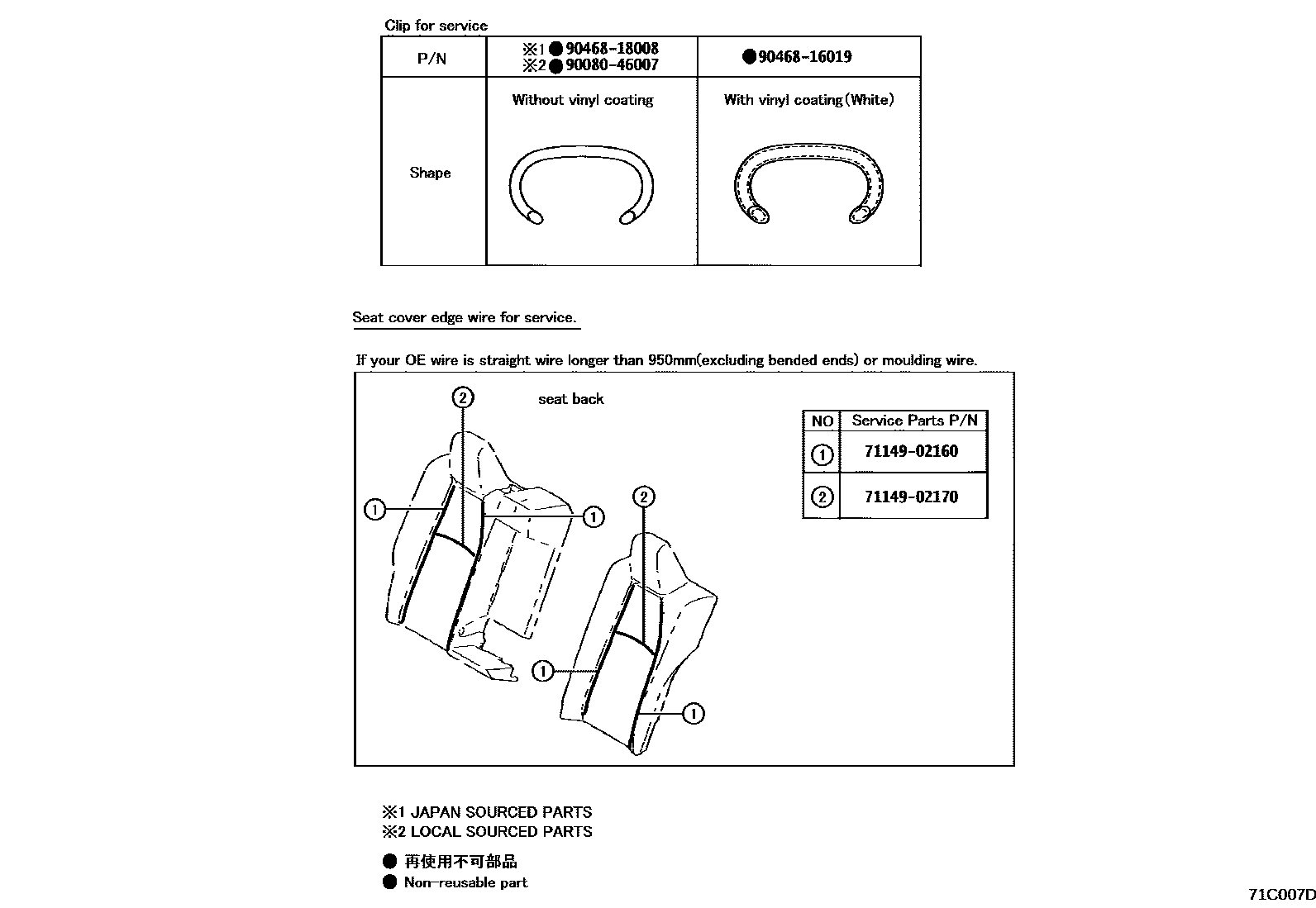

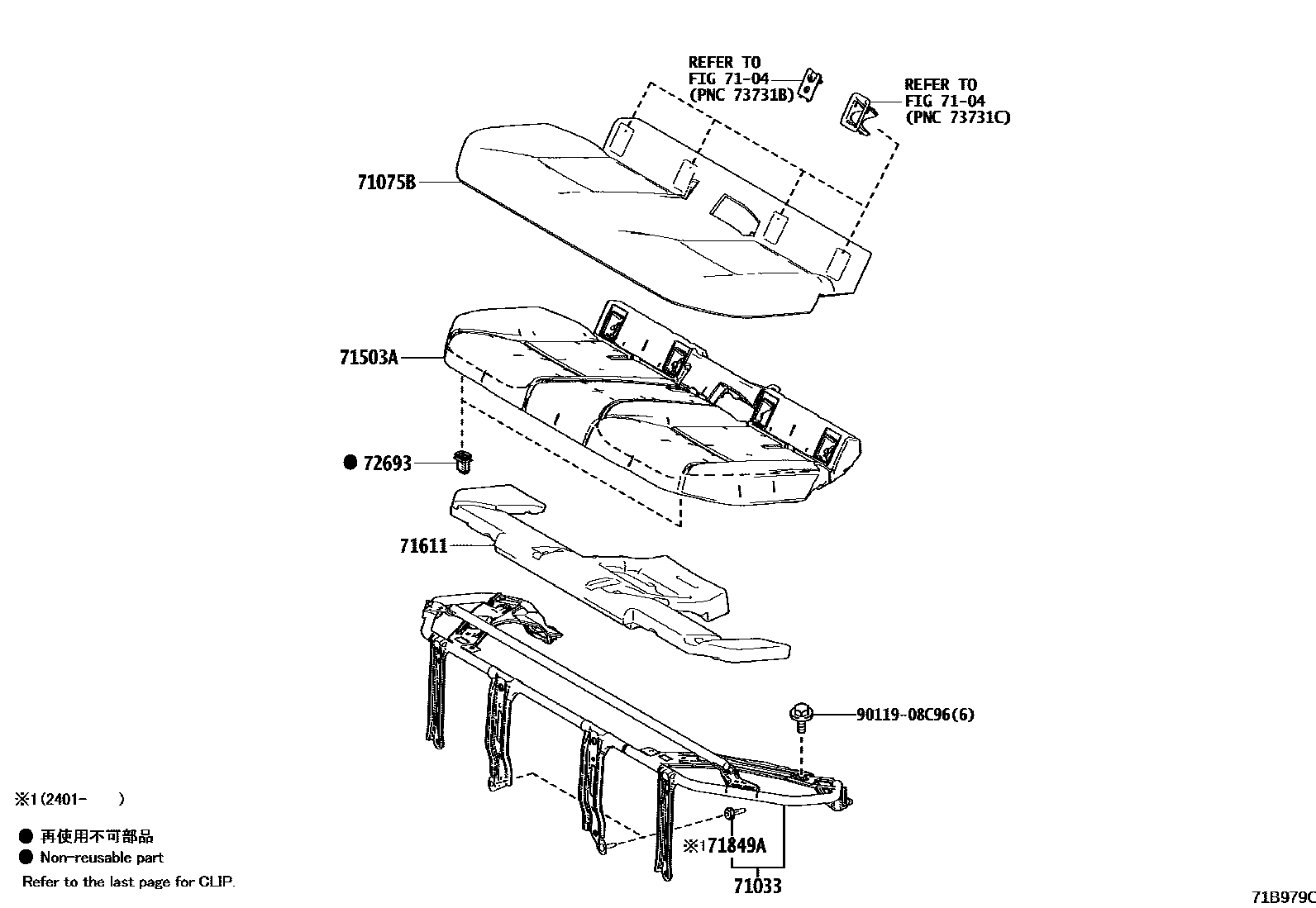

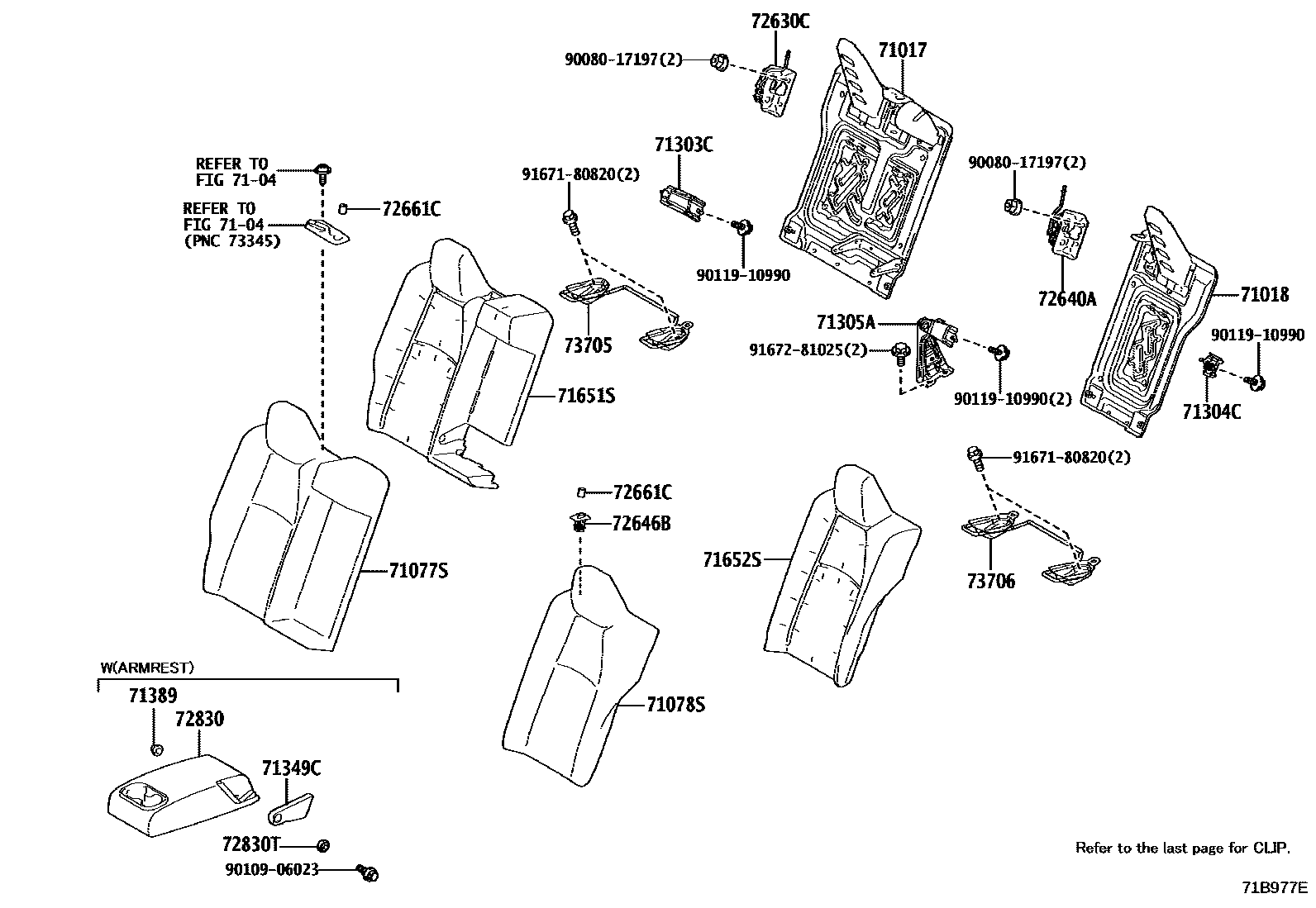

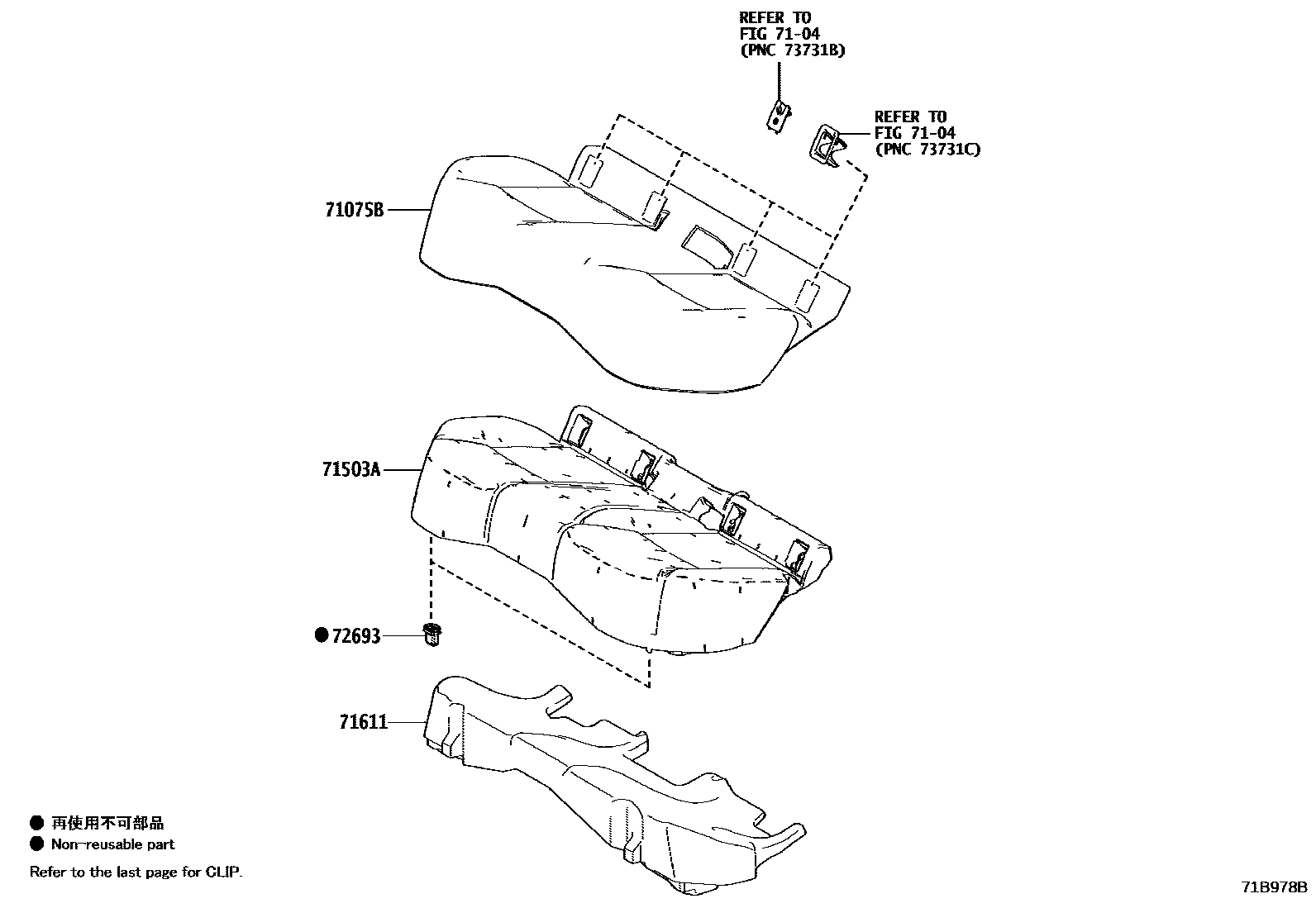

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-02D80 · 71017-02D90 |
| 71018 | Rear left seat back frame sub-assembly | 71018-02700 |
| 71033 | Rear seat cushion and leg sub-assembly | 71033-16030 · 71033-47010 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-02380 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-02120 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-02380 |
| 71389 | Center seat hinge spacer | 71389-02020 |
| 71503A | Rear seat cushion sub-assembly | 71503-02800 · 71503-02801 · 71503-02810 |
| 71611 | Rear seat cushion cushion | 71611-02190 · 71611-02200 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-02B60 · 71651-02B61 · 71651-02B70 · 71651-02B71 · 71651-02B72 · 71651-02B73 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-02810 · 71652-02811 · 71652-02812 |
| 71849A | left seat adjuster cover | 71848-47050 |
| 72630C | Rear right seat back lock assembly | 72630-02270 |
| 72640A | Rear left seat back lock assembly | 72640-02260 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72830T | Bushing (for rear seat center armrest) | 72622-02020 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-02380 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73705-02390 |
