Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

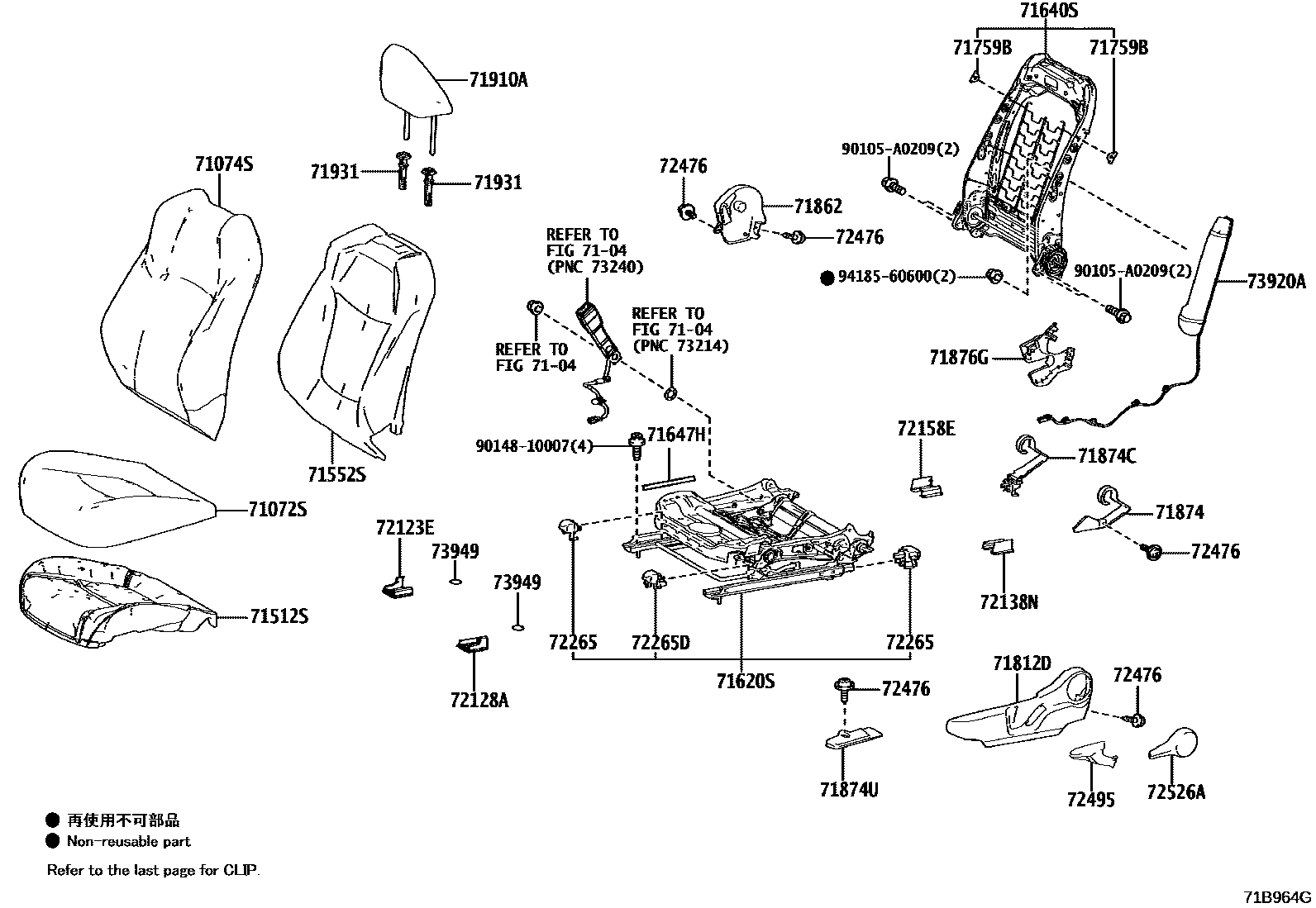

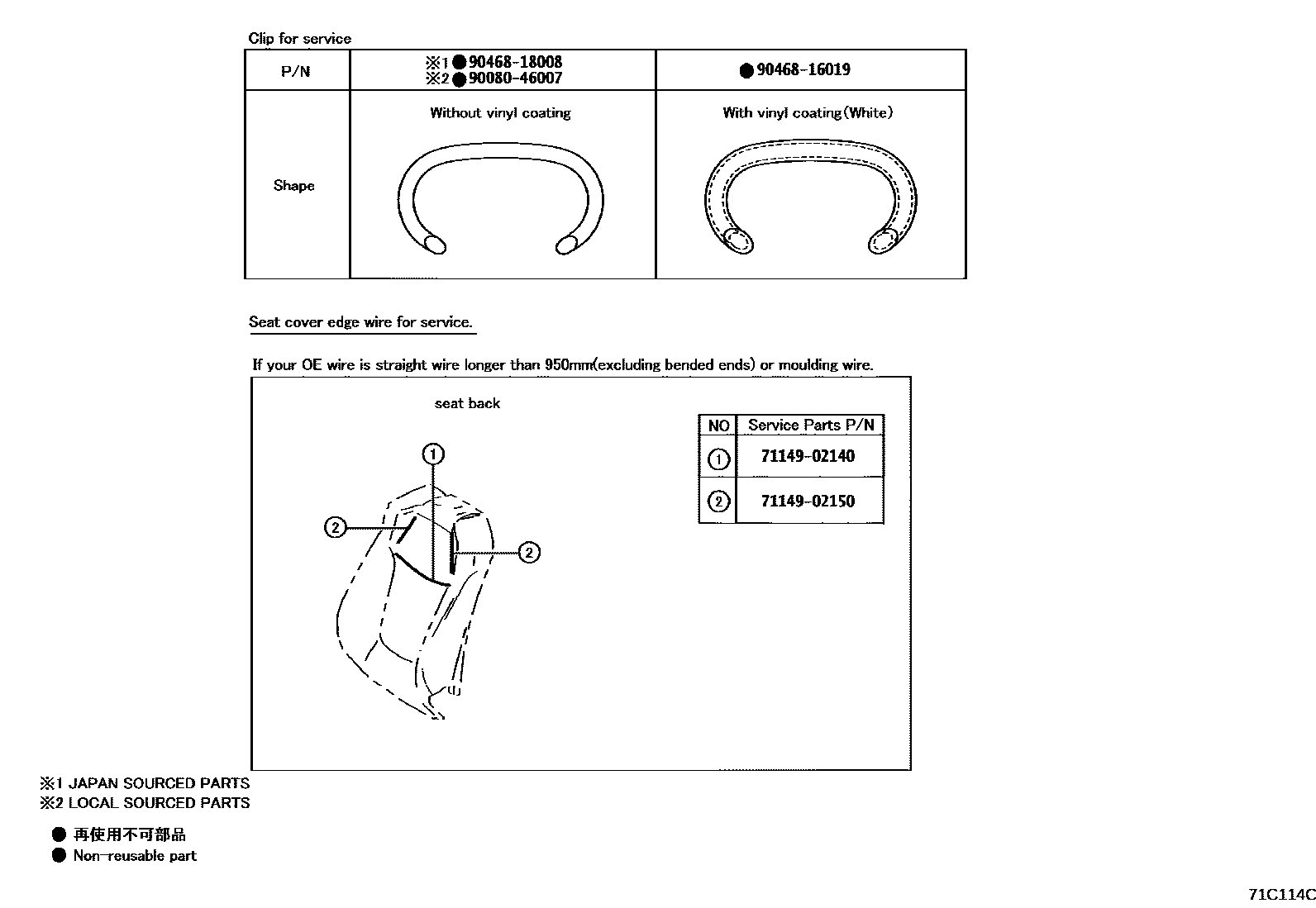

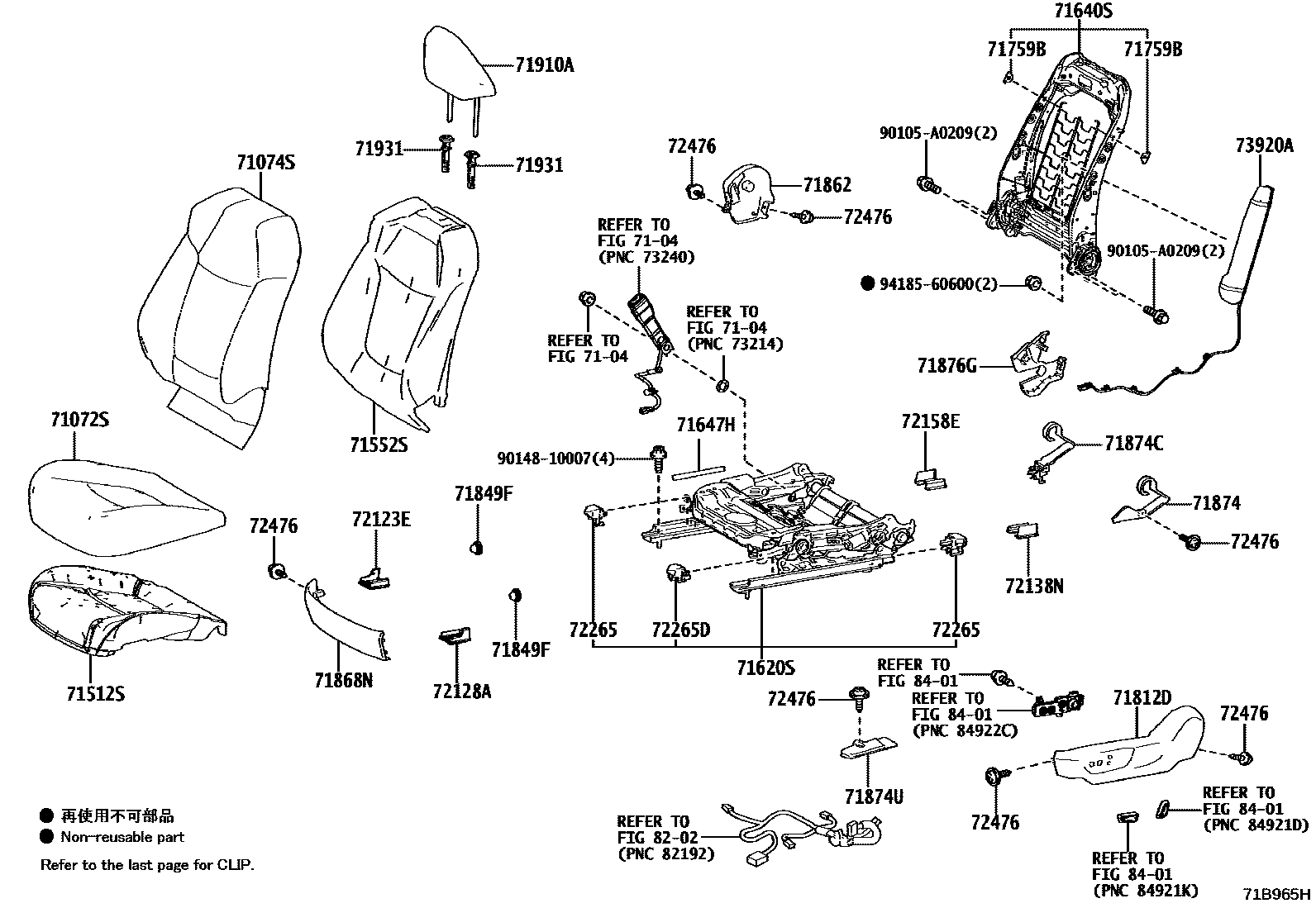

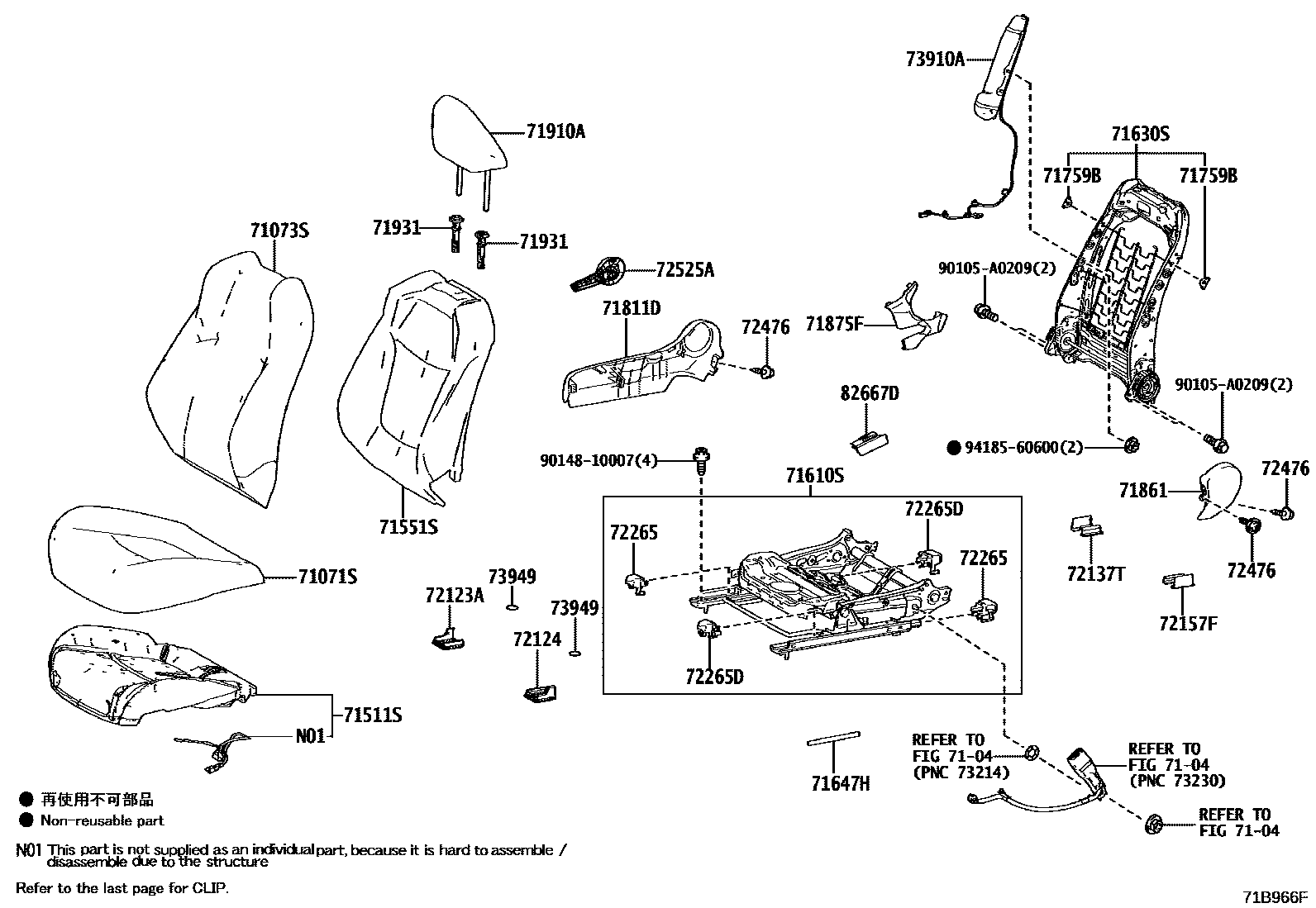

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71511S | Front right seat cushion cushion (for split seats) | 71501-02380 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-02C60 · 71512-02C70 |
| 71551S | Front right seat back cushion (for split seats) | 71551-02F10 |
| 71552S | Front left seat back cushion (for split seats) | 71551-02F20 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-02560 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-02660 · 71620-02670 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-02B10 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-02C30 · 71640-02C40 |
| 71647H | Front seat cushion edge protective cover | 71537-02150 |
| 71759B | Front seat back hook | 71759-02060 |
| 71849F | Left-hand seat adjuster cover (for left-hand seat) | 71849-02090 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-02170 |
| 72123E | Front right seat inner slide rail bracket cover | 72127-02080 |
| 72124 | Front left seat outer slide rail bracket cover | 72127-02080 |
| 72128A | Front left seat inner slide rail bracket cover | 72123-02170 |
| 72137T | Rear right seat outer slide rail bracket cover | 72137-02410 |
| 72138N | Rear left seat outer slide rail bracket cover | 72138-02350 |
| 72157F | Rear right seat inner slide rail bracket cover | 72157-02400 |
| 72158E | Rear left seat inner slide rail bracket cover | 72158-02370 |
| 72265 | Right seat rail upper rail cover | 72265-02130 |
| 72265D | Seat rail upper rail cover | 72266-02060 |
| 72476 | Horizontal jack inner screw | 72476-06020 |
| 73910A | Front right seat airbag assembly | 73910-02420 |
| 73920A | Front left seat airbag assembly | 73920-02380 |
| 73949 | cover | 71848-02120 |
| 82667D | Connector holder | 82666-47630 |
