Toyota COROLLA 锁芯组件 — Figure 6712

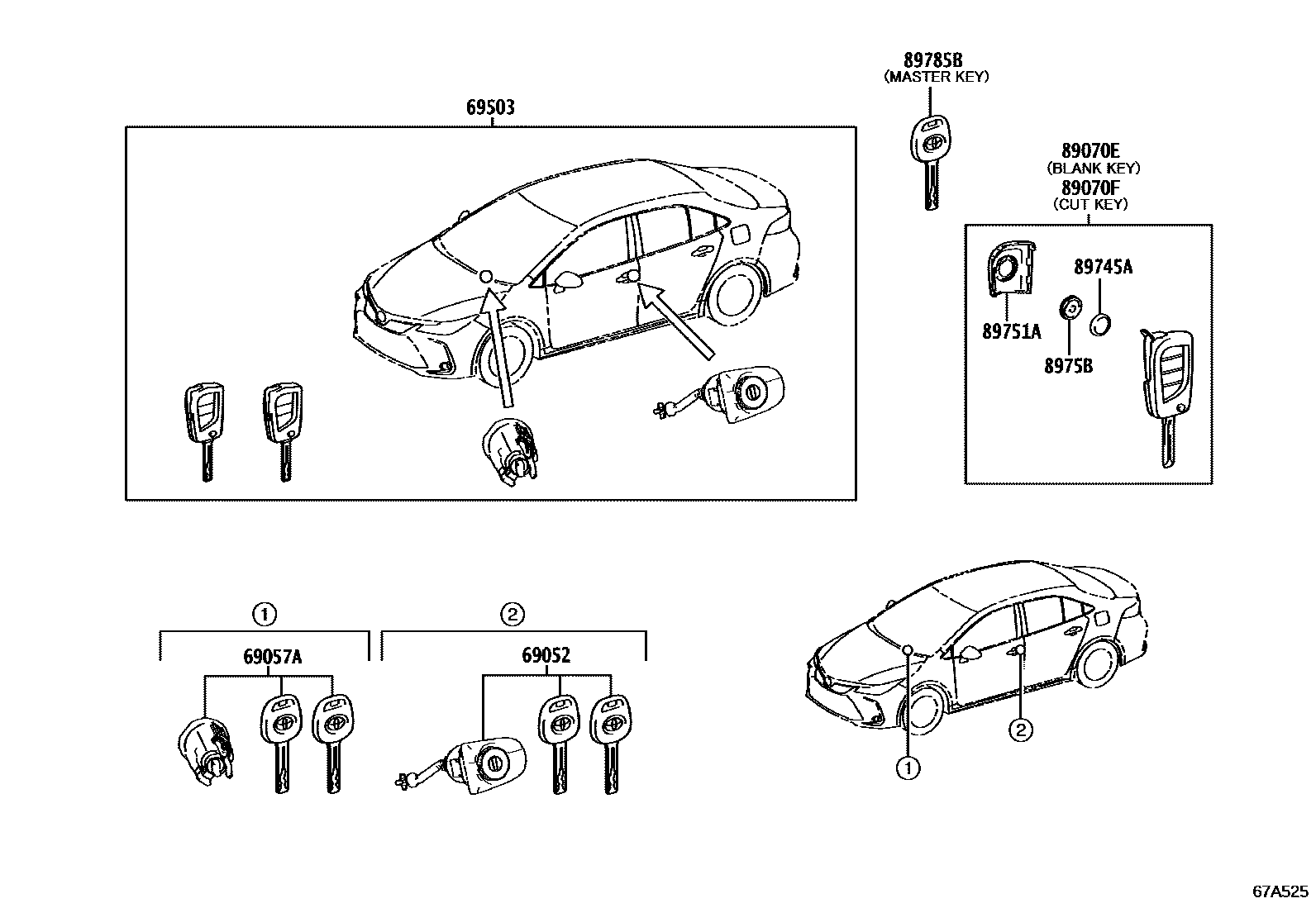

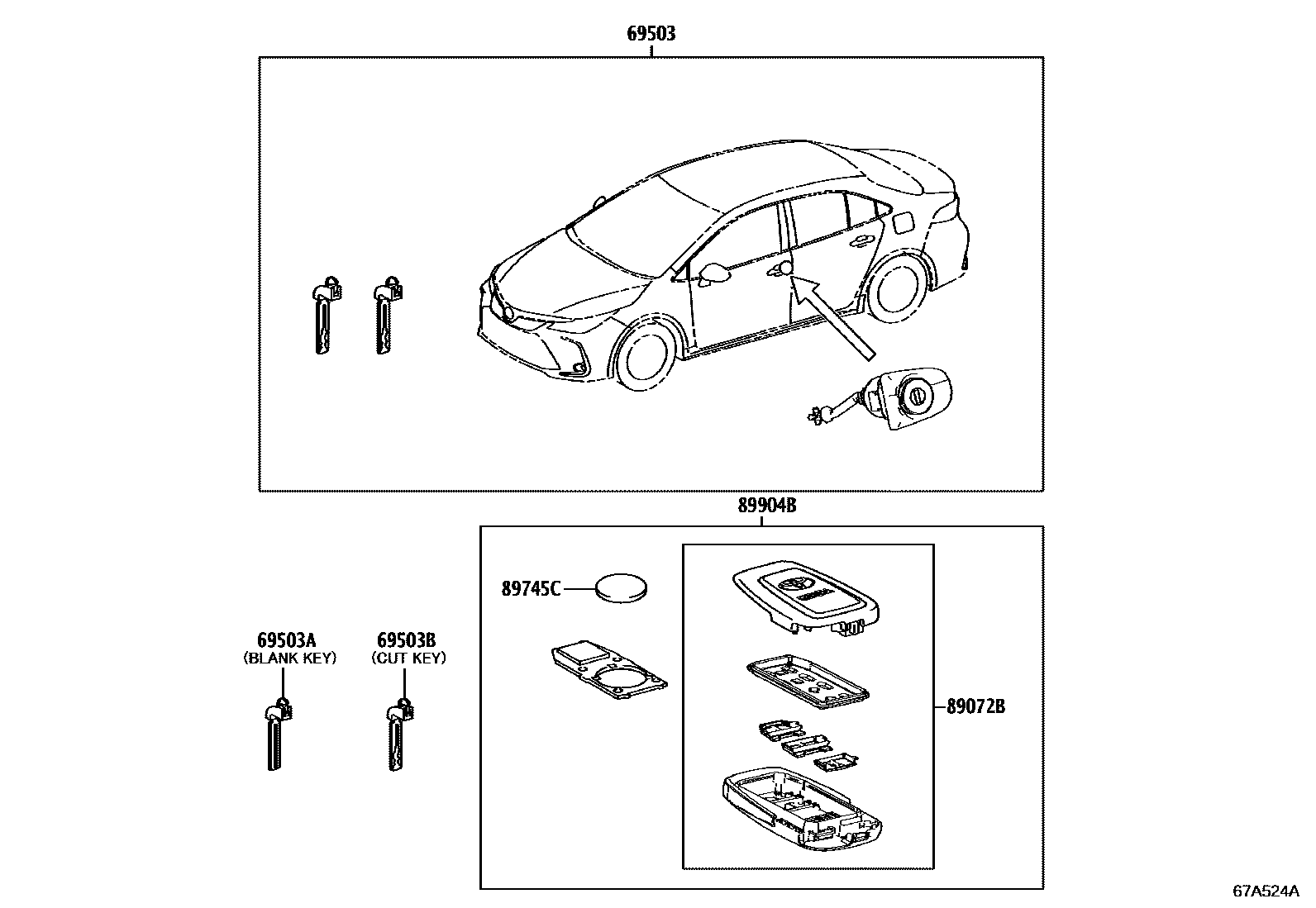

Toyota COROLLA EPC diagram 6712, 锁芯组件, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69052 | Left door lock cylinder and key assembly | 69052-02520 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-02B50 |
| 69503 | Door lock cylinder components | 69005-02K20 · 69005-02K21 · 89704-02F50 |
| 69503A | external tooth key | 69515-06050 · 69515-16110 |
| 69503B | internal tooth key | 69515-06040 · 69515-0A010 |
| 89070E | Remote key assembly | 89070-02M60 |
| 89070F | Remote key assembly (internal tooth key) | 89070-02M70 |
| 89072B | Remote key shell assembly (for smart key) | 89072-02470 · 89072-02A40 · 89072-12700 · 89072-12710 · 89072-12B50 |
| 89745A | Transmitter battery | 89745-0K010 |
| 89745C | Transmitter battery | 89745-0K010 · 89745-50020 |
| 89751A | Transmitter housing cover | 89751-02280 |
| 8975B | Remote control battery case cover | 8975B-02030 |
| 89785B | transceiver key master transmitter | 89785-0K080 |
| 89904B | Electronic key transmitter sub-assembly | 8990H-02260 · 8990H-02270 · 8990H-12260 · 8990H-12270 · 8990H-12500 · 8990H-12510 |
