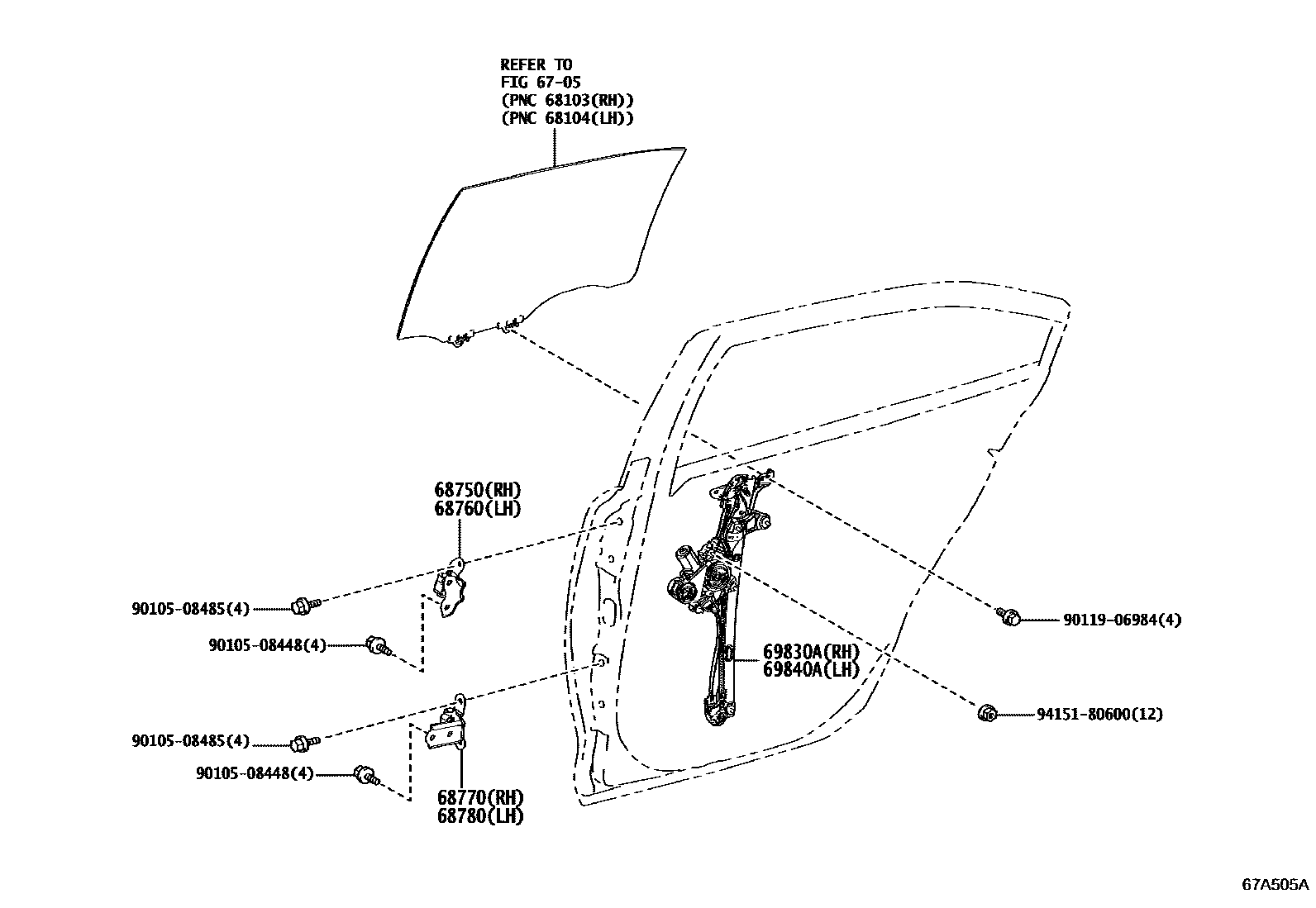

Toyota COROLLA 后门车窗升降器和合页 — Figure 6707
Toyota COROLLA EPC diagram 6707, 后门车窗升降器和合页, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-02090 |
| 68760 | Left rear door upper hinge assembly | 68760-02090 |
| 68770 | Right rear door lower hinge assembly | 68770-02120 |
| 68780 | Left rear door lower hinge assembly | 68780-02120 |
| 69830A | Right rear door window lift assembly | 69830-02720 |
| 69840A | Left rear door window lift assembly | 69840-02730 |
