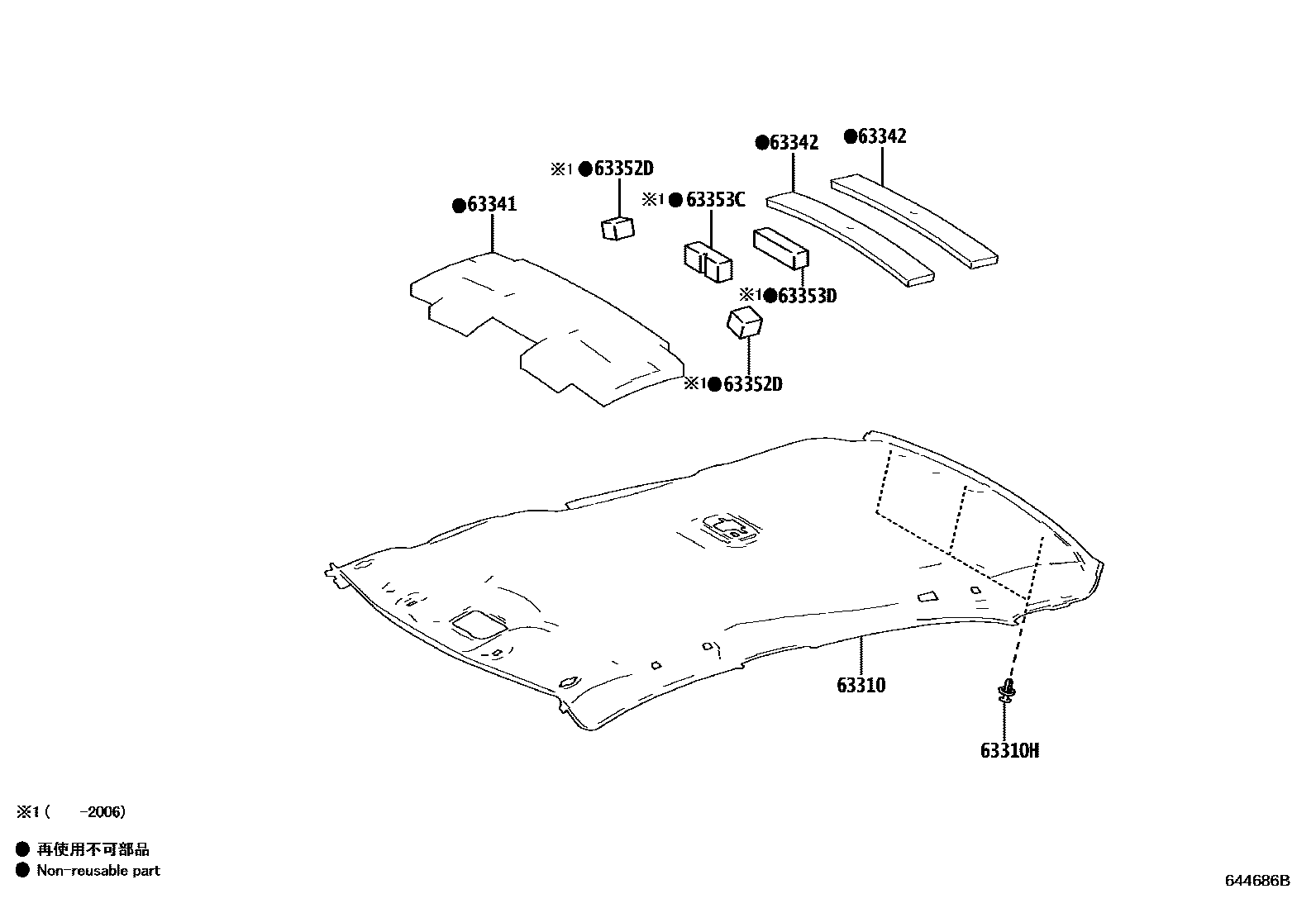

Toyota COROLLA 车顶内衬和消声垫 — Figure 6402
Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-02710 |
| 63342 | No. 2 roof muffler pad | 63342-02A00 |
| 63352D | No. 2 roof lining lining block | 63352-02080 |
| 63353C | Center roof lining lining | 63353-02160 |
| 63353D | Center roof lining lining | 63353-02170 |
