Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401

Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 20 PNC and OE references.

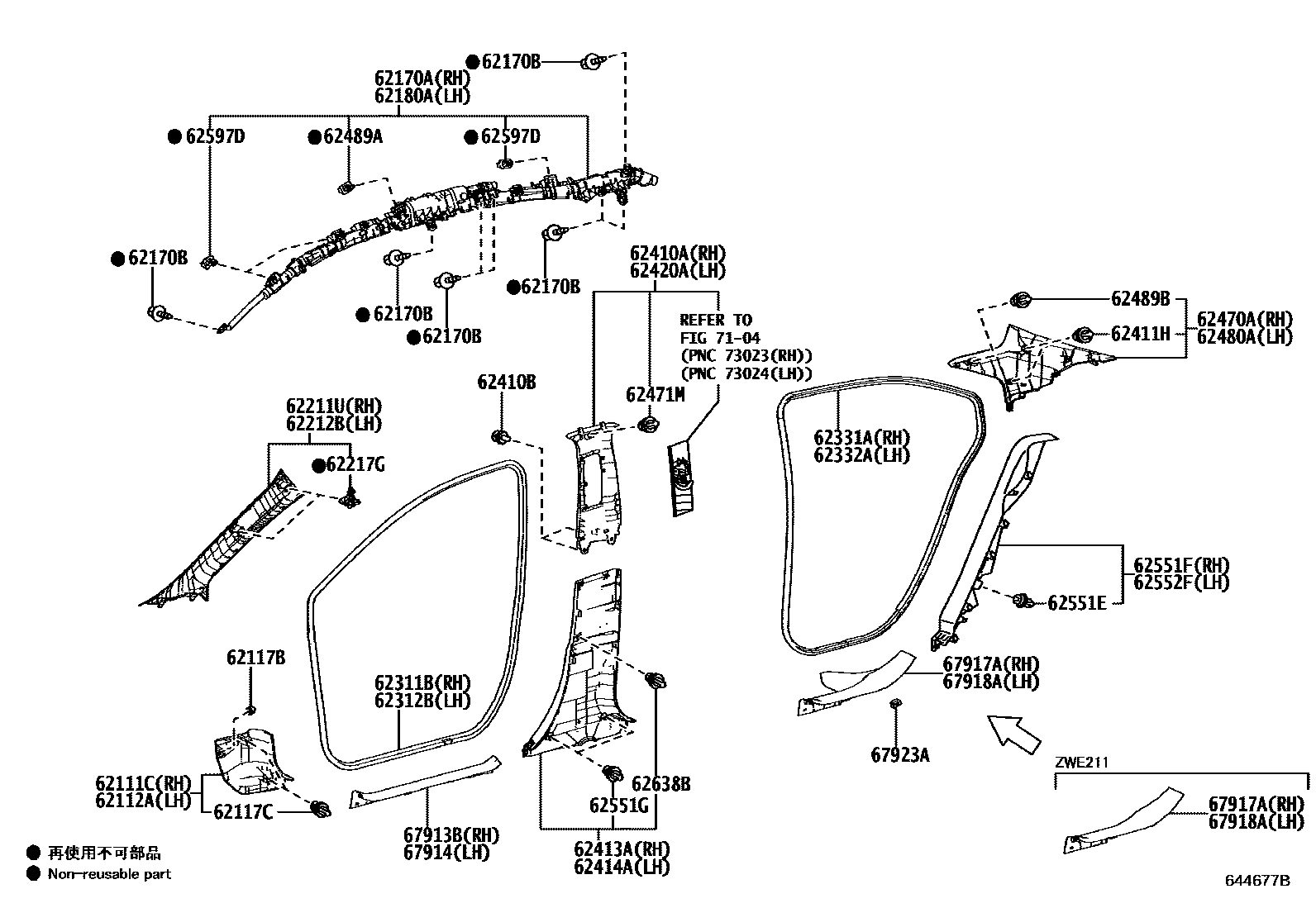

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — 644677B
内饰板和车门防水胶条 — 644677B (201909 – 999999)

PNC and OE references

PNCPart nameOE numbers
62117BNo. 1 clip (for cowl side trim panel)90467-06147
62117CNo. 2 clip (for cowl side trim panel)90467-10167
62170ARight curtain air bag assembly62170-02300 · 62170-02340
62170BBolts with washers91673-80616
62180ALeft curtain air bag assembly62180-02280 · 62180-02320
62217GFront pillar decorative plate clip62217-42050
62311BRight front door opening waterproof tape62311-02380
62312BLeft front door opening waterproof tape62312-02390
62331ARight rear door opening waterproof tape62331-02420
62332ALeft rear door opening waterproof tape62332-02420
62410Bclip90467-10216
62411Hclip90467-10161
62471Mclip90467-10167
62489ARoof side interior panel clips62489-28010
62489BRoof side interior panel clips90467-10188
62551EClips (for rear seat side trim panels)62217-13010
62551Gclip90467-09236
62597Dclip90467-18017
62638Bclip90467-10161
67923ACar door No. 1 wear plate clip67923-20090
